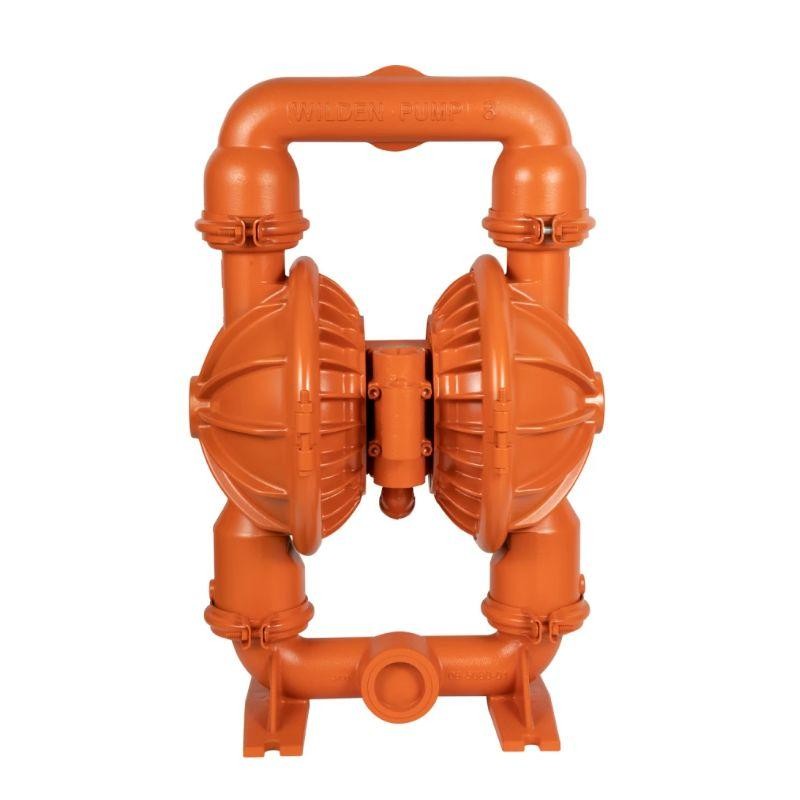

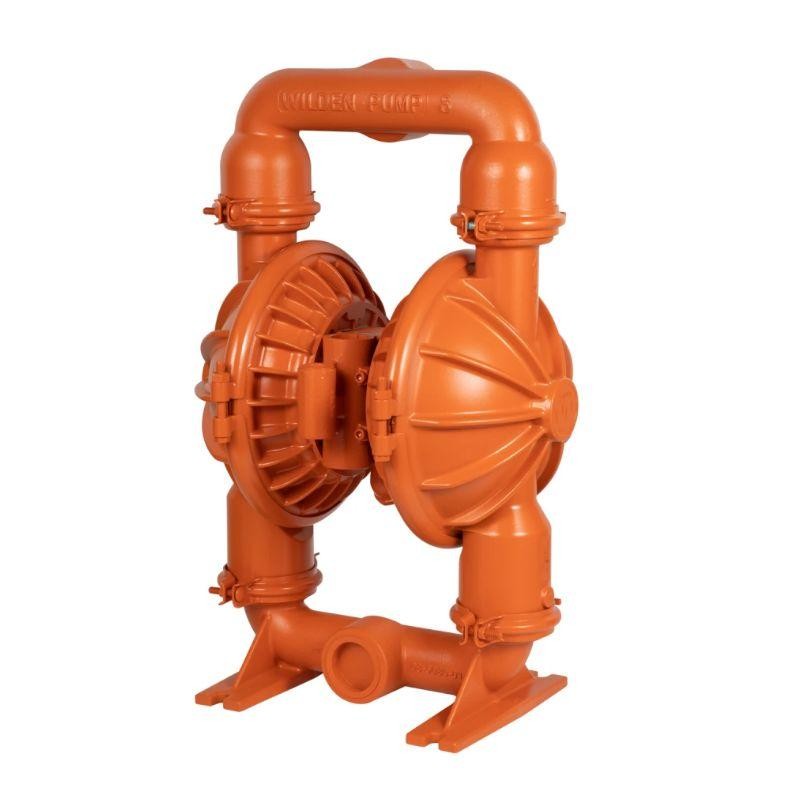

2" Turbo-Flo Series Clamp-On Metal Pumps

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the T8 Metal Manual.

Flow Curve – TPE-Fitted

Note: Additional performance curves can be found in the T8 Metal Manual.

AIR INLET

• 3/4" FNPT

LIQUID INLET

• 51 mm (2")

LIQUID DISCHARGE

• 51 mm (2")

CONNECTION TYPE

• NPT/BSPT (Threaded)

MAX FLOW RATE

• Rubber – 617 lpm (163 gpm)

• TPE – 613 lpm (162 gpm)

• PTFE – 534 lpm (141 gpm)

MAX PRESSURE

• 8.6 bar (125 psi)

MAX DIAMETER SOLIDS

• 6.4 mm (1/4'')

MAX SUCTION LIFT CAPABILITY

• Rubber – 6.4 m (21') Dry, 9.5 m (31') Wet

• TPE – 6.1 m (20') Dry, 9.5 m (31') Wet

• PTFE – 3.7 m (12') Dry, 9.5 m (31') Wet

DISPLACEMENT PER STROKE *

• Rubber – 2.69 L (0.71 gal)

• TPE – 2.8 L (0.74 gal)

• PTFE – 1.51 L (0.40 gal)

* 1 cycle = 2 strokes

Wetted Housings

Non-Wetted Housings
