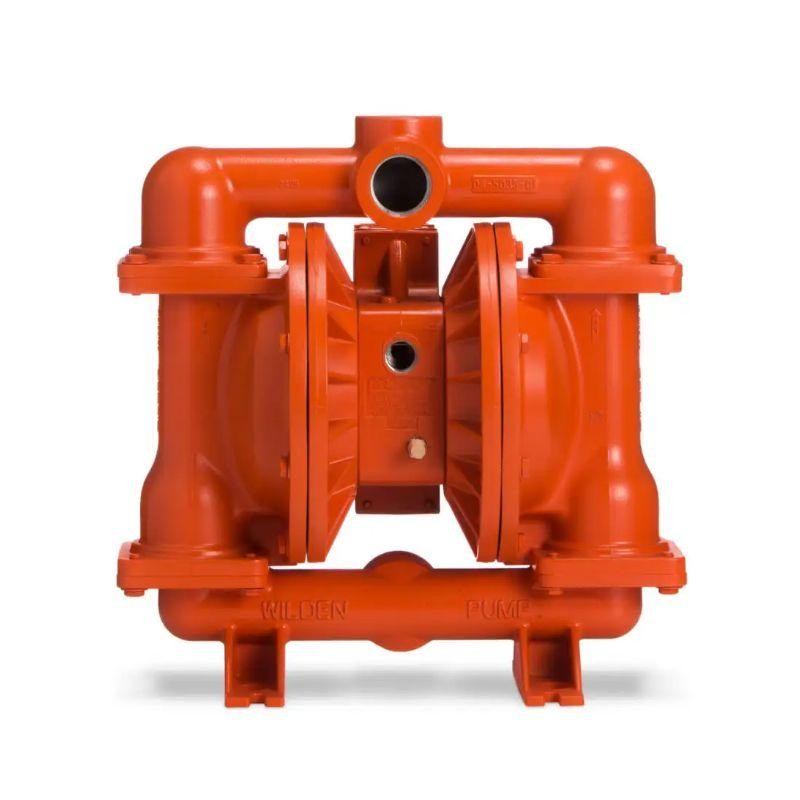

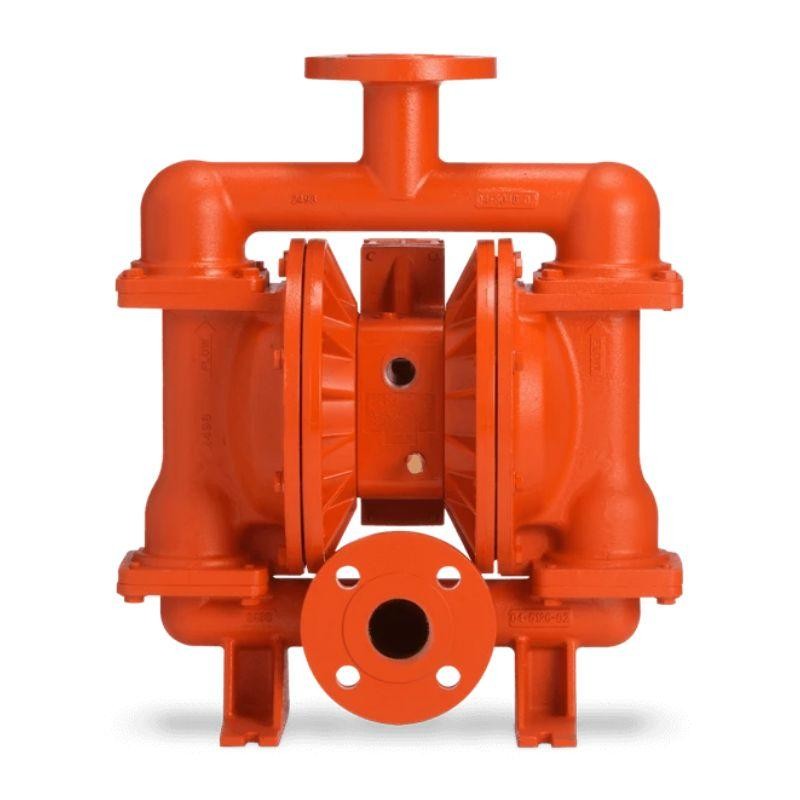

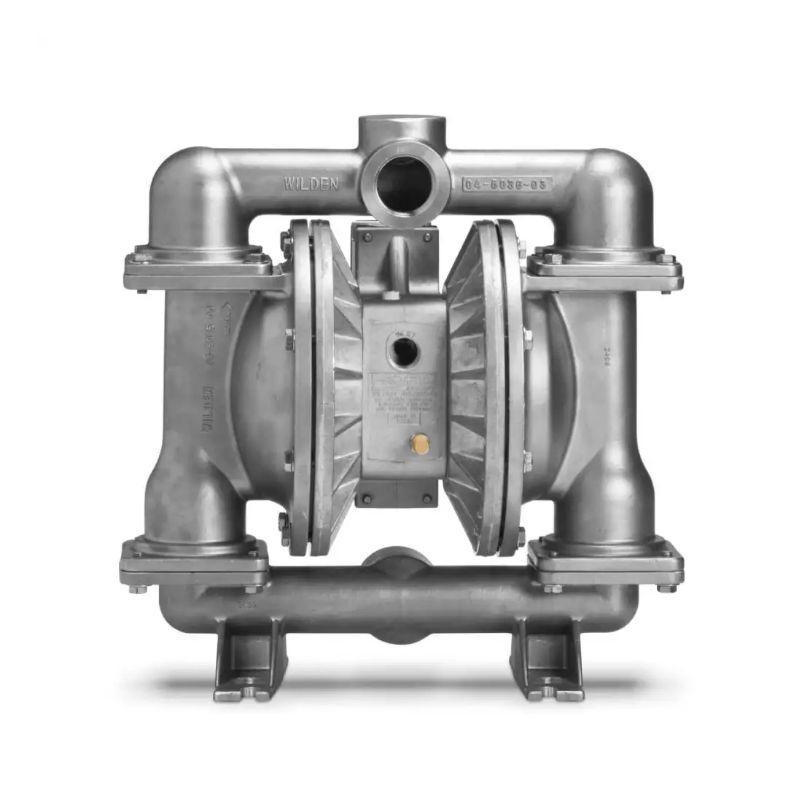

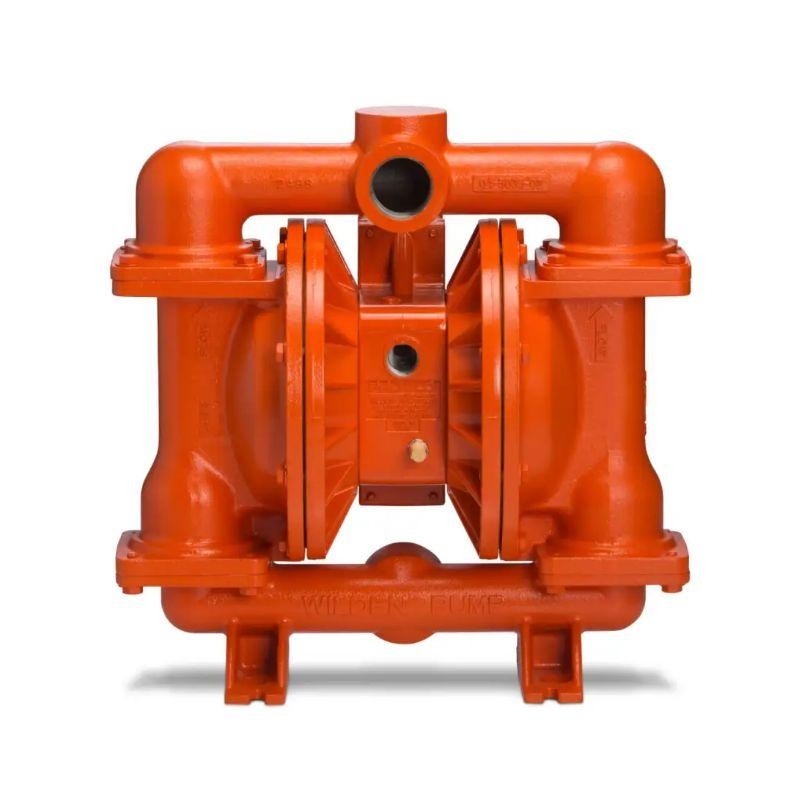

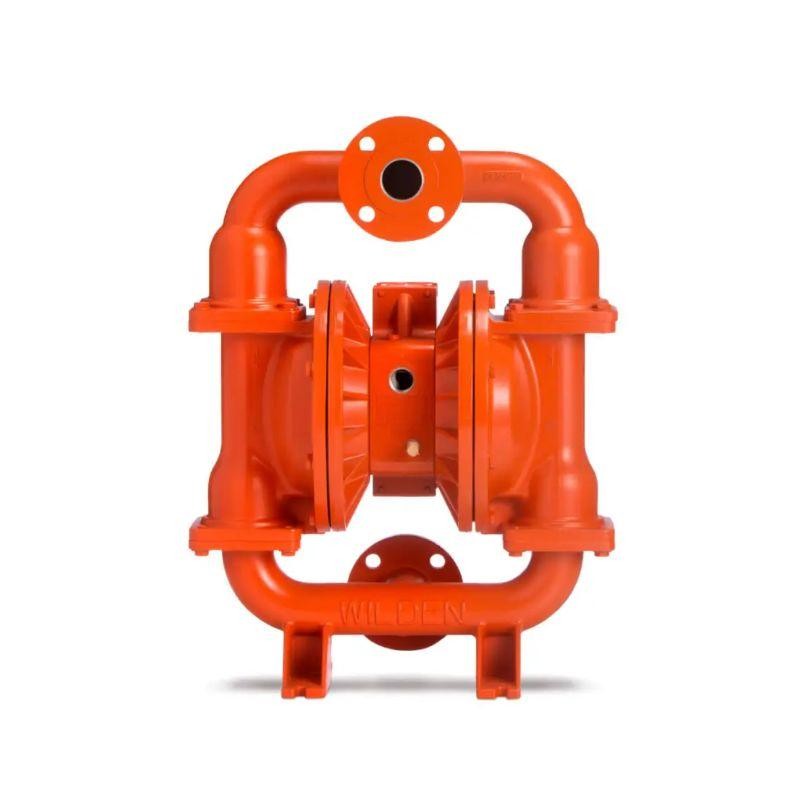

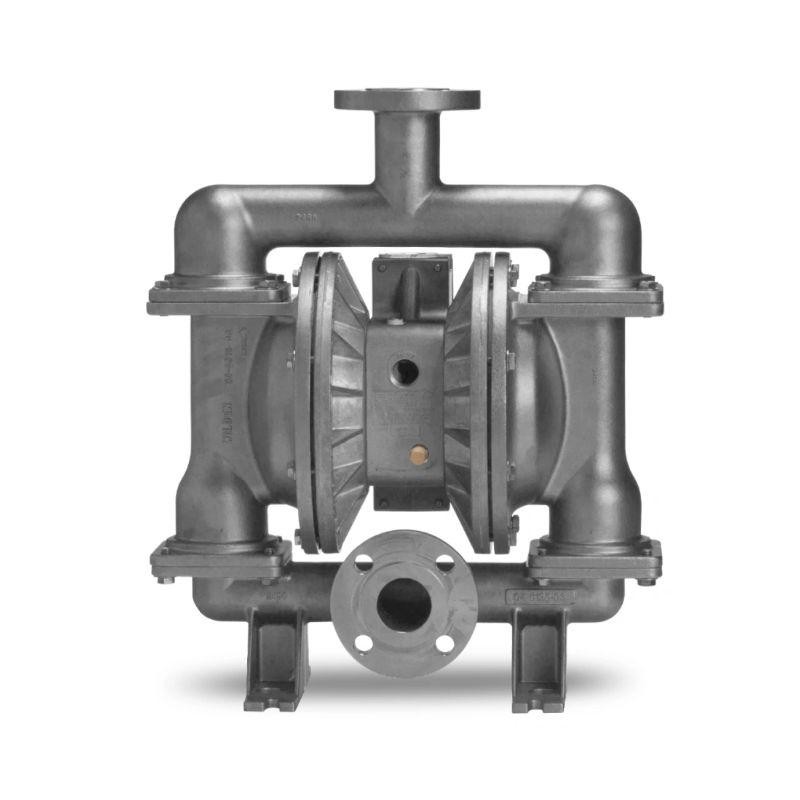

38 mm (1-1/2") Pro-Flo® SHIFT Series Bolted Metal AODD Pump

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the PS420/PS430 Metal Manual.

Flow Curve – EZ-Install TPE-Fitted

Note: Additional performance curves can be found in the PS420/PS430 Metal Manual.

AIR INLET

• 3/4" FNPT

LIQUID INLET

• 38 mm (1-1/2")

LIQUID DISCHARGE

• 38 mm (1-1/2")

CONNECTION TYPE

• NPT/BSPT (Threaded)

• DIN/ANSI (Flanged)

MAX FLOW RATE

• Rubber – 500 lpm (132 gpm)

• EZ-Install TPE – 510 lpm (135 gpm)

• Full-Stroke PTFE – 485 lpm (128 gpm)

MAX PRESSURE

• 8.6 bar (125 psi)

MAX DIAMETER SOLIDS

• 6.4 mm (1/4")

MAX SUCTION LIFT CAPABILITY

• Rubber – 5.9 m (19.5') Dry, 9.0 m (29.5') Wet

• EZ-Install TPE – 6.2 m (20.4') Dry, 9.0 m (29.5') Wet

• Full-Stroke PTFE – 5.5 m (17.9') Dry, 9.3 m (30.6') Wet

DISPLACEMENT PER STROKE *

• Rubber – 1.1 L (0.30 gal)

• EZ-Install TPE – 1.1 L (0.30 gal)

• Full-Stroke PTFE  – 1.1 L (0.30 gal)

* 1 cycle = 2 strokes
