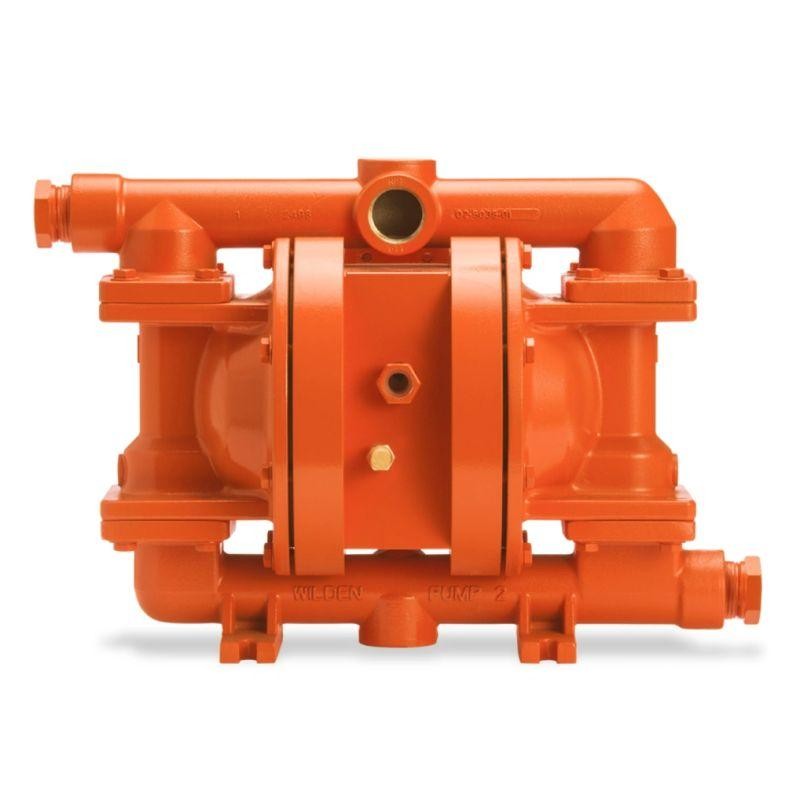

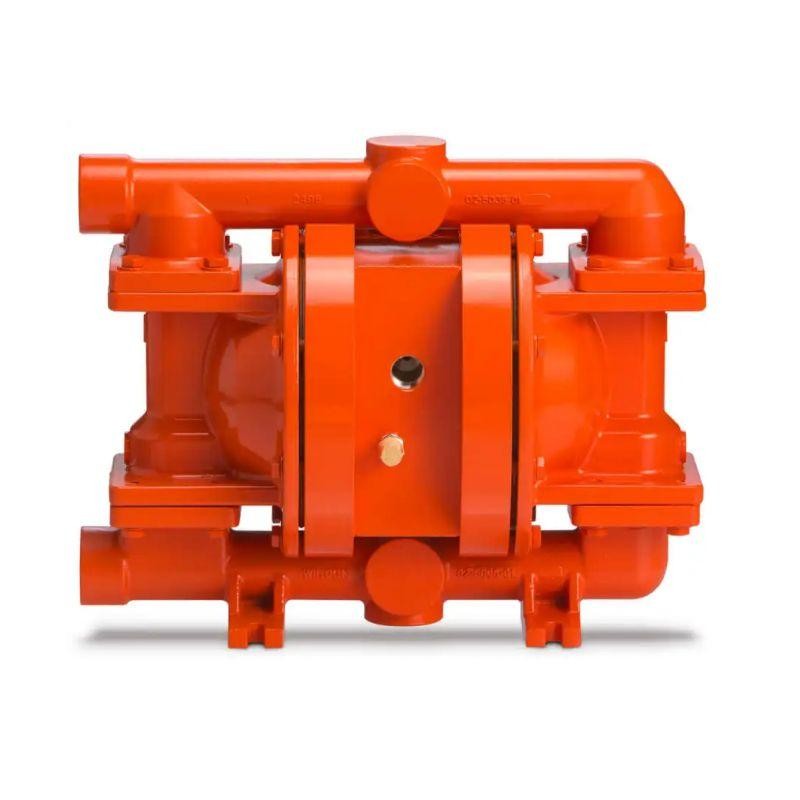

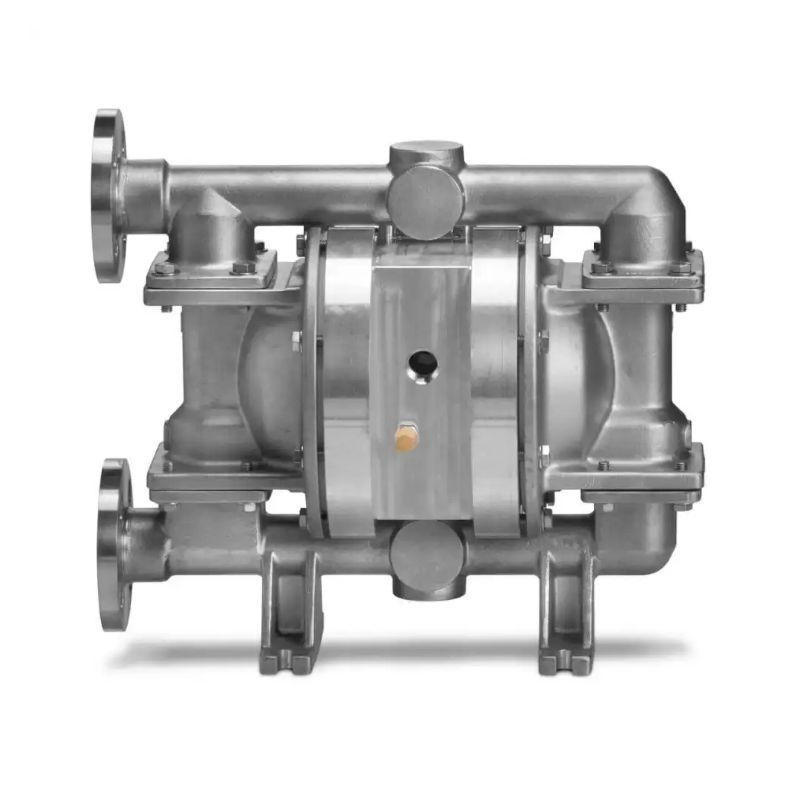

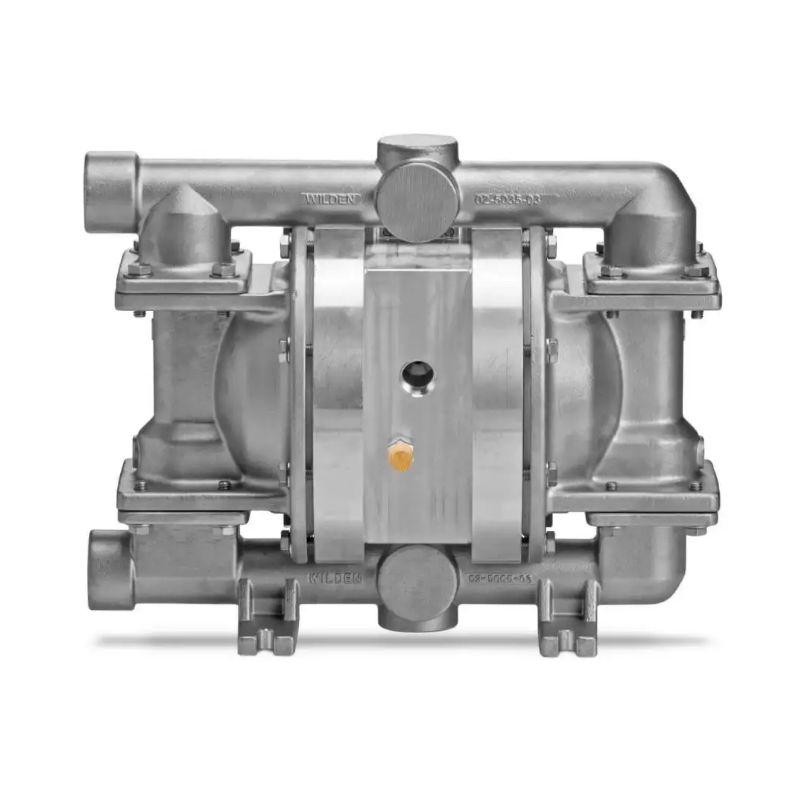

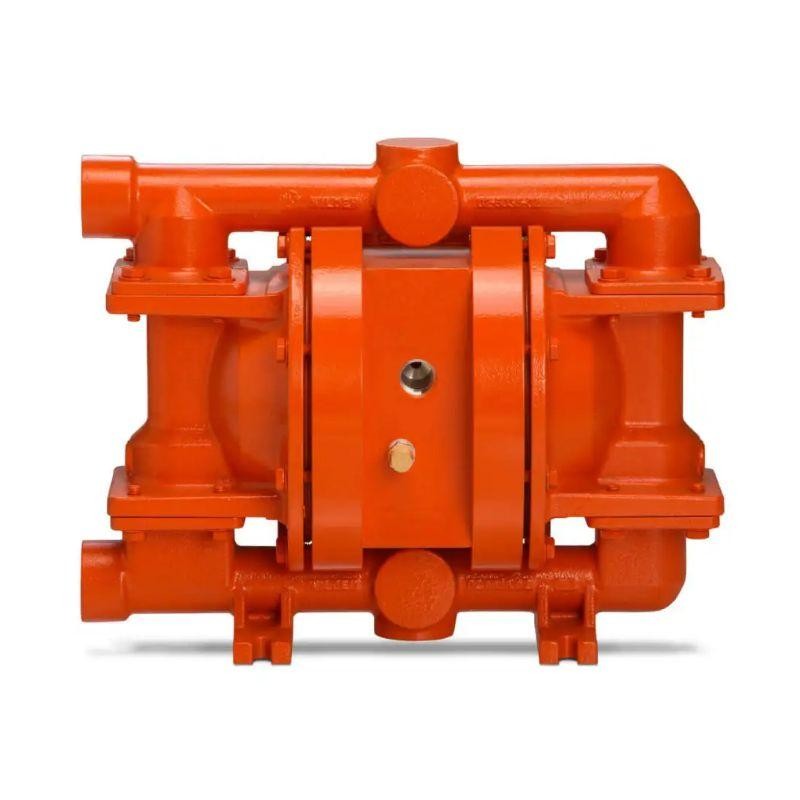

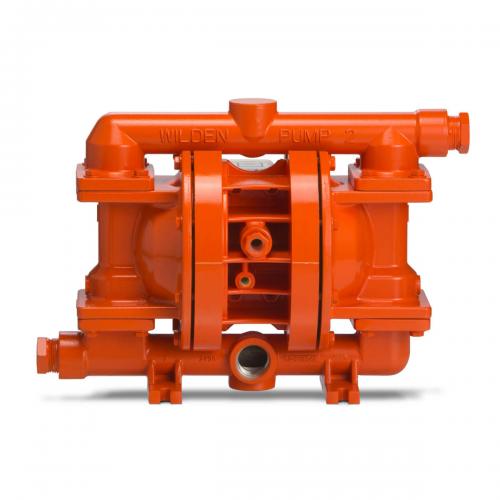

02-12899 XPS22020/AAAAA/BNS/BN/ABN/0677 The Wilden® bolted metal pump, also known as FIT, sets the new standard for pump performance. Featuring an enhanced flow path design, Wilden's bolted-construction pumps offer improved flow rates (up to 35% over competitive models) as well as improved diaphragm life. Wilden's bolted pumps are also designed for superior containment and have the exact bolt down footprint and inlet/discharge connections as Wilden clamped pumps for easy replacement.
1/2" FNPT
25 mm (1")
25 mm (1")
NPT/BSPT (Threaded)
DIN/ANSI (Flanged)
Rubber – 6.9 m (22.7') Dry, 9.0 m (29.5') Wet
TPE – 5.9 m (19.3') Dry, 9.0 m (29.5') Wet
Full-Stroke PTFE – 5.2 m (17.0') Dry, 9.0 m (29.5') Wet
Note: Dimensions vary by material and connection. For additional information, please refer to the PS220/PS230 Metal Manual.
Note: Additional performance curves can be found in the PS220/PS230 Metal Manual.
1/2" FNPT
25 mm (1")
25 mm (1")
NPT/BSPT (Threaded)
DIN/ANSI (Flanged)
Rubber – 204 lpm (54 gpm)
TPE – 212 lpm (56 gpm)
Full-Stroke PTFE – 197 lpm (52 gpm)
8.6 bar (125 psi)
6.4 mm (1/4")
Rubber – 6.9 m (22.7') Dry, 9.0 m (29.5') Wet
TPE – 5.9 m (19.3') Dry, 9.0 m (29.5') Wet
Full-Stroke PTFE – 5.2 m (17.0') Dry, 9.0 m (29.5') Wet
Rubber – 0.30 L (0.08 gal)
TPE – 0.26 L (0.07 gal)
Full-Stroke PTFE – 0.30 L (0.08 gal)
| MATERIAL | SHIP WEIGHT |
|---|---|
| Aluminum | 19 kg (41 lb) |
| Ductile Iron | 29 kg (64 lb) |
| Stainless Steel | 31 kg (68 lb) |
| Alloy C | 36 kg (80 lb) |
| DESCRIPTION | MATERIAL |
|---|---|
| Center Section | Aluminum |
| Air Valve | Aluminum |
