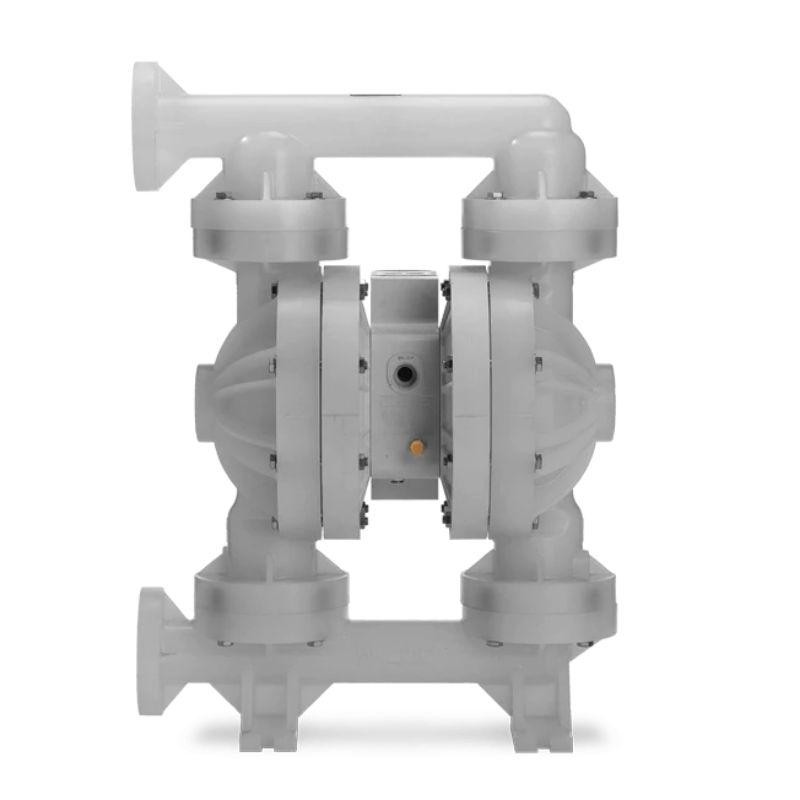

WILDEN 38 mm 1.5 inch Pro-Flo® SHIFT Series Bolted Plastic AODD Pump 04-13305 PS400/PPPPP/ZWS/WF/KWF/0504

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the PS400 Plastic Manual.

Flow Curve – EZ-Install TPE-Fitted

Note: Additional performance curves can be found in the PS400 Plastic Manual.

AIR INLET

• 3/4" FNPT

LIQUID INLET

• 38 mm (1-1/2")

LIQUID DISCHARGE

• 38 mm (1-1/2")

CONNECTION TYPE

• DIN/ANSI (Flanged)

MAX FLOW RATE

• Rubber – 458 lpm (121 gpm)

• EZ-Install TPE – 447 lpm (118 gpm)

• Full-Stroke PTFE – 447 lpm (118 gpm)

MAX PRESSURE

• 8.6 bar (125 psi)

MAXIMUM DIAMETER SOLIDS

• 6.4 mm (1/4')

MAX SUCTION LIFT CAPABILITY

• Rubber – 5.4 m (17.6') Dry, 9.0 m (29.5') Wet

• EZ-Install TPE – 4.0 m (13.1') Dry, 9.0 m (29.5') Wet

• Full-Stroke PTFE – 5.6 m (18.4') Dry, 9.0 m (29.5') Wet

DISPLACEMENT PER STROKE *

• Rubber – 1.1 L (0.28 gal)

• EZ-Install TPE – 1.1 L (0.28 gal)

• Full-Stroke PTFE – 1.0 L (0.27 gal)

* 1 cycle = 2 strokes

Wetted Housings

Non-Wetted Housings
