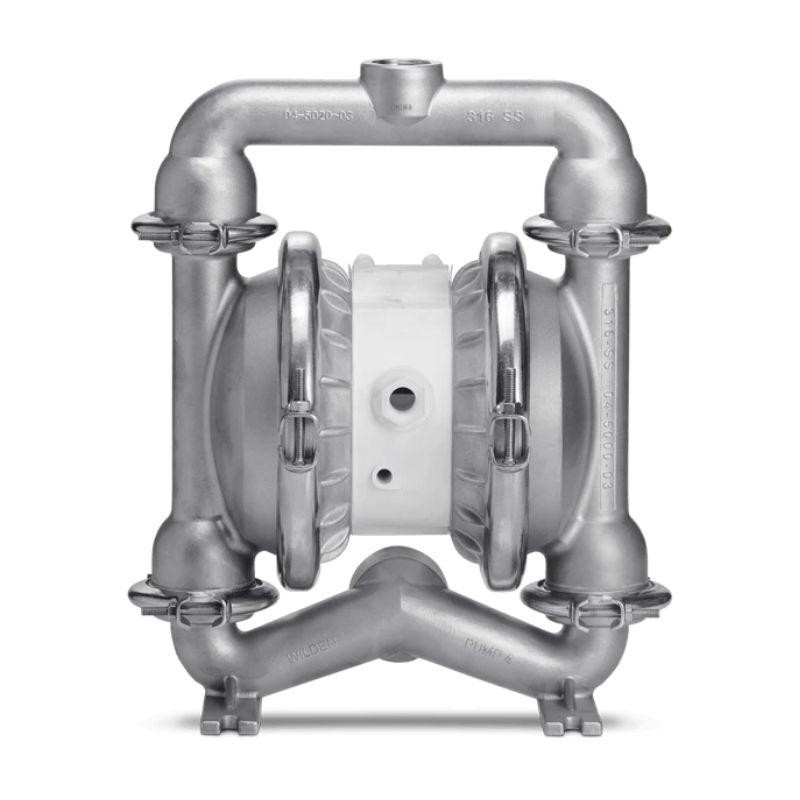

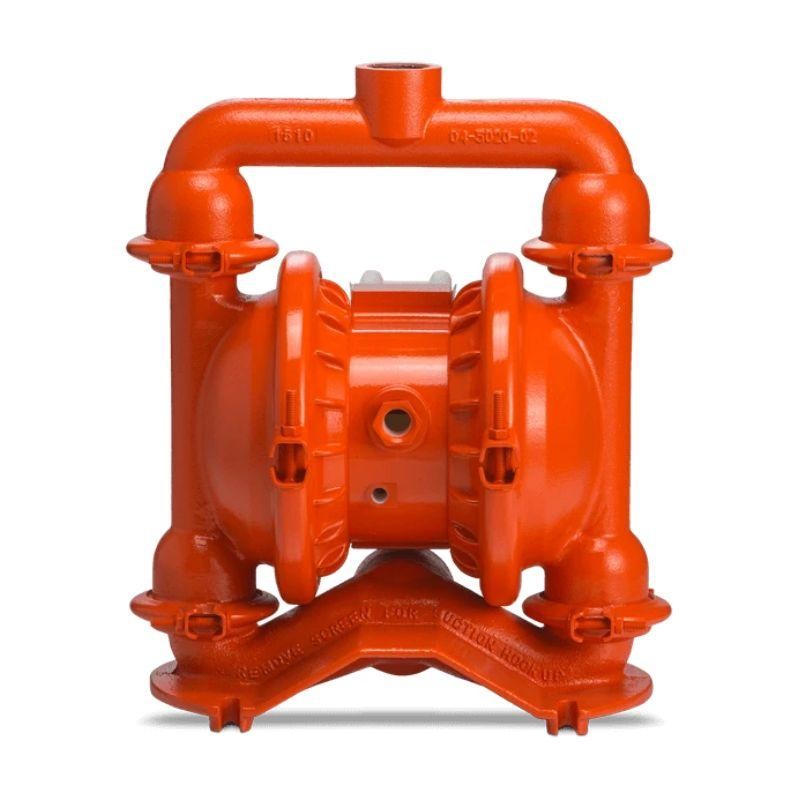

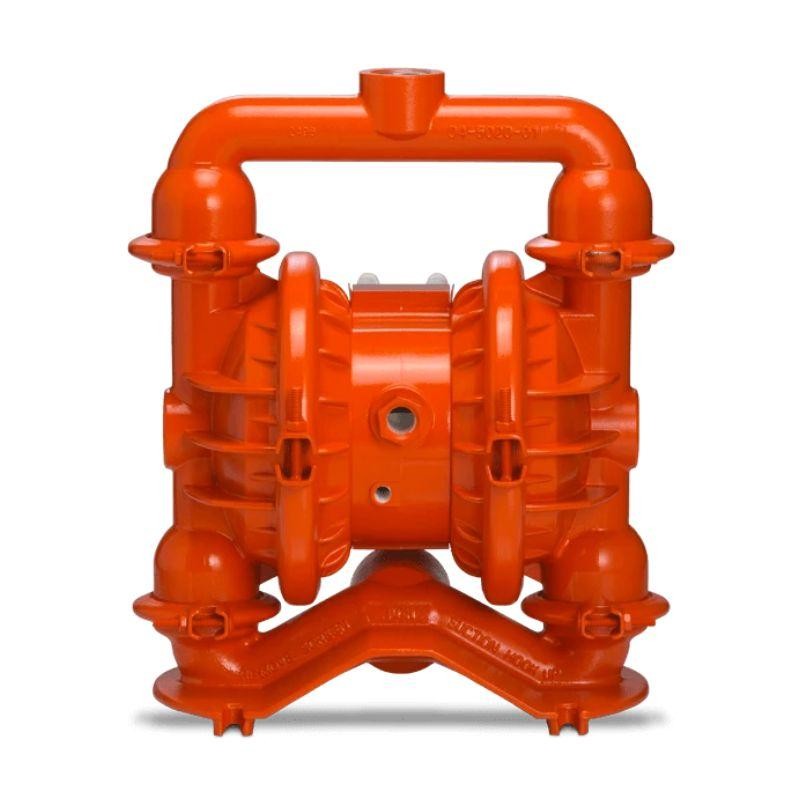

WILDEN 38 mm Clamped Metal AODD Pump 04-13063 P4/AAAPP/ZGS/BN/BN

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the P4 Metal Manual.

Flow Curve – TPE-Fitted

Note: Additional performance curves can be found in the P4 Metal Manual.

AIR INLET

• 1/2" FNPT

LIQUID INLET

• 38 mm (1-1/2")

LIQUID DISCHARGE

• 32 mm (1-1/4")

CONNECTION TYPE

• NPT/BSPT (Threaded)

MAX FLOW RATE

• Rubber – 288 lpm (76 gpm)

• TPE – 307 lpm (81 gpm)

• Full-Stroke PTFE – 330 lpm (87.2 gpm)

• Reduced-Stroke PTFE – 295 lpm (78 gpm)

• Ultra-Flex™ – 269 lpm (71 gpm)

MAX PRESSURE

• 8.6 bar (125 psi)

MAX DIAMETER SOLIDS

• 4.8 mm (3/16'')

MAX SUCTION LIFT CAPABILITY

• Rubber – 5.8 m (19.0') Dry, 8.0 (26.0') Wet

• TPE – 5.2 m (17.0') Dry, 8.8 m (29.0') Wet

• Full-Stroke PTFE – 6.4 m (21.0') Dry, 9.3 m (30.6') Wet

• Reduced-Stroke PTFE – 3.7 m (12') Dry, 8.5 m (28') Wet

• Ultra-Flex™ – 5.2 m (17.0') Dry, 8.5 m (28.0') Wet

DISPLACEMENT PER STROKE *

• Rubber – 0.98 L (0.26 gal)

• TPE – 1.1 L (0.29 gal)

• Full-Stroke PTFE – 1.1 L (0.29 gal)

• Reduced-Stroke PTFE – 0.53 L (0.14 gal)

• Ultra-Flex™ – .76 L (0.20 gal)

* 1 cycle = 2 strokes

Wetted Housings

Non-Wetted Housings
