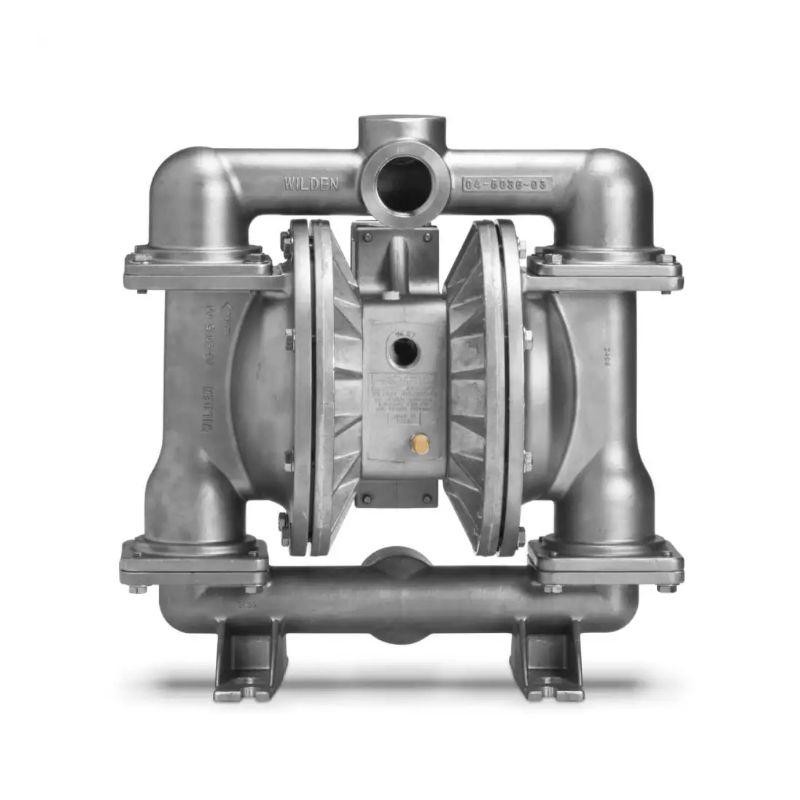

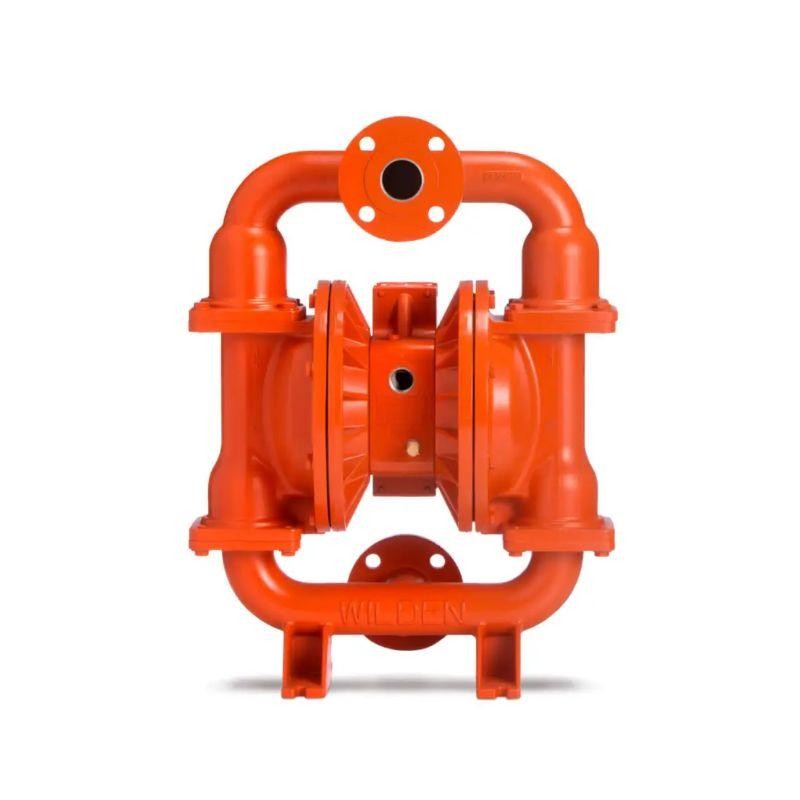

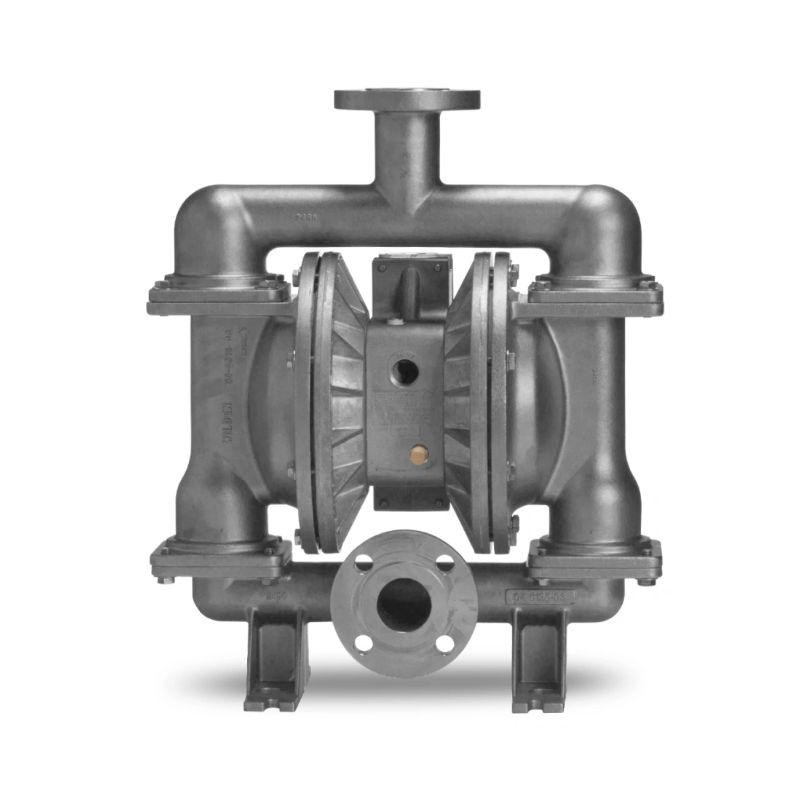

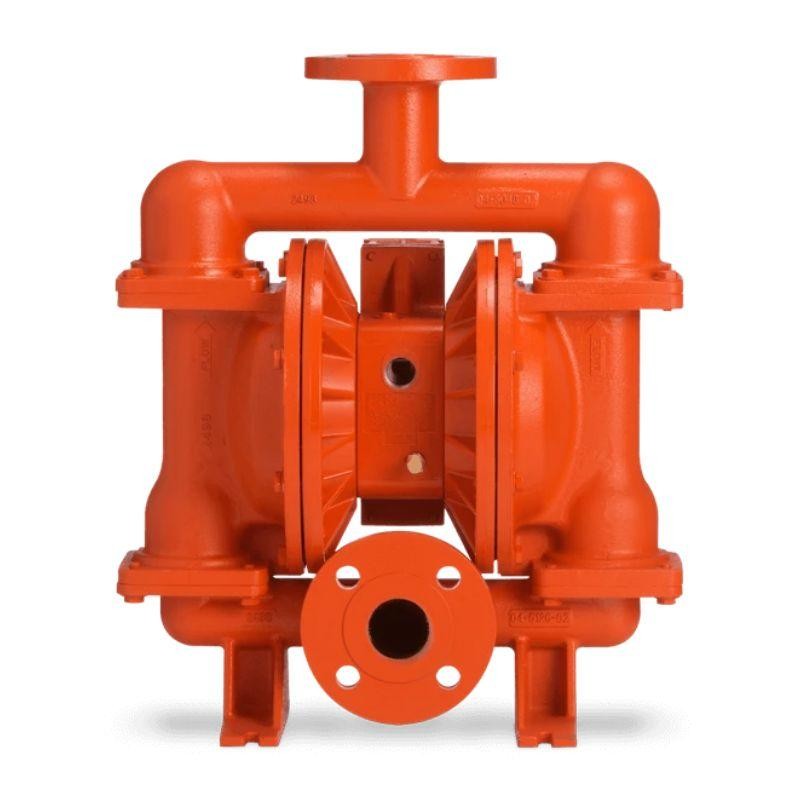

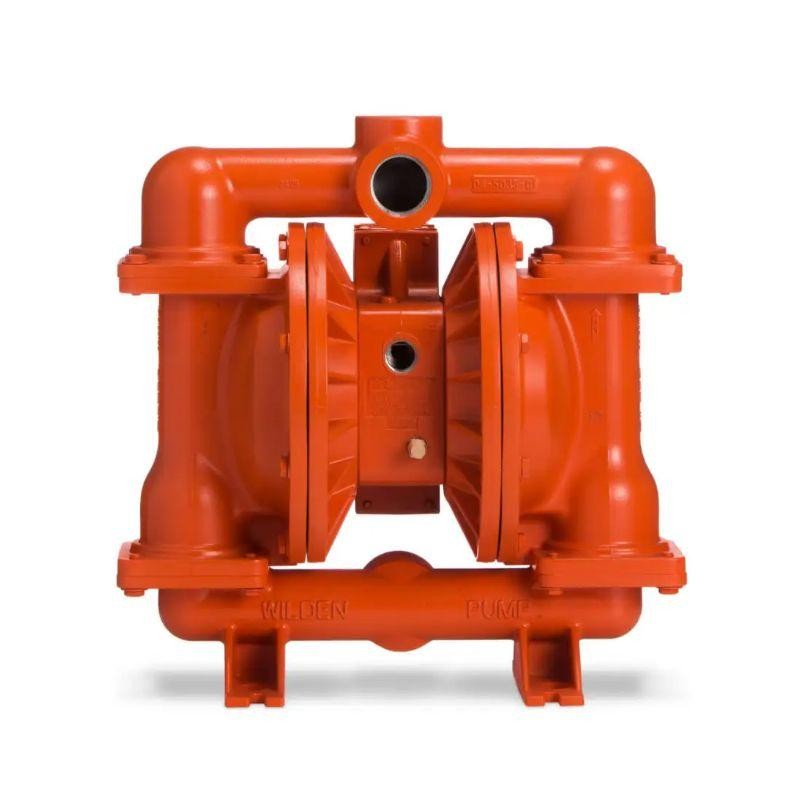

04-13240 XPS420/SSAAA/NES/NE/NE/0652 The Wilden® bolted metal pump, also known as FIT, sets the new standard for pump performance. Featuring an enhanced flow path design, Wilden's bolted-construction pumps offer improved flow rates (up to 35% over competitive models) as well as improved diaphragm life. Wilden's bolted pumps are also designed for superior containment and have the exact bolt down footprint and inlet/discharge connections as Wilden clamped pumps for easy replacement.
3/4" FNPT
38 mm (1-1/2")
38 mm (1-1/2")
NPT/BSPT (Threaded)
DIN/ANSI (Flanged)
Rubber – 5.9 m (19.5') Dry, 9.0 m (29.5') Wet
EZ-Install TPE – 6.2 m (20.4') Dry, 9.0 m (29.5') Wet
Full-Stroke PTFE – 5.5 m (17.9') Dry, 9.3 m (30.6') Wet
Note: Dimensions vary by material and connection. For additional information, please refer to the PS420/PS430 Metal Manual.
Note: Additional performance curves can be found in the PS420/PS430 Metal Manual.
3/4" FNPT
38 mm (1-1/2")
38 mm (1-1/2")
NPT/BSPT (Threaded)
DIN/ANSI (Flanged)
Rubber – 500 lpm (132 gpm)
EZ-Install TPE – 510 lpm (135 gpm)
Full-Stroke PTFE – 485 lpm (128 gpm)
8.6 bar (125 psi)
6.4 mm (1/4")
Rubber – 5.9 m (19.5') Dry, 9.0 m (29.5') Wet
EZ-Install TPE – 6.2 m (20.4') Dry, 9.0 m (29.5') Wet
Full-Stroke PTFE – 5.5 m (17.9') Dry, 9.3 m (30.6') Wet
Rubber – 1.1 L (0.30 gal)
EZ-Install TPE – 1.1 L (0.30 gal)
Full-Stroke PTFE – 1.1 L (0.30 gal)
| MATERIAL | SHIP WEIGHT |
|---|---|
| Aluminum | 26 kg (57 lb) (PS420) 28 kg (62 lb) (PS430) |
| Ductile Iron | 39 kg (86 lb) (PS420) 42 kg (92 lb) (PS430) |
| Stainless Steel | 50 kg (111 lb) (PS420) 53 kg (116 lb) (PS430) |
| DESCRIPTION | MATERIAL |
|---|---|
| Center Section | Aluminum, Polypropylene, Stainless Steel |
| Air Valve | Aluminum, Anodized Aluminum, Polypropylene, Stainless Steel |
| Air Chamber | Aluminum, Stainless Steel |
