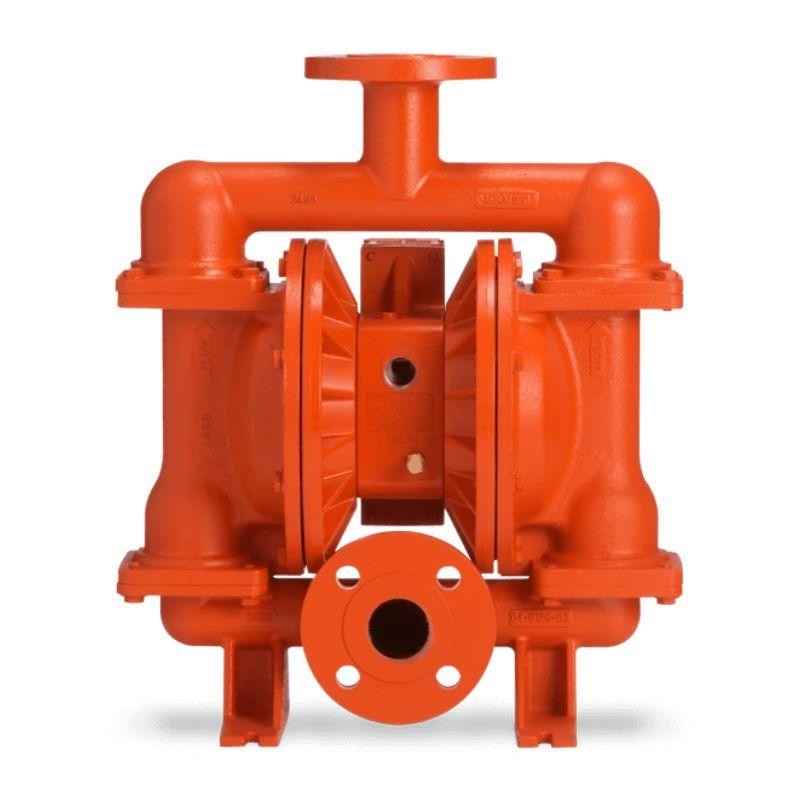

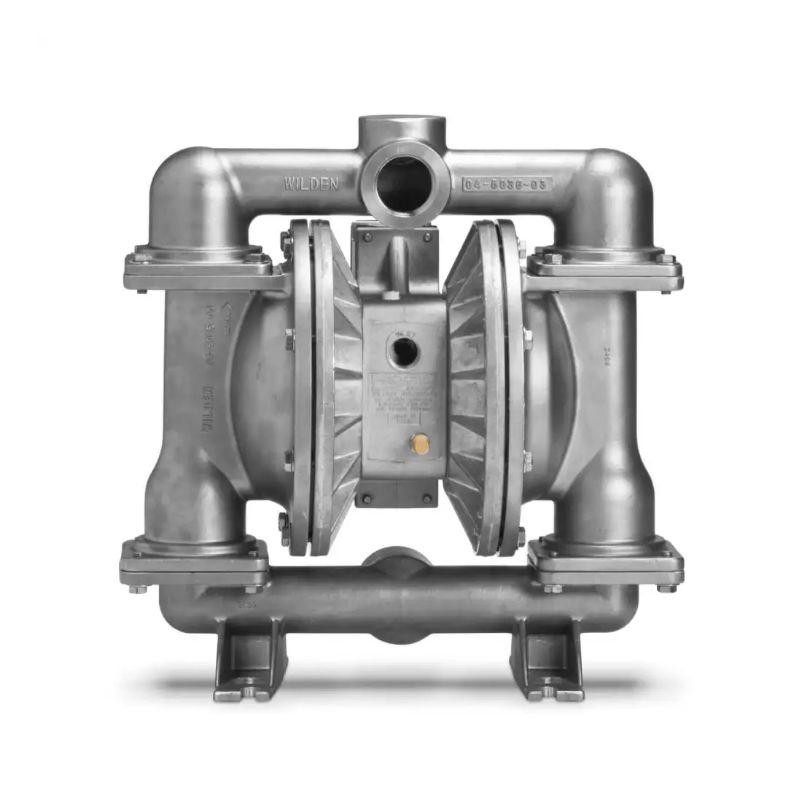

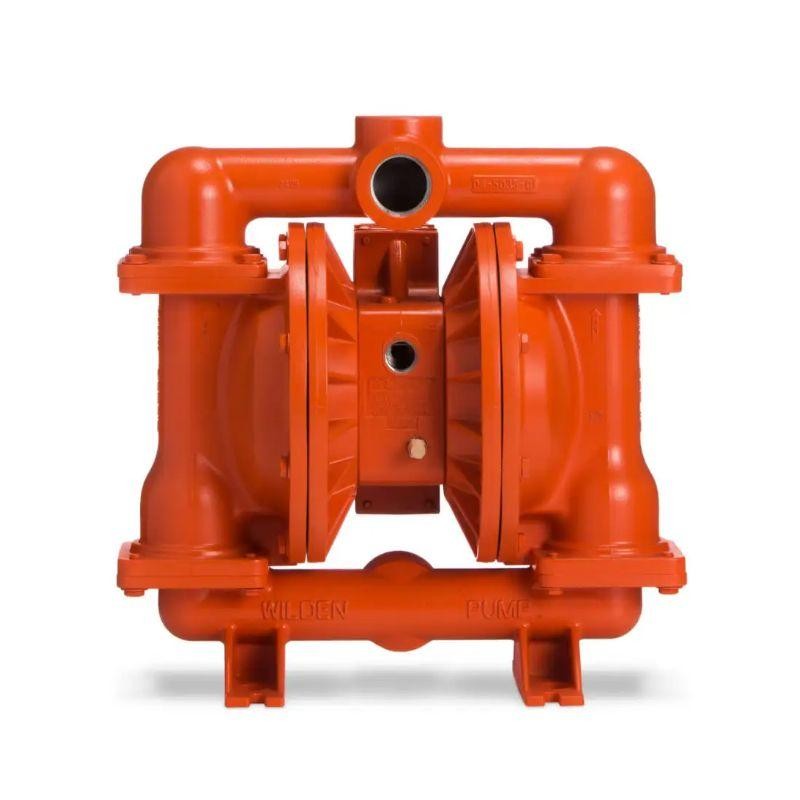

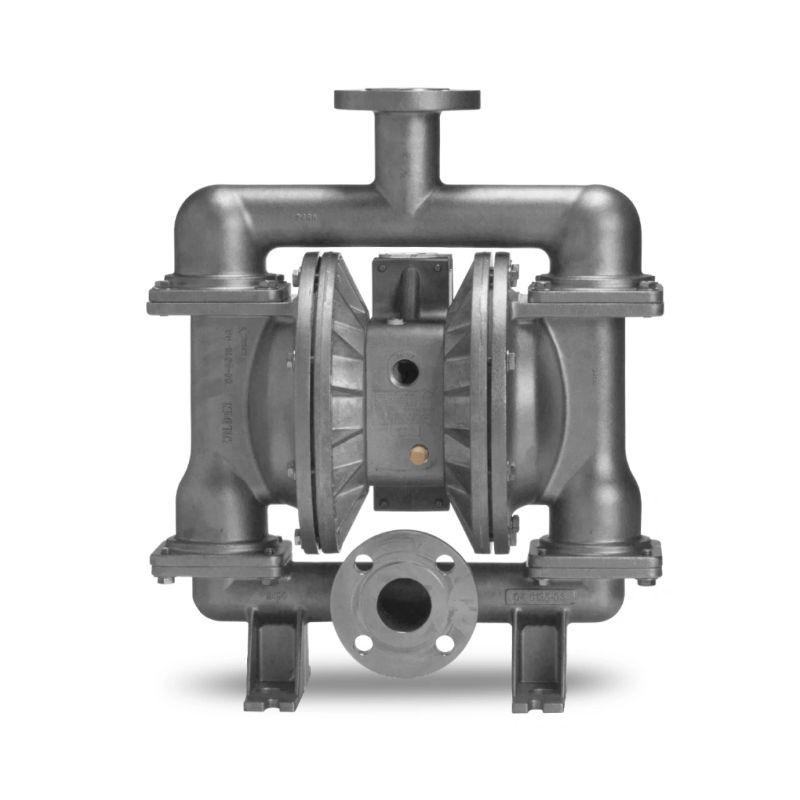

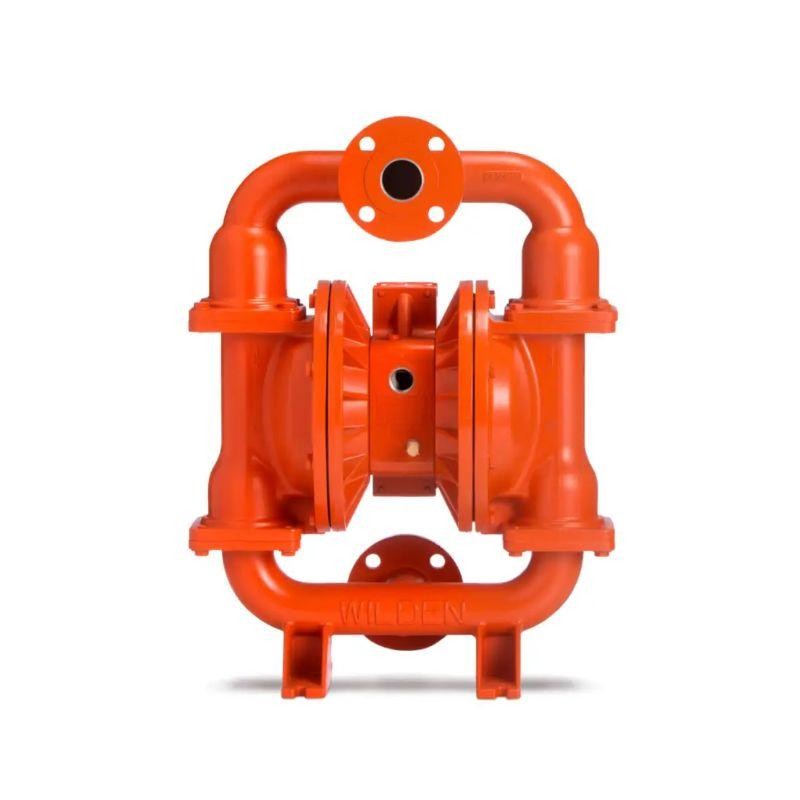

04-13077 XPS420/SSAAA/ZGS/BN/BN/0014 The Wilden® bolted metal pump, also known as FIT, sets the new standard for pump performance. Featuring an enhanced flow path design, Wilden's bolted-construction pumps offer improved flow rates (up to 35% over competitive models) as well as improved diaphragm life. Wilden's bolted pumps are also designed for superior containment and have the exact bolt down footprint and inlet/discharge connections as Wilden clamped pumps for easy replacement.
3/4" FNPT
38 mm (1-1/2")
38 mm (1-1/2")
NPT/BSPT (Threaded)
DIN/ANSI (Flanged)
Rubber – 5.9 m (19.5') Dry, 9.0 m (29.5') Wet
EZ-Install TPE – 6.2 m (20.4') Dry, 9.0 m (29.5') Wet
Full-Stroke PTFE – 5.5 m (17.9') Dry, 9.3 m (30.6') Wet
Note: Dimensions vary by material and connection. For additional information, please refer to the PS420/PS430 Metal Manual.
Note: Additional performance curves can be found in the PS420/PS430 Metal Manual.
3/4" FNPT
38 mm (1-1/2")
38 mm (1-1/2")
NPT/BSPT (Threaded)
DIN/ANSI (Flanged)
Rubber – 500 lpm (132 gpm)
EZ-Install TPE – 510 lpm (135 gpm)
Full-Stroke PTFE – 485 lpm (128 gpm)
8.6 bar (125 psi)
6.4 mm (1/4")
Rubber – 5.9 m (19.5') Dry, 9.0 m (29.5') Wet
EZ-Install TPE – 6.2 m (20.4') Dry, 9.0 m (29.5') Wet
Full-Stroke PTFE – 5.5 m (17.9') Dry, 9.3 m (30.6') Wet
Rubber – 1.1 L (0.30 gal)
EZ-Install TPE – 1.1 L (0.30 gal)
Full-Stroke PTFE – 1.1 L (0.30 gal)
| MATERIAL | SHIP WEIGHT |
|---|---|
| Aluminum | 26 kg (57 lb) (PS420) 28 kg (62 lb) (PS430) |
| Ductile Iron | 39 kg (86 lb) (PS420) 42 kg (92 lb) (PS430) |
| Stainless Steel | 50 kg (111 lb) (PS420) 53 kg (116 lb) (PS430) |
| DESCRIPTION | MATERIAL |
|---|---|
| Center Section | Aluminum, Polypropylene, Stainless Steel |
| Air Valve | Aluminum, Anodized Aluminum, Polypropylene, Stainless Steel |
| Air Chamber | Aluminum, Stainless Steel |
Other models are recommended：
| Numbering | Description | Numbering | Description |
| 04-13266 | PS420/SSSPP/TWS/TF/STF | 04-13230 | XPS420/SSSSS/VTS/VT/VT/0651 |
| 04-13267 | PS420/SSSPP/TWS/TF/STF/0014 | 04-13231 | XPS420/SSSSS/VTS/VT/VT/0652 |
| 04-13274 | PS420/SSSPP/TWS/TF/STF/0651 | 04-13220 | XPS420/SSSSS/ZWS/WF/WF |
| 04-13275 | PS420/SSSPP/TWS/TF/STF/0652 | 04-13221 | XPS420/SSSSS/ZWS/WF/WF/0014 |
| 04-13272 | PS420/SSSPP/VTS/VT/VT | 04-13228 | XPS420/SSSSS/ZWS/WF/WF/0651 |
| 04-13273 | PS420/SSSPP/VTS/VT/VT/0014 | 04-13229 | XPS420/SSSSS/ZWS/WF/WF/0652 |
| 04-13280 | PS420/SSSPP/VTS/VT/VT/0651 | 04-13425 | XPS420/SZAAA/LEL/TF/STF/0014 |
| 04-13281 | PS420/SSSPP/VTS/VT/VT/0652 | 04-13957 | XPS420/SZAAA/WWL/WF/WF |
| 04-13270 | PS420/SSSPP/ZWS/WF/WF | 04-13693 | XPS420/WMAAA/BNS/BN/BN |
| 04-13271 | PS420/SSSPP/ZWS/WF/WF/0014 | 04-13694 | XPS420/WMAAA/BNS/BN/BN/0014 |
| 04-13278 | PS420/SSSPP/ZWS/WF/WF/0651 | 04-13703 | XPS420/WMAAA/BNS/BN/BN/0651 |
| 04-13279 | PS420/SSSPP/ZWS/WF/WF/0652 | 04-13704 | XPS420/WMAAA/BNS/BN/BN/0652 |
| 04-13959 | PS430/AAAPP/BNS/BN/BN | 04-13963 | XPS420/WMAAA/EPS/EP/EP/0652 |
| 04-13961 | PS430/AAAPP/EPS/EP/EP | 04-13778 | XPS420/WMAAA/NES/NE/NE |
| 04-13939 | PS430/AAAPP/TWS/TF/ATF | 04-13831 | XPS420/WMAAA/NES/NE/NE/0014 |
| 04-13994 | PS430/SSAAA/TWS/TF/STF/0100 | 04-13691 | XPS420/WMAAA/TWS/TF/MTF |
| 04-13515 | PS430/SSAAA/TWS/TF/STF/0480 | 04-13692 | XPS420/WMAAA/TWS/TF/MTF/0014 |
| 04-13282 | PS430/SSSPP/BNS/BN/BN | 04-13702 | XPS420/WMAAA/TWS/TF/MTF/0652 |
| 04-13343 | PS430/SSSPP/BNS/BN/BN/0504 | 04-13733 | XPS420/WMAAA/VTS/VT/VT |
| 04-13284 | PS430/SSSPP/TWS/TF/STF | 04-13687 | XPS420/WMAAA/ZGS/BN/BN |
| 04-13286 | PS430/SSSPP/TWS/TF/STF/0504 | 04-13688 | XPS420/WMAAA/ZGS/BN/BN/0014 |
| 04-13285 | PS430/SSSPP/ZWS/WF/WF | 04-13689 | XPS420/WMAAA/ZPS/PU/PU |
| 04-13345 | PS430/SSSPP/ZWS/WF/WF/0504 | 04-13690 | XPS420/WMAAA/ZPS/PU/PU/0014 |
| 04-13526 | XPS420/AAAAA/BNS/BN/BN | 04-13762 | XPS420/WMAAA/ZSS/FS/FS |
| 04-13536 | XPS420/AAAAA/BNS/BN/BN/0014 | 04-13685 | XPS420/WMAAA/ZWS/WF/WF |
| 04-13786 | XPS420/AAAAA/BNS/BN/BN/0320 | 04-13686 | XPS420/WMAAA/ZWS/WF/WF/0014 |
| 04-13599 | XPS420/AAAAA/BNS/BN/BN/0651 | 04-13695 | XPS420/WMAAA/ZWS/WF/WF/0651 |
| 04-13602 | XPS420/AAAAA/BNS/BN/BN/0652 | 04-13696 | XPS420/WMAAA/ZWS/WF/WF/0652 |
| 04-13647 | XPS420/AAAAA/EPS/EP/EP | 04-13799 | XPS420/WZAAA/WWL/WF/WF |
| 04-13749 | XPS420/AAAAA/FWS/WF/WF | 04-13560 | XPS430/AAAAA/BNS/BN/BN |
| 04-13549 | XPS420/AAAAA/NES/NE/NE | 04-13566 | XPS430/AAAAA/BNS/BN/BN/0504 |
| 04-13553 | XPS420/AAAAA/NES/NE/NE/0014 | 04-13664 | XPS430/AAAAA/EPS/EP/EP |
| 04-13606 | XPS420/AAAAA/NES/NE/NE/0651 | 04-14178 | XPS430/AAAAA/EPS/EP/EP/0504 |
| 04-13610 | XPS420/AAAAA/NES/NE/NE/0652 | 04-13577 | XPS430/AAAAA/NES/NE/NE |
| 04-13527 | XPS420/AAAAA/TWS/TF/ATF | 04-13581 | XPS430/AAAAA/NES/NE/NE/0504 |
| 04-13537 | XPS420/AAAAA/TWS/TF/ATF/0014 | 04-13561 | XPS430/AAAAA/TWS/TF/ATF |
| 04-13600 | XPS420/AAAAA/TWS/TF/ATF/0651 | 04-13567 | XPS430/AAAAA/TWS/TF/ATF/0504 |
| 04-13603 | XPS420/AAAAA/TWS/TF/ATF/0652 | 04-13764 | XPS430/AAAAA/TWS/TF/STF |
| 04-13679 | XPS420/AAAAA/TWS/TF/STF | 04-13941 | XPS430/AAAAA/VTS/TF/ATF |
| 04-13822 | XPS420/AAAAA/TWS/TF/STF/0652 | 04-13940 | XPS430/AAAAA/VTS/VT/VT |
| 04-13678 | XPS420/AAAAA/VTS/VT/VT | 04-13850 | XPS430/AAAAA/VTS/VT/VT/0504 |
| 04-13821 | XPS420/AAAAA/VTS/VT/VT/0651 | 04-14002 | XPS430/AAAAA/XBS/BN/BN/0504 |
| 04-13552 | XPS420/AAAAA/ZGS/BN/BN | 04-13580 | XPS430/AAAAA/ZGS/BN/BN |
| 04-13556 | XPS420/AAAAA/ZGS/BN/BN/0014 | 04-13584 | XPS430/AAAAA/ZGS/BN/BN/0504 |
| 04-13671 | XPS420/AAAAA/ZGS/BN/BN/0320 | 04-13951 | XPS430/AAAAA/ZSS/VT/VT |
| 04-13609 | XPS420/AAAAA/ZGS/BN/BN/0651 | 04-14218 | XPS430/AAAAA/ZWS/TF/STF |
| 04-13613 | XPS420/AAAAA/ZGS/BN/BN/0652 | 04-13562 | XPS430/AAAAA/ZWS/WF/WF |
| 04-13540 | XPS420/AAAAA/ZSS/FS/FS | 04-13568 | XPS430/AAAAA/ZWS/WF/WF/0504 |
| 04-13605 | XPS420/AAAAA/ZSS/FS/FS/0651 | 04-13798 | XPS430/AZAAA/WWL/WF/WF |
| 04-13528 | XPS420/AAAAA/ZWS/WF/WF | 04-13186 | XPS430/SSAAA/BNS/BN/BN |
| 04-13538 | XPS420/AAAAA/ZWS/WF/WF/0014 | 04-13339 | XPS430/SSAAA/BNS/BN/BN/0504 |
| 04-13601 | XPS420/AAAAA/ZWS/WF/WF/0651 | 04-13456 | XPS430/SSAAA/EPS/EP/EP |
| 04-13604 | XPS420/AAAAA/ZWS/WF/WF/0652 | 04-13774 | XPS430/SSAAA/EPS/EP/EP/0504 |
| 04-13797 | XPS420/AZAAA/WWL/WF/WF | 04-13653 | XPS430/SSAAA/NES/NE/NE |
| 04-14057 | XPS420/AZAAA/WWL/WF/WF/0014 | 04-14145 | XPS430/SSAAA/NES/NE/NE/0504 |
| 04-12958 | XPS420/SSAAA/BNS/BN/BN | 04-13188 | XPS430/SSAAA/TWS/TF/STF |
| 04-13337 | XPS420/SSAAA/BNS/BN/BN/0014 | 04-13942 | XPS430/SSAAA/TWS/TF/STF/0320 |
| 04-12962 | XPS420/SSAAA/BNS/BN/BN/0651 | 04-13190 | XPS430/SSAAA/TWS/TF/STF/0504 |
| 04-13803 | XPS420/SSAAA/BNS/BN/BN/0652 | 04-13423 | XPS430/SSAAA/VTS/VT/VT |
| 04-13748 | XPS420/SSAAA/EPS/EP/EP | 04-13983 | XPS430/SSAAA/VTS/VT/VT/0504 |
| 04-13532 | XPS420/SSAAA/EPS/EP/EP/0014 | 04-13342 | XPS430/SSAAA/ZGS/BN/BN |
| 04-13650 | XPS420/SSAAA/NES/NE/NE | 04-13193 | XPS430/SSAAA/ZGS/BN/BN/0504 |
| 04-14224 | XPS420/SSAAA/NES/NE/NE/0014 | 04-13953 | XPS430/SSAAA/ZWS/TF/STF |
| 04-13240 | XPS420/SSAAA/NES/NE/NE/0652 | 04-13189 | XPS430/SSAAA/ZWS/WF/WF |
| 04-12960 | XPS420/SSAAA/TWS/TF/STF | 04-13833 | XPS430/SSAAA/ZWS/WF/WF/0320 |
| 04-12974 | XPS420/SSAAA/TWS/TF/STF/0014 | 04-13341 | XPS430/SSAAA/ZWS/WF/WF/0504 |
| 04-12964 | XPS420/SSAAA/TWS/TF/STF/0651 | 04-13347 | XPS430/SSSSS/BNS/BN/BN |
| 04-13405 | XPS420/SSAAA/TWS/TF/STF/0652 | 04-13348 | XPS430/SSSSS/BNS/BN/BN/0504 |
| 04-13634 | XPS420/SSAAA/VTS/VT/VT | 04-13351 | XPS430/SSSSS/TWS/TF/STF |
| 04-13652 | XPS420/SSAAA/ZGS/BN/BN | 04-13352 | XPS430/SSSSS/TWS/TF/STF/0504 |
| 04-13077 | XPS420/SSAAA/ZGS/BN/BN/0014 | 04-13950 | XPS430/SSSSS/VTS/VT/VT |
| 04-13739 | XPS420/SSAAA/ZSS/FS/FS | 04-13353 | XPS430/SSSSS/ZWS/WF/WF |
| 04-13836 | XPS420/SSAAA/ZSS/FS/FS/0652 | 04-13354 | XPS430/SSSSS/ZWS/WF/WF/0504 |
| 04-13248 | XPS420/SSAAA/ZWS/TF/STF | 04-14130 | XPS430/SZAAA/WWL/WF/WF |
| 04-12961 | XPS420/SSAAA/ZWS/WF/WF | 04-13716 | XPS430/WMAAA/BNS/BN/BN |
| 04-14093 | XPS420/SSAAA/ZWS/WF/WF/0014 | 04-13717 | XPS430/WMAAA/BNS/BN/BN/0504 |
| 04-12965 | XPS420/SSAAA/ZWS/WF/WF/0651 | 04-14040 | XPS430/WMAAA/NES/NE/NE/0504 |
| 04-13768 | XPS420/SSAAA/ZWS/WF/WF/0652 | 04-13714 | XPS430/WMAAA/TWS/TF/MTF |
| 04-13668 | XPS420/SSSSS/EPS/EP/STF | 04-13715 | XPS430/WMAAA/TWS/TF/MTF/0504 |
| 04-13216 | XPS420/SSSSS/TWS/TF/STF | 04-13710 | XPS430/WMAAA/ZGS/BN/BN |
| 04-13217 | XPS420/SSSSS/TWS/TF/STF/0014 | 04-13711 | XPS430/WMAAA/ZGS/BN/BN/0504 |
| 04-13224 | XPS420/SSSSS/TWS/TF/STF/0651 | 04-13708 | XPS430/WMAAA/ZWS/WF/WF |
| 04-13225 | XPS420/SSSSS/TWS/TF/STF/0652 | 04-13709 | XPS430/WMAAA/ZWS/WF/WF/0504 |
| 04-13222 | XPS420/SSSSS/VTS/VT/VT | 04-13800 | XPS430/WZAAA/WWL/WF/WF |
| 04-13223 | XPS420/SSSSS/VTS/VT/VT/0014 |
Rubber – 500 lpm (132 gpm)
EZ-Install TPE – 510 lpm (135 gpm)
Full-Stroke PTFE – 485 lpm (128 gpm)
8.6 bar (125 psi)
6.4 mm (1/4")
Rubber – 1.1 L (0.30 gal)
EZ-Install TPE – 1.1 L (0.30 gal)
Full-Stroke PTFE – 1.1 L (0.30 gal)
