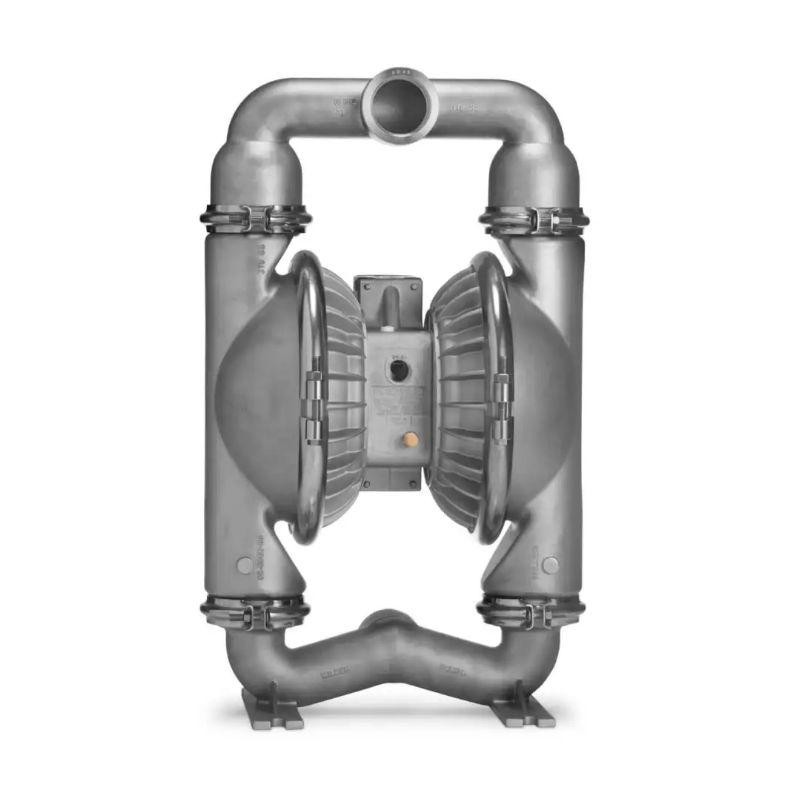

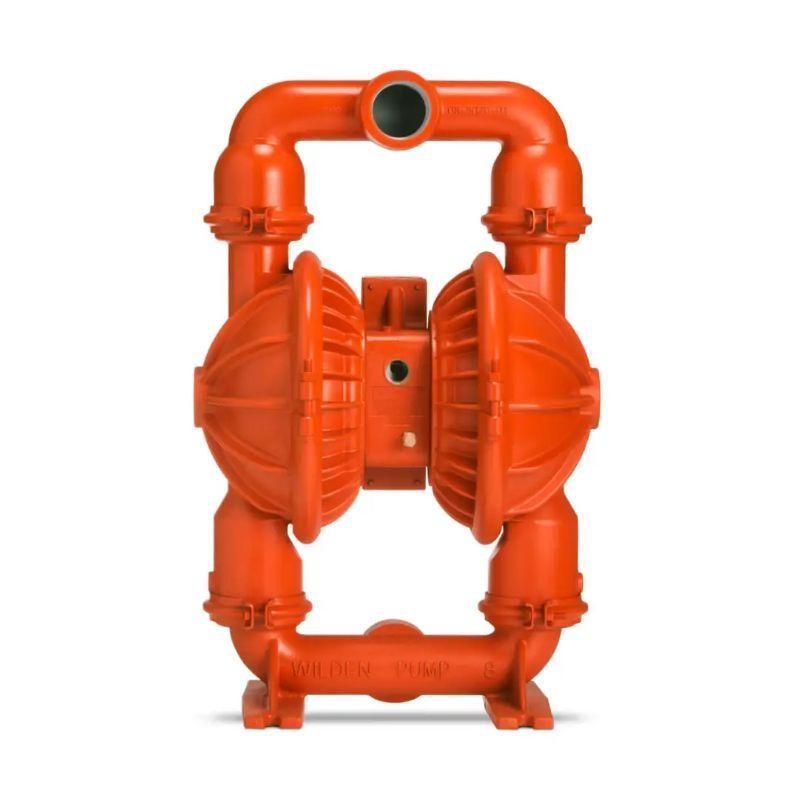

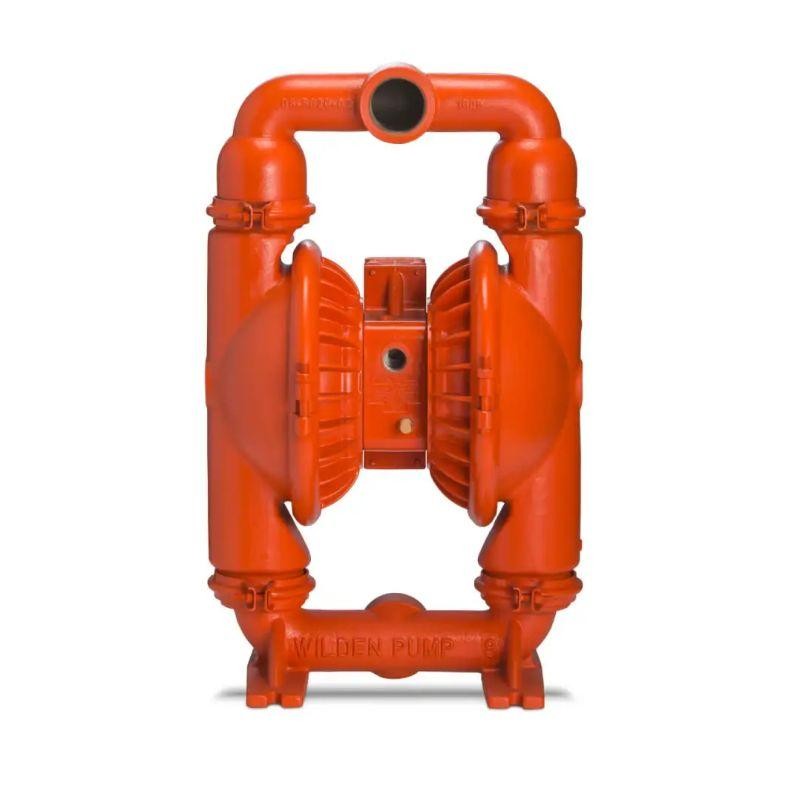

08-15125 PS8/AAAAR/ZGS/BN/BN/0051 Featuring the original air-operated double-diaphragm pump design by Jim Wilden, clamped metal pumps offer a simple, rugged design for general industrial applications. Designed with ease of maintenance in mind, clamped pumps are simple to install and are made for quick serviceability, allowing the pump to be taken apart and put back together with only a single tool.
3/4" FNPT
51 mm (2")
51 mm (2")
NPT/BSPT (Threaded)
Rubber – 7.2 m (23.8') Dry, 9.0 m (29.5') Wet
EZ-Install TPE – 6.9 m (22.7') Dry, 9.0 m (29.5') Wet
Full-Stroke PTFE – 6.3 m (20.7') Dry, 8.6 m (28.4') Wet
Note: Dimensions vary by material and connection. For additional information, please refer to the PS8 Metal Manual.
Note: Additional performance curves can be found in the PS8 Metal Manual.
3/4" FNPT
51 mm (2")
51 mm (2")
NPT/BSPT (Threaded)
Rubber – 700 lpm (185 gpm)
EZ-Install TPE – 719 lpm (190 gpm)
Full-Stroke PTFE – 723 lpm (191 gpm)
8.6 bar (125 psi)
6.4 bar (1/4")
Rubber – 7.2 m (23.8') Dry, 9.0 m (29.5') Wet
EZ-Install TPE – 6.9 m (22.7') Dry, 9.0 m (29.5') Wet
Full-Stroke PTFE – 6.3 m (20.7') Dry, 8.6 m (28.4') Wet
Rubber – 2.6 L (0.69 gal)
EZ-Install TPE – 2.6 L (0.69 gal)
PTFE Full-Stroke – 2.4 L (0.64 gal)
| Material | Ship Wt |
|---|---|
| Aluminum | 35 kg (78 lb) |
| Stainless Steel | 53 kg (117 lb) |
| Ductile Iron | 49 kg (109 lb) |
| Description | Material |
|---|---|
| Center Section | Aluminum, Nickel-Plated Aluminum, Stainless Steel, Polypropylene |
| Air Valve | Aluminum, Nickel-Plated Aluminum, Anodized Aluminum, Stainless Steel, Polypropylene |
| Air Chamber | Aluminum, Nickel-Plated Aluminum, Stainless Steel |
| Numbering | Description | Numbering | Description |
| 08-15124 | PS8/AAAAR/ZGS/BN/BN/0050 | 08-15036 | XPS8/SSAAA/ZSS/FS/FS/0014 |
| 08-15125 | PS8/AAAAR/ZGS/BN/BN/0051 | 08-14575 | XPS8/SSAAA/ZSS/FS/FS/0070 |
| 08-15126 | PS8/AAAAR/ZPS/PU/PU/0050 | 08-15794 | XPS8/SSAAA/ZWS/TF/WF |
| 08-15127 | PS8/AAAAR/ZPS/PU/PU/0051 | 08-15113 | XPS8/SSAAA/ZWS/WF/SWF |
| 08-15130 | PS8/AAAAR/ZSS/FS/FS/0050 | 08-14521 | XPS8/SSAAA/ZWS/WF/WF |
| 08-15131 | PS8/AAAAR/ZSS/FS/FS/0051 | 08-14522 | XPS8/SSAAA/ZWS/WF/WF/0014 |
| 08-15128 | PS8/AAAAR/ZWS/WF/WF/0050 | 08-15069 | XPS8/SSNNN/FWS/FW/FE/0770 |
| 08-15129 | PS8/AAAAR/ZWS/WF/WF/0051 | 08-15077 | XPS8/SSNNN/FWS/FW/FE/0771 |
| 08-14979 | PS8/PKAPP/TWS/TF/PTV | 08-15418 | XPS8/SSNNN/FWS/FW/FW |
| 08-14982 | PS8/PKAPP/VTS/VT/PTV | 08-15354 | XPS8/SSNNN/FWS/FW/FW/0070 |
| 08-14980 | PS8/PKAPP/ZGS/BN/PBN | 08-15079 | XPS8/SSNNN/TSS/TF/TF/0771 |
| 08-14981 | PS8/PKAPP/ZWS/WF/PWF | 08-15627 | XPS8/SSNNN/TWS/TF/STF/0070 |
| 08-15234 | PS8/SSSPP/FWS/FW/FW/0070 | 08-15071 | XPS8/SSNNN/TWS/TF/TF/0770 |
| 08-14952 | PS8/SSSPP/TWS/TF/STF | 08-15073 | XPS8/SSNNN/ZSS/FS/TF/0770 |
| 08-14958 | PS8/SSSPP/VTS/VT/VT | 08-15070 | XPS8/SSSSS/FWS/FW/FE/0770 |
| 08-14959 | PS8/SSSPP/VTS/VT/VT/0014 | 08-15078 | XPS8/SSSSS/FWS/FW/FE/0771 |
| 08-14956 | PS8/SSSPP/ZWS/WF/WF | 08-15278 | XPS8/SSSSS/FWS/FW/FW/0070 |
| 08-15713 | PS8/SZAAA/WWL/WF/WF | 08-15080 | XPS8/SSSSS/TSS/TF/TF/0771 |
| 08-16037 | PS8/SZNNN/LEL/TF/TF/0774 | 08-14918 | XPS8/SSSSS/TWS/TF/STF |
| 08-15657 | PS8/WWAAA/ZWS/WF/WF/0480 | 08-14919 | XPS8/SSSSS/TWS/TF/STF/0014 |
| 08-15133 | PS8/WWAAR/ZGS/BN/BN/0050 | 08-15253 | XPS8/SSSSS/TWS/TF/STF/0070 |
| 08-15134 | PS8/WWAAR/ZGS/BN/BN/0051 | 08-15072 | XPS8/SSSSS/TWS/TF/TF/0770 |
| 08-15135 | PS8/WWAAR/ZPS/PU/PU/0050 | 08-14924 | XPS8/SSSSS/VTS/VT/VT |
| 08-15136 | PS8/WWAAR/ZPS/PU/PU/0051 | 08-14925 | XPS8/SSSSS/VTS/VT/VT/0014 |
| 08-15137 | PS8/WWAAR/ZWS/WF/WF/0050 | 08-14920 | XPS8/SSSSS/ZGS/BN/BN |
| 08-15138 | PS8/WWAAR/ZWS/WF/WF/0051 | 08-14921 | XPS8/SSSSS/ZGS/BN/BN/0014 |
| 08-14497 | XPS8/AAAAA/BNS/BN/BN | 08-15063 | XPS8/SSSSS/ZSS/FS/FS/0070 |
| 08-14498 | XPS8/AAAAA/BNS/BN/BN/0014 | 08-15074 | XPS8/SSSSS/ZSS/FS/TF/0770 |
| 08-15445 | XPS8/AAAAA/BNS/BN/BN/0044 | 08-14922 | XPS8/SSSSS/ZWS/WF/WF |
| 08-14577 | XPS8/AAAAA/BNS/BN/BN/0320 | 08-14923 | XPS8/SSSSS/ZWS/WF/WF/0014 |
| 08-14642 | XPS8/AAAAA/EPS/EP/EP | 08-15463 | XPS8/SZAAA/FSL/FS/FS/0070 |
| 08-15579 | XPS8/AAAAA/EPS/EP/EP/0014 | 08-15575 | XPS8/SZAAA/FWL/FS/FS/0044 |
| 08-14505 | XPS8/AAAAA/FWS/WF/WF | 08-15148 | XPS8/SZAAA/FWL/FW/FW/0070 |
| 08-14576 | XPS8/AAAAA/NES/BN/BN | 08-15849 | XPS8/SZAAA/LEL/TF/STF/0070 |
| 08-14499 | XPS8/AAAAA/NES/NE/NE | 08-15814 | XPS8/SZAAA/WWL/WF/WF/0014 |
| 08-14500 | XPS8/AAAAA/NES/NE/NE/0014 | 08-15465 | XPS8/SZNNN/FSL/FS/FE/0770 |
| 08-15303 | XPS8/AAAAA/NES/NE/NE/0030 | 08-15067 | XPS8/SZNNN/FWL/FW/FE/0770 |
| 08-15744 | XPS8/AAAAA/TSS/TF/ATF | 08-15075 | XPS8/SZNNN/FWL/FW/FE/0771 |
| 08-14503 | XPS8/AAAAA/TWS/TF/ATF | 08-15272 | XPS8/SZNNN/FWL/FW/FV/0771 |
| 08-14504 | XPS8/AAAAA/TWS/TF/ATF/0014 | 08-15052 | XPS8/SZNNN/FWL/FW/FW/0070 |
| 08-15391 | XPS8/AAAAA/TWS/TF/STF | 08-15082 | XPS8/SZNNN/FWL/SF/FE/0770 |
| 08-14631 | XPS8/AAAAA/VTS/VT/VT | 08-15084 | XPS8/SZNNN/FWL/SF/FE/0771 |
| 08-15002 | XPS8/AAAAA/VTS/VT/VT/0014 | 08-15262 | XPS8/SZNNN/FWL/TF/TF/0771 |
| 08-14509 | XPS8/AAAAA/ZGS/BN/BN | 08-15089 | XPS8/SZNNN/LEL/TF/TF/0770 |
| 08-14510 | XPS8/AAAAA/ZGS/BN/BN/0014 | 08-15091 | XPS8/SZNNN/LEL/TF/TF/0771 |
| 08-15720 | XPS8/AAAAA/ZPS/PU/PU | 08-15614 | XPS8/SZSPP/FWL/TF/FS/0070 |
| 08-15412 | XPS8/AAAAA/ZPS/PU/PU/0014 | 08-15624 | XPS8/SZSSS/FSL/FS/FE/0770 |
| 08-14762 | XPS8/AAAAA/ZSS/BN/BN | 08-15068 | XPS8/SZSSS/FWL/FW/FE/0770 |
| 08-14904 | XPS8/AAAAA/ZSS/BN/BN/0030 | 08-15076 | XPS8/SZSSS/FWL/FW/FE/0771 |
| 08-15098 | XPS8/AAAAA/ZSS/FS/FS | 08-15308 | XPS8/SZSSS/FWL/FW/FW/0070 |
| 08-15750 | XPS8/AAAAA/ZSS/FS/FS/0014 | 08-15083 | XPS8/SZSSS/FWL/SF/FE/0770 |
| 08-15122 | XPS8/AAAAA/ZWS/BN/BN/0044 | 08-15085 | XPS8/SZSSS/FWL/SF/FE/0771 |
| 08-14507 | XPS8/AAAAA/ZWS/WF/WF | 08-15436 | XPS8/SZSSS/FWL/TF/FE/0770 |
| 08-14508 | XPS8/AAAAA/ZWS/WF/WF/0014 | 08-15146 | XPS8/SZSSS/FWL/TF/TF/0771 |
| 08-15099 | XPS8/AAAAA/ZWS/WF/WF/0030 | 08-15621 | XPS8/SZSSS/LEL/TF/FE/0771 |
| 08-14578 | XPS8/AAAAA/ZWS/WF/WF/0320 | 08-15090 | XPS8/SZSSS/LEL/TF/TF/0770 |
| 08-15825 | XPS8/AZAAA/WWL/WF/WF | 08-15092 | XPS8/SZSSS/LEL/TF/TF/0771 |
| 08-14511 | XPS8/SSAAA/BNS/BN/BN | 08-15100 | XPS8/WSAAA/TWS/TF/MTF |
| 08-14512 | XPS8/SSAAA/BNS/BN/BN/0014 | 08-15123 | XPS8/WWAAA/BNS/BN/BN |
| 08-15290 | XPS8/SSAAA/EPS/EP/EP | 08-15173 | XPS8/WWAAA/BNS/BN/BN/0014 |
| 08-14852 | XPS8/SSAAA/EPS/EP/EP/0014 | 08-14714 | XPS8/WWAAA/EPS/EP/EP |
| 08-14854 | XPS8/SSAAA/FWS/FS/FS/0070 | 08-15237 | XPS8/WWAAA/EPS/EP/EP/0014 |
| 08-15566 | XPS8/SSAAA/FWS/FW/FW/0070 | 08-14579 | XPS8/WWAAA/FWS/WF/WF |
| 08-14519 | XPS8/SSAAA/FWS/WF/WF | 08-14630 | XPS8/WWAAA/NES/NE/NE |
| 08-14520 | XPS8/SSAAA/FWS/WF/WF/0014 | 08-14627 | XPS8/WWAAA/NES/NE/NE/0014 |
| 08-14513 | XPS8/SSAAA/NES/NE/NE | 08-15805 | XPS8/WWAAA/TSS/TF/MTF |
| 08-14514 | XPS8/SSAAA/NES/NE/NE/0014 | 08-14703 | XPS8/WWAAA/TWS/TF/MTF |
| 08-15709 | XPS8/SSAAA/TSS/TF/STF/0070 | 08-14731 | XPS8/WWAAA/TWS/TF/MTF/0014 |
| 08-14517 | XPS8/SSAAA/TWS/TF/STF | 08-14687 | XPS8/WWAAA/VTS/VT/VT |
| 08-14518 | XPS8/SSAAA/TWS/TF/STF/0014 | 08-15726 | XPS8/WWAAA/ZPS/PU/PU |
| 08-14637 | XPS8/SSAAA/TWS/TF/STF/0070 | 08-15672 | XPS8/WWAAA/ZSS/FS/FS |
| 08-15599 | XPS8/SSAAA/VTS/VT/STF | 08-14711 | XPS8/WWAAA/ZWS/WF/WF |
| 08-15132 | XPS8/SSAAA/VTS/VT/VT | 08-14619 | XPS8/WWAAA/ZWS/WF/WF/0014 |
| 08-15018 | XPS8/SSAAA/VTS/VT/VT/0014 | 08-15439 | XPS8/WWAAA/ZWS/WF/WF/0044 |
| 08-14523 | XPS8/SSAAA/ZGS/BN/BN | 08-15451 | XPS8/WWAAA/ZWS/WF/WF/0048 |
| 08-14524 | XPS8/SSAAA/ZGS/BN/BN/0014 | 08-15029 | XPS8/WWAAA/ZWS/WF/WF/0320 |
| 08-15729 | XPS8/SSAAA/ZSS/FS/FS | 08-15097 | XPS8/WWAAR/NES/PU/PU/0048 |
Rubber – 700 lpm (185 gpm)
EZ-Install TPE – 719 lpm (190 gpm)
Full-Stroke PTFE – 723 lpm (191 gpm)
8.6 bar (125 psi)
6.4 mm (1/4")
Rubber – 2.6 L (0.69 gal)
EZ-Install TPE – 2.6 L (0.69 gal)
Full-Stroke PTFE – 2.4 L (0.64 gal)
