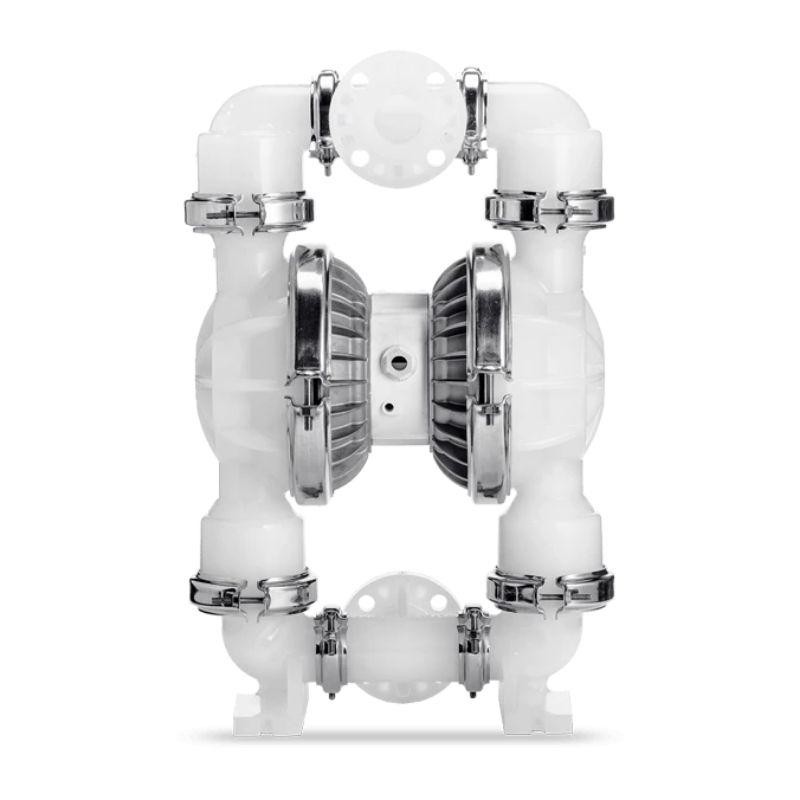

WILDEN 51 mm 2inch Pro-Flo Series Clamped Plastic AODD Pump WILDEN-51-mm-2inchClamped-Plastic-AODD-Pump 08-6860 P8/PKVPP/TNU/TF/PTV

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the P8 Plastic Manual.

Flow Curve – TPE-Fitted

Note: Additional performance curves can be found in the P8 Plastic Manual.

AIR INLET

• 1/2" FNPT

LIQUID INLET

• 51 mm (2")

LIQUID DISCHARGE

• 51 mm (2")

CONNECTION TYPE

• DIN/ANSI (Flanged)

MAX FLOW RATE

• Rubber – 591 lpm (156 gpm)

• TPE – 583 lpm (154 gpm)

• Full-Stroke PTFE – 562 lpm (148 gpm)

• Reduced-Stroke PTFE – 481 lpm (127 gpm)

• Ultra-Flex™ – 560 lpm (148 gpm)

MAX PRESSURE

• 8.6 bar (125 psi)

MAX DIAMETER SOLIDS

• 6.35 mm (1/4'')

MAX SUCTION LIFT CAPABILITY

• Rubber – 7.4 m (24.4') Dry, 8.6 m (28.4') Wet

• TPE – 5.9 m (19.3') Dry, 8.6 m (28.4') Wet

• Full-Stroke PTFE – 6.4 m (21.0') Dry, 8.6 m (28.4') Wet

• Reduced-Stroke PTFE – 4.27 m (14.0') Dry, 9.45 m (31.0') Wet

• Ultra-Flex™ – 4.88 m (16.0') Dry, 8.84 m (29.0') Wet

DISPLACEMENT PER STROKE *

• Rubber – 2.8 L (0.73 gal)

• TPE – 2.8 L (0.73 gal)

• Full-Stroke PTFE – 2.6 L (0.69 gal)

• Reduced-Stroke PTFE – 0.53 L (0.47 gal)

• Ultra-Flex™ – 2.12 L (0.56 gal)

* 1 cycle = 2 strokes

WETTED HOUSINGS

NON-WETTED HOUSINGS
