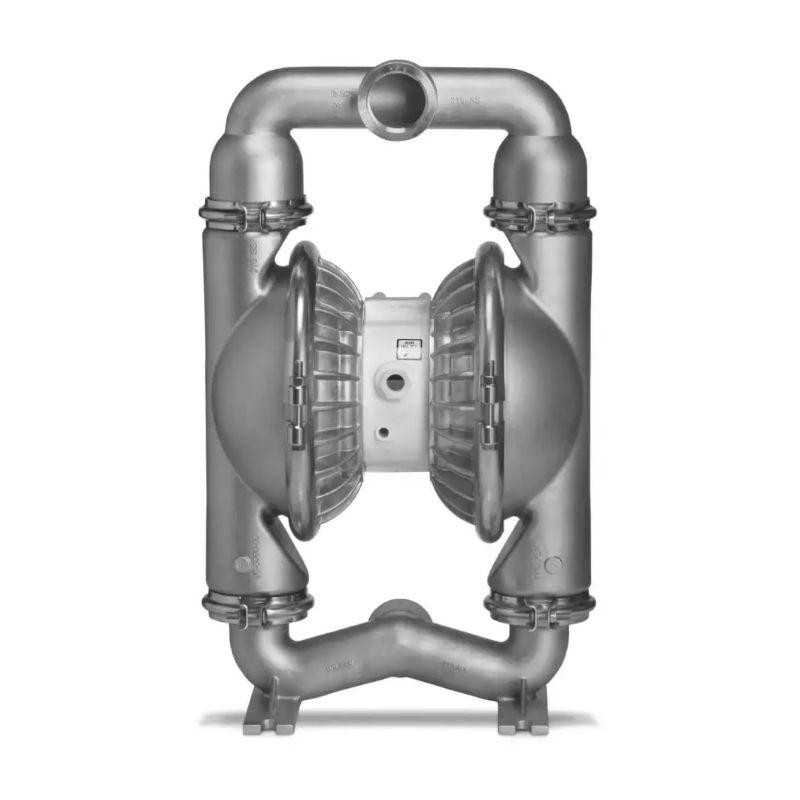

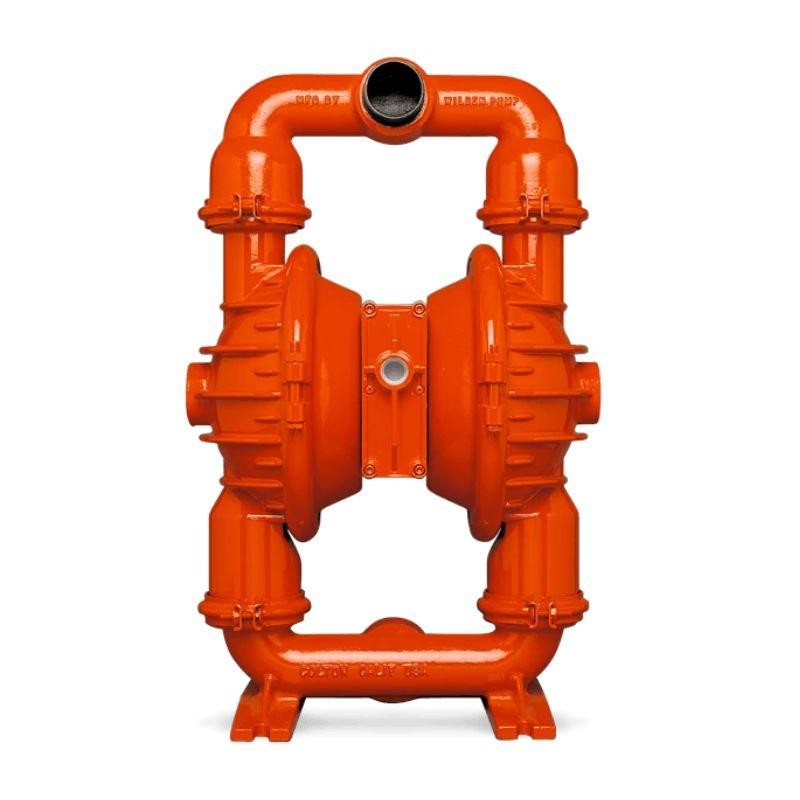

WILDEN 51mm 2inch Pro-Flo series clamping metal AODD pump08-15495 P8/AAAPP/ZWS/WF/WF/0014 WILDEN 51mm 2inch Pro-Flo series clamping metal AODD pump08-15495 P8/AAAPP/ZWS/WF/WF/0014

WILDEN 51mm 2inch Pro-Flo series clamping metal AODD pump08-15495 P8/AAAPP/ZWS/WF/WF/0014

WILDEN 08-15495 P8/AAAPP/ZWS/WF/WF/0014
Featuring the original air-operated double-diaphragm pump design by Jim Wilden, clamped metal pumps offer a simple, rugged design for general industrial applications.  Designed with ease of maintenance in mind, clamped pumps are simple to install and are made for quick serviceability, allowing the pump to be taken apart and put back together with only a single tool.

PDF
Product Description:
AIR INLET

  • 1/2" FNPT

LIQUID INLET

  • 51 mm (2")

LIQUID DISCHARGE

  • 51 mm (2")

CONNECTION TYPE

  • NPT/BSPT (Threaded)

MAX SUCTION LIFT CAPABILITY

  • Rubber –6.9 m (22.7') Dry, 8.6 m (28.4') Wet

  • TPE – 6.7 m (22.1') Dry, 8.6 m (28.4') Wet

  • Full-Stroke PTFE – 6.7 m (22.1') Dry, 9.0 m (29.5') Wet

  • Reduced-Stroke PTFE – 4.6 m (15.0') Dry, 9.5 m (31.0') Wet

  • Ultra-Flex™ – 4.9 m (16.0') Dry, 8.8 m (29.0') Wet


Performance and Specifications

Dimensions

Dim-P8-51mm2in-CMP

Note: Dimensions vary by material and connection. For additional information, please refer to the P8 Metal Manual.

Flow Curve – TPE-Fitted

Flo-P8-51mm2in-CMP

Note: Additional performance curves can be found in the P8 Metal Manual.

AIR INLET

  • 1/2" FNPT

LIQUID INLET

  • 51 mm (2")

LIQUID DISCHARGE

  • 51 mm (2")

CONNECTION TYPE

  • NPT/BSPT (Threaded)

MAX FLOW RATE

  • Rubber – 623 lpm (165 gpm)

  • TPE – 630 lpm (166 gpm)

  • Full-Stroke PTFE – 618 lpm (163 gpm)

  • Reduced-Stroke PTFE – 496 lpm (131 gpm)

  • Ultra-Flex™ – 526 lpm (139 gpm)

MAX PRESSURE

  • 8.6 bar (125 psi)

MAX DIAMETER SOLIDS

  • 6.4 mm (1/4'')

MAX SUCTION LIFT CAPABILITY

  • Rubber –6.9 m (22.7') Dry, 8.6 m (28.4') Wet

  • TPE – 6.7 m (22.1') Dry, 8.6 m (28.4') Wet

  • Full-Stroke PTFE – 6.7 m (22.1') Dry, 9.0 m (29.5') Wet

  • Reduced-Stroke PTFE – 4.6 m (15.0') Dry, 9.5 m (31.0') Wet

  • Ultra-Flex™ – 4.9 m (16.0') Dry, 8.8 m (29.0') Wet

DISPLACEMENT PER STROKE *

  • Rubber – 2.6 L (0.70 gal)

  • TPE – 2.8 L (0.75 gal)

  • Full-Stroke PTFE – 2.6 L (0.70 gal)

  • Reduced-Stroke PTFE – 1.67 L (0.44 gal)

  • Ultra-Flex™ – 2.12 L (0.56 gal)

    • * 1 cycle = 2 strokes

Wetted Housings

MaterialShip Weight
Aluminum32 kg (70 lb)
Stainless Steel51 kg (112 lb)
Cast Iron
47 kg (104 lb)
Alloy C
52 kg (114 lb)

Non-Wetted Housings

DescriptionMaterial
Center BlockPolypropylene
Air ValvePolypropylene
Air ChamberAluminum, PTFE-Coated, Nickel-Plated, Stainless Steel, Halar-Coated Aluminum


Other models are recommended：

NumberingDescriptionNumberingDescription
08-15034P8/AAAPP/BNS/BN/ATF08-15086P8/SSAPP/FWS/FW/FW/0070
08-0111P8/AAAPP/BNS/BN/BN08-14496P8/SSAPP/FWS/TF/STF/0070
08-0112P8/AAAPP/BNS/BN/BN/001408-0142P8/SSAPP/NES/NE/NE
08-0113P8/AAAPP/BNS/BN/BN/003008-6974P8/SSAPP/NES/NE/NE/0014
08-0140P8/AAAPP/BNU/BN/BN08-10548P8/SSAPP/NEU/NE/NE/0014
08-0183P8/AAAPP/BNU/BN/BN/001408-14673P8/SSAPP/TEU/TF/STF
08-12135P8/AAAPP/BNU/BN/BN/004408-13762P8/SSAPP/TNU/TF/EP/0014
08-6870P8/AAAPP/EPS/EP/EP08-0125P8/SSAPP/TNU/TF/STF
08-11809P8/AAAPP/EPS/EP/EP/001408-0126P8/SSAPP/TNU/TF/STF/0014
08-0157P8/AAAPP/EPU/EP/EP08-14646P8/SSAPP/TSU/TF/STF
08-13314P8/AAAPP/EPU/EP/EP/001408-13483P8/SSAPP/TSU/TF/STF/0014
08-14201P8/AAAPP/FWS/WF/WF08-14190P8/SSAPP/TSU/TF/STF/0070
08-0114P8/AAAPP/NES/NE/NE08-14203P8/SSAPP/TWS/TF/STF
08-0115P8/AAAPP/NES/NE/NE/001408-14170P8/SSAPP/TWS/TF/STF/0014
08-0117P8/AAAPP/NES/NE/NE/003008-14245P8/SSAPP/TWS/TF/STF/0070
08-0120P8/AAAPP/NEU/NE/NE08-13443P8/SSAPP/VTS/TF/VT
08-0121P8/AAAPP/NEU/NE/NE/001408-11671P8/SSAPP/VTS/VT/VT
08-12935P8/AAAPP/TEU/TF/ATF08-12414P8/SSAPP/VTS/VT/VT/0014
08-13967P8/AAAPP/TNU/BN/BN08-0143P8/SSAPP/VTU/TF/STF
08-0118P8/AAAPP/TNU/TF/ATF08-12121P8/SSAPP/VTU/VT/VT
08-0119P8/AAAPP/TNU/TF/ATF/001408-15372P8/SSAPP/ZSS/FS/FS
08-11824P8/AAAPP/TNU/TF/STF08-14720P8/SSAPP/ZSS/FS/FS/0070
08-13465P8/AAAPP/TSU/TF/ATF/001408-15368P8/SSAPP/ZWS/WF/WF
08-14416P8/AAAPP/TSU/TF/STF08-15979P8/SSAPP/ZWS/WF/WF/0014
08-15149P8/AAAPP/TWS/TF/ATF08-12159P8/SSSPP/BNS/BN/BN
08-14275P8/AAAPP/TWS/TF/ATF/0014S08-0071P8/SSSPP/BNS/BN/BN/0014
08-12921P8/AAAPP/VTS/TF/VT08-13644P8/SSSPP/EPU/EP/EP
08-11909P8/AAAPP/VTS/TF/VT/001408-14717P8/SSSPP/NES/NE/STF
08-11479P8/AAAPP/VTS/VT/VT08-13917P8/SSSPP/TEU/TF/STF
08-11655P8/AAAPP/VTS/VT/VT/001408-14473P8/SSSPP/TEU/TF/STF/0070
08-14176P8/AAAPP/VTU/VT/ATF08-11919P8/SSSPP/TNU/TF/STF
08-11367P8/AAAPP/VTU/VT/VT08-13534P8/SSSPP/TSU/TF/STF/0070
08-15300P8/AAAPP/ZGS/BN/BN08-14321P8/SSSPP/TWS/TF/STF
08-14551P8/AAAPP/ZGS/BN/BN/001408-15715P8/SSSPP/TWS/TF/STF/0070
08-16018P8/AAAPP/ZPS/PU/PU/001408-11922P8/SSSPP/VTS/VT/VT
08-15407P8/AAAPP/ZSS/FS/FS08-14734P8/SSSPP/ZSS/FS/FS/0070
08-15238P8/AAAPP/ZWS/WF/WF08-15746P8/SZAPP/FSL/FS/FS/0070
08-15495P8/AAAPP/ZWS/WF/WF/001408-15406P8/SZAPP/FWL/FW/FW/0070
08-15835P8/AZAPP/WWL/WF/WF08-15699P8/SZAPP/WWL/WF/WF
08-11480P8/PKAPP/BNS/BN/PBN08-0135P8/WSAPP/TNU/TF/MTF
08-11764P8/PKAPP/BNU/BN/PBN08-6859P8/WSAPP/TNU/TF/MTF/0014
08-6984P8/PKAPP/EPS/EP/PTV08-12075P8/WSAPP/TNU/TF/STF
08-11377P8/PKAPP/EPU/EP/PTV08-12995P8/WSAPP/TNU/TF/STF/0014
08-0132P8/PKAPP/NES/NE/PBN08-13675P8/WSCPP/TNU/NE/NE
08-12402P8/PKAPP/NEU/NE/PBN08-12215P8/WSSPP/TNU/TF/MTF
08-12120P8/PKAPP/TEU/TF/PTV08-0128P8/WWAPP/BNS/BN/BN
08-6939P8/PKAPP/TNU/TF/KTV08-12139P8/WWAPP/BNS/BN/BN/0014
08-0123P8/PKAPP/TNU/TF/PTV08-11628P8/WWAPP/BNU/BN/BN
08-15569P8/PKAPP/TSS/TF/PTV08-11906P8/WWAPP/BNU/BN/BN/0014
08-14150P8/PKAPP/TWS/TF/PTV08-0173P8/WWAPP/EPS/EP/EP
08-11634P8/PKAPP/VTS/TF/PTV08-13664P8/WWAPP/EPS/EP/EP/0014
08-6886P8/PKAPP/VTS/VT/PTV08-6858P8/WWAPP/EPU/EP/EP/0014
08-15370P8/PKAPP/ZSS/FS/PTV08-14393P8/WWAPP/FWS/WF/WF
08-16019P8/PKAPP/ZWS/WF/PTV08-0129P8/WWAPP/NES/NE/NE
08-14951P8/PKAPP/ZWS/WF/PWF08-0158P8/WWAPP/NES/NE/NE/0014
08-0172P8/PKCPP/TNU/TF/PTV08-13561P8/WWAPP/NES/PU/PU
08-13125P8/PKCPP/TSU/TF/PTV08-11423P8/WWAPP/NEU/NE/NE
08-11945P8/PKCPP/VTS/VT/PTV08-0154P8/WWAPP/NEU/NE/NE/0014
08-16020P8/PKCPP/ZWS/WF/PWF08-15413P8/WWAPP/NEU/NE/NE/0044
08-13123P8/PKSPP/TEU/TF/KTV08-15364P8/WWAPP/TWS/TF/MTF
08-11914P8/PKSPP/TNU/TF/PTV08-11695P8/WWAPP/VTS/TF/VT
08-14195P8/PKSPP/TNU/TF/PTV/050208-11699P8/WWAPP/VTS/VT/VT
08-6860P8/PKVPP/TNU/TF/PTV08-12616P8/WWAPP/VTS/VT/VT/0014
08-11622P8/PKVPP/TNU/TF/PTV/050208-0180P8/WWAPP/VTU/TF/VT
08-6940P8/SSAPP/BNS/BN/BN08-15363P8/WWAPP/ZSS/FS/FS
08-0175P8/SSAPP/BNS/BN/BN/001408-15087P8/WWAPP/ZWS/WF/MTF
08-13477P8/SSAPP/BNU/BN/BN08-15365P8/WWAPP/ZWS/WF/WF
08-11504P8/SSAPP/EPS/EP/EP08-15446P8/WWAPP/ZWS/WF/WF/0014
08-6900P8/SSAPP/EPS/EP/EP/0014


MAX FLOW RATE

  • Rubber – 623 lpm (165 gpm)

  • TPE – 630 lpm (166 gpm)

  • Full-Stroke PTFE – 618 lpm (163 gpm)

  • Reduced-Stroke PTFE – 496 lpm (131 gpm)

  • Ultra-Flex™ – 526 lpm (139 gpm)

MAX PRESSURE

  • 8.6 bar (125 psi)

MAX DIAMETER SOLIDS

  • 6.4 mm (1/4'')

DISPLACEMENT PER STROKE *

  • Rubber – 2.6 L (0.70 gal)

  • TPE – 2.8 L (0.75 gal)

  • Full-Stroke PTFE – 2.6 L (0.70 gal)

  • Reduced-Stroke PTFE – 1.67 L (0.44 gal)

  • Ultra-Flex™ – 2.12 L (0.56 gal)

    • * 1 cycle = 2 strokes
