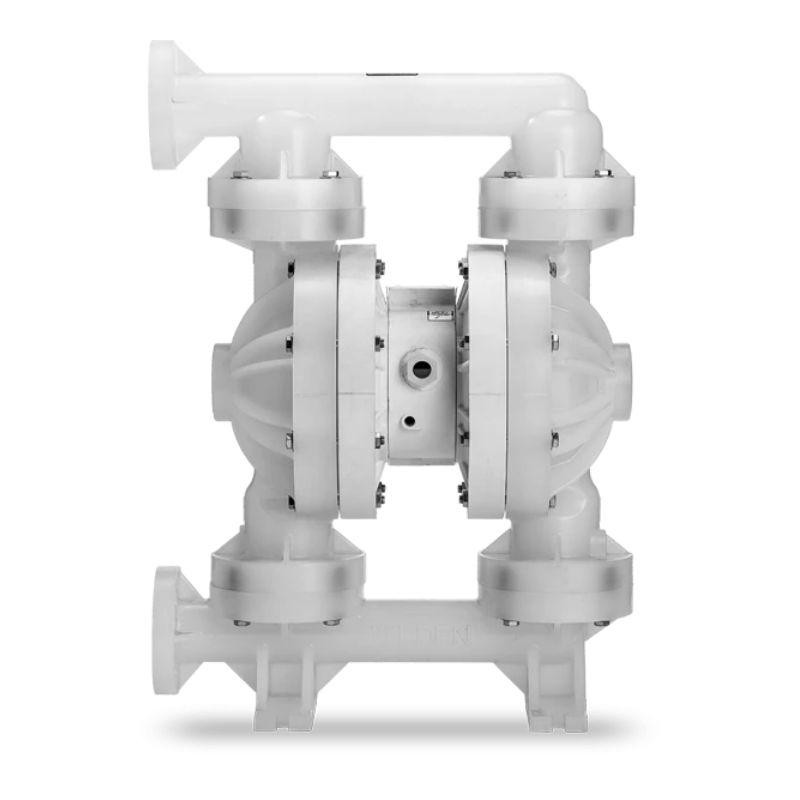

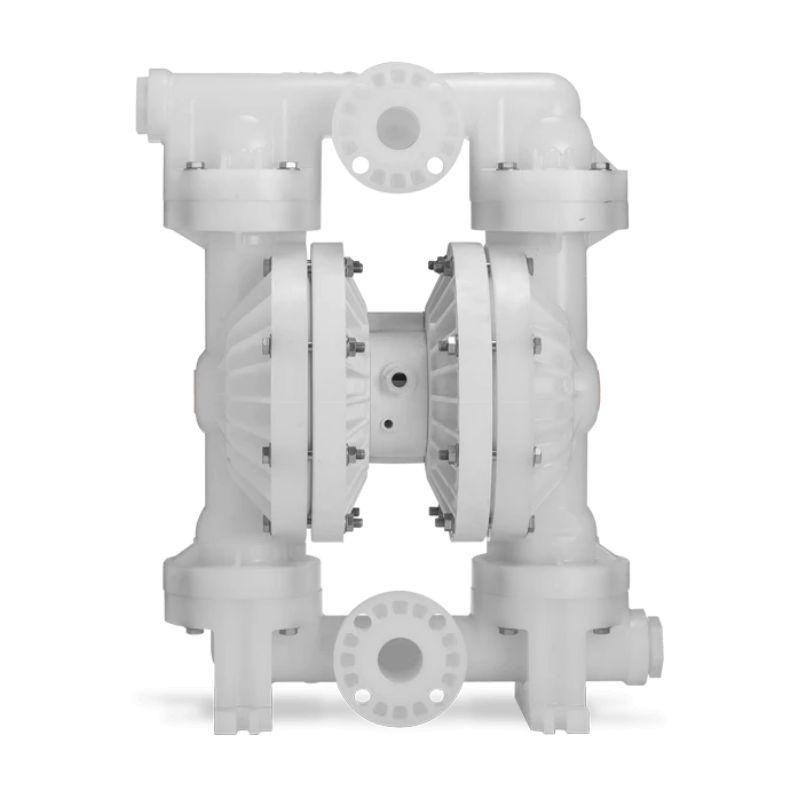

WILDEN Pro-flo Series 51mm Bolted Plastic AODD Pump 08-15201 P800/KKPPP/TWS/TF/KTV/0504

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the P800 Plastic Manual.

Flow Curve – TPE-Fitted

Note: Additional performance curves can be found in the P800 Plastic Manual.

AIR INLET

• 1/2" FNPT

LIQUID INLET

• 51 mm (2")

LIQUID DISCHARGE

• 51 mm (2")

CONNECTION TYPE

• DIN/ANSI (Flanged)

MAX FLOW RATE

• Rubber – 624 lpm (165 gpm)

• TPE – 615 lpm (162 gpm)

• Full-Stroke PTFE – 615 lpm (162 gpm)

• Reduced-Stroke PTFE – 504 lpm (133 gpm)

MAX PRESSURE

• 8.6 bar (125 psi)

MAX DIAMETER SOLIDS

• 6.4 mm (1/4'')

MAX SUCTION LIFT CAPABILITY

• Rubber – 6.23 m (20.4') Dry, 8.66 m (28.4') Wet

• TPE – 5.54 m (18.16') Dry, 8.66 m (28.4') Wet

• Full-Stroke PTFE – 5.9 m (19.5') Dry, 9.0 m (29.5') Wet

• Reduced-Stroke PTFE – 4.15 m (13.62') Dry, 8.65 m (28.4') Wet

DISPLACEMENT PER STROKE *

• Rubber – 2.75 L (0.73 gal)

• TPE – 2.78 L (0.74 gal)

• Full-Stroke PTFE – 2.5 L (0.67 gal)

• Reduced-Stroke PTFE – 1.73 L (0.457 gal)

* 1 cycle = 2 strokes
