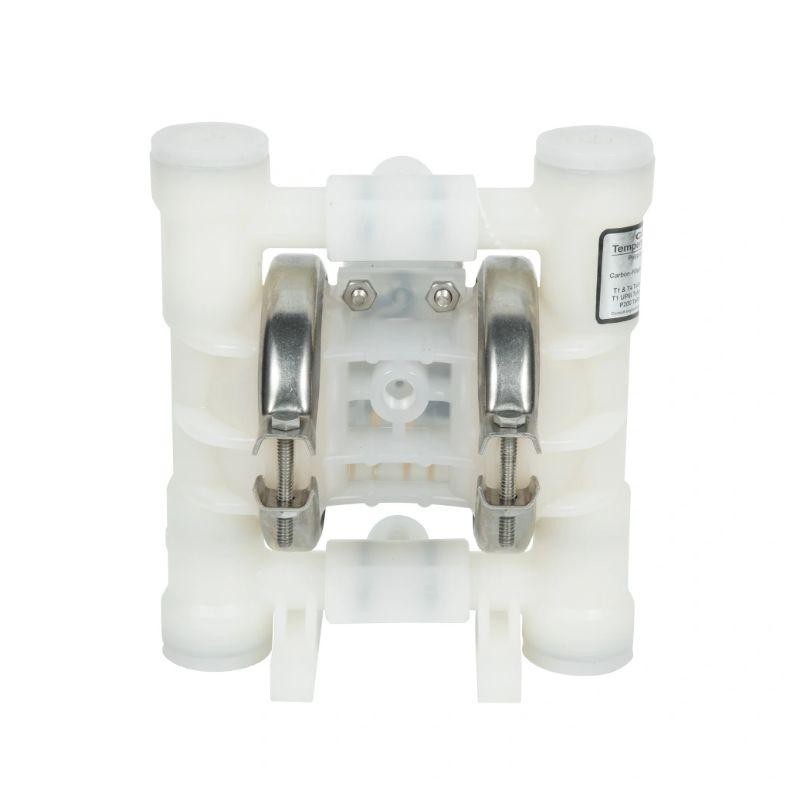

00-9605 P.025/KZPPP/TNL/TF/KTV/0502 When Jim Wilden first added a plastic pump series to his product portfolio, he designed it with what he knew best: a clamped pump. Incorporating the same benefits as a clamped metal pump, these plastic versions offer a simple, rugged design that is ideally suited for chemical applications.
1/8" FNPT
6 mm (1/4")
6 mm (1/4")
NPT (Threaded)
Rubber – 2.74 m (9') Dry, 9.45 m (31') Wet
TPE – 3.05 m (10') Dry, 8.84 m (29') Wet
PTFE – 2.44 m (8') Dry, 8.84 m (29') Wet
Note: Dimensions vary by material and connection. For additional information, please refer to the P.025 Plastic Manual.
Note: Additional performance curves can be found in the P.025 Plastic Manual.
1/8" FNPT
6 mm (1/4")
6 mm (1/4")
NPT/BSPT (Threaded)
Rubber – 18.1 lpm (4.8 gpm)
TPE – 18.1 lpm (4.8 gpm)
PTFE – 18.1 lpm (4.8 gpm)
8.6 bar (125 psi)
0.4 mm (1/64")
Rubber – 2.74 m (9') Dry, 9.45 m (31') Wet
TPE – 3.05 m (10') Dry, 8.84 m (29') Wet
PTFE – 2.44 m (8') Dry, 8.84 m (29') Wet
Rubber – 0.02 L (0.005 gal)
TPE – 0.02 L (0.005 gal)
PTFE – 0.02 L (0.005 gal)
| Material | Ship Weight |
|---|---|
| Polypropylene | 1.4 kg (3 lb) |
| PVDF | 1.4 kg (3 lb) |
| Description | Material |
|---|---|
| Center Section | Polypropylene, Acetal |
| Air Valve | Polypropylene, Acetal |
Other models are recommended：
| Numbering | Description | Numbering | Description |
| 00-9752 | P.025/AMLLL/BNS/TF/ABN | 00-9818 | P.025/PPPPP/WFS/TF/KTV |
| 00-9758 | P.025/AMLLL/WFS/TF/ATF/0014 | 00-9725 | P.025/PPPPP/WFS/TF/KWF |
| 00-9730 | P.025/AMPPP/BNS/TF/ABN | 00-9614 | P.025/PPPPP/WFS/TF/PTV |
| 00-9735 | P.025/AMPPP/BNS/TF/ABN/0014 | 00-9612 | P.025/PPPPP/WFS/TF/PWF |
| 00-9729 | P.025/AMPPP/WFS/TF/ATF | 00-9613 | P.025/PPPPP/WFS/TF/PWF/0502 |
| 00-9736 | P.025/AMPPP/WFS/TF/ATF/0014 | 00-10088 | P.025/PZPPP/TEL/TF/PTV |
| 00-9750 | P.025/AZLLL/TNL/TF/ATF | 00-9911 | P.025/PZPPP/TNL/TF/KTV |
| 00-9936 | P.025/AZPPP/TEL/TF/ATF | 00-10056 | P.025/PZPPP/TNL/TF/KTV/0502 |
| 00-9728 | P.025/AZPPP/TNL/TF/ATF | 00-9616 | P.025/PZPPP/TNL/TF/PTV |
| 00-9737 | P.025/AZPPP/TNL/TF/ATF/0014 | 00-10030 | P.025/PZPPP/TNL/TF/PTV/0310 |
| 00-9602 | P.025/KKPPP/BNS/TF/KBN | 00-9611 | P.025/PZPPP/TNL/TF/PTV/0502 |
| 00-9910 | P.025/KKPPP/WFS/TF/KTV | 00-9930 | P.025/PZPPP/TNL/TF/PWF |
| 00-9606 | P.025/KKPPP/WFS/TF/KWF | 00-9731 | P.025/SSPPP/BNS/TF/SBN |
| 00-9607 | P.025/KKPPP/WFS/TF/KWF/0502 | 00-9738 | P.025/SSPPP/BNS/TF/SBN/0014 |
| 00-9935 | P.025/KZPPP/TEL/TF/KTV | 00-9819 | P.025/SSPPP/WFS/TF/SWF |
| 00-9604 | P.025/KZPPP/TNL/TF/KTV | 00-9739 | P.025/SSPPP/WFS/TF/SWF/0014 |
| 00-10029 | P.025/KZPPP/TNL/TF/KTV/0310 | 00-9755 | P.025/SZLLL/TNL/TF/STV |
| 00-9605 | P.025/KZPPP/TNL/TF/KTV/0502 | 00-9762 | P.025/SZLLL/TNL/TF/STV/0014 |
| 00-9608 | P.025/PPPPP/BNS/TF/PBN | 00-10089 | P.025/SZPPP/TEL/TF/STV/0481 |
| 00-9609 | P.025/PPPPP/BNS/TF/PBN/0502 | 00-9733 | P.025/SZPPP/TNL/TF/STV |
| 00-10060 | P.025/PPPPP/EPS/TF/PTV | 00-9740 | P.025/SZPPP/TNL/TF/STV/0014 |
| 00-10075 | P.025/PPPPP/WFS/SS/PWF | 00-9813 | P.025/SZPPP/TNL/TF/STV/0670 |
Rubber – 18.1 lpm (4.8 gpm)
TPE – 18.1 lpm (4.8 gpm)
PTFE – 18.1 lpm (4.8 gpm)
8.6 bar (125 psi)
0.4 mm (1/64")
Rubber – 0.02 L (0.005 gal)
TPE – 0.02 L (0.005 gal)
PTFE – 0.02 L (0.005 gal)
