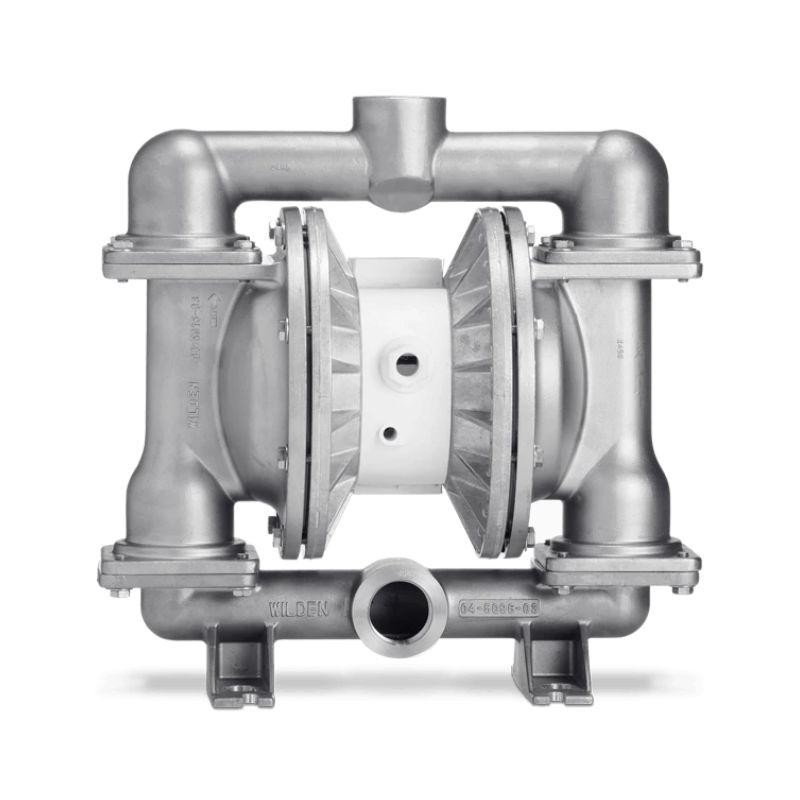

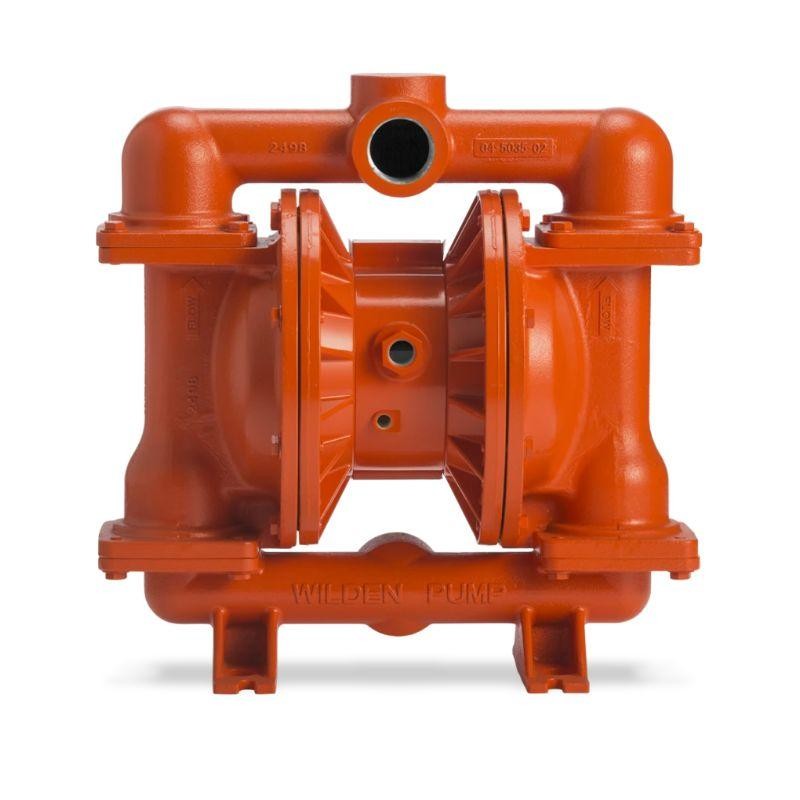

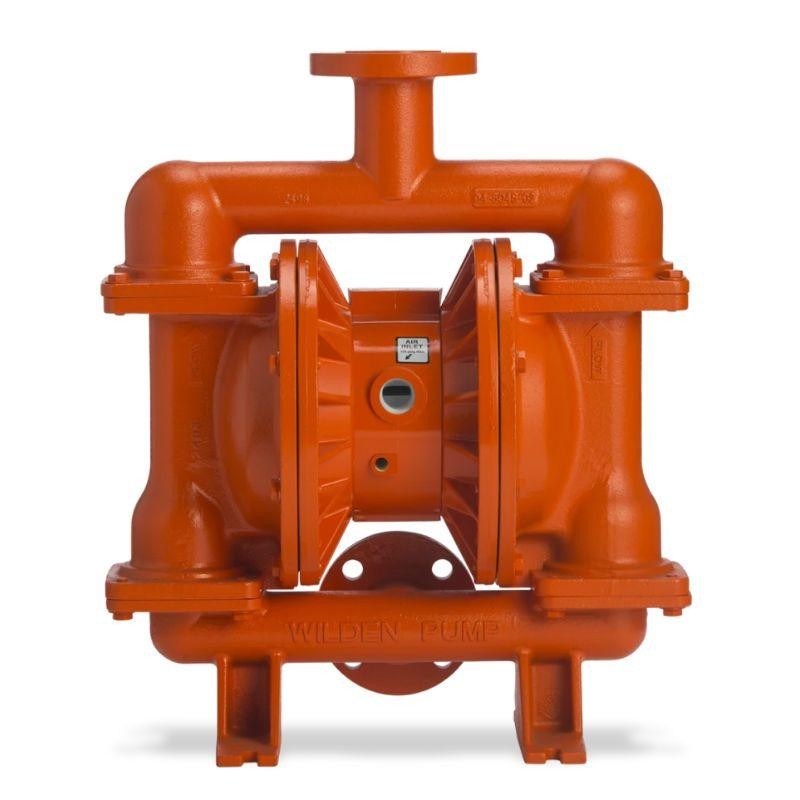

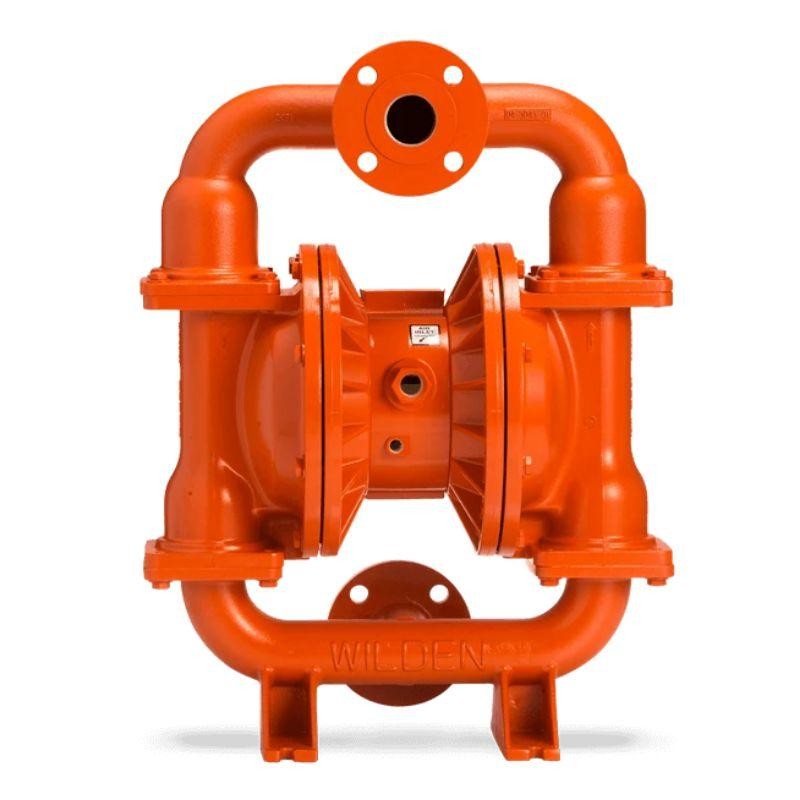

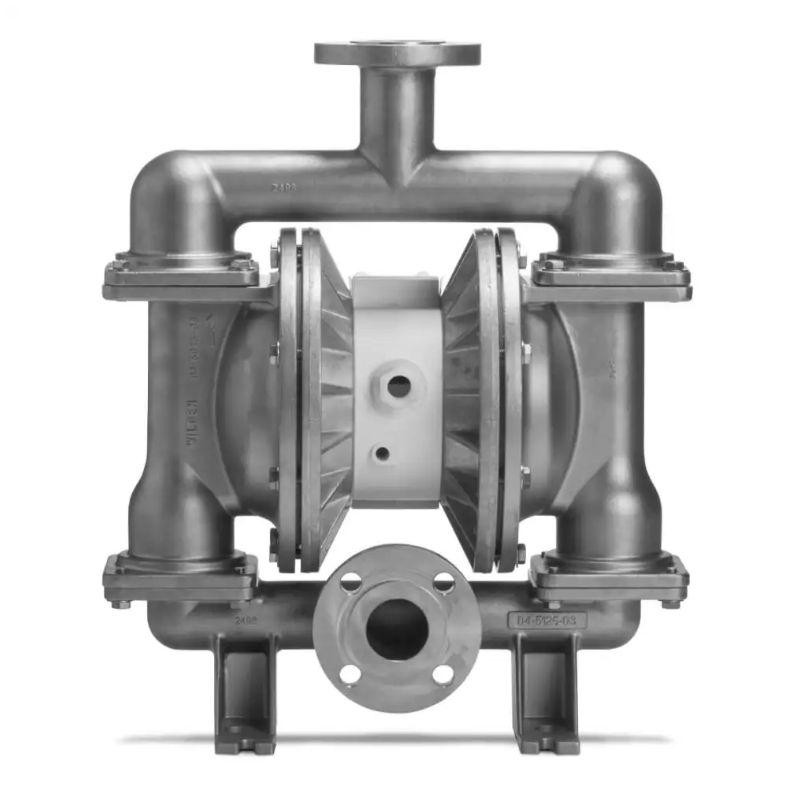

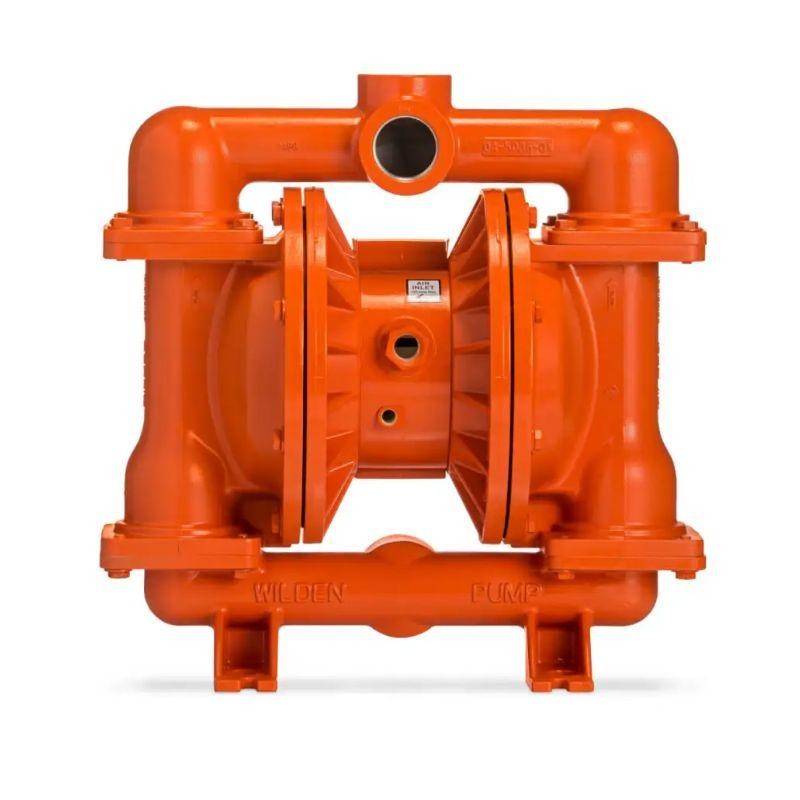

WILDEN Pro-flo Series 1-1/2 Inch 38 mm Bolt-On Metal Air Operated Diaphragm Pump04-13904 P430/SSAPP/BNS/BN/BN/0504

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the P420/P430 Metal Manual.

Flow Curve – EZ-Install TPE-Fitted

Note: Additional performance curves can be found in the P420/P430 Metal Manual.

AIR INLET

• 1/2" FNPT

LIQUID INLET

• 38 mm (1-1/2")

LIQUID DISCHARGE

• 38 mm (1-1/2")

CONNECTION TYPE

• NPT/BSPT (Threaded)

• DIN/ANSI (Flanged)

MAX FLOW RATE

• Rubber – 492 lpm (130 gpm)

• EZ-Install TPE – 492 lpm (130 gpm)

• Full-Stroke PTFE – 473 lpm (125 gpm)

• Reduced-Stroke PTFE – 341 lpm (90 gpm)

MAX PRESSURE

• 8.6 bar (125 psi)

MAX DIAMETER SOLIDS

• 6.4 mm (1/4")

MAX SUCTION LIFT CAPABILITY

• Rubber – 5.5 m (18.2') Dry, 9.0 m (29.5') Wet

• EZ-Install TPE – 4.8 m (15.9') Dry, 9.0 m (29.5') Wet

• Full-Stroke PTFE – 5.2 m (17.0') Dry, 9.0 m (29.5') Wet

• Reduced-Stroke PTFE – 2.8 m (15.9') Dry, 9.0 m (29.5') Wet

DISPLACEMENT PER STROKE *

• Rubber – 1.2 L (0.32 gal)

• TPE – 1.2 L (0.32 gal)

• Full-Stroke PTFE – 1.1 L (0.28 gal)

• Reduced-Stroke PTFE – 0.53 L (0.14 gal)

* 1 cycle = 2 strokes
