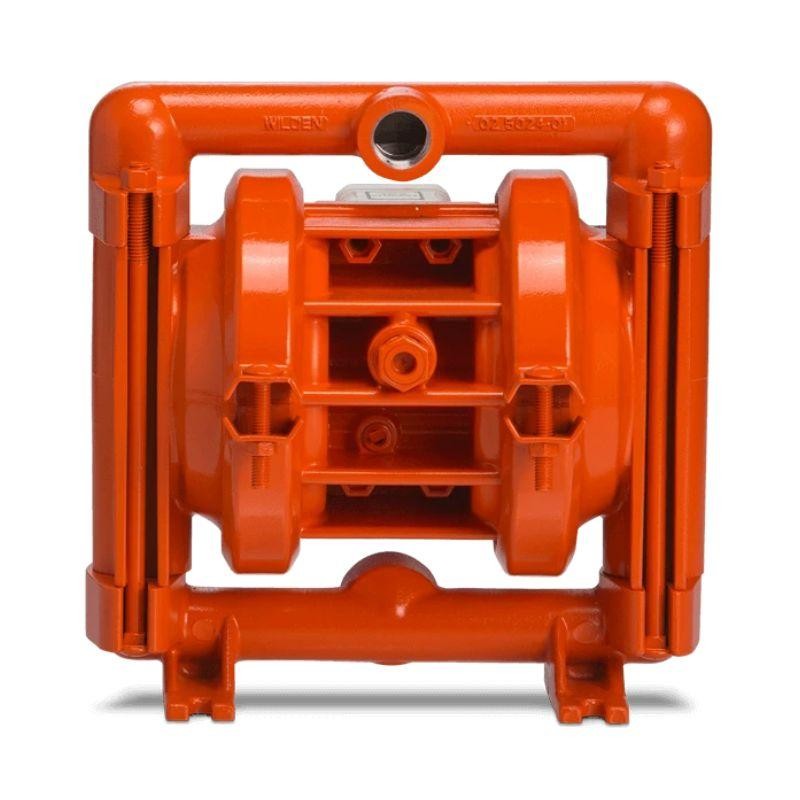

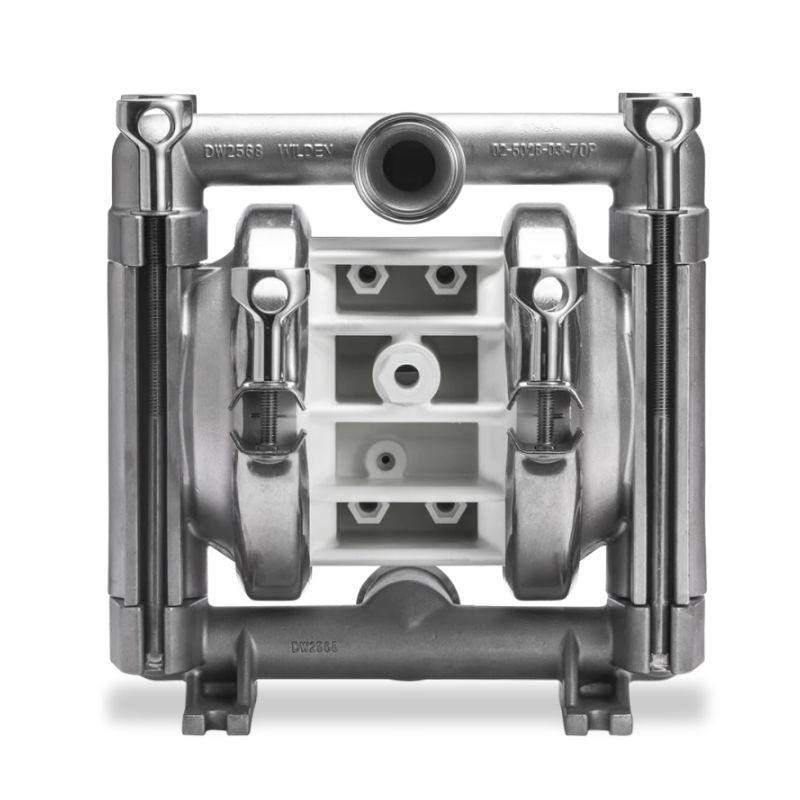

WILDEN 25 mm (1 inch) Pro-Flo® Series Clamp-Type Metal AODD Pump 02-12281 P2/AAPPP/TWS/TF/ATF/2014 WILDEN 25 mm (1 inch) Pro-Flo® Series Clamp-Type Metal AODD Pump 02-12281 P2/AAPPP/TWS/TF/ATF/2014

WILDEN 25 mm (1 inch) Pro-Flo® Series Clamp-Type Metal AODD Pump 02-12281 P2/AAPPP/TWS/TF/ATF/2014

The Wilden 02-12281 P2/AAPPP/TWS/TF/ATF/2014 pneumatic diaphragm pump has demonstrated outstanding performance in industries such as chemicals, food/pharmaceuticals, environmental protection, oil and gas, mining, paints/coatings, marine, and military. Its core advantages lie in safety, corrosion resistance, low shear, ease of maintenance, and energy efficiency. Its double-diaphragm design allows for easy maintenance, simple installation, and quick repairs, requiring only one tool for disassembly

PDF
Product Description:
AIR INLET

  • 1/4" FNPT

LIQUID INLET

  • 25 mm (1")

LIQUID DISCHARGE

  • 19 mm (3/4")

CONNECTION TYPE

  • NPT/BSPT (Threaded)

MAX SUCTION LIFT CAPABILITY

  • Rubber – 5.2 m (17.0') Dry, 9.0 m (29.5') Wet

  • TPE – 7.6 m (25.0') Dry, 9.0 m (29.5') Wet

  • Full-Stroke PTFE – 4.7 m (15.3') Dry, 9.0 m (29.5') Wet

  • Reduced-Stroke PTFE – 2.8 m (9.1') Dry, 9.0 m (29.5') Wet



Performance and Specifications

Dimensions

Dim-P2-25mm1in-CMP

Note: Dimensions vary by material and connection. For additional information, please refer to the P2 Metal Manual.

Flow Curve – TPE-Fitted

Flo-P2-25mm1in-CMP

Note: Additional performance curves can be found in the P2 Metal Manual.

AIR INLET

  • 1/4" FNPT

LIQUID INLET

  • 25 mm (1")

LIQUID DISCHARGE

  • 19 mm (3/4")

CONNECTION TYPE

  • NPT/BSPT (Threaded)

MAX FLOW RATE

  • Rubber – 172 lpm (45.5 gpm)

  • TPE – 171 lpm (45.2 gpm)

  • Full-Stroke PTFE – 167 lpm (44.1 gpm)

  • Reduced-Stroke PTFE – 155 lpm (41 gpm)

MAX PRESSURE

  • 8.6 bar (125 psi)

MAX DIAMETER SOLIDS

  • 3.2 mm (1/8'')

MAX SUCTION LIFT CAPABILITY

  • Rubber – 5.2 m (17.0') Dry, 9.0 m (29.5') Wet

  • TPE – 7.6 m (25.0') Dry, 9.0 m (29.5') Wet

  • Full-Stroke PTFE – 4.7 m (15.3') Dry, 9.0 m (29.5') Wet

  • Reduced-Stroke PTFE – 2.8 m (9.1') Dry, 9.0 m (29.5') Wet

DISPLACEMENT PER STROKE *

  • Rubber – 0.3 L (0.08 gal)

  • TPE – 0.3 L (0.08 gal)

  • Full-Stroke PTFE – 0.3 L (0.08 gal)

  • Reduced-Stroke PTFE – 0.3 L (0.08 gal)

    • * 1 cycle = 2 strokes

Wetted Housings

MaterialShip Weight
Aluminum9 kg (20 lb)
Stainless Steel17 kg (37 lb)

Non-Wetted Housings

DescriptionMaterial
Center SectionPolypropylene, Acetal
Air ValvePolypropylene, Acetal


Other models are recommended：

NumberingDescriptionNumberingDescription
02-12246P2/AAPPP/BNS/BN/ABN/200002-12277P2/PKPPP/TWS/TF/PTV/0400
02-12272P2/AAPPP/BNS/BN/ABN/201402-12872P2/PKPPP/TWS/TF/PTV/0402
02-12759P2/AAPPP/BNS/BN/SBN/200002-12496P2/PKPPP/TWS/TF/PTV/0404
02-12335P2/AAPPP/BNS/TF/ABN/200002-6274P2/PKPPP/VTS/TF/PTV/0400
02-12410P2/AAPPP/BNS/TF/ABN/201402-11101P2/PKPPP/VTS/VT/KTV/0400
02-12491P2/AAPPP/BNS/VT/ABN/200002-10274P2/PKPPP/VTS/VT/PTV/0400
02-12421P2/AAPPP/EPS/EP/ABN/201402-10349P2/PKPPP/VTS/VT/PTV/0404
02-12871P2/AAPPP/EPS/EP/AEP/200002-10364P2/PKPPP/WFS/TF/KWF/0400
02-12499P2/AAPPP/FSS/FS/AFS/200002-6277P2/PKPPP/WFS/TF/KWF/0404
02-12528P2/AAPPP/FSS/FS/SFS/200002-6273P2/PKPPP/WFS/TF/PTV/0400
02-12334P2/AAPPP/NES/BN/ABN/200002-10759P2/PKPPP/WFS/TF/PWF/0400
02-12332P2/AAPPP/NES/NE/ABN/200002-6298P2/PKPPP/WFS/WF/KTV/0400
02-12322P2/AAPPP/NES/NE/ABN/201402-6260P2/PKPPP/WFS/WF/KWF/0400
02-12721P2/AAPPP/TNU/TF/ATF/200002-6287P2/PKPPP/WFS/WF/KWF/0404
02-12558P2/AAPPP/TNU/TF/ATF/201402-10758P2/PKPPP/WFS/WF/KWF/0480
02-12373P2/AAPPP/TNU/TF/STF/200002-6257P2/PKPPP/WFS/WF/PTV/0400
02-12280P2/AAPPP/TSS/TF/ATF/200002-6288P2/PKPPP/WFS/WF/PTV/0404
02-12282P2/AAPPP/TSS/TF/ATF/201402-6245P2/PKPPP/WFS/WF/PWF/0400
02-12245P2/AAPPP/TSU/TF/ATF/200002-6271P2/PKPPP/WFS/WF/PWF/0404
02-12271P2/AAPPP/TSU/TF/ATF/201402-12889P2/PZPPP/FWL/WF/PWF/0400
02-12279P2/AAPPP/TWS/TF/ATF/200002-13114P2/PZPPP/WWL/WF/PWF/0400
02-12281P2/AAPPP/TWS/TF/ATF/201402-10439P2/SSLLL/TSU/TF/STF/0070
02-12769P2/AAPPP/TWS/TF/STF/200002-12467P2/SSLLL/TSU/TF/STF/2070
R02-12843P2/AAPPP/TWS/TF/STF/249102-12888P2/SSLLL/TWS/TF/STF/0070
02-12884P2/AAPPP/VTS/TF/STF/201402-12457P2/SSLLL/VTS/VT/STF/2000
02-12441P2/AAPPP/VTS/VT/ATF/200002-12452P2/SSPPP/BNS/BN/SBN/2000
02-12472P2/AAPPP/VTS/VT/ATF/201402-12458P2/SSPPP/BNS/BN/SBN/2014
02-12247P2/AAPPP/WFS/WF/AWF/200002-12619P2/SSPPP/EPS/EP/SEP/2000
02-12273P2/AAPPP/WFS/WF/AWF/201402-12653P2/SSPPP/EPS/EP/SEP/2014
02-12376P2/AAPPP/WFS/WF/SWF/200002-12760P2/SSPPP/EPS/EP/SEP/2080
02-10279P2/KKPPP/BNS/BN/KBN/040002-12161P2/SSPPP/FES/TF/STF/0070
02-12556P2/KKPPP/EPS/EP/KTV/040002-10250P2/SSPPP/FSS/FS/SFS/0070
02-11033P2/KKPPP/FSS/FS/KTV/040002-12455P2/SSPPP/FSS/FS/SFS/2000
02-11902P2/KKPPP/TEU/TF/KTV/040002-12461P2/SSPPP/FSS/FS/SFS/2014
02-10449P2/KKPPP/TEU/TF/KTV/040402-12466P2/SSPPP/FSS/FS/SFS/2070
02-6246P2/KKPPP/TNU/TF/KTV/040002-10397P2/SSPPP/FSS/TF/SFS/0070
02-6269P2/KKPPP/TNU/TF/KTV/040202-12737P2/SSPPP/FSS/TF/SFS/2070
02-6278P2/KKPPP/TNU/TF/KTV/040402-12237P2/SSPPP/FSS/TF/STF/0070
02-12529P2/KKPPP/TNU/TF/KTV/040802-12828P2/SSPPP/FWS/FS/SFS/2070
02-6264P2/KKPPP/TNU/TF/KTV/041502-12800P2/SSPPP/FWS/TF/STF/0070
02-10360P2/KKPPP/TNU/VT/KTV/040002-12514P2/SSPPP/FWS/TF/STF/2070
02-10550P2/KKPPP/TSU/TF/KTV/040002-12678P2/SSPPP/NES/NE/SBN/2000
02-12484P2/KKPPP/TWS/TF/KTV/040002-12567P2/SSPPP/NES/NE/SBN/2014
02-12574P2/KKPPP/TWS/TF/KTV/040402-10422P2/SSPPP/TEU/TF/STF/0070
02-10289P2/KKPPP/VTS/TF/KTV/040002-12734P2/SSPPP/TEU/TF/STF/2000
02-6290P2/KKPPP/VTS/VT/KTV/040002-12763P2/SSPPP/TEU/TF/STF/2070
02-10470P2/KKPPP/WFS/TF/KTV/0400S02-0116P2/SSPPP/TNU/TF/STF/0014
02-12679P2/KKPPP/WFS/TF/KWF/040002-12445P2/SSPPP/TNU/TF/STF/2000
02-10462P2/KKPPP/WFS/WF/KTV/040002-12449P2/SSPPP/TNU/TF/STF/2014
02-6259P2/KKPPP/WFS/WF/KWF/040002-12351P2/SSPPP/TSS/TF/STF/0070
02-6279P2/KKPPP/WFS/WF/KWF/040402-12447P2/SSPPP/TSS/TF/STF/2000
02-10459P2/PKPPP/BNS/BN/KBN/040002-12451P2/SSPPP/TSS/TF/STF/2014
02-6262P2/PKPPP/BNS/BN/PBN/040002-12741P2/SSPPP/TSS/TF/STF/2070
02-6275P2/PKPPP/BNS/BN/PBN/040402-6299P2/SSPPP/TSU/TF/STF/0070
02-10288P2/PKPPP/BNS/TF/PBN/040402-13015P2/SSPPP/TSU/TF/STF/0122
02-6263P2/PKPPP/EPS/EP/PTV/040002-12444P2/SSPPP/TSU/TF/STF/2000
02-6289P2/PKPPP/EPS/EP/PTV/040402-12448P2/SSPPP/TSU/TF/STF/2014
02-12183P2/PKPPP/EPS/EP/PTV/048002-12464P2/SSPPP/TSU/TF/STF/2070
02-10275P2/PKPPP/FSS/FS/PBN/040002-13003P2/SSPPP/TSU/TF/STF/2079
02-6268P2/PKPPP/FSS/FS/PTV/040002-12299P2/SSPPP/TWS/TF/STF/0070
02-10757P2/PKPPP/FSS/FS/PTV/040402-12446P2/SSPPP/TWS/TF/STF/2000
02-12254P2/PKPPP/FSS/TF/PTV/040002-12450P2/SSPPP/TWS/TF/STF/2014
02-6240P2/PKPPP/NES/NE/PBN/040002-12465P2/SSPPP/TWS/TF/STF/2070
02-6258P2/PKPPP/NES/NE/PBN/040402-12453P2/SSPPP/VTS/VT/STF/2000
02-10285P2/PKPPP/NES/NE/PTV/040002-12459P2/SSPPP/VTS/VT/STF/2014
02-10787P2/PKPPP/NES/TF/PBN/040002-12649P2/SSPPP/VTS/VT/STF/2079
02-11768P2/PKPPP/TEU/TF/PTV/040002-12456P2/SSPPP/WFS/WF/SWF/2000
02-10489P2/PKPPP/TEU/TF/PTV/040402-12462P2/SSPPP/WFS/WF/SWF/2014
02-12668P2/PKPPP/TNU/TF/KBN/040002-12544P2/SSPPP/WFS/WF/SWF/2080
02-6261P2/PKPPP/TNU/TF/KTV/040002-12879P2/SZPPP/FSL/FS/SFS/0070
02-6276P2/PKPPP/TNU/TF/KTV/040402-12880P2/SZPPP/FSL/FS/SFS/2070
02-6239P2/PKPPP/TNU/TF/PTV/040002-12372P2/SZPPP/FWL/FS/SFS/0070
02-10277P2/PKPPP/TNU/TF/PTV/040202-12468P2/SZPPP/FWL/FS/SFS/2070
02-6253P2/PKPPP/TNU/TF/PTV/040402-12771P2/SZPPP/FWL/PU/SPU/2000
02-11947P2/PKPPP/TNU/TF/PTV/042602-12371P2/SZPPP/FWL/TF/STF/0070
02-10518P2/PKPPP/TNU/WF/PTV/040002-12469P2/SZPPP/FWL/TF/STF/2070
02-12396P2/PKPPP/TSS/TF/PTV/040002-12285P2/SZPPP/LEL/TF/STF/0070
02-10986P2/PKPPP/TSU/TF/PTV/040002-13109P2/SZPPP/LEL/TF/STF/2070
02-12622P2/PKPPP/TWS/TF/KTV/040002-13222P2/SZPPP/WWL/WF/SWF/2000


MAX FLOW RATE

  • Rubber – 172 lpm (45.5 gpm)

  • TPE – 171 lpm (45.2 gpm)

  • Full-Stroke PTFE – 167 lpm (44.1 gpm)

  • Reduced-Stroke PTFE – 155 lpm (41 gpm)

MAX PRESSURE

  • 8.6 bar (125 psi)

MAX DIAMETER SOLIDS

  • 3.2 mm (1/8'')

DISPLACEMENT PER STROKE *

  • Rubber – 0.3 L (0.08 gal)

  • TPE – 0.3 L (0.08 gal)

  • Full-Stroke PTFE – 0.3 L (0.08 gal)

  • Reduced-Stroke PTFE – 0.3 L (0.08 gal)

    • * 1 cycle = 2 strokes


Tags:

PREVIOUS：WILDEN 25 mm (1 inch) Pro-Flo® Series Clamp-Type Metal AODD Pump 02-12279 P2/AAPPP/TWS/TF/ATF/2000 NEXT：WILDEN 25 mm (1 inch) Pro-Flo® Series Clamp-Type Metal AODD Pump 02-12769 P2/AAPPP/TWS/TF/STF/2000
Inquiry:
RELATED PRODUCTS:
WILDEN Plastic Air-Operated Diaphragm Pump 02-6288 P2/PKPPP/WFS/WF/PTV/0404

WILDEN Plastic Air-Operated Diaphragm Pu

WILDEN Plastic Air-Operated Diaphragm Pump 02-10277 P2/PKPPP/TNU/TF/PTV/0402

WILDEN Plastic Air-Operated Diaphragm Pu

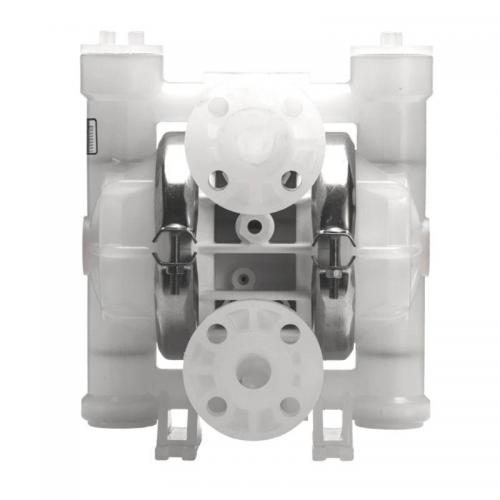

WILDEN 25mm Clamped Plastic AODD Pump 02-10360 P2/KKPPP/TNU/VT/KTV/0400
