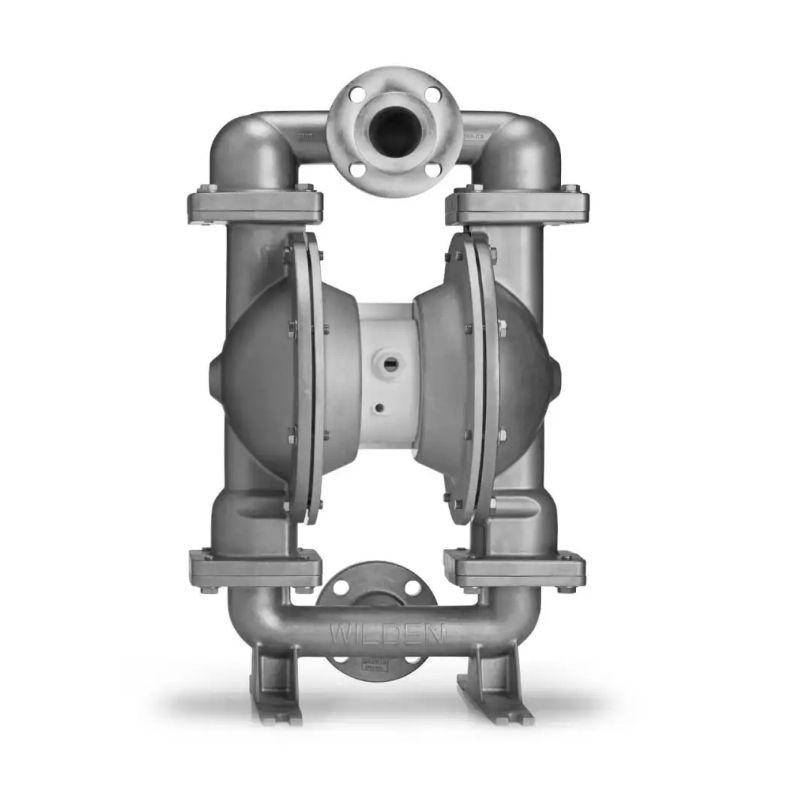

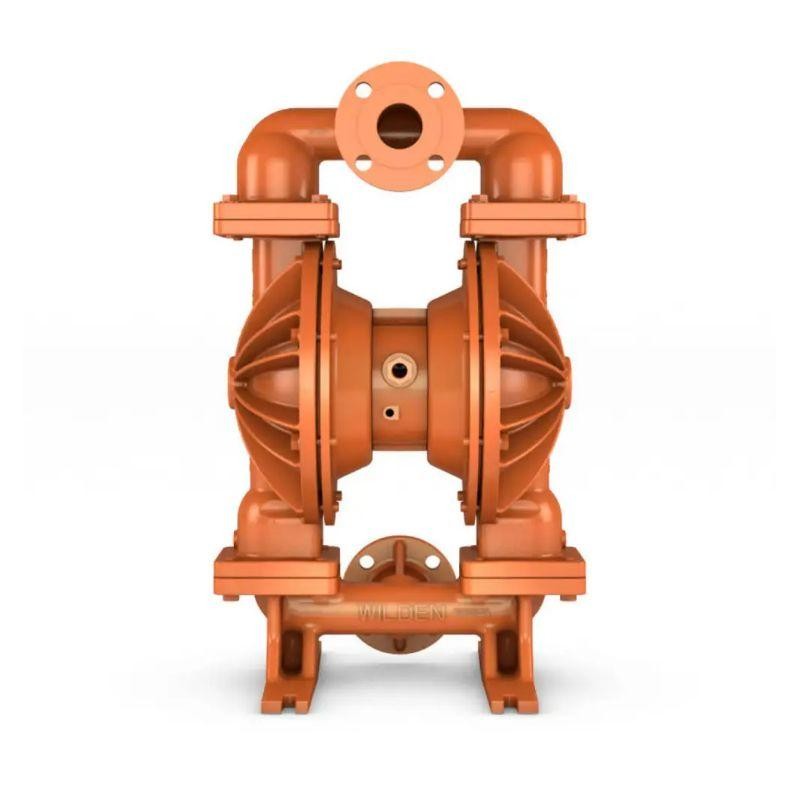

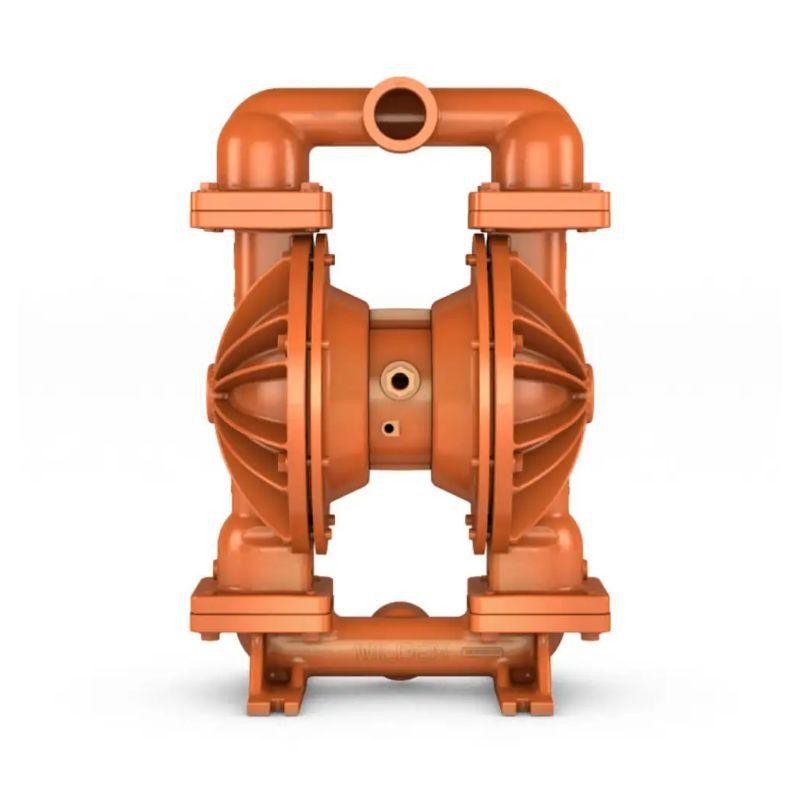

08-15510 P820/AAAPP/ZWS/WF/WF The Wilden® bolted metal pump, also known as FIT, sets the new standard for pump performance. Featuring an enhanced flow path design, Wilden's bolted-construction pumps offer improved flow rates (up to 35% over competitive models) as well as improved diaphragm life. Wilden's bolted pumps are also designed for superior containment and have the exact bolt down footprint and inlet/discharge connections as Wilden clamped pumps for easy replacement.
1/2" FNPT
51 mm (2")
51 mm (2")
NPT/BSPT (Threaded)
DIN/ANSI (Flanged)
Rubber – 7.4 m (24.3') Dry, 9.0 m (29.5') Wet
EZ-Install TPE – 6.7 m (21.9') Dry, 9.0 m (29.5') Wet
Full-Stroke PTFE – 6.9 m (22.6') Dry, 9.0 m (29.5') Wet
Reduced-Stroke PTFE – 4.6 m (15.1') Dry, 9.0 m (29.5') Wet
Note: Dimensions vary by material and connection. For additional information, please refer to the P820/P830 Metal Manual.
Note: Additional performance curves can be found in the P820/P830 Metal Manual.
1/2" FNPT
51 mm (2")
51 mm (2")
NPT/BSPT (Threaded)
DIN/ANSI (Flanged)
Rubber – 609 lpm (161 gpm)
EZ-Install TPE – 605 lpm (160 gpm)
Full-Stroke PTFE – 590 lpm (156 gpm)
Reduced-Stroke PTFE – 492 lpm (130 gpm)
8.6 bar (125 psi)
6.4 mm (1/4")
Rubber – 7.4 m (24.3') Dry, 9.0 m (29.5') Wet
EZ-Install TPE – 6.7 m (21.9') Dry, 9.0 m (29.5') Wet
Full-Stroke PTFE – 6.9 m (22.6') Dry, 9.0 m (29.5') Wet
Reduced-Stroke PTFE – 4.6 m (15.1') Dry, 9.0 m (29.5') Wet
Rubber –2.8 L (0.74 gal)
EZ-Install TPE – 2.5 L (0.67 gal)
Full-Stroke PTFE – 2.5 L (0.65 gal)
Reduced-Stroke PTFE – 1.7 L (0.46 gal)
| Material | Ship Weight |
|---|---|
| Aluminum | 47 kg (104 lb) (P820) 54 kg (118 lb) (P830) |
| Stainless Steel | 73 kg (161 lb) (P820) 81 kg (178 lb) (P830) |
| Ductile Iron | 71 kg (156 lb) (P820) 82 kg (181 lb) (P830) |
| Description | Material |
|---|---|
| Center Section | Polypropylene |
| Air Valve | Polypropylene |
| Air Chamber | Aluminum |
