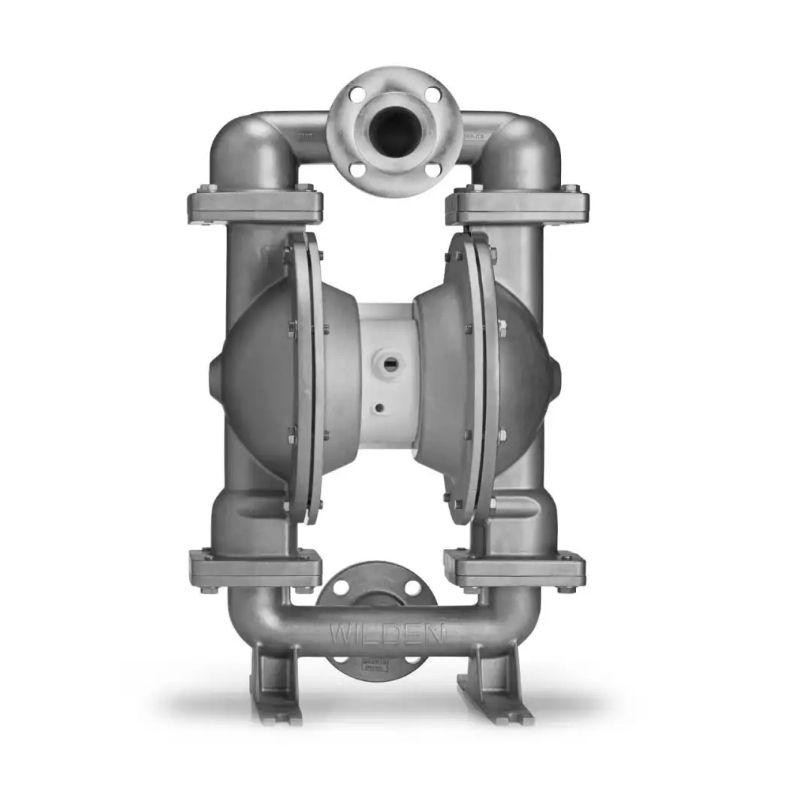

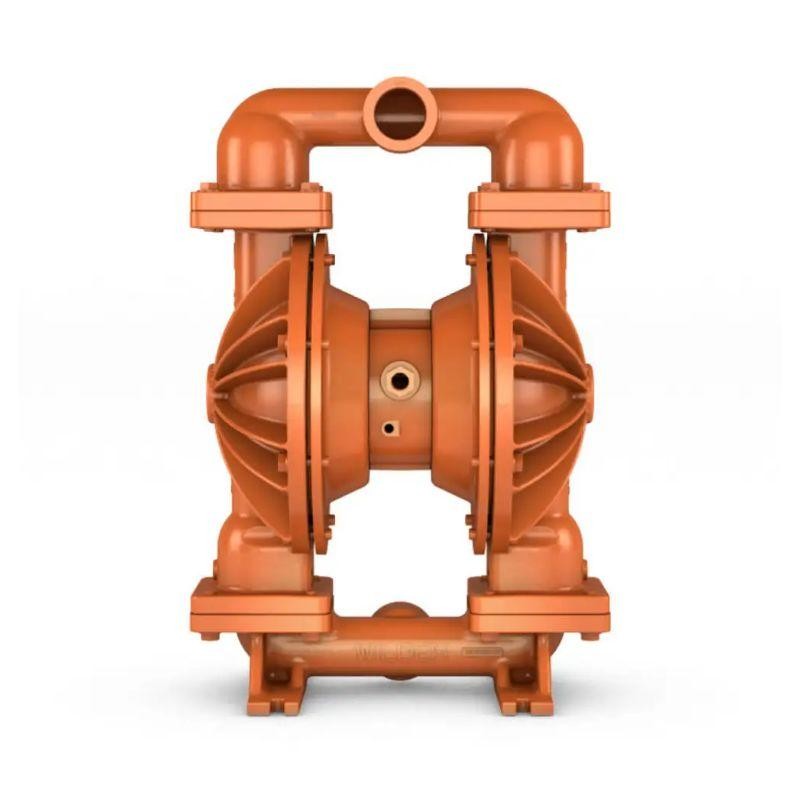

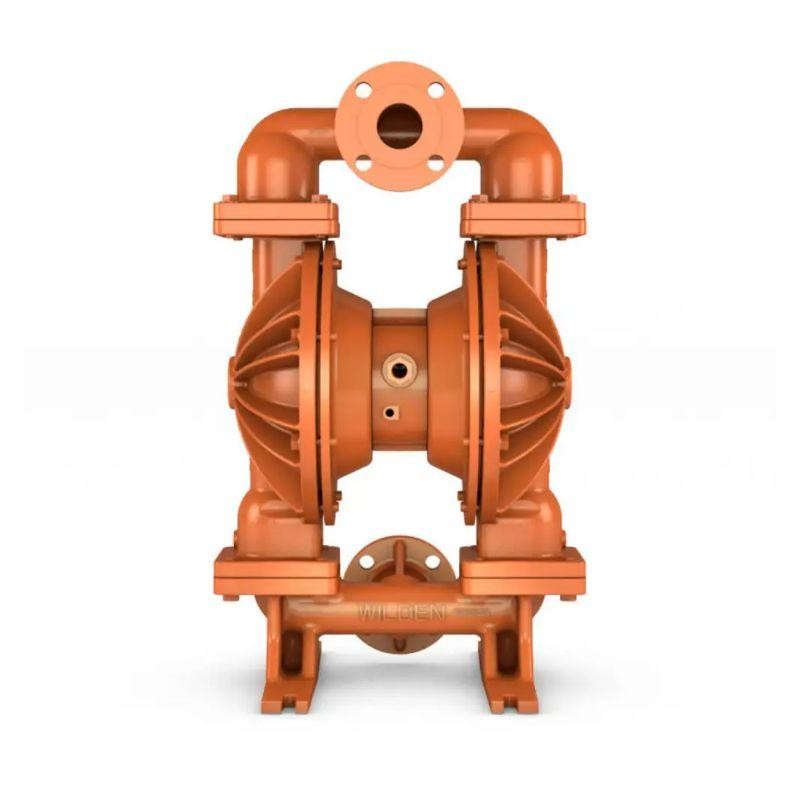

WILDEN 51 mm 2 Inch Pro-Flo Series Bolted Metal AODD Pump 08-15562 P830/SSAPP/TNU/TF/STF WILDEN 51 mm 2 Inch Pro-Flo Series Bolted Metal AODD Pump 08-15562 P830/SSAPP/TNU/TF/STF WILDEN 51 mm 2 Inch Pro-Flo Series Bolted Metal AODD Pump 08-15562 P830/SSAPP/TNU/TF/STF

WILDEN 51 mm 2 Inch Pro-Flo Series Bolted Metal AODD Pump 08-15562 P830/SSAPP/TNU/TF/STF

08-15562 P830/SSAPP/TNU/TF/STF The Wilden® bolted metal pump, also known as FIT, sets the new standard for pump performance. Featuring an enhanced flow path design, Wilden's bolted-construction pumps offer improved flow rates (up to 35% over competitive models) as well as improved diaphragm life. Wilden's bolted pumps are also designed for superior containment and have the exact bolt down footprint and inlet/discharge connections as Wilden clamped pumps for easy replacement.

PDF
Product Description:
AIR INLET

  • 1/2" FNPT

LIQUID INLET

  • 51 mm (2")

LIQUID DISCHARGE

  • 51 mm (2")

CONNECTION TYPE

  • NPT/BSPT (Threaded)

  • DIN/ANSI (Flanged)

MAX SUCTION LIFT CAPABILITY

  • Rubber – 7.4 m (24.3') Dry, 9.0 m (29.5') Wet

  • EZ-Install TPE – 6.7 m (21.9') Dry, 9.0 m (29.5') Wet

  • Full-Stroke PTFE – 6.9 m (22.6') Dry, 9.0 m (29.5') Wet

  • Reduced-Stroke PTFE – 4.6 m (15.1') Dry, 9.0 m (29.5') Wet


Performance and Specifications

Dimensions

Dim-P820-P830-51mm2in-BMP

Note: Dimensions vary by material and connection. For additional information, please refer to the P820/P830 Metal Manual.

Flow Curve – EZ-Install TPE-Fitted

Flo-P820-P830-51mm2in-BMP

Note: Additional performance curves can be found in the P820/P830 Metal Manual.

AIR INLET

  • 1/2" FNPT

LIQUID INLET

  • 51 mm (2")

LIQUID DISCHARGE

  • 51 mm (2")

CONNECTION TYPE

  • NPT/BSPT (Threaded)

  • DIN/ANSI (Flanged)

MAX FLOW RATE

  • Rubber – 609 lpm (161 gpm)

  • EZ-Install TPE – 605 lpm (160 gpm)

  • Full-Stroke PTFE – 590 lpm (156 gpm)

  • Reduced-Stroke PTFE – 492 lpm (130 gpm)

MAX PRESSURE

  • 8.6 bar (125 psi)

MAX DIAMETER SOLIDS

  • 6.4 mm (1/4")

MAX SUCTION LIFT CAPABILITY

  • Rubber – 7.4 m (24.3') Dry, 9.0 m (29.5') Wet

  • EZ-Install TPE – 6.7 m (21.9') Dry, 9.0 m (29.5') Wet

  • Full-Stroke PTFE – 6.9 m (22.6') Dry, 9.0 m (29.5') Wet

  • Reduced-Stroke PTFE – 4.6 m (15.1') Dry, 9.0 m (29.5') Wet

DISPLACEMENT PER STROKE *

  • Rubber –2.8 L (0.74 gal)

  • EZ-Install TPE – 2.5 L (0.67 gal)

  • Full-Stroke PTFE – 2.5 L (0.65 gal)

  • Reduced-Stroke PTFE – 1.7 L (0.46 gal)

    • * 1 cycle = 2 strokes

Wetted Housings

MaterialShip Weight
Aluminum47 kg (104 lb) (P820)
54 kg (118 lb) (P830)
Stainless Steel73 kg (161 lb) (P820)
81 kg (178 lb) (P830)
Ductile Iron
71 kg (156 lb) (P820)
82 kg (181 lb) (P830)

Non-Wetted Housings

DescriptionMaterial
Center SectionPolypropylene
Air ValvePolypropylene
Air ChamberAluminum


Other models are recommended：

NumberingDescriptionNumberingDescription
08-14448P800/KKPPP/FWS/TF/KTV08-15508P820/AAAPP/BNS/BN/BN
08-13625P800/KKPPP/TEU/TF/KTV08-15509P820/AAAPP/BNS/BN/BN/0014
08-13662P800/KKPPP/TEU/TF/KTV/050408-15506P820/AAAPP/NES/NE/NE
08-14421P800/KKPPP/TEU/TF/KTV/069008-15507P820/AAAPP/NES/NE/NE/0014
08-12042P800/KKPPP/TNU/TF/KTV08-15512P820/AAAPP/TNU/TF/ATF
08-12082P800/KKPPP/TNU/TF/KTV/050208-15513P820/AAAPP/TNU/TF/ATF/0014
08-12043P800/KKPPP/TNU/TF/KTV/050408-15514P820/AAAPP/TWS/TF/ATF
08-13308P800/KKPPP/TNU/TF/KTV/069008-15515P820/AAAPP/TWS/TF/ATF/0014
08-13584P800/KKPPP/TNU/TF/KTV/069108-15606P820/AAAPP/VTS/VT/VT
08-13377P800/KKPPP/TNU/TF/KTV/073308-15607P820/AAAPP/ZSS/FS/FS
08-13658P800/KKPPP/TSU/TF/KTV08-15510P820/AAAPP/ZWS/WF/WF
08-14394P800/KKPPP/TWS/TF/KTV08-15511P820/AAAPP/ZWS/WF/WF/0014
08-15201P800/KKPPP/TWS/TF/KTV/050408-15528P820/SSAPP/BNS/BN/BN
08-13705P800/KKPPP/VTS/TF/KTV/069008-15529P820/SSAPP/BNS/BN/BN/0014
08-16021P800/KKPPP/ZWS/TF/KTV08-15526P820/SSAPP/NES/NE/NE
08-15273P800/KKPPP/ZWS/WF/KWF08-15527P820/SSAPP/NES/NE/NE/0014
08-12030P800/PKPPP/BNS/BN/PBN08-15532P820/SSAPP/TNU/TF/STF
08-14059P800/PKPPP/BNS/BN/PBN/050408-15533P820/SSAPP/TNU/TF/STF/0014
08-13552P800/PKPPP/BNS/BN/PBN/069008-15534P820/SSAPP/TWS/TF/STF
08-12290P800/PKPPP/BNU/BN/PBN08-15535P820/SSAPP/TWS/TF/STF/0014
08-12032P800/PKPPP/EPS/EP/PTV08-15610P820/SSAPP/VTS/VT/VT
08-12033P800/PKPPP/EPS/EP/PTV/050408-15611P820/SSAPP/ZSS/FS/FS
08-13326P800/PKPPP/EPS/EP/PTV/069008-15530P820/SSAPP/ZWS/WF/WF
08-14149P800/PKPPP/EPS/TF/PTV/069008-15531P820/SSAPP/ZWS/WF/WF/0014
08-14183P800/PKPPP/FWS/WF/KWF/069008-15522P820/WSAPP/TNU/TF/MTF
08-14353P800/PKPPP/FWS/WF/PWF08-15523P820/WSAPP/TNU/TF/MTF/0014
08-12034P800/PKPPP/NES/NE/PBN08-15518P820/WWAPP/BNS/BN/BN
08-13963P800/PKPPP/NES/NE/PBN/069008-15519P820/WWAPP/BNS/BN/BN/0014
08-12842P800/PKPPP/NES/NE/PTV08-15516P820/WWAPP/NES/NE/NE
08-14722P800/PKPPP/NEU/NE/PBN/072908-15517P820/WWAPP/NES/NE/NE/0014
08-15752P800/PKPPP/TEU/EP/PTV/069008-15524P820/WWAPP/TWS/TF/MTF
08-14629P800/PKPPP/TEU/TF/KTV08-15525P820/WWAPP/TWS/TF/MTF/0014
08-14348P800/PKPPP/TEU/TF/KTV/069008-15608P820/WWAPP/VTS/VT/VT
08-13986P800/PKPPP/TEU/TF/PTV08-15730P820/WWAPP/WWL/WF/WF
08-12629P800/PKPPP/TEU/TF/PTV/050408-15609P820/WWAPP/ZSS/FS/FS
08-14341P800/PKPPP/TEU/TF/PTV/069008-15520P820/WWAPP/ZWS/WF/WF
08-12280P800/PKPPP/TNU/TF/KTV08-15521P820/WWAPP/ZWS/WF/WF/0014
08-13305P800/PKPPP/TNU/TF/KTV/069008-15538P830/AAAPP/BNS/BN/BN
08-12015P800/PKPPP/TNU/TF/PTV08-15539P830/AAAPP/BNS/BN/BN/0504
08-12932P800/PKPPP/TNU/TF/PTV/010008-15658P830/AAAPP/EPS/EP/EP
08-12080P800/PKPPP/TNU/TF/PTV/050208-15536P830/AAAPP/NES/NE/NE
08-12037P800/PKPPP/TNU/TF/PTV/050408-15537P830/AAAPP/NES/NE/NE/0504
08-13303P800/PKPPP/TNU/TF/PTV/069008-15542P830/AAAPP/TNU/TF/ATF
08-13386P800/PKPPP/TNU/TF/PTV/073308-15543P830/AAAPP/TNU/TF/ATF/0504
08-13655P800/PKPPP/TNU/TF/PTV/073408-15544P830/AAAPP/TWS/TF/ATF
08-13671P800/PKPPP/TNU/VT/PTV08-15545P830/AAAPP/TWS/TF/ATF/0504
08-14248P800/PKPPP/TSS/TF/KTV08-15681P830/AAAPP/VTS/VT/ATF
08-14212P800/PKPPP/TSS/TF/PTV08-15540P830/AAAPP/ZWS/WF/WF
08-14167P800/PKPPP/TSS/TF/PTV/069008-15541P830/AAAPP/ZWS/WF/WF/0504
08-12774P800/PKPPP/TSU/TF/PTV08-15558P830/SSAPP/BNS/BN/BN
08-14066P800/PKPPP/TSU/TF/PTV/069008-15559P830/SSAPP/BNS/BN/BN/0504
08-15005P800/PKPPP/TWS/TF/KTV08-15556P830/SSAPP/NES/NE/NE
08-14166P800/PKPPP/TWS/TF/PTV08-15557P830/SSAPP/NES/NE/NE/0504
08-14671P800/PKPPP/TWS/TF/PTV/050408-15562P830/SSAPP/TNU/TF/STF
08-14391P800/PKPPP/TWS/TF/PTV/069008-15563P830/SSAPP/TNU/TF/STF/0504
08-14947P800/PKPPP/VTS/TF/PTV08-15564P830/SSAPP/TWS/TF/STF
08-15268P800/PKPPP/VTS/TF/PTV/050208-15565P830/SSAPP/TWS/TF/STF/0504
08-15054P800/PKPPP/VTS/TF/PTV/069008-15560P830/SSAPP/ZWS/WF/WF
08-12038P800/PKPPP/VTS/VT/PTV08-15561P830/SSAPP/ZWS/WF/WF/0504
08-12039P800/PKPPP/VTS/VT/PTV/050408-15552P830/WSAPP/TNU/TF/MTF
08-13470P800/PKPPP/VTS/VT/PTV/069008-15553P830/WSAPP/TNU/TF/MTF/0504
08-15990P800/PKPPP/ZWS/WF/PTV08-15548P830/WWAPP/BNS/BN/BN
08-14719P800/PKPPP/ZWS/WF/PWF08-15549P830/WWAPP/BNS/BN/BN/0504
08-14761P800/PKPPP/ZWS/WF/PWF/050408-15546P830/WWAPP/NES/NE/NE
08-15139P800/PKPPP/ZWS/WF/PWF/069008-15547P830/WWAPP/NES/NE/NE/0504
08-14467P800/PZPPP/FWL/WF/PWF08-15554P830/WWAPP/TWS/TF/MTF
08-13965P800/PZPPP/LEL/TF/PTV/069008-15555P830/WWAPP/TWS/TF/MTF/0504
08-15604P800/PZPPP/WWL/WF/PWF08-15550P830/WWAPP/ZWS/WF/WF
08-15841P800/PZPPP/WWL/WF/PWF/069008-15551P830/WWAPP/ZWS/WF/WF/0504


MAX FLOW RATE

  • Rubber – 609 lpm (161 gpm)

  • EZ-Install TPE – 605 lpm (160 gpm)

  • Full-Stroke PTFE – 590 lpm (156 gpm)

  • Reduced-Stroke PTFE – 492 lpm (130 gpm)

MAX PRESSURE

  • 8.6 bar (125 psi)

MAX DIAMETER SOLIDS

  • 6.4 mm (1/4")

DISPLACEMENT PER STROKE *

  • Rubber –2.8 L (0.74 gal)

  • EZ-Install TPE – 2.5 L (0.67 gal)

  • Full-Stroke PTFE – 2.5 L (0.65 gal)

  • Reduced-Stroke PTFE – 1.7 L (0.46 gal)

    • * 1 cycle = 2 strokes
