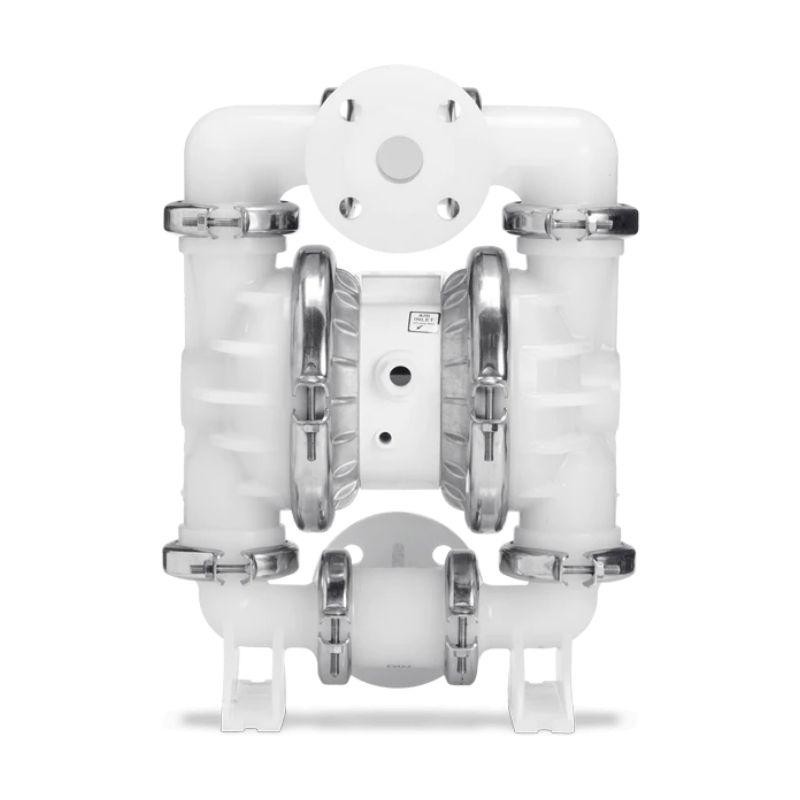

WILDEN 38 mm Pro-Flo® Series Clamped Plastic AODD Pump 04-13242 P4/PPAPP/ZWS/WF/PTV/0504

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the P4 Plastic Manual.

Flow Curve – TPE-Fitted

Note: Additional performance curves can be found in the P4 Plastic Manual.

AIR INLET

• 1/2" FNPT

LIQUID INLET

• 38 mm (1-1/2")

LIQUID DISCHARGE

• 38 mm (1-1/2")

CONNECTION TYPE

• DIN/ANSI (Flanged)

MAX FLOW RATE

• Rubber – 348 lpm (92 gpm)

• TPE – 354 lpm (94 gpm)

• Full-Stroke PTFE – 352 lpm (92.9 gpm)

• Reduced-Stroke PTFE – 261 lpm (69 gpm)

MAX PRESSURE

• 8.6 bar (125 psi)

MAX DIAMETER SOLIDS

• 4.8 mm (3/16'')

MAX SUCTION LIFT CAPABILITY

• Rubber – 4.88 m (16') Dry, 7.92 m (26') Wet

• TPE – 3.96 m (13') Dry, 7.92 m (26') Wet

• Full-Stroke PTFE – 4.7 m (15.3') Dry, 9.3 m (30.6') Wet

• Reduced-Stroke PTFE – 3.05 m (10') Dry, 7.47 m (24.5') Wet

DISPLACEMENT PER STROKE *

• Rubber – 1.19 L (0.314 gal)

• TPE – 1.18 L (0.311 gal)

• Full-Stroke PTFE – 1.0 L (0.27 gal)

• Reduced-Stroke PTFE – 0.53 L (0.139 gal)

* 1 cycle = 2 strokes

Wetted Housings

Non-Wetted Housings
