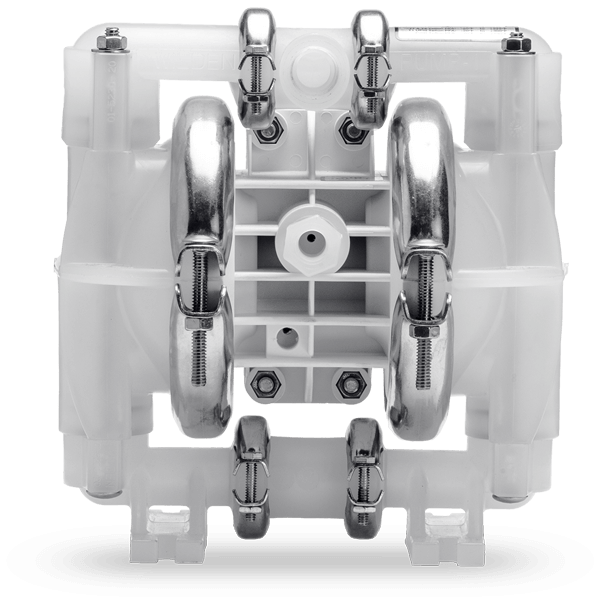

WILDEN Pneumatic Diaphragm Pump, 1/2" Plastic Diaphragm Pump, 01-10088 P1/KKPPP/BNS/BN/KBN The diaphragm pump adopts the design of unbalanced air valve, no dead center, stable operation; Plastic self-lubricating air system eliminates the need for lubrication, reducing maintenance costs and pollution risks. The special and fast exhaust structure ensures that the air valve does not freeze and improves the air utilization rate. It has excellent applications in the chemical field.
1/4" FNPT
13 mm (1/2")
13 mm (1/2")
NPT (Threaded)
Rubber – 6.1 m (20') Dry, 9.5 m(31')Wet
TPE – 5.8 m (19') Dry, 9.8 m (32') Wet
PTFE – 5.18 m (17') Dry, 9.8 m (32') Wet
Note: Dimensions vary by material and connection. For additional information, please refer to the P1 Plastic Manual.
Note: Additional performance curves can be found in the P1 Plastic Manual.
1/4" FNPT
13 mm (1/2")
13 mm (1/2")
NPT/BSPT (Threaded)
Rubber – 56 lpm (14.8 gpm)
TPE – 56.8 lpm (15 gpm)
PTFE – 53.4 lpm (14.1 gpm)
8.6 bar (125 psi)
1.6 mm (1/16'')
Rubber – 6.1 m (20') Dry, 9.5 m (31') Wet
TPE – 5.8 m (19') Dry, 9.8 m (32') Wet
PTFE – 5.18 m (17') Dry, 9.8 m (32') Wet
Rubber – 0.11 L (0.029 gal)
TPE – 0.11 L (0.030 gal)
PTFE – 0.10 L (0.027 gal)
| Material | Ship Weight |
|---|---|
| Polypropylene | 4.0 kg (9 lb) |
| PVDF | 5.0 kg (11 lb) |
| PTFE PFA | 6 kg (12 lb) |
| Description | Material |
|---|---|
| Center Section | Polypropylene, Acetal |
| Air Valve | Polypropylene, Acetal |
Other models are recommended：
| Numbering | Description | Numbering | Description |
| 01-2669 | P1/AALLL/BNS/BN/ABN | 01-10070 | P1/PPPPP/FSS/FS/KFS |
| 01-2668 | P1/AALLL/BNS/BN/ABN/0014 | 01-10069 | P1/PPPPP/FSS/TF/KFS |
| 01-10099 | P1/AALLL/BNS/VT/ABN/0014 | 01-2658 | P1/PPPPP/PUS/PU/KPU |
| 01-10949 | P1/AALLL/BNS/VT/ABN/0246 | 01-10720 | P1/PPPPP/TEU/TF/KTV |
| 01-2670 | P1/AALLL/TNU/TF/ATF | 01-2654 | P1/PPPPP/TNU/TF/KTV |
| 01-2667 | P1/AALLL/TNU/TF/ATF/0014 | 01-10301 | P1/PPPPP/TNU/TF/KTV/0480 |
| 01-10078 | P1/AALLL/VTS/VT/ATF | 01-11108 | P1/PPPPP/TNU/TF/KTV/0490 |
| 01-10725 | P1/AALLL/VTS/VT/ATF/0014 | 01-2679 | P1/PPPPP/TNU/TF/KTV/0502 |
| 01-11163 | P1/AALLL/WFS/TF/AWF/0014 | 01-10697 | P1/PPPPP/TNU/TF/KWF |
| 01-10079 | P1/AALLL/WFS/WF/AWF | 01-10876 | P1/PPPPP/TNU/TF/VT |
| 01-2653 | P1/AAPPP/BNS/BN/ABN | 01-2682 | P1/PPPPP/TNU/VT/KTV/0502 |
| 01-2656 | P1/AAPPP/BNS/BN/ABN/0014 | 01-10218 | P1/PPPPP/TVU/TF/KTV |
| 01-10376 | P1/AAPPP/BNS/BN/SBN | 01-10114 | P1/PPPPP/VTS/TF/KTV |
| 01-10905 | P1/AAPPP/BNS/TF/SBN/0014 | 01-10303 | P1/PPPPP/VTS/VT/KTV |
| 01-10664 | P1/AAPPP/EPS/EP/AEP | 01-2686 | P1/PPPPP/VTS/VT/VT |
| 01-11152 | P1/AAPPP/EPS/EP/AEP/0014 | 01-10296 | P1/PPPPP/WFS/TF/KTV |
| 01-10073 | P1/AAPPP/FSS/FS/AFS | 01-2664 | P1/PPPPP/WFS/TF/KWF |
| 01-10253 | P1/AAPPP/FSS/FS/AFS/0014 | 01-10896 | P1/PPPPP/WFS/TF/KWF/0490 |
| 01-10786 | P1/AAPPP/FSS/PU/SPU | 01-2673 | P1/PPPPP/WFS/WF/KTV |
| 01-10973 | P1/AAPPP/FSS/TF/AFS | 01-0110 | P1/PPPPP/WFS/WF/KWF |
| 01-10731 | P1/AAPPP/TEU/TF/ATF | 01-10404 | P1/PZPPP/TNL/TF/KTV |
| 01-2652 | P1/AAPPP/TNU/TF/ATF | 01-2666 | P1/SSLLL/TNU/TF/STF |
| 01-2657 | P1/AAPPP/TNU/TF/ATF/0014 | 01-2665 | P1/SSLLL/TNU/TF/STF/0014 |
| 01-2689 | P1/AAPPP/VTS/VT/ATF | 01-10909 | P1/SSLLL/TSU/TF/STF/0070 |
| 01-10491 | P1/AAPPP/VTS/VT/ATF/0014 | 01-10191 | P1/SSLLL/WFS/WF/SWF/0014 |
| 01-10132 | P1/AAPPP/WFS/TF/AWF | 01-10074 | P1/SSPPP/BNS/BN/SBN |
| 01-2676 | P1/AAPPP/WFS/WF/AWF | 01-10216 | P1/SSPPP/BNS/BN/SBN/0014 |
| 01-2693 | P1/AAPPP/WFS/WF/AWF/0014 | 01-10891 | P1/SSPPP/BNS/TF/STF |
| 01-2677 | P1/AAPPP/WFS/WF/SWF | 01-10663 | P1/SSPPP/EPS/EP/SEP |
| 01-10221 | P1/AAPPP/WFS/WF/SWF/0014 | 01-10733 | P1/SSPPP/EPS/EP/SEP/0014 |
| 01-10088 | P1/KKPPP/BNS/BN/KBN | 01-2680 | P1/SSPPP/FSS/FS/SFS |
| 01-10686 | P1/KKPPP/FSS/FS/KTV | 01-10349 | P1/SSPPP/FSS/FS/SFS/0014 |
| 01-10864 | P1/KKPPP/TEU/TF/KTV | 01-2674 | P1/SSPPP/FSS/FS/SFS/0070 |
| 01-2659 | P1/KKPPP/TNU/TF/KTV | 01-10068 | P1/SSPPP/FSS/TF/SFS/0070 |
| 01-2683 | P1/KKPPP/TNU/TF/KTV/0502 | 01-10837 | P1/SSPPP/TEU/TF/STF |
| 01-11065 | P1/KKPPP/TNU/TF/KTV/0635 | 01-10897 | P1/SSPPP/TEU/TF/STF/0070 |
| 01-10292 | P1/KKPPP/TNU/VT/KTV | 01-2662 | P1/SSPPP/TNU/TF/STF |
| 01-2692 | P1/KKPPP/VTS/VT/KTV | 01-2663 | P1/SSPPP/TNU/TF/STF/0014 |
| 01-10328 | P1/KKPPP/VTS/VT/VT | 01-10445 | P1/SSPPP/TNU/TF/STF/0080 |
| 01-10459 | P1/KKPPP/WFS/TF/KTV | 01-10236 | P1/SSPPP/TNU/TF/STF/0100 |
| 01-10230 | P1/KKPPP/WFS/TF/KWF | 01-10844 | P1/SSPPP/TSU/TF/STF |
| 01-10206 | P1/KKPPP/WFS/WF/KTV | 01-10966 | P1/SSPPP/TSU/TF/STF/0070 |
| 01-10998 | P1/KKPPP/WFS/WF/KTV/0502 | 01-11261 | P1/SSPPP/TSU/TF/STF/0079 |
| 01-10087 | P1/KKPPP/WFS/WF/KWF | 01-10181 | P1/SSPPP/TVU/TF/STF |
| 01-10405 | P1/KZPPP/TNL/TF/KTV | 01-10779 | P1/SSPPP/TVU/TF/STF/0079 |
| 01-2655 | P1/PPPPP/BNS/BN/KBN | 01-10495 | P1/SSPPP/VTS/TF/STF |
| 01-11177 | P1/PPPPP/BNS/BN/KBN/0490 | 01-2690 | P1/SSPPP/VTS/VT/STF |
| 01-11148 | P1/PPPPP/BNS/BN/KWF | 01-10176 | P1/SSPPP/VTS/VT/STF/0014 |
| 01-2699 | P1/PPPPP/BNS/TF/KBN | 01-2685 | P1/SSPPP/WFS/WF/SWF |
| 01-10561 | P1/PPPPP/EPS/EP/KTV | 01-10147 | P1/SSPPP/WFS/WF/SWF/0014 |
| 01-10869 | P1/PPPPP/EPS/TF/KTV |
Rubber – 56 lpm (14.8 gpm)
TPE – 56.8 lpm (15 gpm)
PTFE – 53.4 lpm (14.1 gpm)
8.6 bar (125 psi)
1.6 mm (1/16'')
Rubber – 0.11 L (0.029 gal)
TPE – 0.11 L (0.030 gal)
PTFE – 0.10 L (0.027 gal)
