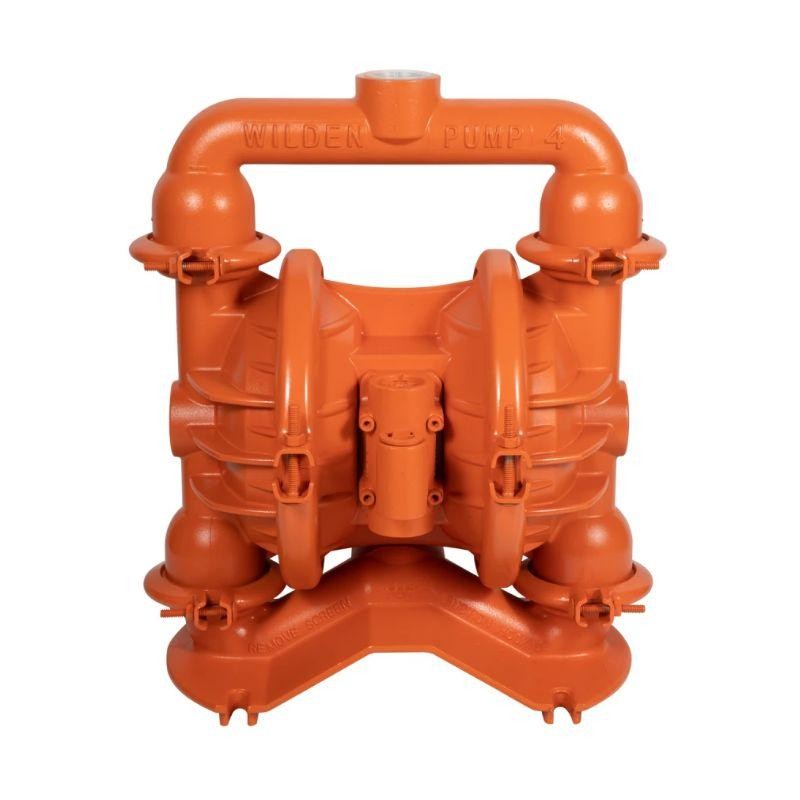

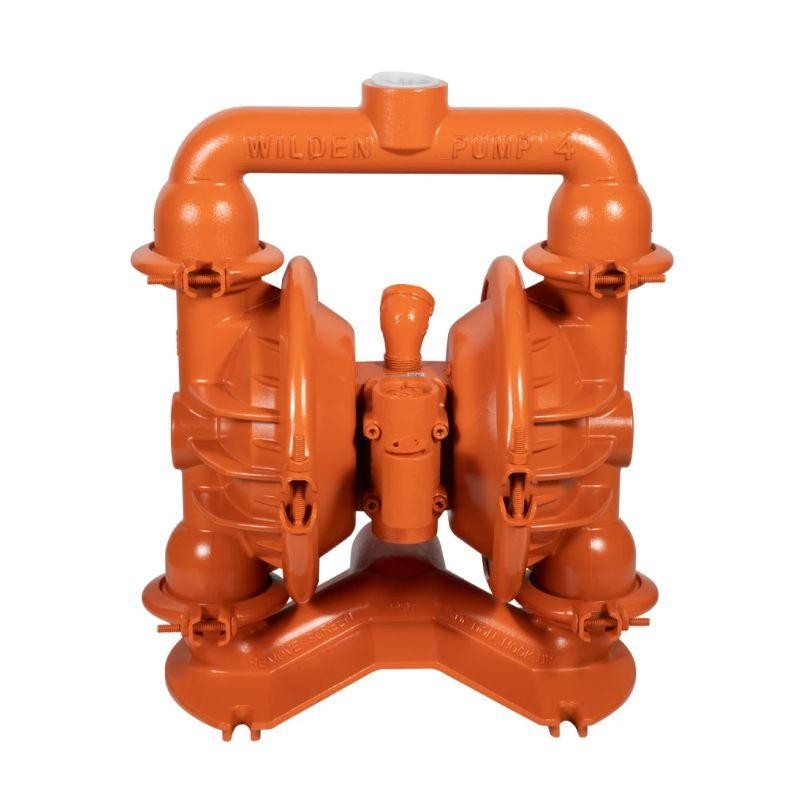

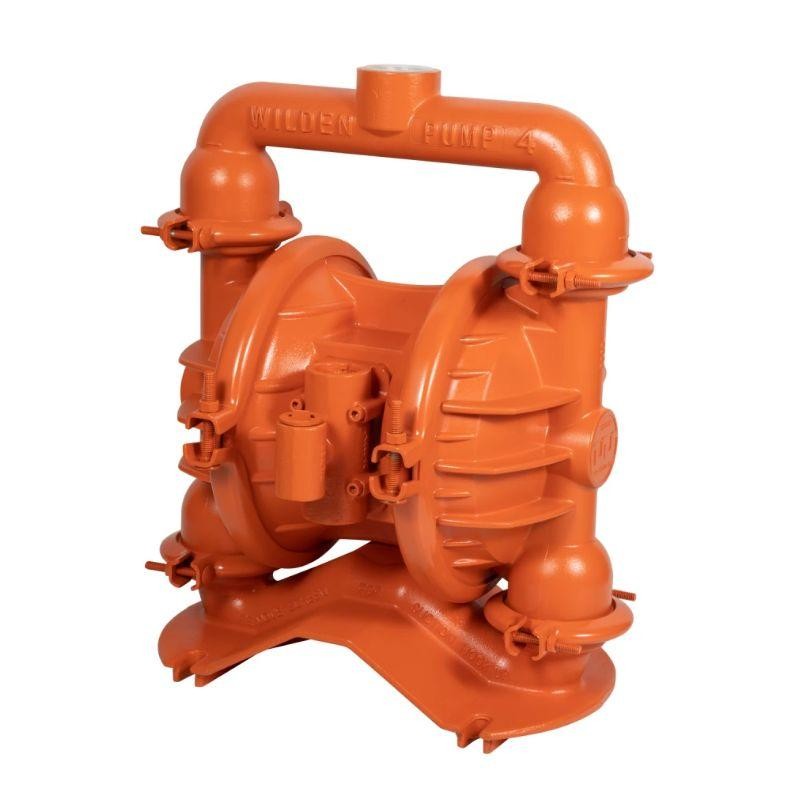

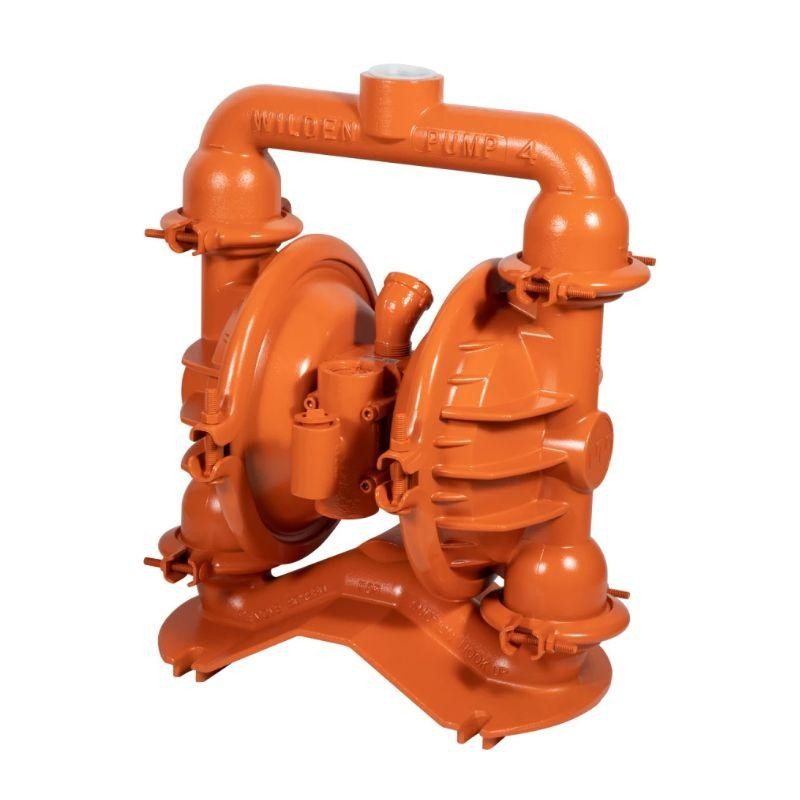

WILDEN T4 TZ4 Aluminum, Stainless Steel, Cast Iron Air-Operated Diaphragm Pump 04-10584 T4/AAPPB/TEU/TF/ATF/0014

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the T4 Metal Manual.

Flow Curve – TPE-Fitted

Note: Additional performance curves can be found in the T4 Metal Manual.

AIR INLET

• 1/2" FNPT

LIQUID INLET

• 38 mm (1-1/2")

LIQUID DISCHARGE

• 38 mm (1-1/2")

CONNECTION TYPE

• NPT/BSPT (Threaded)

MAX FLOW RATE

• Rubber – 288 lpm (76 gpm)

• TPE – 307 lpm (81 gpm)

• PTFE – 235 lpm (62 gpm)

MAX PRESSURE

• 8.6 bar (125 psi)

MAX DIAMETER SOLIDS

• 4.8 mm (3/16'')

MAX SUCTION LIFT CAPABILITY

• Rubber – 5.49 m (18') Dry, 8.53 m (28') Wet

• TPE – 4.27 m (14') Dry, 8.23 m (27') Wet

• PTFE – 2.74 m (9') Dry, 8.53 m (28') Wet

DISPLACEMENT PER STROKE *

• Rubber – 1.02 L (0.27 gal)

• TPE – 1.17 L (0.31 gal)

• PTFE – 2.6 L (0.69 gal)

* 1 cycle = 2 strokes

Wetted Housings

Non-Wetted Housings
