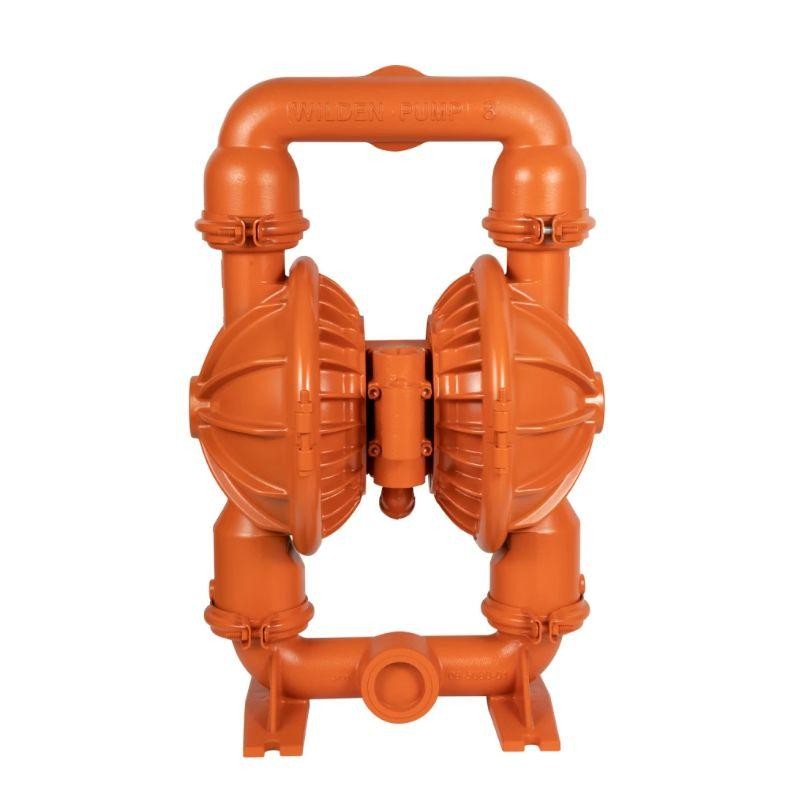

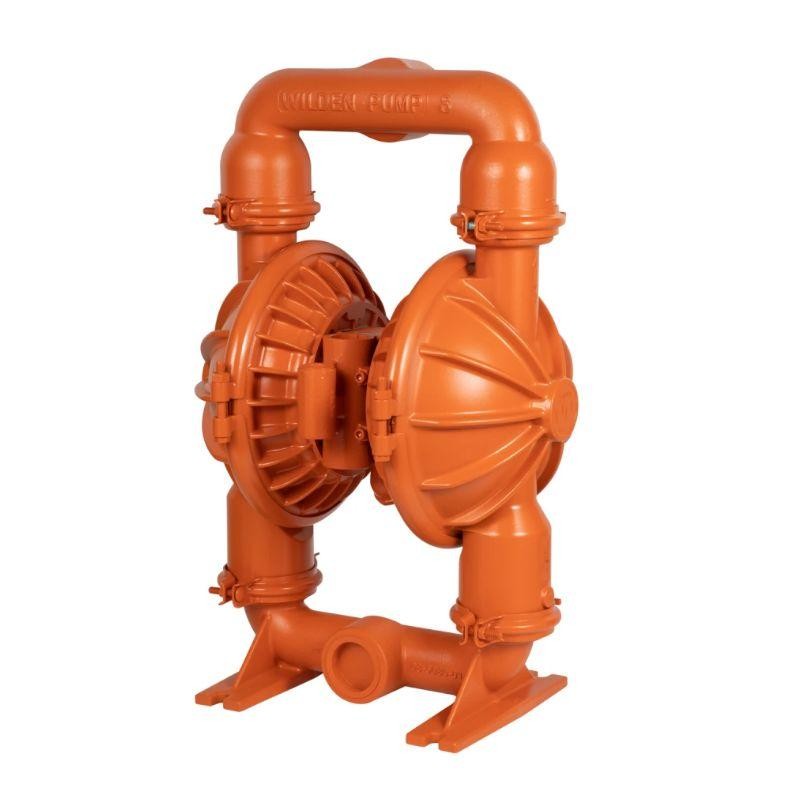

08-11418 T8/AAAAB/NEU/NE/NE/0050 Famous for its long life and easy serviceability, the durable Wilden® Turbo-Flo™ Series is the first air distribution system (ADS) that originated in the air-operated double-diaphragm (AODD) pump industry. Though enhancements have been made, these pumps work well in certain applications where quality of the compressed air is a concern.
3/4" FNPT
51 mm (2")
51 mm (2")
NPT/BSPT (Threaded)
Rubber – 6.4 m(21')Dry, 9.5 m (31') Wet
TPE – 6.1 m (20') Dry, 9.5 m (31') Wet
PTFE – 3.7 m (12') Dry, 9.5 m (31') Wet
Note: Dimensions vary by material and connection. For additional information, please refer to the T8 Metal Manual.
Note: Additional performance curves can be found in the T8 Metal Manual.
3/4" FNPT
51 mm (2")
51 mm (2")
NPT/BSPT (Threaded)
Rubber – 617 lpm (163 gpm)
TPE – 613 lpm (162 gpm)
PTFE – 534 lpm (141 gpm)
8.6 bar (125 psi)
6.4 mm (1/4'')
Rubber – 6.4 m (21') Dry, 9.5 m (31') Wet
TPE – 6.1 m (20') Dry, 9.5 m (31') Wet
PTFE – 3.7 m (12') Dry, 9.5 m (31') Wet
Rubber – 2.69 L (0.71 gal)
TPE – 2.8 L (0.74 gal)
PTFE – 1.51 L (0.40 gal)
| MATERIAL | SHIP WEIGHT |
|---|---|
| Aluminum | 33 kg (72 lb) |
| Cast Iron | 52 kg (114 lb) |
| DESCRIPTION | MATERIAL |
|---|---|
| Center Section | Aluminum, Polypropylene |
| Air Valve | Brass |
| Air Chamber | Aluminum |
Other models are recommended：
| Numbering | Description | Numbering | Description |
| 08-14859 | T8/AAAAB/BNS/BN/AFS | 08-14581 | TZ8/AAAAB/BNS/BN/BN |
| 08-14171 | T8/AAAAB/BNS/BN/ATF | 08-14580 | TZ8/AAAAB/BNS/BN/BN/0014 |
| 08-11001 | T8/AAAAB/BNS/BN/BN | 08-14582 | TZ8/AAAAB/NES/NE/NE |
| 08-11003 | T8/AAAAB/BNS/BN/BN/0014 | 08-14583 | TZ8/AAAAB/NES/NE/NE/0014 |
| 08-11005 | T8/AAAAB/BNS/BN/BN/0030 | S08-0059 | TZ8/AAAAB/TNU/TF/ATF |
| 08-11478 | T8/AAAAB/BNS/BN/BN/0050 | S08-0060 | TZ8/AAAAB/TNU/TF/ATF/0014 |
| 08-11032 | T8/AAAAB/BNU/BN/BN | S08-0095 | TZ8/AAAAB/TWS/TF/ATF/0014 |
| 08-11033 | T8/AAAAB/BNU/BN/BN/0014 | S08-0102 | TZ8/AAAAB/ZWS/WF/WF |
| 08-11425 | T8/AAAAB/BNU/BN/BN/0050 | S08-0115 | TZ8/AAAAB/ZWS/WF/WF/0014 |
| 08-13147 | T8/AAAAB/BNU/BN/BN/0051 | S08-0090 | TZ8/PKAAB/EPS/EP/PTV |
| 08-12743 | T8/AAAAB/EPS/EP/EP | S08-0058 | TZ8/PKAAB/TNU/TF/PTV |
| 08-11036 | T8/AAAAB/EPU/EP/EP/0014 | S08-0067 | TZ8/PKAAB/TWS/TF/PTV |
| 08-11012 | T8/AAAAB/NES/NE/NE | S08-0103 | TZ8/PKAAB/ZWS/WF/PWF |
| 08-11015 | T8/AAAAB/NES/NE/NE/0014 | S08-0066 | TZ8/SSAAB/BNS/BN/BN/0014 |
| 08-11018 | T8/AAAAB/NES/NE/NE/0030 | S08-0105 | TZ8/SSAAB/NES/NE/STF/0014 |
| 08-11517 | T8/AAAAB/NES/NE/NE/0050 | S08-0061 | TZ8/SSAAB/TNU/TF/STF |
| 08-11038 | T8/AAAAB/NEU/NE/NE | S08-0062 | TZ8/SSAAB/TNU/TF/STF/0014 |
| 08-11039 | T8/AAAAB/NEU/NE/NE/0014 | S08-0065 | TZ8/SSAAB/TWS/TF/STF/0014 |
| 08-11040 | T8/AAAAB/NEU/NE/NE/0030 | S08-0122 | TZ8/SSAAB/ZSS/FS/FS/0070 |
| 08-11418 | T8/AAAAB/NEU/NE/NE/0050 | S08-0116 | TZ8/SSAAB/ZWS/WF/WF/0014 |
| 08-15298 | T8/AAAAB/NEU/NE/NE/0051 | S08-0053 | TZ8/WWAAB/BNS/BN/BN |
| 08-14942 | T8/AAAAB/NEU/NE/NE/0118 | S08-0012 | TZ8/WWAAB/BNS/BN/BN/0014 |
| 08-11024 | T8/AAAAB/TNU/TF/ATF | S08-0051 | TZ8/WWAAB/NES/NE/NE |
| 08-11025 | T8/AAAAB/TNU/TF/ATF/0014 | 08-14689 | TZ8/WWAAB/NES/NE/NE/0014 |
| 08-11031 | T8/AAAAB/TNU/TF/STF | S08-0117 | TZ8/WWAAB/ZWS/WF/WF/0014 |
| 08-14097 | T8/AAAAB/TSU/TF/ATF | ||
| S08-0008 | T8/AAAAB/TWS/TF/ATF/0014 | ||
| 08-11046 | T8/AAAAB/VTS/VT/VT | ||
| 08-11904 | T8/AAAAB/VTS/VT/VT/0014 | ||
| 08-11044 | T8/AAAAB/VTU/VT/VT | ||
| S08-0112 | T8/AAAAB/ZWS/WF/WF/0014 | ||
| 08-11089 | T8/AAAPB/BNS/BN/BN | ||
| 08-11092 | T8/AAAPB/BNS/BN/BN/0014 | ||
| 08-11123 | T8/AAAPB/BNU/BN/BN | ||
| 08-11124 | T8/AAAPB/BNU/BN/BN/0014 | ||
| 08-11105 | T8/AAAPB/NES/NE/NE | ||
| 08-11108 | T8/AAAPB/NES/NE/NE/0014 | ||
| 08-13338 | T8/AAAPB/TEU/TF/ATF | ||
| 08-11119 | T8/AAAPB/TNU/TF/ATF | ||
| 08-11121 | T8/AAAPB/TNU/TF/ATF/0014 | ||
| 08-13020 | T8/AAAPB/TNU/TF/STF | ||
| 08-11138 | T8/AAAPB/VTS/VT/VT | ||
| S08-0088 | T8/SSAAB/TWS/TF/STF/0014 | ||
| 08-13114 | T8/WSAAB/TNU/TF/STF | ||
| 08-11495 | T8/WSWPB/TNU/TF/STF | ||
| 08-11306 | T8/WWAAB/BNS/BN/BN | ||
| 08-11500 | T8/WWAAB/BNS/BN/BN/0014 | ||
| 08-14343 | T8/WWAAB/BNU/BN/BN | ||
| 08-11465 | T8/WWAAB/NES/NE/NE | ||
| 08-11308 | T8/WWAAB/NES/NE/NE/0014 | ||
| 08-12347 | T8/WWAAB/NES/TF/NE/0014 | ||
| 08-11364 | T8/WWAAB/NEU/NE/NE | ||
| 08-11310 | T8/WWAAB/NEU/NE/NE/0014 | ||
| 08-13447 | T8/WWAAB/VTS/VT/VT | ||
| 08-13111 | T8/WWAAB/VTS/VT/VT/0014 | ||
| S08-0113 | T8/WWAAB/ZWS/WF/WF/0014 | ||
| 08-11321 | T8/WWAPB/BNS/BN/BN | ||
| 08-11322 | T8/WWAPB/BNS/BN/BN/0014 | ||
| 08-11327 | T8/WWAPB/NES/NE/NE | ||
| 08-12630 | T8/WWWAB/BNS/BN/BN | ||
| 08-15288 | T8/WWWAB/VTS/VT/VT | ||
| 08-11353 | T8/WWWPB/NES/NE/NE | ||
| 08-11358 | T8/WWWPB/NEU/NE/NE/0046 |
Rubber – 617 lpm (163 gpm)
TPE – 613 lpm (162 gpm)
PTFE – 534 lpm (141 gpm)
8.6 bar (125 psi)
6.4 mm (1/4'')
Rubber – 2.69 L (0.71 gal)
TPE – 2.8 L (0.74 gal)
PTFE – 1.51 L (0.40 gal)
