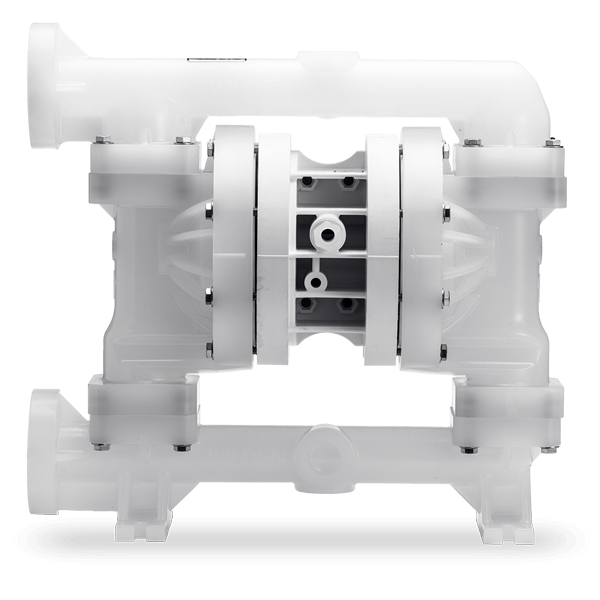

02-12405 P200/PKPPP/TWS/TF/PTV/0504 The Wilden® bolted plastic air-operated double-diaphragm (AODD) pump combines maximum performance and efficiency with superior containment. Wilden's bolted-construction pumps offer improved flow rates and a redesigned liquid path that reduces internal friction for maximum output and longer diaphragm life.
1/4" FNPT
25 mm (1")
25 mm (1")
DIN/ANSI (Flanged)
Rubber – 3.6 m (11.9') Dry, 9.1 m (30.0') Wet
TPE – 3.5 m (11.4') Dry, 9.8 m (32.0') Wet
Full-Stroke PTFE – 3.5 m (11.4') Dry, 8.6 m (28.4') Wet
Reduced-Stroke PTFE – 2.4 m (7.9') Dry, 9.4 m (31.0') Wet
Note: Dimensions vary by material and connection. For additional information, please refer to the P200 Plastic Manual.
Note: Additional performance curves can be found in the P200 Plastic Manual.
1/4" FNPT
25 mm (1")
25 mm (1")
DIN/ANSI (Flanged)
Rubber – 220 lpm (58 gpm)
TPE – 216 lpm (57 gpm)
Full-Stroke PTFE – 195 lpm (51.4 gpm)
Reduced-Stroke PTFE – 174 lpm (46 gpm)
8.6 bar (125 psi) on Polypropylene and PVDF pumps
4.76 mm (3/16")
Rubber – 3.6 m (11.9') Dry, 9.1 m (30.0') Wet
TPE – 3.5 m (11.4') Dry, 9.8 m (32.0') Wet
Full-Stroke PTFE – 3.5 m (11.4') Dry, 8.6 m (28.4') Wet
Reduced-Stroke PTFE – 2.4 m (7.9') Dry, 9.4 m (31.0') Wet
Rubber – 0.32 L (0.09 gal)
TPE – 0.33 L (0.09 gal)
Full-Stroke PTFE – 0.5 L (0.13 gal)
Reduced-Stroke PTFE – 0.22 L (0.06 gal)
| Material | Ship Weight |
|---|---|
| Polypropylene / Conductive Polypropylene | 10 kg (22 lb) |
| PVDF / Conductive PVDF | 15 kg (32 lb) |
Other models are recommended：
| Description | Material |
|---|---|
| Center Block | Polypropylene, Conductive Polypropylene |
| Air Valve | Polypropylene, Conductive Polypropylene |
| Numbering | Description | Numbering | Description |
| 02-11410 | P200/KKPPP/BNS/BN/KBN | 02-12824 | P220/AAPPP/TWS/TF/ATF/0697 |
| 02-11918 | P200/KKPPP/EPS/TF/KTV | 02-13021 | P220/AAPPP/TWS/TF/ATF/0698 |
| 02-12783 | P200/KKPPP/EPS/TF/KTV/0504 | 02-12252 | P220/AAPPP/VTS/TF/ATF/0695 |
| 02-11966 | P200/KKPPP/FSS/FS/KTV | 02-11760 | P220/AAPPP/VTS/TF/ATF/0697 |
| 02-11942 | P200/KKPPP/TEU/TF/KTV | 02-11799 | P220/AAPPP/VTS/VT/ATF |
| 02-10582 | P200/KKPPP/TEU/TF/KTV/0504 | 02-11582 | P220/AAPPP/VTS/VT/ATF/0014 |
| 02-12705 | P200/KKPPP/TNU/BN/KTV | 02-11270 | P220/AAPPP/VTS/VT/ATF/0677 |
| 02-10580 | P200/KKPPP/TNU/TF/KTV | 02-11507 | P220/AAPPP/VTS/VT/ATF/0695 |
| 02-13007 | P200/KKPPP/TNU/TF/KTV/0100 | 02-11549 | P220/AAPPP/VTS/VT/ATF/0697 |
| 02-10733 | P200/KKPPP/TNU/TF/KTV/0481 | 02-11153 | P220/AAPPP/VTS/VT/AVT |
| 02-10583 | P200/KKPPP/TNU/TF/KTV/0502 | 02-11154 | P220/AAPPP/VTS/VT/AVT/0014 |
| 02-10581 | P200/KKPPP/TNU/TF/KTV/0504 | 02-11676 | P220/AAPPP/VTS/VT/AVT/0677 |
| 02-11256 | P200/KKPPP/TSU/TF/KTV | 02-11155 | P220/AAPPP/VTS/VT/AVT/0697 |
| 02-12266 | P200/KKPPP/TSU/TF/KTV/0504 | 02-11295 | P220/AAPPP/WFS/TF/ATF/0677 |
| 02-12238 | P200/KKPPP/TWS/TF/KTV | 02-11159 | P220/AAPPP/WFS/WF/ATF |
| 02-12611 | P200/KKPPP/TWS/TF/KTV/0102 | 02-11160 | P220/AAPPP/WFS/WF/ATF/0014 |
| 02-12483 | P200/KKPPP/TWS/TF/KTV/0504 | 02-11277 | P220/AAPPP/WFS/WF/ATF/0677 |
| 02-10586 | P200/KKPPP/VTS/VT/KTV | 02-11769 | P220/AAPPP/WFS/WF/ATF/0678 |
| 02-10718 | P200/KKPPP/WFS/TF/KTV | 02-12337 | P220/AAPPP/WFS/WF/ATF/0695 |
| 02-10653 | P200/KKPPP/WFS/WF/KTV | 02-11161 | P220/AAPPP/WFS/WF/ATF/0697 |
| 02-10588 | P200/KKPPP/WFS/WF/KWF | 02-11162 | P220/AAPPP/WFS/WF/ATF/0698 |
| 02-10589 | P200/KKPPP/WFS/WF/KWF/0504 | 02-12837 | P220/AAPPP/WFS/WF/AWF |
| 02-12180 | P200/KZPPP/LEL/TF/KTV | 02-11538 | P220/AAPPP/WFS/WF/AWF/0014 |
| 02-10783 | P200/KZPPP/LEL/TF/KTV/0102 | 02-12150 | P220/AAPPP/WFS/WF/AWF/0243 |
| 02-10560 | P200/PKPPP/BNS/BN/PBN | 02-11286 | P220/AAPPP/WFS/WF/AWF/0677 |
| 02-10561 | P200/PKPPP/BNS/BN/PBN/0504 | 02-11503 | P220/AAPPP/WFS/WF/AWF/0678 |
| 02-10562 | P200/PKPPP/EPS/EP/PTV | 02-11365 | P220/AAPPP/WFS/WF/AWF/0697 |
| 02-10563 | P200/PKPPP/EPS/EP/PTV/0504 | 02-11669 | P220/AAPPP/WFS/WF/STF/0697 |
| 02-10840 | P200/PKPPP/FSS/FS/PTV | 02-11519 | P220/AAPPP/WFS/WF/SWF/0695 |
| 02-10925 | P200/PKPPP/FSS/FS/PTV/0504 | 02-11403 | P220/SSLLL/TSU/TF/STF/0678 |
| 02-10760 | P200/PKPPP/FSS/TF/PTV | 02-11208 | P220/SSPPP/BNS/BN/SBN |
| 02-10564 | P200/PKPPP/NES/NE/PBN | 02-11209 | P220/SSPPP/BNS/BN/SBN/0014 |
| 02-10565 | P200/PKPPP/NES/NE/PBN/0504 | 02-12478 | P220/SSPPP/BNS/BN/SBN/0678 |
| 02-12727 | P200/PKPPP/TEU/TF/KTV | 02-11412 | P220/SSPPP/EPS/EP/SEP |
| 02-11903 | P200/PKPPP/TEU/TF/PTV | 02-11546 | P220/SSPPP/EPS/EP/SEP/0014 |
| 02-10570 | P200/PKPPP/TEU/TF/PTV/0504 | 02-12525 | P220/SSPPP/EPS/EP/SEP/0677 |
| 02-12652 | P200/PKPPP/TEU/TF/TTV/0100 | 02-11409 | P220/SSPPP/EPS/EP/SEP/0697 |
| 02-10644 | P200/PKPPP/TNU/TF/KTV | 02-11567 | P220/SSPPP/EPS/EP/SEP/0698 |
| 02-10568 | P200/PKPPP/TNU/TF/PTV | 02-11361 | P220/SSPPP/FSS/FS/SFS/0014 |
| 02-10828 | P200/PKPPP/TNU/TF/PTV/0100 | 02-11214 | P220/SSPPP/FSS/FS/STF |
| 02-12390 | P200/PKPPP/TNU/TF/PTV/0470 | 02-11221 | P220/SSPPP/NES/NE/SBN/0014 |
| 02-10569 | P200/PKPPP/TNU/TF/PTV/0504 | 02-12270 | P220/SSPPP/NES/NE/SBN/0678 |
| 02-12657 | P200/PKPPP/TSS/TF/KTV | 02-11681 | P220/SSPPP/NES/NE/SBN/0695 |
| 02-12325 | P200/PKPPP/TSS/TF/PTV | 02-12082 | P220/SSPPP/NES/NE/SBN/0697 |
| 02-11803 | P200/PKPPP/TSU/TF/PTV | 02-11222 | P220/SSPPP/NES/NE/SNE/0697 |
| 02-12380 | P200/PKPPP/TWS/TF/KTV | 02-11595 | P220/SSPPP/NES/NE/SNE/0698 |
| 02-12707 | P200/PKPPP/TWS/TF/KTV/0480 | 02-12311 | P220/SSPPP/TEU/TF/STF |
| 02-12239 | P200/PKPPP/TWS/TF/PTV | 02-11598 | P220/SSPPP/TEU/TF/STF/0014 |
| 02-12846 | P200/PKPPP/TWS/TF/PTV/0100 | 02-11358 | P220/SSPPP/TEU/TF/STF/0697 |
| 02-12584 | P200/PKPPP/TWS/TF/PTV/0102 | 02-11710 | P220/SSPPP/TNU/TF/STF |
| 02-12399 | P200/PKPPP/TWS/TF/PTV/0470 | 02-11626 | P220/SSPPP/TNU/TF/STF/0014 |
| 02-12405 | P200/PKPPP/TWS/TF/PTV/0504 | 02-11740 | P220/SSPPP/TNU/TF/STF/0677 |
| 02-12286 | P200/PKPPP/VTS/TF/PTV | 02-12342 | P220/SSPPP/TNU/TF/STF/0695 |
| 02-11886 | P200/PKPPP/VTS/VT/KTV | 02-11571 | P220/SSPPP/TNU/TF/STF/0697 |
| 02-10574 | P200/PKPPP/VTS/VT/PTV | 02-11226 | P220/SSPPP/TSU/TF/STF |
| 02-12739 | P200/PKPPP/VTS/VT/PTV/0502 | 02-11227 | P220/SSPPP/TSU/TF/STF/0014 |
| 02-10575 | P200/PKPPP/VTS/VT/PTV/0504 | 02-11251 | P220/SSPPP/TSU/TF/STF/0677 |
| 02-10659 | P200/PKPPP/WFS/TF/PTV | 02-11299 | P220/SSPPP/TSU/TF/STF/0678 |
| 02-11102 | P200/PKPPP/WFS/TF/PWF | 02-11371 | P220/SSPPP/TSU/TF/STF/0695 |
| 02-10635 | P200/PKPPP/WFS/WF/KWF | 02-11565 | P220/SSPPP/TSU/TF/STF/0696 |
| 02-10555 | P200/PKPPP/WFS/WF/PTV | 02-11228 | P220/SSPPP/TSU/TF/STF/0697 |
| 02-10775 | P200/PKPPP/WFS/WF/PTV/0504 | 02-11229 | P220/SSPPP/TSU/TF/STF/0698 |
| 02-10576 | P200/PKPPP/WFS/WF/PWF | 02-12755 | P220/SSPPP/TWS/TF/STF |
| 02-10765 | P200/PKPPP/WFS/WF/PWF/0480 | 02-12296 | P220/SSPPP/TWS/TF/STF/0014 |
| 02-10577 | P200/PKPPP/WFS/WF/PWF/0504 | 02-12338 | P220/SSPPP/TWS/TF/STF/0677 |
| 02-12620 | P200/PZPPP/FWL/WF/PTV | 02-12416 | P220/SSPPP/TWS/TF/STF/0678 |
| 02-10842 | P200/PZPPP/LEL/TF/PTV | 02-12588 | P220/SSPPP/TWS/TF/STF/0697 |
| 02-13063 | P200/PZPPP/WWL/WF/PWF | 02-11529 | P220/SSPPP/VTS/TF/STF/0678 |
| 02-13127 | P200/PZPPP/WWL/WF/PWF/0504 | 02-13035 | P220/SSPPP/VTS/TF/SVT/0677 |
| 02-11727 | P220/AALLL/BNS/BN/ABN/0677 | 02-11254 | P220/SSPPP/VTS/VT/STF/0697 |
| 02-11400 | P220/AALLL/BNS/BN/ABN/0678 | 02-11232 | P220/SSPPP/VTS/VT/SVT |
| 02-11399 | P220/AALLL/NES/NE/ABN/0678 | 02-11233 | P220/SSPPP/VTS/VT/SVT/0014 |
| 02-11876 | P220/AALLL/NES/NE/ABN/0698 | 02-12522 | P220/SSPPP/VTS/VT/SVT/0677 |
| 02-11401 | P220/AALLL/TSU/TF/ATF/0678 | 02-12766 | P220/SSPPP/VTS/VT/SVT/0678 |
| 02-11877 | P220/AALLL/TSU/TF/ATF/0698 | 02-11583 | P220/SSPPP/VTS/VT/SVT/0695 |
| 02-11764 | P220/AALLL/VTS/VT/AVT/0678 | 02-11234 | P220/SSPPP/VTS/VT/SVT/0697 |
| 02-11123 | P220/AAPPP/BNS/BN/ABN | 02-11551 | P220/SSPPP/WFS/TF/SWF/0697 |
| 02-11124 | P220/AAPPP/BNS/BN/ABN/0014 | 02-11238 | P220/SSPPP/WFS/WF/STF |
| 02-11275 | P220/AAPPP/BNS/BN/ABN/0677 | 02-11239 | P220/SSPPP/WFS/WF/STF/0014 |
| 02-11298 | P220/AAPPP/BNS/BN/ABN/0678 | 02-11240 | P220/SSPPP/WFS/WF/STF/0697 |
| 02-11370 | P220/AAPPP/BNS/BN/ABN/0695 | 02-11290 | P220/SSPPP/WFS/WF/STF/0698 |
| 02-11125 | P220/AAPPP/BNS/BN/ABN/0697 | 02-11572 | P220/SSPPP/WFS/WF/SWF |
| 02-11126 | P220/AAPPP/BNS/BN/ABN/0698 | 02-11562 | P220/SSPPP/WFS/WF/SWF/0014 |
| 02-11611 | P220/AAPPP/BNS/BN/SBN/0695 | 02-11411 | P220/SSPPP/WFS/WF/SWF/0677 |
| 02-11545 | P220/AAPPP/BNS/TF/ABN/0697 | 02-11523 | P220/SSPPP/WFS/WF/SWF/0678 |
| 02-11526 | P220/AAPPP/BNS/VT/ABN/0677 | 02-11570 | P220/SSPPP/WFS/WF/SWF/0697 |
| 02-11900 | P220/AAPPP/BNS/VT/ABN/0696 | 02-11639 | P220/SSPPP/WFS/WF/SWF/0698 |
| 02-11129 | P220/AAPPP/EPS/EP/AEP | 02-11337 | P220/SZPPP/LEL/TF/STF/0697 |
| 02-11130 | P220/AAPPP/EPS/EP/AEP/0014 | 02-13081 | P220/SZPPP/WWL/WF/SWF |
| 02-13112 | P220/AAPPP/EPS/EP/AEP/0678 | 02-11165 | P220/WWPPP/BNS/BN/MBN |
| 02-11131 | P220/AAPPP/EPS/EP/AEP/0697 | 02-11166 | P220/WWPPP/BNS/BN/MBN/0014 |
| 02-12547 | P220/AAPPP/FSS/BN/ABN/0678 | 02-11956 | P220/WWPPP/BNS/BN/MBN/0677 |
| 02-12221 | P220/AAPPP/FSS/FS/AFS | 02-12194 | P220/WWPPP/BNS/BN/MBN/0678 |
| 02-11336 | P220/AAPPP/FSS/FS/AFS/0014 | 02-11167 | P220/WWPPP/BNS/BN/MBN/0697 |
| 02-12539 | P220/AAPPP/FSS/FS/AFS/0678 | 02-12341 | P220/WWPPP/BNS/BN/STF/0677 |
| 02-11609 | P220/AAPPP/FSS/FS/AFS/0697 | 02-12550 | P220/WWPPP/EPS/EP/MEP |
| 02-11725 | P220/AAPPP/FSS/VT/AVT/0677 | 02-11356 | P220/WWPPP/EPS/EP/MEP/0014 |
| 02-11274 | P220/AAPPP/NES/NE/ABN/0014 | 02-12838 | P220/WWPPP/FSS/FS/MFS/0677 |
| 02-11521 | P220/AAPPP/NES/NE/ABN/0677 | 02-11172 | P220/WWPPP/NES/NE/MNE/0014 |
| 02-11566 | P220/AAPPP/NES/NE/ABN/0678 | 02-12669 | P220/WWPPP/TNU/TF/MTF |
| 02-11373 | P220/AAPPP/NES/NE/ABN/0695 | 02-11177 | P220/WWPPP/TSU/TF/MTF |
| 02-11588 | P220/AAPPP/NES/NE/ABN/0697 | 02-11178 | P220/WWPPP/TSU/TF/MTF/0014 |
| 02-11135 | P220/AAPPP/NES/NE/ANE | 02-11315 | P220/WWPPP/TSU/TF/MTF/0677 |
| 02-11136 | P220/AAPPP/NES/NE/ANE/0014 | 02-11179 | P220/WWPPP/TSU/TF/MTF/0697 |
| 02-11266 | P220/AAPPP/NES/NE/ANE/0677 | 02-12576 | P220/WWPPP/TWS/TF/MTF/0014 |
| 02-11137 | P220/AAPPP/NES/NE/ANE/0697 | 02-12839 | P220/WWPPP/TWS/TF/MTF/0677 |
| 02-11306 | P220/AAPPP/NES/NE/ANE/0698 | 02-11183 | P220/WWPPP/WFS/WF/MTF |
| 02-11591 | P220/AAPPP/NES/NE/SBN/0698 | 02-11184 | P220/WWPPP/WFS/WF/MTF/0014 |
| 02-11563 | P220/AAPPP/NES/PU/APU/0695 | 02-11726 | P220/WWPPP/WFS/WF/MWF/0677 |
| 02-11550 | P220/AAPPP/NES/TF/STF/0697 | 02-12186 | P220/WWPPP/WFS/WF/MWF/0678 |
| 02-11287 | P220/AAPPP/TEU/TF/ATF/0677 | 02-11206 | P230/SSPPP/BNS/BN/SBN |
| 02-11355 | P220/AAPPP/TEU/TF/ATF/0698 | 02-11207 | P230/SSPPP/BNS/BN/SBN/0504 |
| 02-11871 | P220/AAPPP/TNU/TF/ATF/0677 | 02-11332 | P230/SSPPP/EPS/EP/SEP |
| 02-12676 | P220/AAPPP/TNU/TF/ATF/0697 | 02-12347 | P230/SSPPP/EPS/TF/SEP |
| 02-11632 | P220/AAPPP/TNU/TF/STF/0014 | 02-11882 | P230/SSPPP/FSS/FS/SFS |
| 02-12834 | P220/AAPPP/TSS/TF/ATF/0695 | 02-12693 | P230/SSPPP/FSS/FS/SFS/0504 |
| 02-11147 | P220/AAPPP/TSU/TF/ATF | 02-11212 | P230/SSPPP/FSS/FS/STF |
| 02-11148 | P220/AAPPP/TSU/TF/ATF/0014 | 02-11218 | P230/SSPPP/NES/NE/SBN |
| 02-11276 | P220/AAPPP/TSU/TF/ATF/0677 | 02-11687 | P230/SSPPP/TEU/TF/STF |
| 02-11345 | P220/AAPPP/TSU/TF/ATF/0678 | 02-11500 | P230/SSPPP/TEU/TF/STF/0504 |
| 02-11372 | P220/AAPPP/TSU/TF/ATF/0695 | 02-11987 | P230/SSPPP/TNU/TF/STF |
| 02-11149 | P220/AAPPP/TSU/TF/ATF/0697 | 02-11599 | P230/SSPPP/TNU/TF/STF/0100 |
| 02-11357 | P220/AAPPP/TSU/TF/ATF/0698 | 02-12798 | P230/SSPPP/TSS/TF/STF |
| 02-11360 | P220/AAPPP/TSU/TF/STF | 02-11224 | P230/SSPPP/TSU/TF/STF |
| 02-11824 | P220/AAPPP/TSU/TF/STF/0014 | 02-11225 | P230/SSPPP/TSU/TF/STF/0504 |
| 02-11268 | P220/AAPPP/TSU/TF/STF/0697 | 02-12305 | P230/SSPPP/TWS/TF/STF |
| 02-12754 | P220/AAPPP/TWS/TF/ATF | 02-12352 | P230/SSPPP/TWS/TF/STF/0504 |
| 02-12297 | P220/AAPPP/TWS/TF/ATF/0014 | 02-11338 | P230/SSPPP/VTS/VT/STF |
| 02-12300 | P220/AAPPP/TWS/TF/ATF/0677 | 02-11230 | P230/SSPPP/VTS/VT/SVT |
| 02-12563 | P220/AAPPP/TWS/TF/ATF/0678 | 02-11231 | P230/SSPPP/VTS/VT/SVT/0504 |
| 02-12809 | P220/AAPPP/TWS/TF/ATF/0695 | 02-11367 | P230/SSPPP/WFS/WF/SWF |
| 02-11723 | P230/SSPPP/WFS/WF/SWF/0504 |
Rubber – 220 lpm (58 gpm)
TPE – 216 lpm (57 gpm)
Full-Stroke PTFE – 195 lpm (51.4 gpm)
Reduced-Stroke PTFE – 174 lpm (46 gpm)
8.6 bar (125 psi) on Polypropylene and PVDF pumps
4.76 mm (3/16")
Rubber – 0.32 L (0.09 gal)
TPE – 0.33 L (0.09 gal)
Full-Stroke PTFE – 0.5 L (0.13 gal)
Reduced-Stroke PTFE – 0.22 L (0.06 gal)
