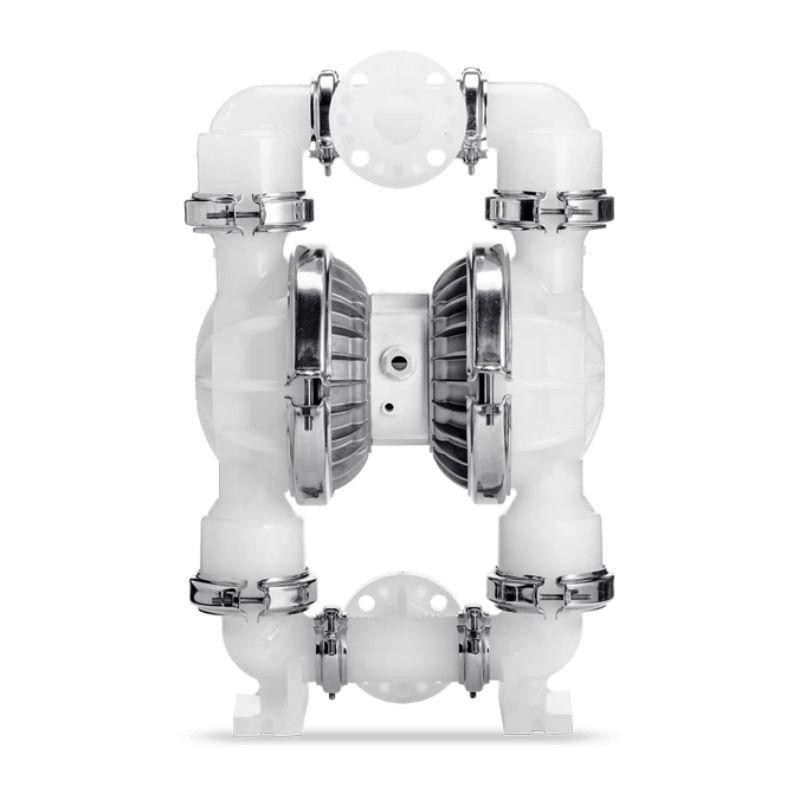

WILDEN Pro-flo Series 2

WILDEN Pro-flo Series 2

Hot selling models
P8/PKAPP/BNS/BN/PBN
P8/PKAPP/EPS/EP/PTV
P8/PKAPP/TNU/TF/PTV
P8/PKAPP/TWS/TF/PTV
P8/PKAPP/ZWS/WF/PTV
P8/PKAPP/ZWS/WF/PWF
P8/PKSPP/TNU/TF/PTV

PDF
Product Description:
AIR INLET

  • 1/2" FNPT

LIQUID INLET

  • 51 mm (2")

LIQUID DISCHARGE

  • 51 mm (2")

CONNECTION TYPE

  • DIN/ANSI (Flanged)

MAX SUCTION LIFT CAPABILITY

  • Rubber – 7.4 m (24.4') Dry, 8.6 m (28.4') Wet

  • TPE – 5.9 m (19.3') Dry, 8.6 m (28.4') Wet

  • Full-Stroke PTFE – 6.4 m (21.0') Dry, 8.6 m (28.4') Wet

  • Reduced-Stroke PTFE – 4.27 m (14.0') Dry, 9.45 m (31.0') Wet

  • Ultra-Flex™ – 4.88 m (16.0') Dry, 8.84 m (29.0') Wet


Performance and Specifications

Dimensions

Dim-P8-51mm2in-CPP

Note: Dimensions vary by material and connection. For additional information, please refer to the P8 Plastic Manual.

Flow Curve – TPE-Fitted

Flo-P8-51mm2in-CPP

Note: Additional performance curves can be found in the P8 Plastic Manual.

AIR INLET

  • 1/2" FNPT

LIQUID INLET

  • 51 mm (2")

LIQUID DISCHARGE

  • 51 mm (2")

CONNECTION TYPE

  • DIN/ANSI (Flanged)

MAX FLOW RATE

  • Rubber – 591 lpm (156 gpm)

  • TPE – 583 lpm (154 gpm)

  • Full-Stroke PTFE – 562 lpm (148 gpm)

  • Reduced-Stroke PTFE – 481 lpm (127 gpm)

  • Ultra-Flex™ – 560 lpm (148 gpm)

MAX PRESSURE

  • 8.6 bar (125 psi)

MAX DIAMETER SOLIDS

  • 6.35 mm (1/4'')

MAX SUCTION LIFT CAPABILITY

  • Rubber – 7.4 m (24.4') Dry, 8.6 m (28.4') Wet

  • TPE – 5.9 m (19.3') Dry, 8.6 m (28.4') Wet

  • Full-Stroke PTFE – 6.4 m (21.0') Dry, 8.6 m (28.4') Wet

  • Reduced-Stroke PTFE – 4.27 m (14.0') Dry, 9.45 m (31.0') Wet

  • Ultra-Flex™ – 4.88 m (16.0') Dry, 8.84 m (29.0') Wet

DISPLACEMENT PER STROKE *

  • Rubber – 2.8 L (0.73 gal)

  • TPE – 2.8 L (0.73 gal)

  • Full-Stroke PTFE – 2.6 L (0.69 gal)

  • Reduced-Stroke PTFE – 0.53 L (0.47 gal)

  • Ultra-Flex™ – 2.12 L (0.56 gal)

    • * 1 cycle = 2 strokes
WETTED HOUSINGS
MaterialShip Wt
Polypropylene34 kg (75 lb)
NON-WETTED HOUSINGS
DescriptionMaterial
Center BlockPolypropylene
Air ValvePolypropylene
Air ChamberAluminum, PTFE-Coated Aluminum, Stainless Steel


Other models are recommended：

NumberingDescriptionNumberingDescription
08-15034P8/AAAPP/BNS/BN/ATF08-15086P8/SSAPP/FWS/FW/FW/0070
08-0111P8/AAAPP/BNS/BN/BN08-14496P8/SSAPP/FWS/TF/STF/0070
08-0112P8/AAAPP/BNS/BN/BN/001408-0142P8/SSAPP/NES/NE/NE
08-0113P8/AAAPP/BNS/BN/BN/003008-6974P8/SSAPP/NES/NE/NE/0014
08-0140P8/AAAPP/BNU/BN/BN08-10548P8/SSAPP/NEU/NE/NE/0014
08-0183P8/AAAPP/BNU/BN/BN/001408-14673P8/SSAPP/TEU/TF/STF
08-12135P8/AAAPP/BNU/BN/BN/004408-13762P8/SSAPP/TNU/TF/EP/0014
08-6870P8/AAAPP/EPS/EP/EP08-0125P8/SSAPP/TNU/TF/STF
08-11809P8/AAAPP/EPS/EP/EP/001408-0126P8/SSAPP/TNU/TF/STF/0014
08-0157P8/AAAPP/EPU/EP/EP08-14646P8/SSAPP/TSU/TF/STF
08-13314P8/AAAPP/EPU/EP/EP/001408-13483P8/SSAPP/TSU/TF/STF/0014
08-14201P8/AAAPP/FWS/WF/WF08-14190P8/SSAPP/TSU/TF/STF/0070
08-0114P8/AAAPP/NES/NE/NE08-14203P8/SSAPP/TWS/TF/STF
08-0115P8/AAAPP/NES/NE/NE/001408-14170P8/SSAPP/TWS/TF/STF/0014
08-0117P8/AAAPP/NES/NE/NE/003008-14245P8/SSAPP/TWS/TF/STF/0070
08-0120P8/AAAPP/NEU/NE/NE08-13443P8/SSAPP/VTS/TF/VT
08-0121P8/AAAPP/NEU/NE/NE/001408-11671P8/SSAPP/VTS/VT/VT
08-12935P8/AAAPP/TEU/TF/ATF08-12414P8/SSAPP/VTS/VT/VT/0014
08-13967P8/AAAPP/TNU/BN/BN08-0143P8/SSAPP/VTU/TF/STF
08-0118P8/AAAPP/TNU/TF/ATF08-12121P8/SSAPP/VTU/VT/VT
08-0119P8/AAAPP/TNU/TF/ATF/001408-15372P8/SSAPP/ZSS/FS/FS
08-11824P8/AAAPP/TNU/TF/STF08-14720P8/SSAPP/ZSS/FS/FS/0070
08-13465P8/AAAPP/TSU/TF/ATF/001408-15368P8/SSAPP/ZWS/WF/WF
08-14416P8/AAAPP/TSU/TF/STF08-15979P8/SSAPP/ZWS/WF/WF/0014
08-15149P8/AAAPP/TWS/TF/ATF08-12159P8/SSSPP/BNS/BN/BN
08-14275P8/AAAPP/TWS/TF/ATF/0014S08-0071P8/SSSPP/BNS/BN/BN/0014
08-12921P8/AAAPP/VTS/TF/VT08-13644P8/SSSPP/EPU/EP/EP
08-11909P8/AAAPP/VTS/TF/VT/001408-14717P8/SSSPP/NES/NE/STF
08-11479P8/AAAPP/VTS/VT/VT08-13917P8/SSSPP/TEU/TF/STF
08-11655P8/AAAPP/VTS/VT/VT/001408-14473P8/SSSPP/TEU/TF/STF/0070
08-14176P8/AAAPP/VTU/VT/ATF08-11919P8/SSSPP/TNU/TF/STF
08-11367P8/AAAPP/VTU/VT/VT08-13534P8/SSSPP/TSU/TF/STF/0070
08-15300P8/AAAPP/ZGS/BN/BN08-14321P8/SSSPP/TWS/TF/STF
08-14551P8/AAAPP/ZGS/BN/BN/001408-15715P8/SSSPP/TWS/TF/STF/0070
08-16018P8/AAAPP/ZPS/PU/PU/001408-11922P8/SSSPP/VTS/VT/VT
08-15407P8/AAAPP/ZSS/FS/FS08-14734P8/SSSPP/ZSS/FS/FS/0070
08-15238P8/AAAPP/ZWS/WF/WF08-15746P8/SZAPP/FSL/FS/FS/0070
08-15495P8/AAAPP/ZWS/WF/WF/001408-15406P8/SZAPP/FWL/FW/FW/0070
08-15835P8/AZAPP/WWL/WF/WF08-15699P8/SZAPP/WWL/WF/WF
08-11480P8/PKAPP/BNS/BN/PBN08-0135P8/WSAPP/TNU/TF/MTF
08-11764P8/PKAPP/BNU/BN/PBN08-6859P8/WSAPP/TNU/TF/MTF/0014
08-6984P8/PKAPP/EPS/EP/PTV08-12075P8/WSAPP/TNU/TF/STF
08-11377P8/PKAPP/EPU/EP/PTV08-12995P8/WSAPP/TNU/TF/STF/0014
08-0132P8/PKAPP/NES/NE/PBN08-13675P8/WSCPP/TNU/NE/NE
08-12402P8/PKAPP/NEU/NE/PBN08-12215P8/WSSPP/TNU/TF/MTF
08-12120P8/PKAPP/TEU/TF/PTV08-0128P8/WWAPP/BNS/BN/BN
08-6939P8/PKAPP/TNU/TF/KTV08-12139P8/WWAPP/BNS/BN/BN/0014
08-0123P8/PKAPP/TNU/TF/PTV08-11628P8/WWAPP/BNU/BN/BN
08-15569P8/PKAPP/TSS/TF/PTV08-11906P8/WWAPP/BNU/BN/BN/0014
08-14150P8/PKAPP/TWS/TF/PTV08-0173P8/WWAPP/EPS/EP/EP
08-11634P8/PKAPP/VTS/TF/PTV08-13664P8/WWAPP/EPS/EP/EP/0014
08-6886P8/PKAPP/VTS/VT/PTV08-6858P8/WWAPP/EPU/EP/EP/0014
08-15370P8/PKAPP/ZSS/FS/PTV08-14393P8/WWAPP/FWS/WF/WF
08-16019P8/PKAPP/ZWS/WF/PTV08-0129P8/WWAPP/NES/NE/NE
08-14951P8/PKAPP/ZWS/WF/PWF08-0158P8/WWAPP/NES/NE/NE/0014
08-0172P8/PKCPP/TNU/TF/PTV08-13561P8/WWAPP/NES/PU/PU
08-13125P8/PKCPP/TSU/TF/PTV08-11423P8/WWAPP/NEU/NE/NE
08-11945P8/PKCPP/VTS/VT/PTV08-0154P8/WWAPP/NEU/NE/NE/0014
08-16020P8/PKCPP/ZWS/WF/PWF08-15413P8/WWAPP/NEU/NE/NE/0044
08-13123P8/PKSPP/TEU/TF/KTV08-15364P8/WWAPP/TWS/TF/MTF
08-11914P8/PKSPP/TNU/TF/PTV08-11695P8/WWAPP/VTS/TF/VT
08-14195P8/PKSPP/TNU/TF/PTV/050208-11699P8/WWAPP/VTS/VT/VT
08-6860P8/PKVPP/TNU/TF/PTV08-12616P8/WWAPP/VTS/VT/VT/0014
08-11622P8/PKVPP/TNU/TF/PTV/050208-0180P8/WWAPP/VTU/TF/VT
08-6940P8/SSAPP/BNS/BN/BN08-15363P8/WWAPP/ZSS/FS/FS
08-0175P8/SSAPP/BNS/BN/BN/001408-15087P8/WWAPP/ZWS/WF/MTF
08-13477P8/SSAPP/BNU/BN/BN08-15365P8/WWAPP/ZWS/WF/WF
08-11504P8/SSAPP/EPS/EP/EP08-15446P8/WWAPP/ZWS/WF/WF/0014
08-6900P8/SSAPP/EPS/EP/EP/0014


MAX FLOW RATE

  • Rubber – 591 lpm (156 gpm)

  • TPE – 583 lpm (154 gpm)

  • Full-Stroke PTFE – 562 lpm (148 gpm)

  • Reduced-Stroke PTFE – 481 lpm (127 gpm)

  • Ultra-Flex™ – 560 lpm (148 gpm)

MAX PRESSURE

  • 8.6 bar (125 psi)

MAX DIAMETER SOLIDS

  • 6.35 mm (1/4'')

DISPLACEMENT PER STROKE *

  • Rubber – 2.8 L (0.73 gal)

  • TPE – 2.8 L (0.73 gal)

  • Full-Stroke PTFE – 2.6 L (0.69 gal)

  • Reduced-Stroke PTFE – 0.53 L (0.47 gal)

  • Ultra-Flex™ – 2.12 L (0.56 gal)

    • * 1 cycle = 2 strokes
