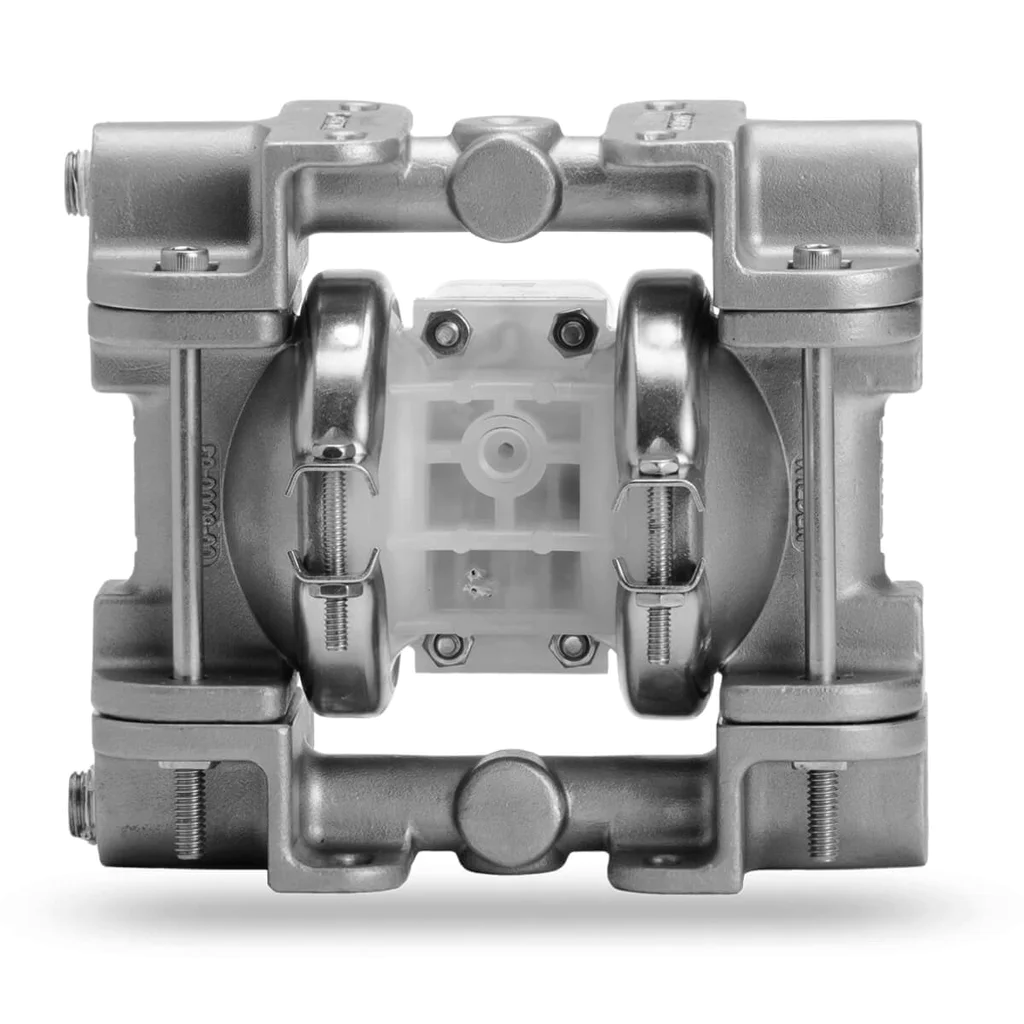

00-9740 WILDEN Air-Operated Double-Diaphragm (AODD) Pump, Stainless Steel, 1/4-inch, Pro-Flo Series

00-9740 WILDEN Air-Operated Double-Diaphragm (AODD) Pump, Stainless Steel, 1/4-inch, Pro-Flo Series

Item: 00-9740
Description: P.025/SZPPP/TNL/TF/STV/0014

Key Specifications
Discharge Orientation: SIDE RIGHT
Inlet Orientation: SIDE RIGHT
Default Max Diameter Solids (in.): 0.02
Discharge Size (in.): 0.25
Inlet Size (in.): 0.25
Max Flow Rate (gpm): 5.0
Max Diameter Solids (in.): 0.02

PDF
Product Description:

WILDEN AODD pump, stainless steel, with PTFE diaphragms, 1/4-inch Pro-Flo Series, clamped/threaded connections.


Item: 00-9740

Description: P.025/SZPPP/TNL/TF/STV/0014


Attributes for item 00-9740
Model (in.):
0.25
Technical Construction:
CLAMPED
Wetted Path Material:
STAINLESS STEEL
Diaphragm Material:
Santoprene®
Diaphragm Design:
TRADITIONAL
Diaphragm Stroke:
Full-Stroke
Connection Standard:
NPT
Inlet Size (in.):
0.25
Inlet Orientation:
SIDE RIGHT
Discharge Size (in.):
0.25
Discharge Orientation:
SIDE RIGHT
Outer Piston Materials:
STAINLESS STEEL
Air Side Material:
POLYPROPYLENE
Valve Material:
PTFE
Valve Type:
VALVE BALL
Valve Seat MATERIAL:
STAINLESS STEEL
O Rings Gasket Material:
SANTOPRENE
Hardware Material:
STAINLESS STEEL
Muffler Material:
Plastic
Self Priming:
YES
