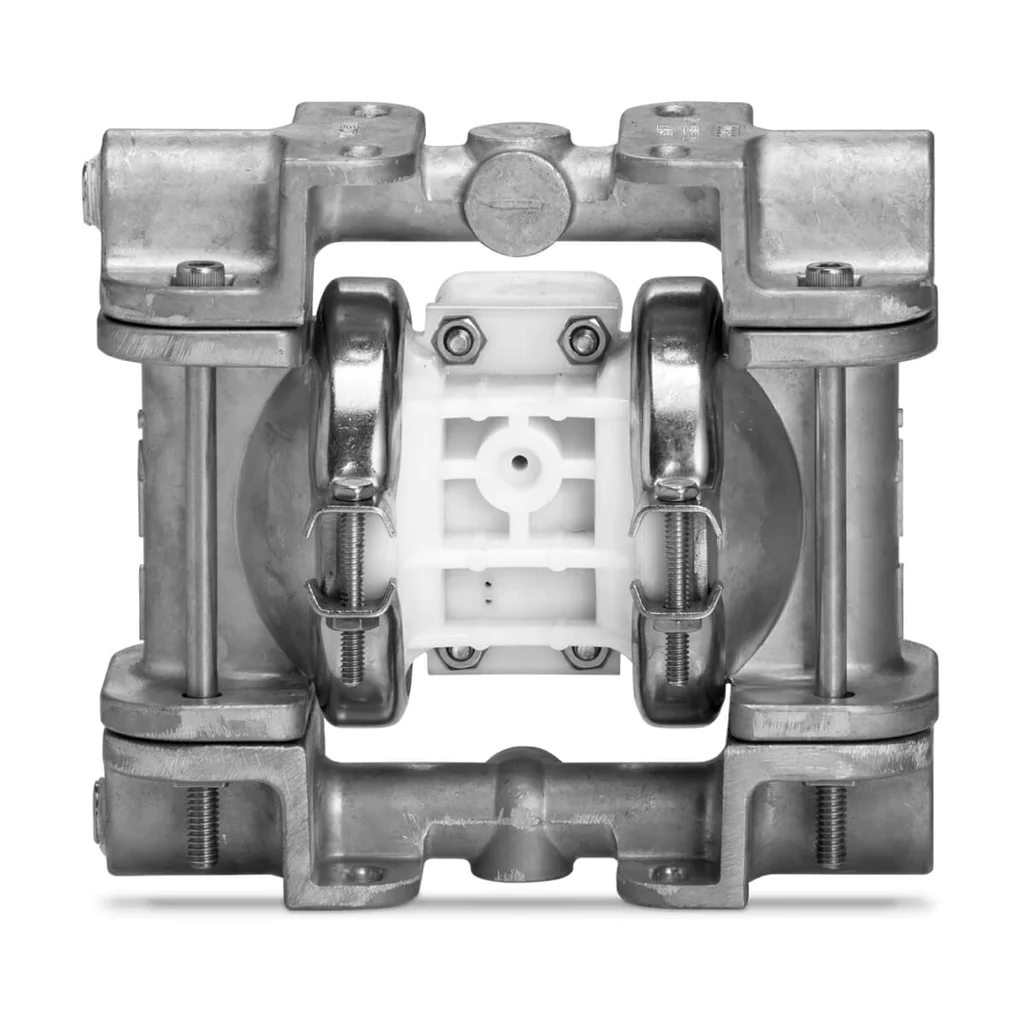

WILDEN AODD pump, aluminum alloy pump body with PTFE diaphragm, 1/4 inch Pro-Flo series, clamp/thread type.

WILDEN AODD pump, aluminum alloy pump body with PTFE diaphragm, 1/4 inch Pro-Flo series, clamp/thread type.

Item: 00-9728
Description: P.025/AZPPP/TNL/TF/ATF

Key Specifications
Discharge Orientation: SIDE RIGHT
Inlet Orientation: SIDE RIGHT
Default Max Diameter Solids (in.): 0.02
Discharge Size (in.): 0.25
Max Flow Rate (gpm): 5.0
Inlet Size (in.): 0.25
Max Diameter Solids (in.): 0.02

PDF
Product Description:

WILDEN AODD Pump, Aluminum, 1/4" Pro-Flo Series , Clamped, Threaded, w/ Santoprene


Item: 00-9728

Description: P.025/AZPPP/TNL/TF/ATF


Attributes for item 00-9728
Model (in.):
0.25
Technical Construction:
CLAMPED
Wetted Path Material:
ALUMINUM
Diaphragm Material:
Santoprene®
Diaphragm Design:
TRADITIONAL
Diaphragm Stroke:
Full-Stroke
Connection Standard:
NPT
Inlet Size (in.):
0.25
Inlet Orientation:
SIDE RIGHT
Discharge Size (in.):
0.25
Discharge Orientation:
SIDE RIGHT
Outer Piston Materials:
MILD STEEL
Air Side Material:
POLYPROPYLENE
Valve Material:
PTFE
Valve Type:
VALVE BALL
Valve Seat MATERIAL:
ALUMINUM
O Rings Gasket Material:
PTFE
Hardware Material:
DIAPHRAGM DEPENDENT
Muffler Material:
Plastic
Self Priming:
YES
