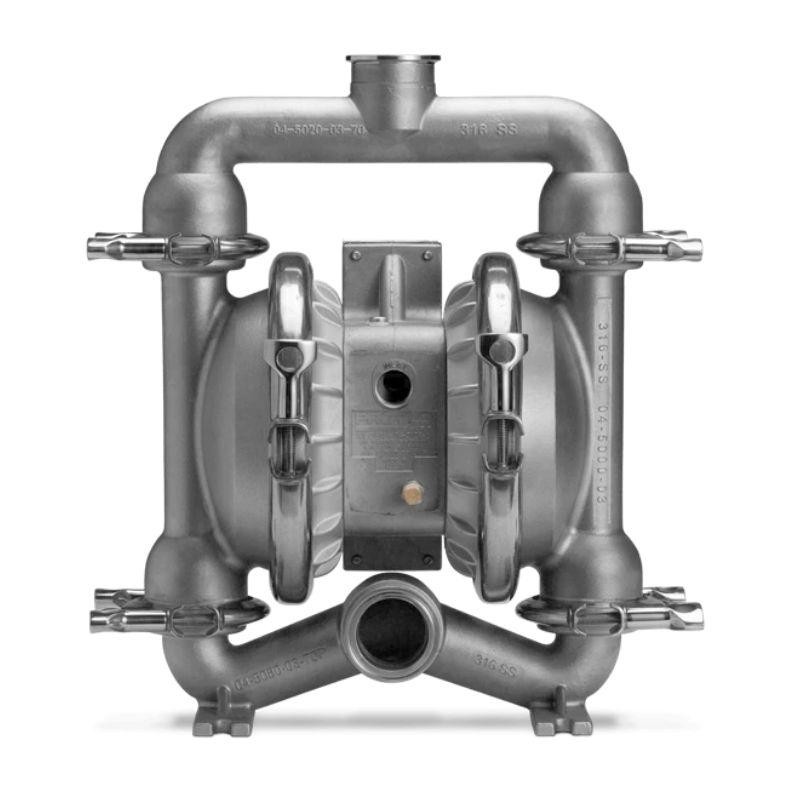

1-1/2" Pro-Flo SHIFT FDA Series Clamp-On Metal Diaphragm Pumps

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the PS4 Metal Manual.

Flow Curve – EZ-Install TPE-Fitted

Note: Additional performance curves can be found in the PS4 Metal Manual.

AIR INLET

• 3/4" FNPT

LIQUID INLET

• 38 mm (1-1/2")

LIQUID DISCHARGE

• 38 mm (1-1/2")

CONNECTION TYPE

• Tri-Clamp®

MAX FLOW RATE

• Rubber – 310 lpm (82 gpm)

• EZ-Install TPE – 314 lpm (83 gpm)

• Full-Stroke PTFE – 375 lpm (99 gpm)

MAX PRESSURE

• 8.6 bar (125 psi)

MAX DIAMETER SOLIDS

• 4.8 mm (3/16")

MAX SUCTION LIFT CAPABILITY

• Rubber – 7.0 m Dry (22.9'), 8.6 m Wet (28.4')

• EZ-Install TPE – 7.0 m Dry (22.9), 8.6 m Wet (28.4')

• Full-Stroke PTFE – 7.0 m Dry (22.9), 8.6 m Wet (28.4')

DISPLACEMENT PER STROKE *

• Rubber – 1.0 L (0.27 gal)

• EZ-Install TPE – 1.0 L (0.27 gal)

• Full-Stroke PTFE – 1.0 L (0.27 gal)

* 1 cycle = 2 strokes

Wetted Housings

Non-wetted Housings
