WILDEN T20/WWWAB 4

WILDEN T20/WWWAB 4" Cast Iron Air Operated Diaphragm Pump, Oil Transfer Pump

Hot selling models
T20/WWWAB/NES/PU/PEP
T20/WWWAB/WFS/PU/PEP
T20/WWWPB/NEU/PU/PEP

PDF
Product Description:
AIR INLET

  • 3/4" FNPT

LIQUID INLET

  • 102 mm (4")

LIQUID DISCHARGE

  • 102 mm (4")

CONNECTION TYPE

  • DIN/ANSI (Flanged)

MAX SUCTION LIFT CAPABILITY

  • Rubber – 3.66 m(12')Dry9.14m(30')Wet


Performance and Specifications

Dimensions

Dim-T20-102mm4inTurbo-Flo-CMP

Note: Dimensions vary by material and connection. For additional information, please refer to the T20 Metal Manual.

Flow Curve – Rubber-Fitted

Flo-T20-102mm4inTurbo-Flo-CMP

Note: Additional performance curves can be found in the T20 Metal Manual.

AIR INLET

  • 3/4" FNPT

LIQUID INLET

  • 102 mm (4")

LIQUID DISCHARGE

  • 102 mm (4")

CONNECTION TYPE

  • DIN/ANSI (Flanged)

MAX FLOW RATE

  • Rubber – 1,041 lpm (275 gpm)

MAX PRESSURE

  • 8.6 bar (125 psi)

MAX DIAMETER SOLIDS

  • 35 mm (1-3/8'')

MAX SUCTION LIFT CAPABILITY

  • Rubber – 3.66 m (12') Dry, 9.14 m (30') Wet

DISPLACEMENT PER STROKE *

  • Rubber – 4.62 L (1.22 gal)

    • * 1 cycle = 2 strokes

Wetted Housings

MATERIALSHIP WEIGHT
Cast Iron231 kg (500 lb)

Non-Wetted Housings

DESCRIPTIONMATERIAL
Center BlockAluminum
Air ValveBrass
Air ChamberAluminum


MAX FLOW RATE

  • Rubber – 1,041 lpm (275 gpm)

MAX PRESSURE

  • 8.6 bar (125 psi)

MAX DIAMETER SOLIDS

  • 35 mm (1-3/8'')

DISPLACEMENT PER STROKE *

  • Rubber – 4.62 L (1.22 gal)

    • * 1 cycle = 2 strokes


PREVIOUS：WILDEN T15 TZ15 Stainless Steel Aluminum Alloy Diaphragm Pumps Petroleum Transfer Pumps NEXT：WILDEN TZ1/PPAAB 1/2" Plastic Air Operated Diaphragm Pump Chemical Transfer Pump
Inquiry:
RELATED PRODUCTS:

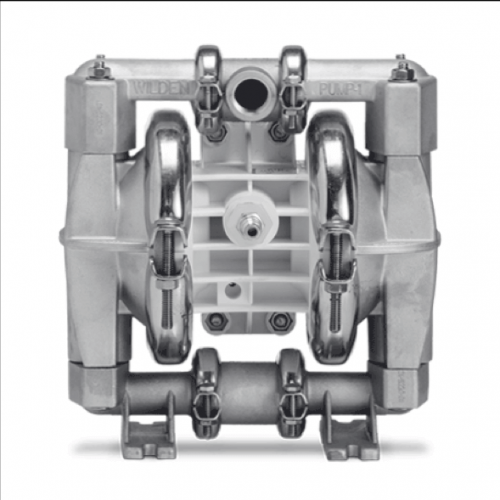

WILDEN Metal Pneumatic Diaphragm Pump Product Number 01-10949 P1/AALLL/BNS/VT/ABN/0246

WILDEN Metal Pneumatic Diaphragm Pump Pr

WILDEN Pneumatic Diaphragm Pumps Item01-10318 P100/PPPPP/VTS/VT/PVT

WILDEN Pneumatic Diaphragm Pumps Item01-

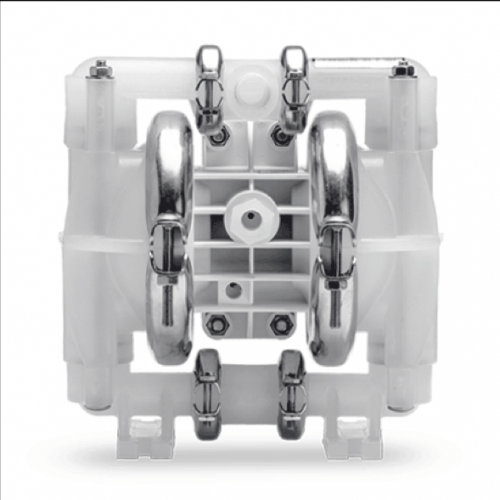

WILDEN Acid-Base 1/2 Inch Pneumatic Diaphragm Pump 01-2686 P1/PPPPP/VTS/VT/VT
