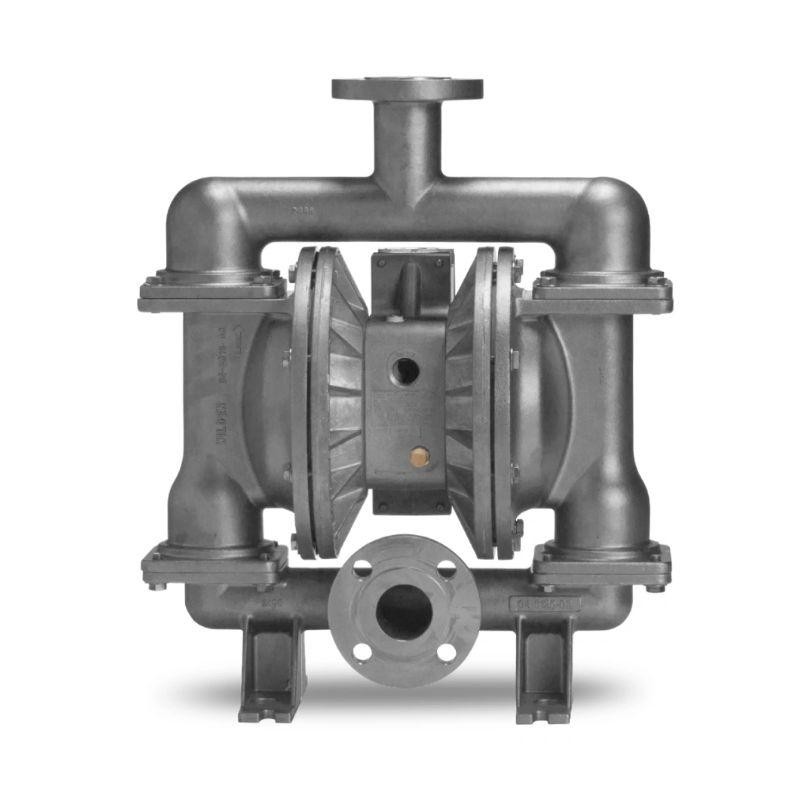

Wilden 1-1/2" High Pressure Diaphragm Pump

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the HS430S Metal Manual.

Flow Curve – EZ-Install TPE-Fitted

Note: Additional performance curves can be found in the HS430S Metal Manual.

AIR INLET

• 3/4" FNPT

LIQUID INLET

• 38 mm (1-1/2")

LIQUID DISCHARGE

• 38 mm (1-1/2")

CONNECTION TYPE

• DIN/ANSI (Flanged)

MAX FLOW RATE

• EZ-Install TPE (Aluminum) – 280 lpm (74 gpm)

• EZ-Install TPE (Stainless Steel) – 264 lpm (70 gpm)

MAX PRESSURE

• 8.6 bar (125 psi)

MAX DISCHARGE PRESSURE

• 17.2 bar (250 psi)

MAX DIAMETER SOLIDS

• TPE (Aluminum) – 6.4 mm (1/4")

• TPE (Stainless Steel) – 6.4 mm (1/4")

MAX SUCTION LIFT CAPABILITY

• EZ-Install TPE (Aluminum) - 2.0 m (6.8') Dry, 9.0 m (29.5') Wet

• EZ-Install TPE (Stainless Steel) – 2.0 m (6.8') Dry, 9.0 m (29.5') Wet

DISPLACEMENT PER STROKE *

• EZ-Install TPE – 2.7 L (0.72 gal)

* 1 cycle = 2 strokes

Wetted Housings

Non-Wetted Housings
