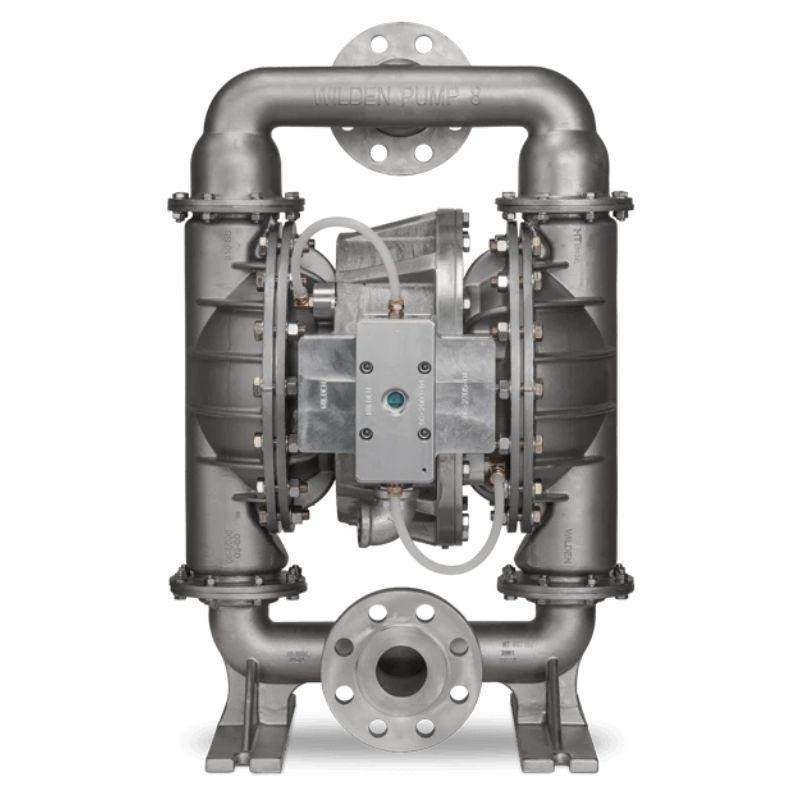

Wilden 2" High Pressure Diaphragm Pump

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the H800 Metal Manual.

Flow Curve – TPE/Full-Stroke PTFE

Note: Additional performance curves can be found in the H800 Metal Manual.

AIR INLET

• 3/4" FNPT

LIQUID INLET

• 51 mm (2")

LIQUID DISCHARGE

• 51 mm (2")

CONNECTION TYPE

• DIN/ANSI (Flanged)

MAX FLOW RATE

• TPE – 360 lpm (95 gpm)

MAX PRESSURE

• 5.9 bar (85 psi)

MAX DISCHARGE PRESSURE

• 17.2 bar (250 psi)

MAX DIAMETER SOLIDS

• 13 mm (1/2")

MAX SUCTION LIFT CAPABILITY

• TPE – 3.7 m (12.0') Dry, 9.0 m (29.5') Wet

DISPLACEMENT PER STROKE *

• TPE – 1.67 L (0.44 gal)

* 1 cycle = 2 strokes

Wetted Housings

Non-Wetted Housings
