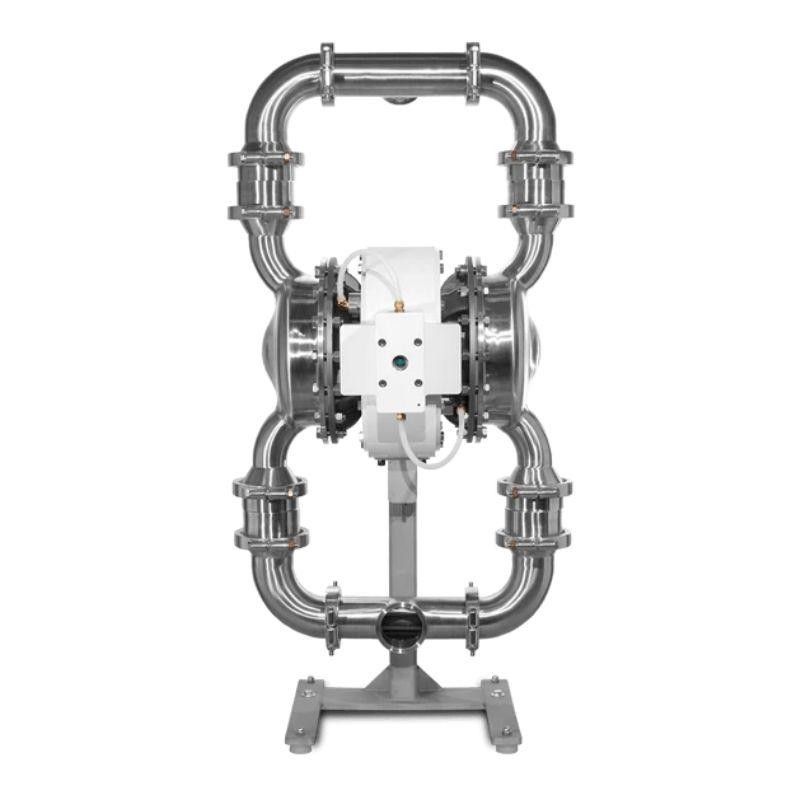

Wilden 3" High Pressure Diaphragm Pump

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the H1500 Metal Manual.

Flow Curve – Full-Stroke Integral Piston Diaphragm

Note: Additional performance curves can be found in the H1500Metal Manual.

AIR INLET

• 3/4" FNPT

LIQUID INLET

• 76 mm (3")

LIQUID DISCHARGE

• 76 mm (3")

CONNECTION TYPE

• Tri-Clamp®

• DIN

• SMS

MAX FLOW RATE

• Full-Stroke Integral Piston – 291 lpm (77 gpm)

VALVE OPTIONS

• Ball

• Mushroom

MAX PRESSURE

• 5.9 bar (85 psi)

MAX DISCHARGE PRESSURE

• 17.2 bar (250 psi)

MAX DIAMETER SOLIDS

• 6.4 mm (1/4'')

MAX SUCTION LIFT CAPABILITY

• Full-Stroke Integral Piston – 3.8 m (12.5') Dry, 9.0 m (29.5') Wet

DISPLACEMENT PER STROKE *

• Full-Stroke Integral Piston – 1.2 L (0.32 gal)

* 1 cycle = 2 strokes

Wetted Housings

Non-Wetted Housings
