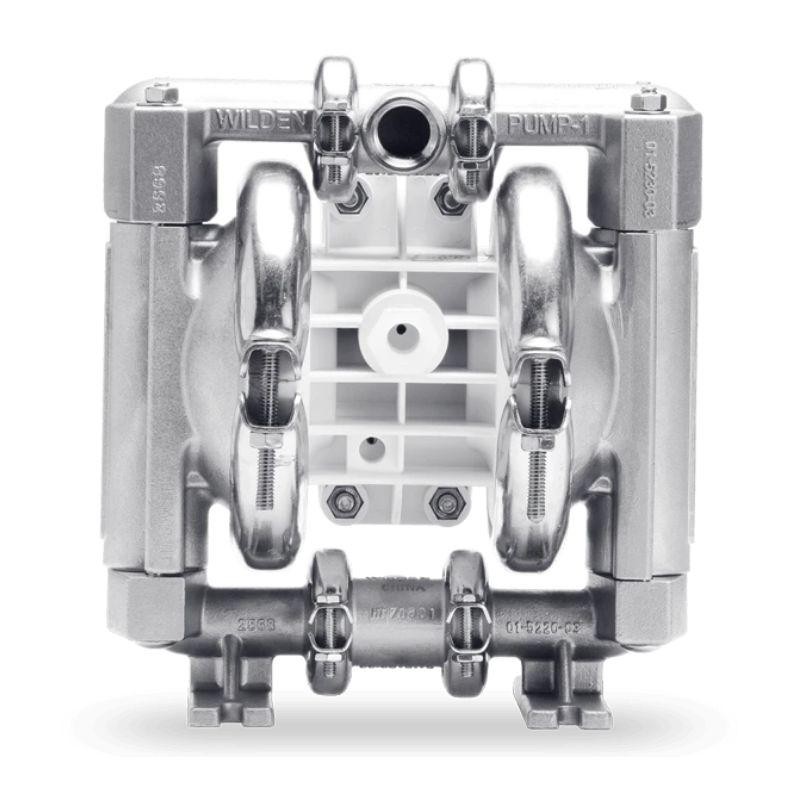

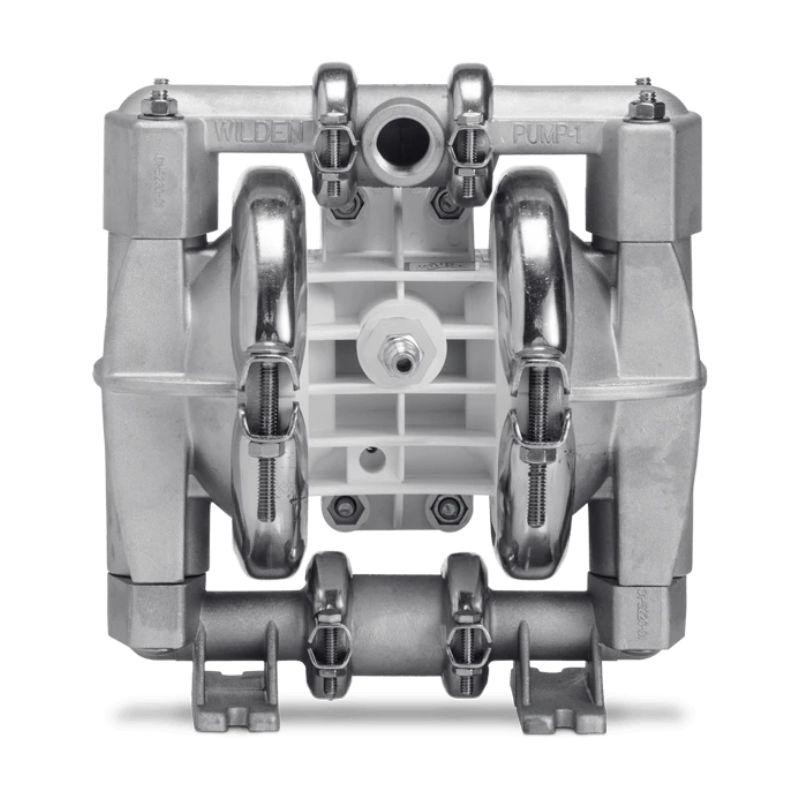

Pro-Flo® Series Clamped Metal AODD Pump 13 mm (1/2

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the P1 Metal Manual.

Flow Curve – TPE-Fitted

Note: Additional performance curves can be found in the P1 Metal Manual.

AIR INLET

• 1/4" FNPT

LIQUID INLET

• 13 mm (1/2")

LIQUID DISCHARGE

• 13 mm (1/2")

CONNECTION TYPE

• NPT/BSPT (Threaded)

MAX FLOW RATE

• Rubber – 58.7 lpm (15.5 gpm)

• TPE – 58.3 lpm (15.4 gpm)

• PTFE – 54.4 lpm (14.4 gpm)

MAX PRESSURE

• 8.6 bar (125 psi)

MAX DIAMETER SOLIDS

• 1.59 mm (1/16'')

MAX SUCTION LIFT CAPABILITY

• Rubber –5.8 m (19.0') Dry, 9.5 m (31.0') Wet

• TPE – 5.2 m (17.0') Dry, 9.5 m (31.0') Wet

• PTFE – 4.9 m (16.0') Dry, 9.5 m (31.0') Wet

DISPLACEMENT PER STROKE *

• Rubber – 0.11 L (0.029 gal)

• TPE – 0.11 L (0.029 gal)

• PTFE – 0.09 L (0.025 gal)

* 1 cycle = 2 strokes

Wetted Housings

Non-Wetted Housings
