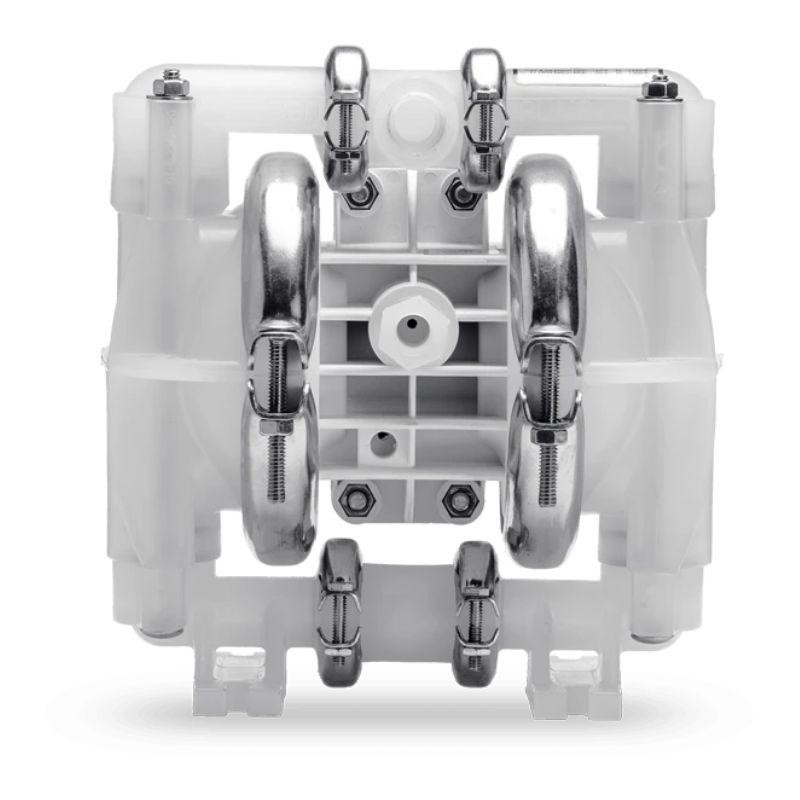

Pro-Flo® Series Clamped Plastic AODD Pump 13 mm (1/2

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the P1 Plastic Manual.

Flow Curve – TPE-Fitted

Note: Additional performance curves can be found in the P1 Plastic Manual.

AIR INLET

• 1/4" FNPT

LIQUID INLET

• 13 mm (1/2")

LIQUID DISCHARGE

• 13 mm (1/2")

CONNECTION TYPE

• NPT/BSPT (Threaded)

MAX FLOW RATE

• Rubber – 56 lpm (14.8 gpm)

• TPE – 56.8 lpm (15 gpm)

• PTFE – 53.4 lpm (14.1 gpm)

MAX PRESSURE

• 8.6 bar (125 psi)

MAX DIAMETER SOLIDS

• 1.6 mm (1/16'')

MAX SUCTION LIFT CAPABILITY

• Rubber – 6.1 m (20') Dry, 9.5 m (31') Wet

• TPE – 5.8 m (19') Dry, 9.8 m (32') Wet

• PTFE – 5.18 m (17') Dry, 9.8 m (32') Wet

DISPLACEMENT PER STROKE *

• Rubber – 0.11 L (0.029 gal)

• TPE – 0.11 L (0.030 gal)

• PTFE – 0.10 L (0.027 gal)

* 1 cycle = 2 strokes

Wetted Housings

Non-Wetted Housings
