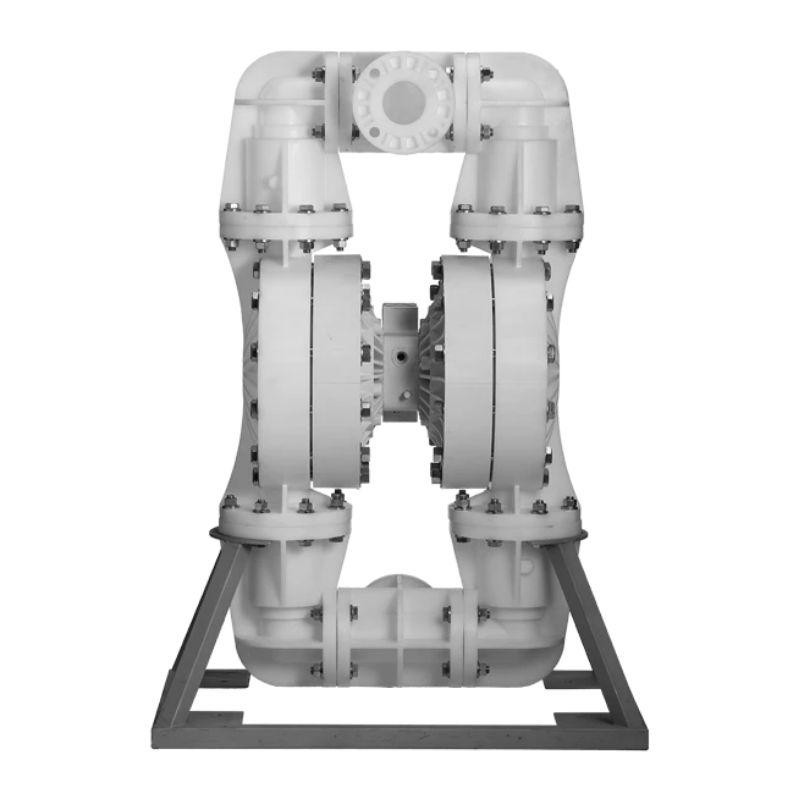

76-mm-3-Pro-Flo®-SHIFT-Series-Bolted-Plastic-AODD-Pump

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the PS1500 Plastic Manual.

Flow Curve – EZ-Install TPE-Fitted

Note: Additional performance curves can be found in the PS1500 Plastic Manual.

AIR INLET

• 3/4" FNPT

LIQUID INLET

• 76 mm (3")

LIQUID DISCHARGE

• 76 mm (3")

CONNECTION TYPE

• DIN/ANSI (Flanged)

MAX FLOW RATE

• EZ-Install TPE – 1,024 lpm (271 gpm)

• Full-Stroke PTFE – 999 lpm (262 gpm)

• Reduced-Stroke PTFE – 882 lpm (233 gpm)

MAX PRESSURE

• Polypropylene – 6.9 bar (100 psi)

• PVDF – 8.6 bar (125 psi)

MAX DIAMETER SOLIDS

• 13 mm (1/2")

MAX SUCTION LIFT CAPABILITY

• EZ-Install TPE – 5.3 m (17.5') Dry, 8.3 m (28.4') Wet

• Full-Stroke PTFE – 5.8 m (19.1') Dry, 8.6 m (28.4') Wet

• Reduced-Stroke PTFE – 3.5 m (11.6') Dry, 8.6 m (28.4') Wet

DISPLACEMENT PER STROKE *

• EZ-Install TPE – 5.4 L (1.42 gal)

• Full-Stroke PTFE – 5.3 L (1.40 gal)

• Reduced-Stroke PTFE – 3.5 L (0.93 gal)

* 1 cycle = 2 strokes

Wetted Housings

Non-Wetted Housings
