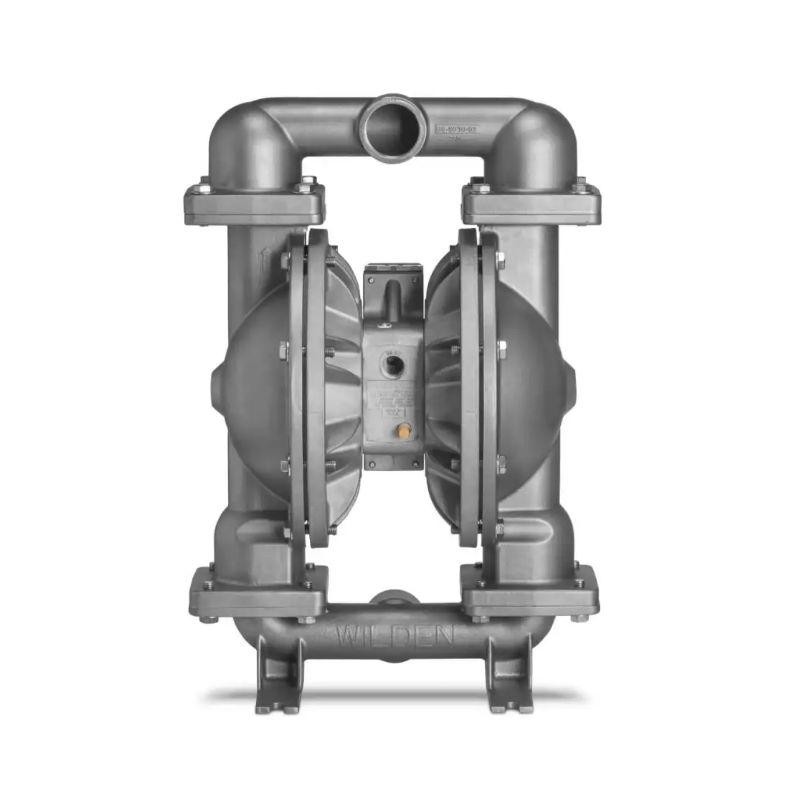

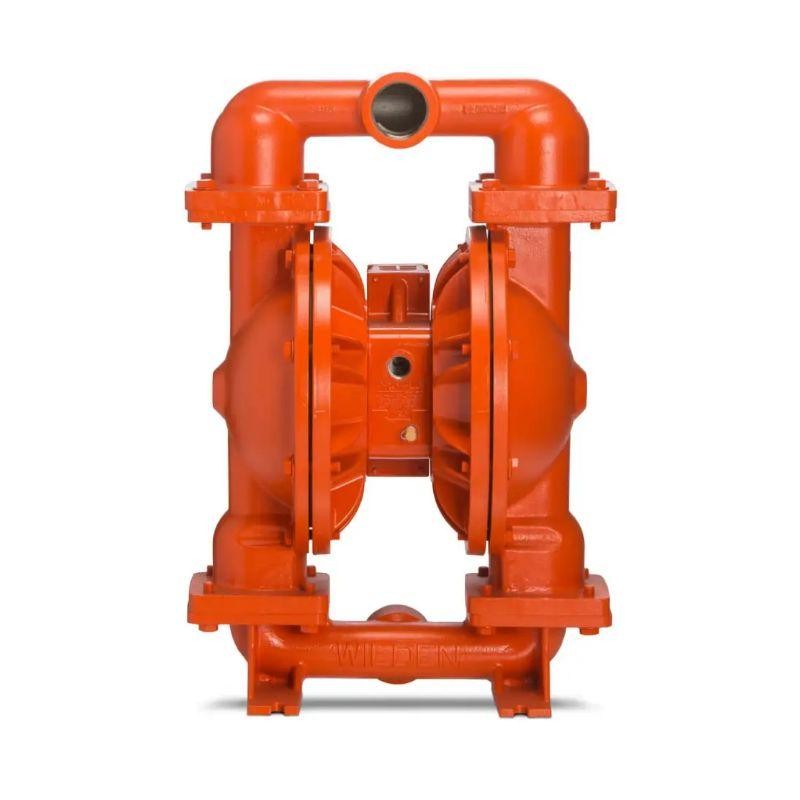

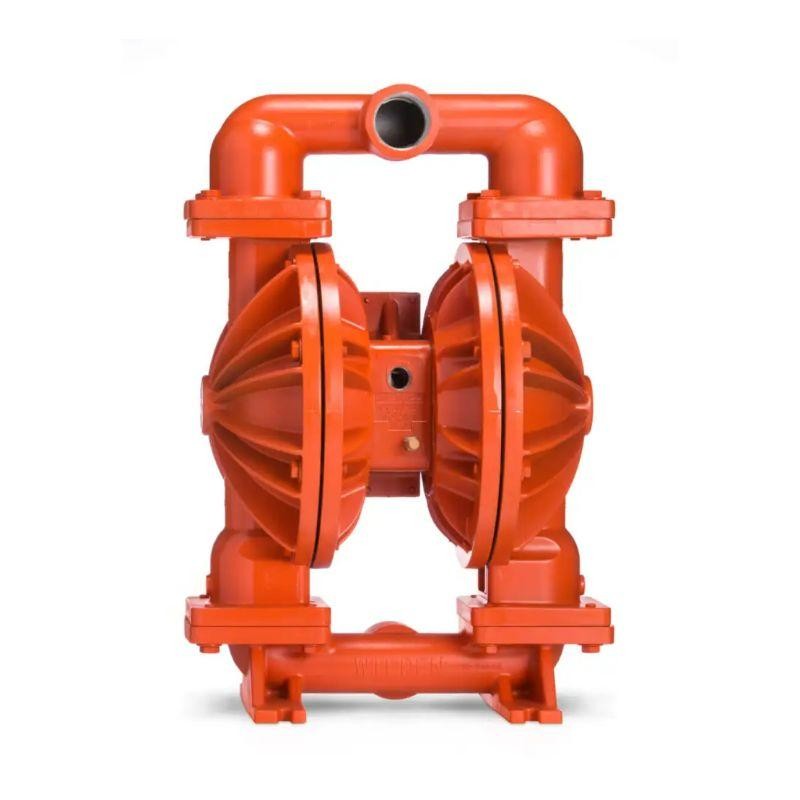

51 mm (2") Pro-Flo® SHIFT Series Bolted Metal AODD Pump

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the PS820/PS830 Metal Manual.

Flow Curve – EZ-Install TPE-Fitted

Note: Additional performance curves can be found in the PS820/PS830 Metal Manual.

AIR INLET

• 3/4" FNPT

LIQUID INLET

• 51 mm (2")

LIQUID DISCHARGE

• 51 mm (2")

CONNECTION TYPE

• NPT/BSPT (Threaded)

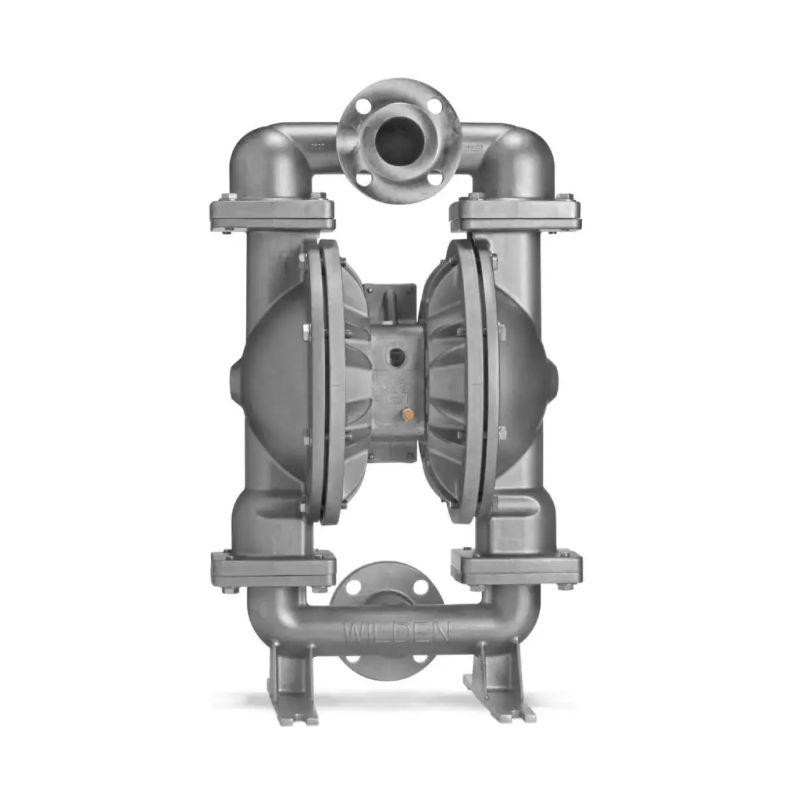

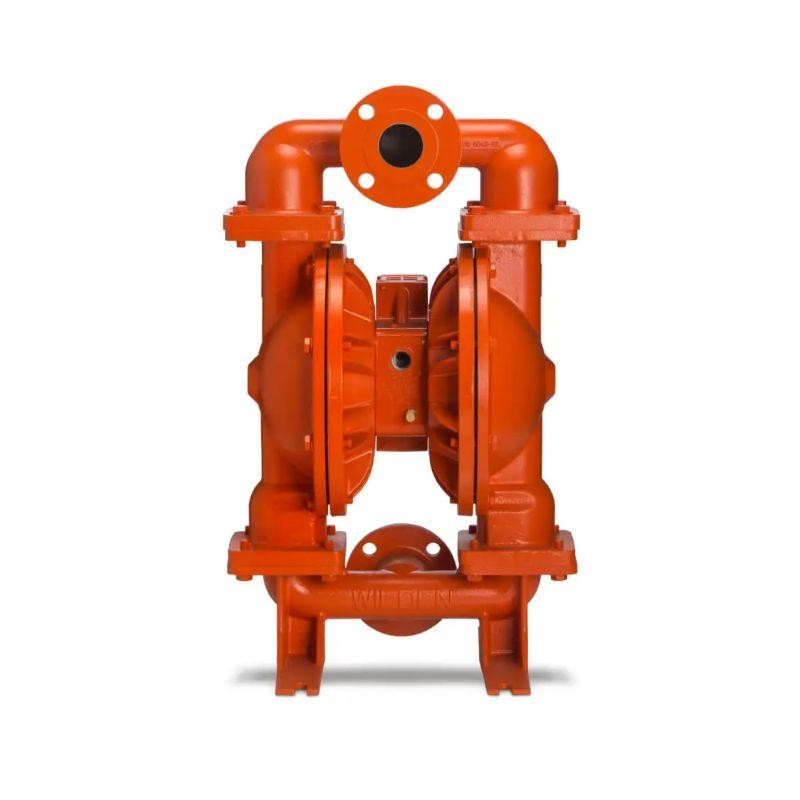

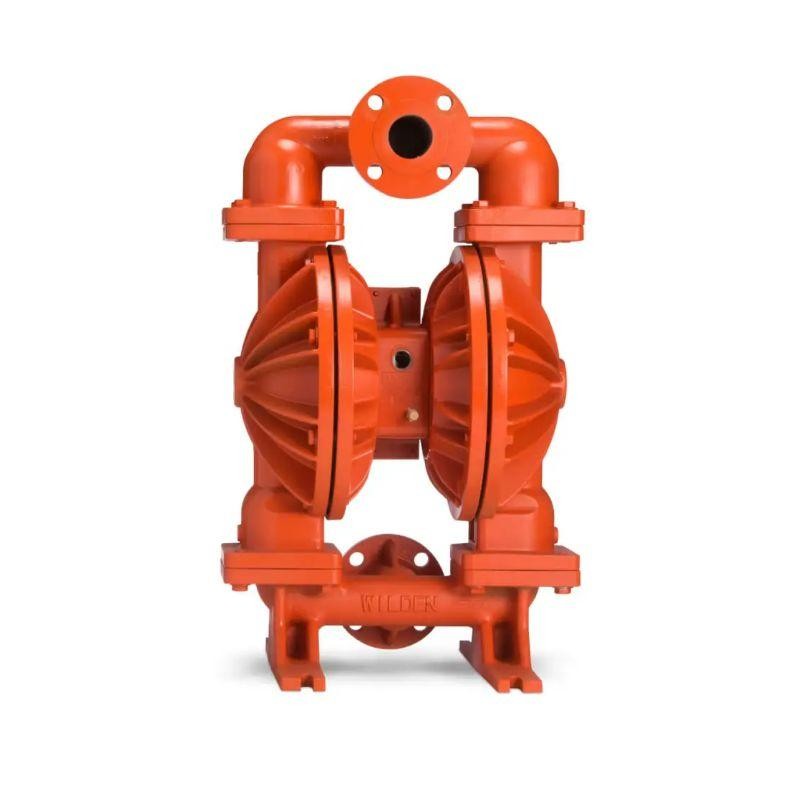

• DIN/ANSI (Flanged)

MAX FLOW RATE

• Rubber – 685 lpm (181 gpm)

• EZ-Install TPE – 668 lpm (176 gpm)

• Full-Stroke PTFE – 655 lpm (173 gpm)

MAX PRESSURE

• 8.6 bar (125 psi)

MAX DIAMETER SOLIDS

• 6.4 mm (1/4")

MAX SUCTION LIFT CAPABILITY

• Rubber – 7.1 m (23.3') Dry, 9.0 m (29.5') Wet

• EZ-Install TPE – 7.0 m (23.1') Dry, 9.0 m (29.5') Wet

• Full-Stroke PTFE – 6.6 m (21.8') Dry, 9.0 m (29.5') Wet

DISPLACEMENT PER STROKE *

• Rubber – 2.8 L (0.73 gal)

• EZ-Install TPE – 2.6 L (0.70 gal)

• Full-Stroke PTFE – 2.5 L (0.65 gal)

* 1 cycle = 2 strokes

Wetted Housings

Non-Wetted Housings
