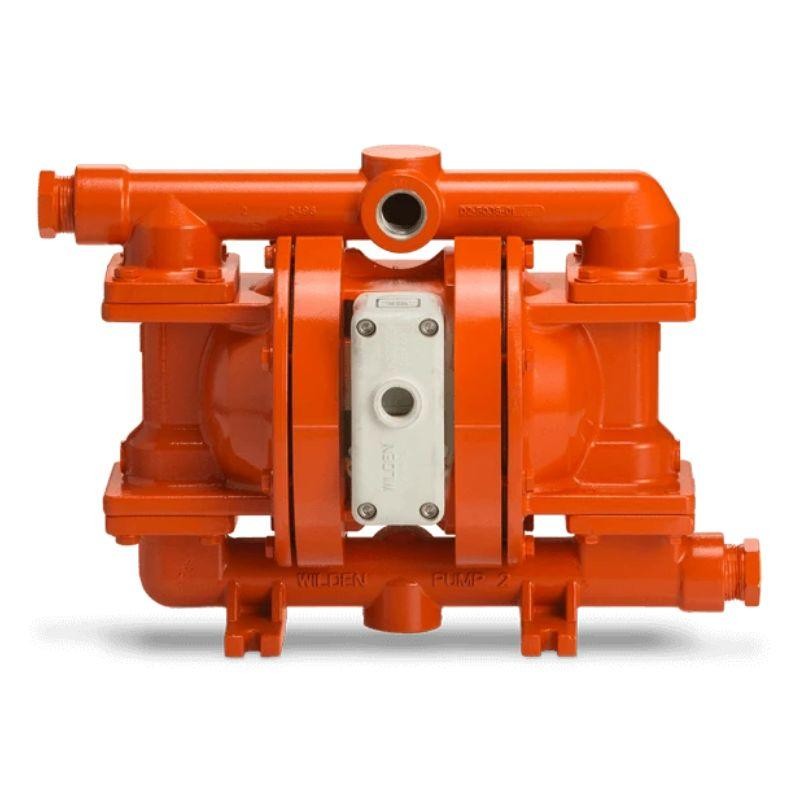

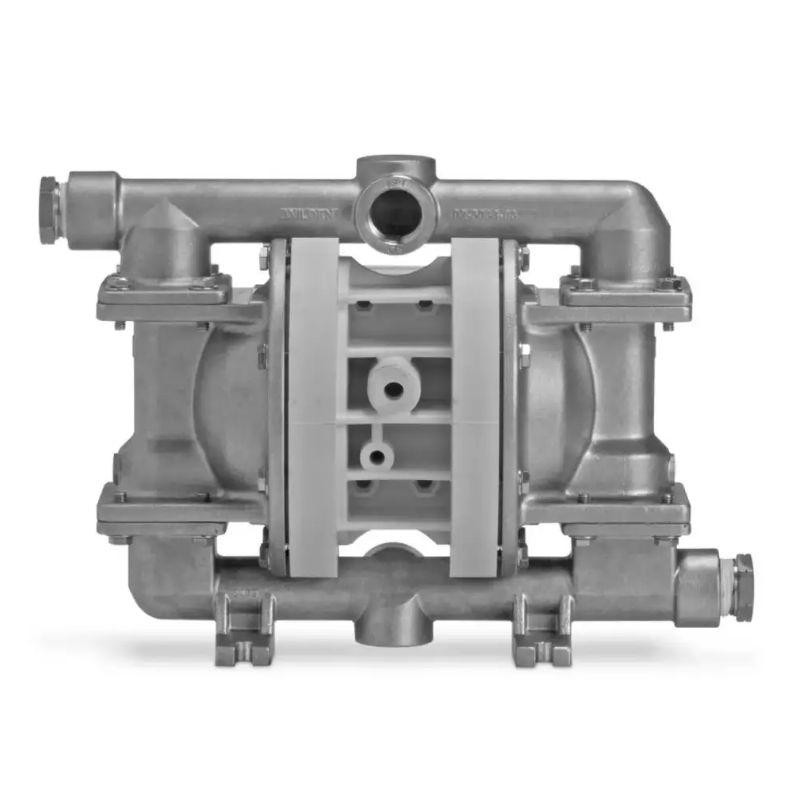

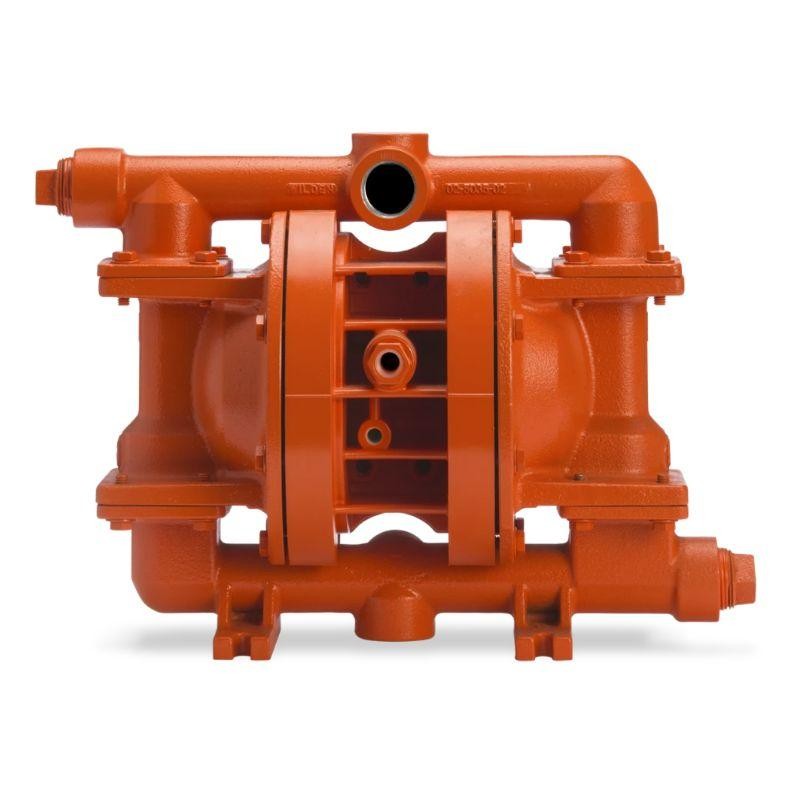

25 mm (1") ,Pro-Flo® Series Bolted Metal AODD Pump

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the P220/P230 Metal Manual.

Flow Curve – TPE-Fitted

Note: Additional performance curves can be found in the P220/P230 Metal Manual.

AIR INLET

• 1/4" FNPT

LIQUID INLET

• 25 mm (1")

LIQUID DISCHARGE

• 25 mm (1")

CONNECTION TYPE

• NPT/BSPT (Threaded)

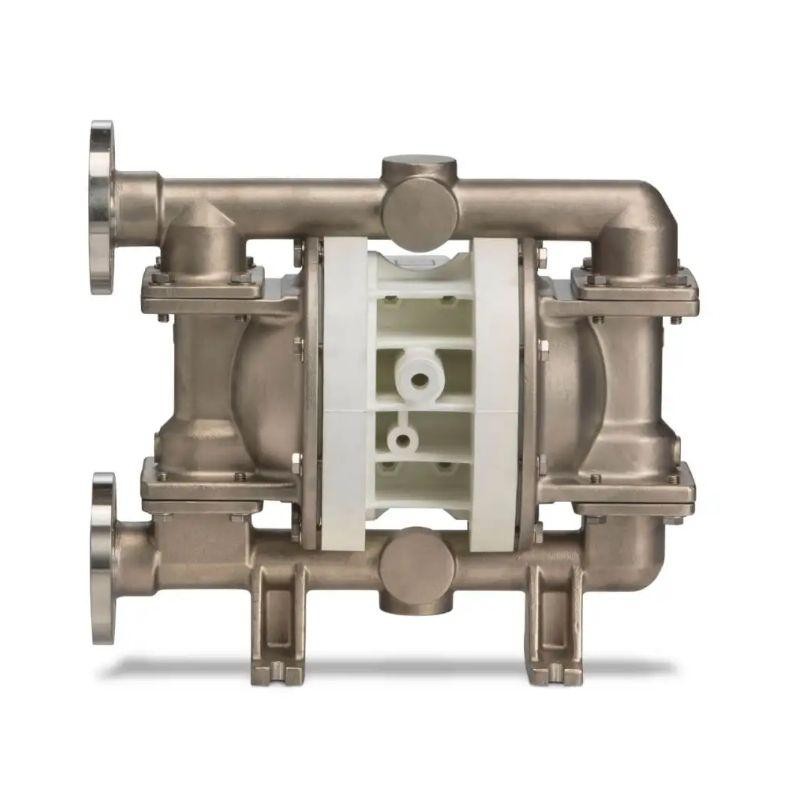

• DIN/ANSI (Flanged)

MAX FLOW RATE

• Rubber – 212 lpm (56 gpm)

• TPE – 212 lpm (56 gpm)

• Full-Stroke PTFE – 185 lpm (49 gpm)

• Reduced-Stroke PTFE – 168 lpm (44 gpm)

MAX PRESSURE

• 8.6 bar (125 psi)

MAX DIAMETER SOLIDS

• 6.4 mm (1/4'')

MAX SUCTION LIFT CAPABILITY

• Rubber – 5.4 m (17.6') Dry, 9.3 (30.6') Wet

• TPE – 4.1 m (13.6') Dry, 9.3 (30.6') Wet

• Full-Stroke PTFE – 5.5 m (18.2') Dry, 9.0 m (29.5') Wet

• Reduced-Stroke PTFE – 3.5 m (11.4') Dry, 9.3 m (30.6') Wet

DISPLACEMENT PER STROKE *

• Rubber – 0.30 L (0.08 gal)

• TPE – 0.34 L (0.09 gal)

• Full-Stroke PTFE – 0.3 L (0.08 gal)

• Reduced-Stroke PTFE – 0.23 L (0.06 gal)

* 1 cycle = 2 strokes

Wetted Housings

Non-Wetted Housings
