Model: P.025/KZPPP/TNL/TF/KTV/0310 Series: Pro-Flo Port Size: 1/4-inch NPT Wetted Housing: PVDF Diaphragm / Check Ball: PTFE / PTFE Maximum Flow: 4.8 US gpm (18.2 L/min) Maximum Operating Pressure: 125 psig (8.6 bar)
WILDEN / PRO-FLO SERIES

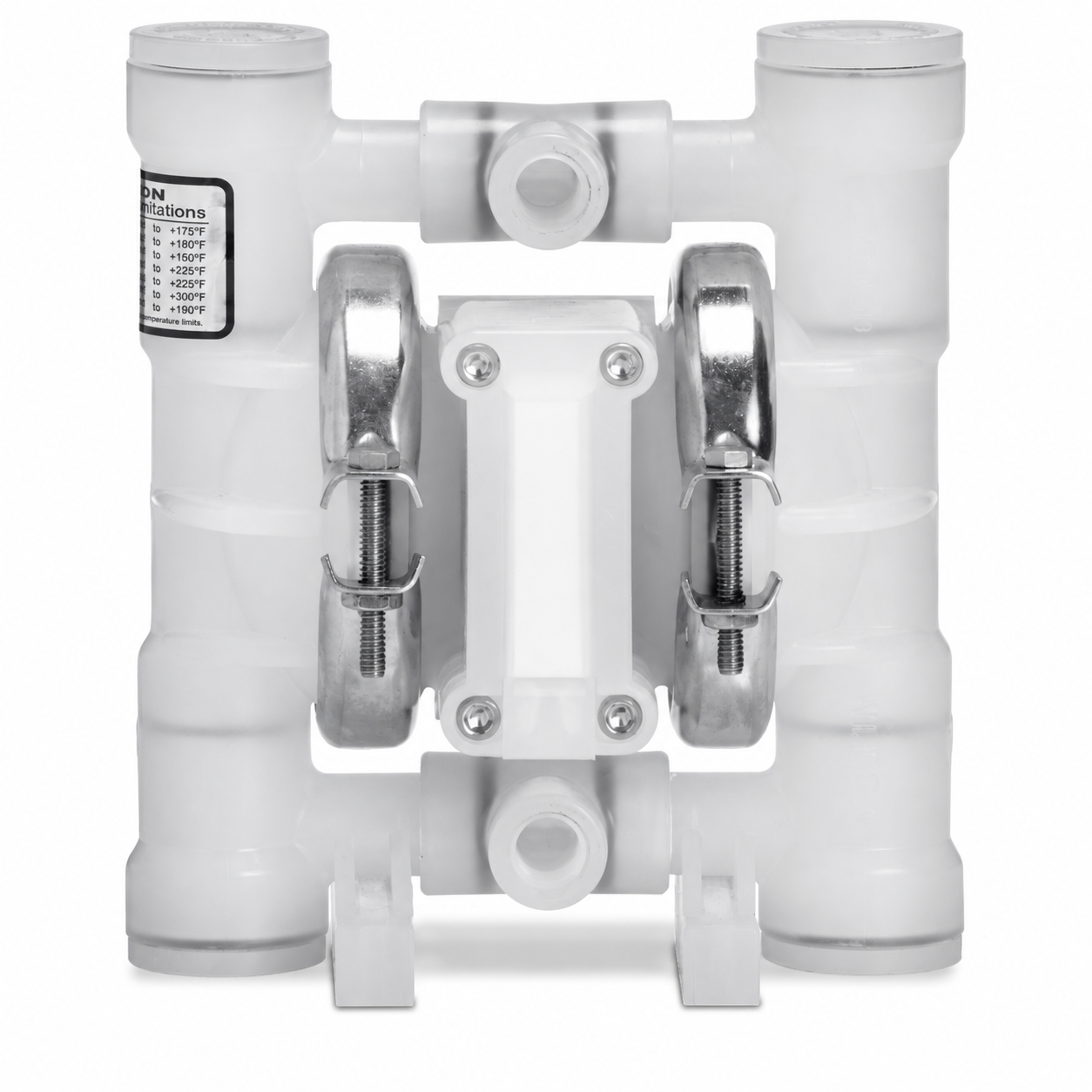

A compact air-operated double-diaphragm pump with a PVDF wetted housing, PTFE diaphragms and PTFE check balls. The Pro-Flo air distribution system is paired with a clamped assembly, NPT fluid connections and center-swivel inlet and discharge ports.
Complete model
P.025/KZPPP/TNL/TF/KTV/0310
FLUID CONNECTION
1/4-inch NPT
MAXIMUM FLOW
≈ 18.2 L/min
MAXIMUM PRESSURE
125 psig
| Brand / item number | WILDEN / 00-10029 |
|---|---|
| Pump series | Pro-Flo |
| Nominal fluid port size | 1/4 in (0.25 in) |
| Drive / construction | Pneumatic / clamped |
| Wetted housing | PVDF |
| Diaphragms | PTFE IPD, reduced-stroke design |
| Check balls / valve seats | PTFE / PVDF |
| Connection standard | NPT threaded |
| Maximum flow | 4.8 US gpm (approximately 18.2 L/min) |
|---|---|
| Maximum operating pressure | 125 psig (approximately 8.6 bar) |
| Maximum air supply pressure | 125 psig (approximately 8.6 bar) |
| Maximum solids diameter | 0.02 in (approximately 0.5 mm) |
| Listed dry suction lift | 8 ft (approximately 2.44 m) |
| Listed operating temperature | 40–175 °F (approximately 4.4–79.4 °C) |
| Displacement per stroke | 0.005 US gal (approximately 0.019 L) |
| Self-priming | Yes |
Maximum flow and maximum pressure are separate ratings. Select the duty point from the performance curve for the available air supply and actual installation.
| Air-side material | Polypropylene |
|---|---|
| Hardware | Stainless steel |
| O-rings / gaskets | PTFE-encapsulated FKM |
| Outer piston | No outer piston |
| Muffler | Plastic, integrated |
| Inlet / discharge size | 1/4 in / 1/4 in |
| Inlet / discharge orientation | Centre swivel / centre swivel |
| Construction detail code | 0310 |
| Overall length × width × height | 4.6 × 5.7 × 6.5 in (approximately 117 × 145 × 165 mm) |
|---|---|
| Inlet height | 1 in (25.4 mm) |
| Discharge height | 5.6 in (approximately 142 mm) |
| Listed shipping weight | 4.1 lb (approximately 1.86 kg) |

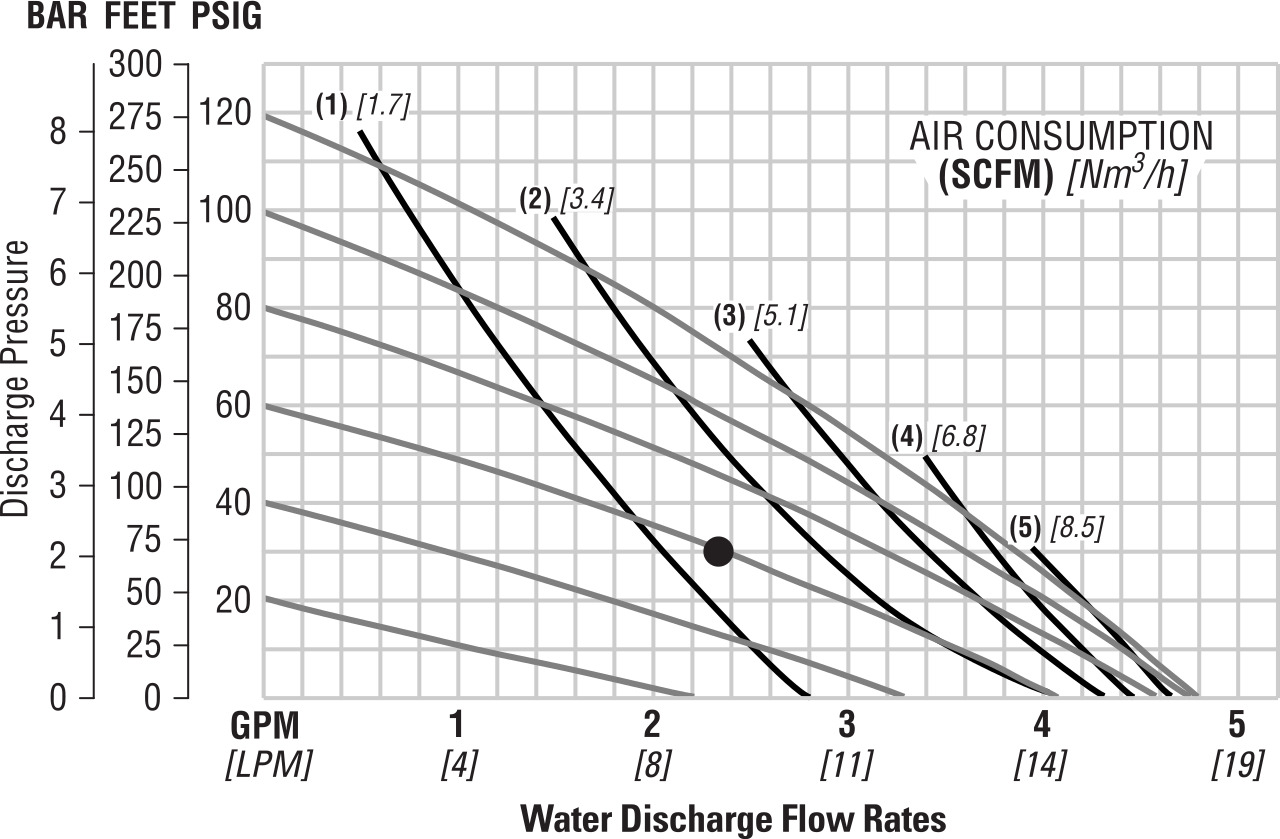

P.025 plastic / PTFE performance curve. Click the chart to open the full-size image.

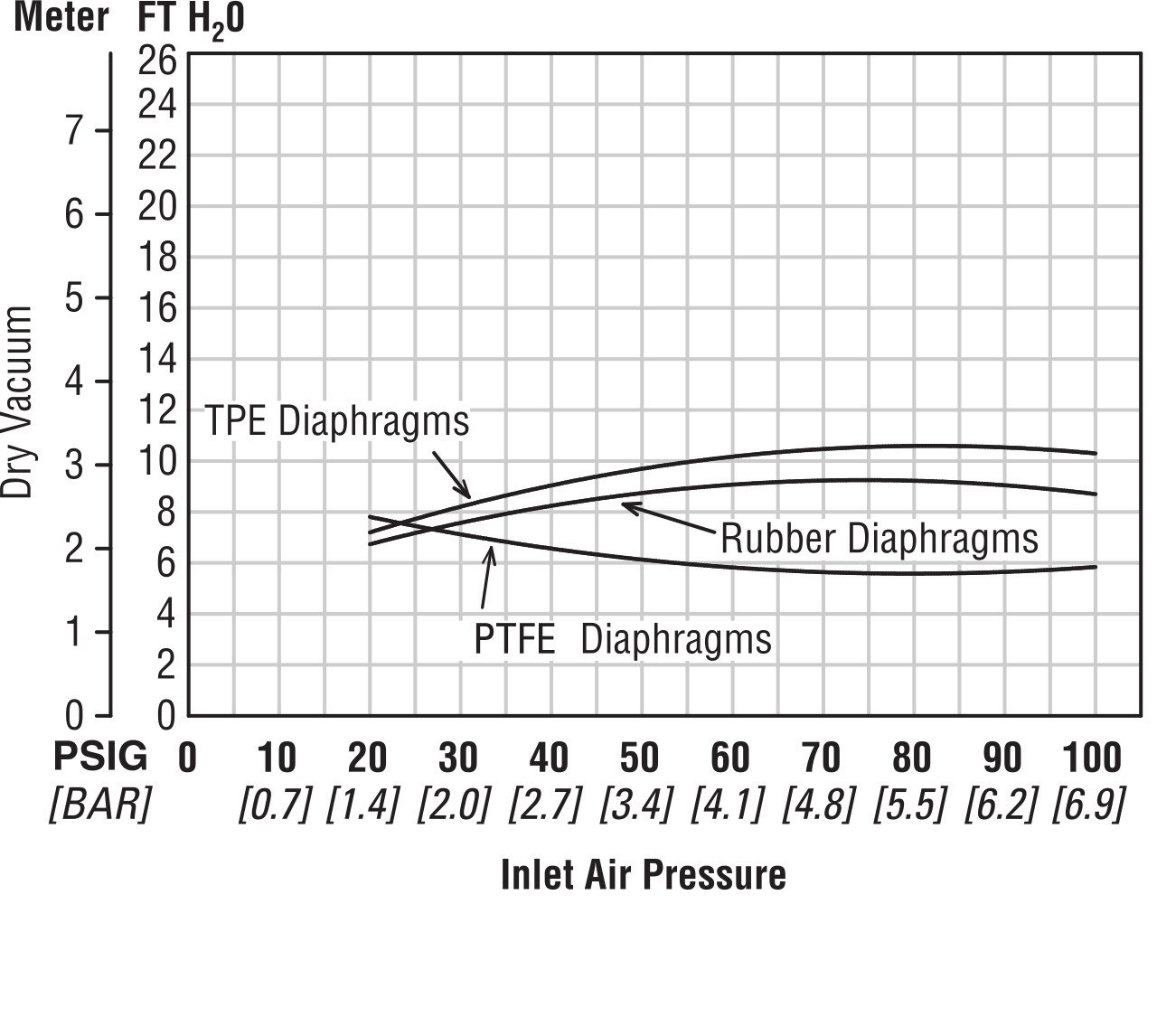

P.025 plastic suction curve. Read the PTFE diaphragm trace for this configuration.
No preassembled air repair kit or wet-end repair kit is listed for this 1/4-inch configuration. Select individual replacement components by the complete pump code, exploded drawing, material and component position.
Quote 00-10029 and P.025/KZPPP/TNL/TF/KTV/0310, together with quantity, fluid, temperature, flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
