Item: 00-10108 Model: A.025P/AMPPP/BNS/TF/ABN/0151 Series: Accu-Flo Wetted material: Aluminum Diaphragm material: Buna-N Fluid connections: 1/4-inch NPT Inlet / discharge: Side right / Side right
WILDEN / ACCU-FLO SERIES
This Accu-Flo air-operated double-diaphragm pump combines a aluminum wetted housing with Buna-N diaphragms. The clamped configuration has 1/4-inch NPT fluid connections and a polypropylene air-side assembly. Identify the complete ordering code when matching the control configuration and replacement components.
Complete model
A.025P/AMPPP/BNS/TF/ABN/0151
FLUID CONNECTION
1/4-inch NPT
MAXIMUM FLOW
≈ 16.3 L/min
MAXIMUM PRESSURE
125 psig
| Brand / item number | WILDEN / 00-10108 |
|---|---|
| Pump series | Accu-Flo |
| Nominal fluid port size | 1/4 in (0.25 in) |
| Construction | Clamped |
| Wetted housing | Aluminum |
| Diaphragm material | Buna-N |
| Diaphragm design / stroke | Traditional / Full-Stroke |
| Check ball material | PTFE |
| Valve seat material | Aluminum |
| Connection standard | NPT threaded |
| Inlet / discharge orientation | Side right / Side right |
| Maximum flow | 4.3 US gpm (approximately 16.3 L/min) |
|---|---|
| Maximum operating pressure | 125 psig (approximately 8.6 bar) |
| Maximum air supply pressure | 125 psig (approximately 8.6 bar) |
| Maximum solids diameter | 0.02 in (approximately 0.5 mm) |
| Listed dry suction lift | 17.6 ft (approximately 5.36 m) |
| Listed operating temperature | 40–175 °F (approximately 4.4–79.4 °C) |
| Self-priming | Yes |
Maximum flow and maximum pressure are separate ratings. Check the duty point, fluid compatibility, temperature and suction conditions for the complete pump configuration.
| Air-side material | Polypropylene |
|---|---|
| Outer pistons | Mild steel |
| Wetted O-rings / gaskets | Buna-N |
| Muffler | Plastic |
| Air inlet connection | 0.125" FNPT |
| Inlet / discharge size | 1/4 in / 1/4 in |
| Thread standard | NPT |
| Construction detail code | 0151 |

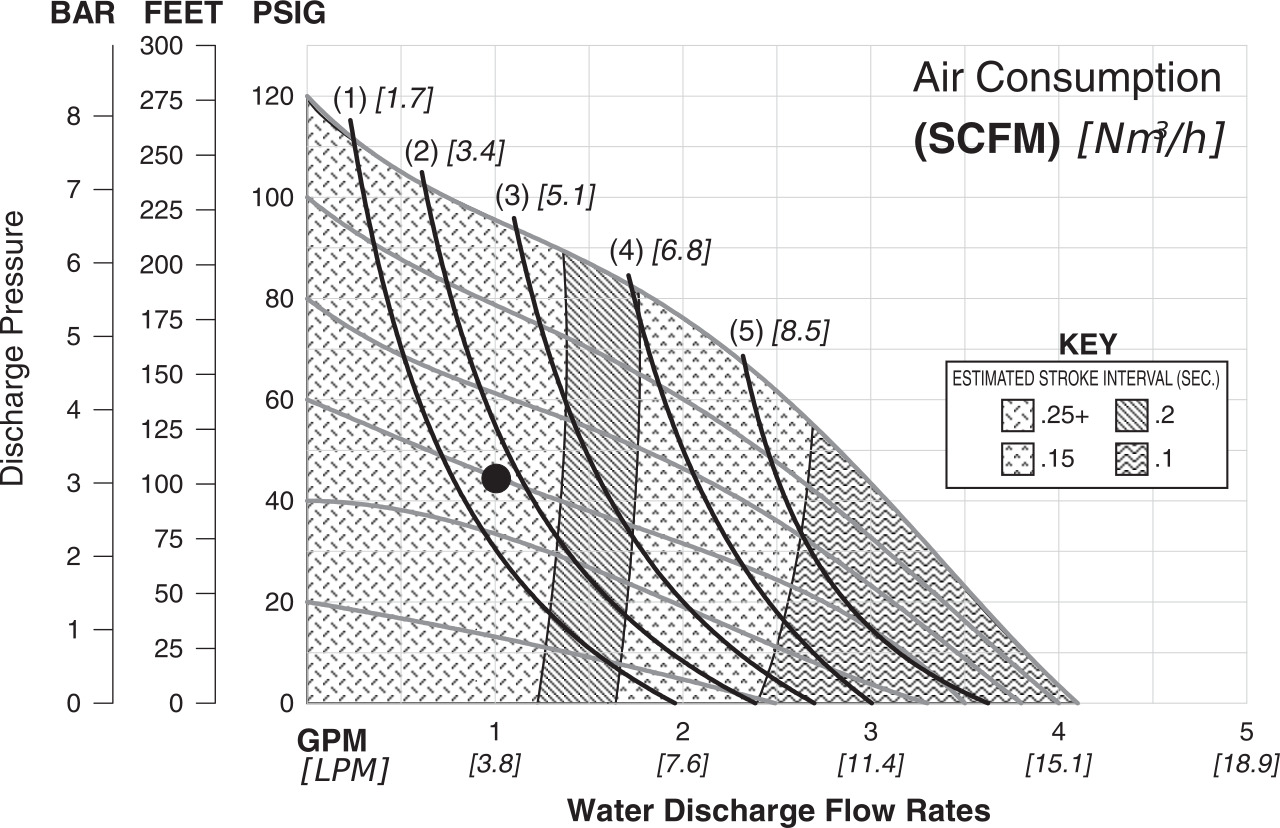

Use the trace for this diaphragm configuration. Click to view the full-size image.

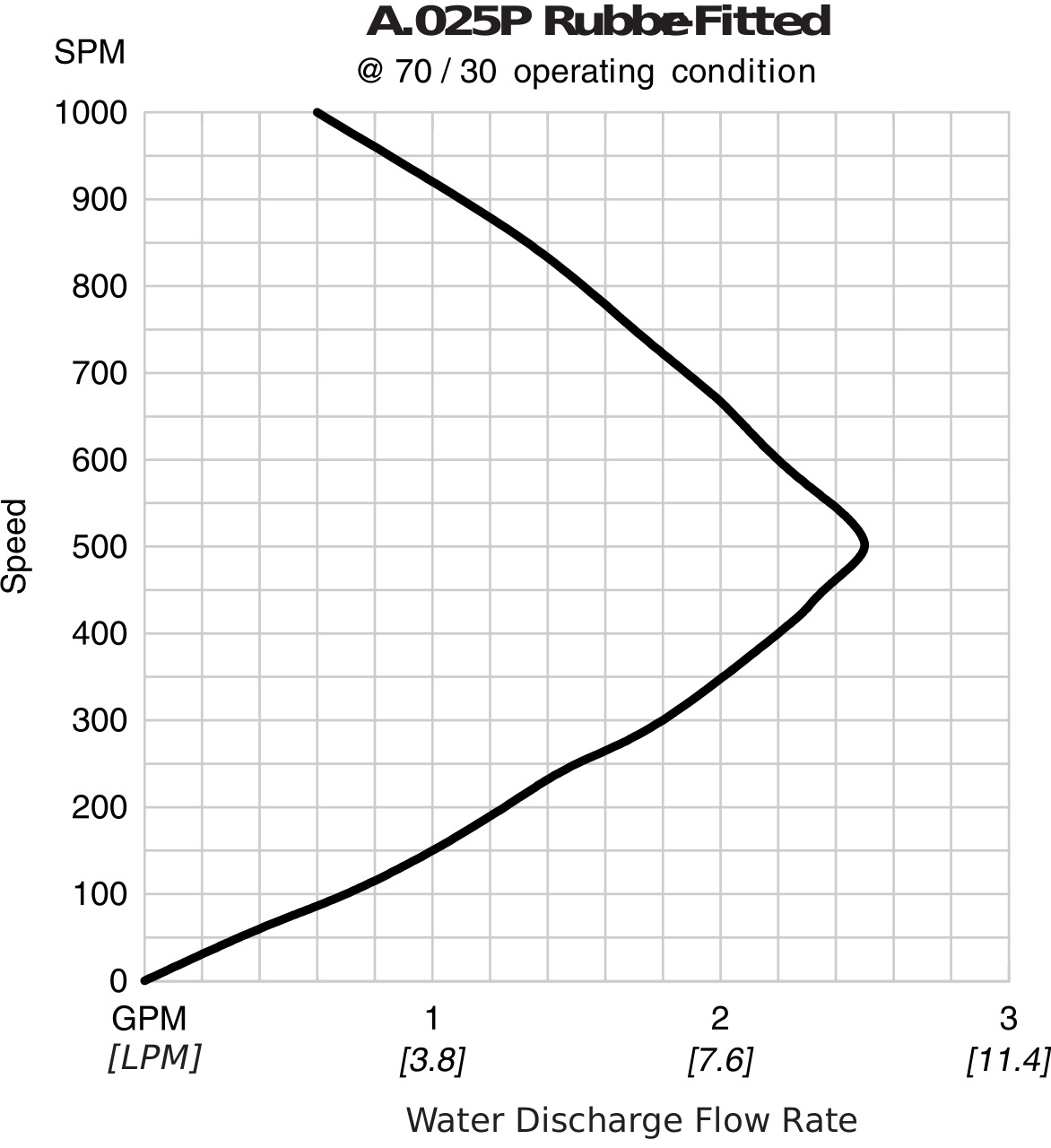

Use the trace for this diaphragm configuration. Click to view the full-size image.
Quote 00-10108 and A.025P/AMPPP/BNS/TF/ABN/0151, together with quantity, fluid, operating temperature, required flow and discharge pressure. For individual replacement parts, include the component number and a clear pump nameplate photo.
