Item: 00-10181 Model: PS25/PPPPP/TWS/TF/PTF Series: Pro-Flo Shift Wetted material: Polypropylene Diaphragm material: PTFE Fluid connections: 1/4-inch NPT Inlet / discharge: Side right / Side right
WILDEN / PRO-FLO SHIFT SERIES

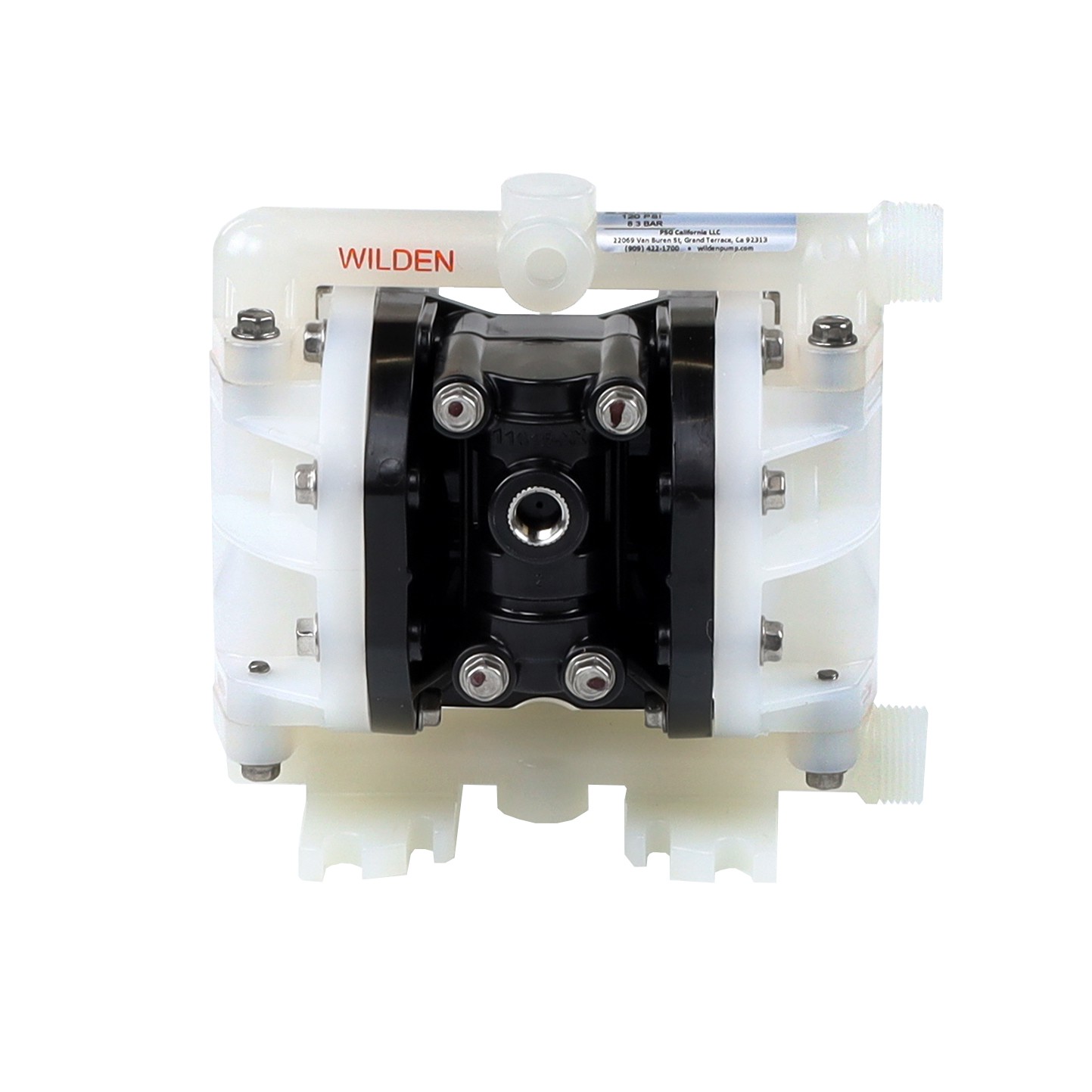

This Pro-Flo Shift air-operated double-diaphragm pump combines a polypropylene wetted housing with PTFE diaphragms. The bolted configuration has 1/4-inch NPT fluid connections and a polypropylene air-side assembly.
Complete model
PS25/PPPPP/TWS/TF/PTF
FLUID CONNECTION
1/4-inch NPT
MAXIMUM FLOW
≈ 21.6 L/min
MAXIMUM PRESSURE
120 psig
| Brand / item number | WILDEN / 00-10181 |
|---|---|
| Pump series | Pro-Flo Shift |
| Nominal fluid port size | 1/4 in (0.25 in) |
| Construction | Bolted |
| Wetted housing | Polypropylene |
| Diaphragm material | PTFE |
| Diaphragm design / stroke | Traditional / Full-Stroke |
| Check ball material | PTFE |
| Valve seat material | Polypropylene |
| Connection standard | NPT threaded |
| Inlet / discharge orientation | Side right / Side right |
| Maximum flow | 5.7 US gpm (approximately 21.6 L/min) |
|---|---|
| Maximum operating pressure | 120 psig (approximately 8.3 bar) |
| Maximum air supply pressure | 120 psig (approximately 8.3 bar) |
| Maximum solids diameter | 0.06 in (approximately 1.5 mm) |
| Listed dry suction lift | 14 ft (approximately 4.27 m) |
| Listed operating temperature | 40–175 °F (approximately 4.4–79.4 °C) |
| Self-priming | Yes |
Maximum flow and maximum pressure are separate ratings. Check the duty point, fluid compatibility, temperature and suction conditions for the complete pump configuration.
| Air-side material | Polypropylene |
|---|---|
| Outer pistons | Polypropylene |
| Wetted O-rings / gaskets | PTFE |
| Muffler | Plastic |
| Air inlet connection | 0.25" FNPT |
| Inlet / discharge size | 1/4 in / 1/4 in |
| Thread standard | NPT |

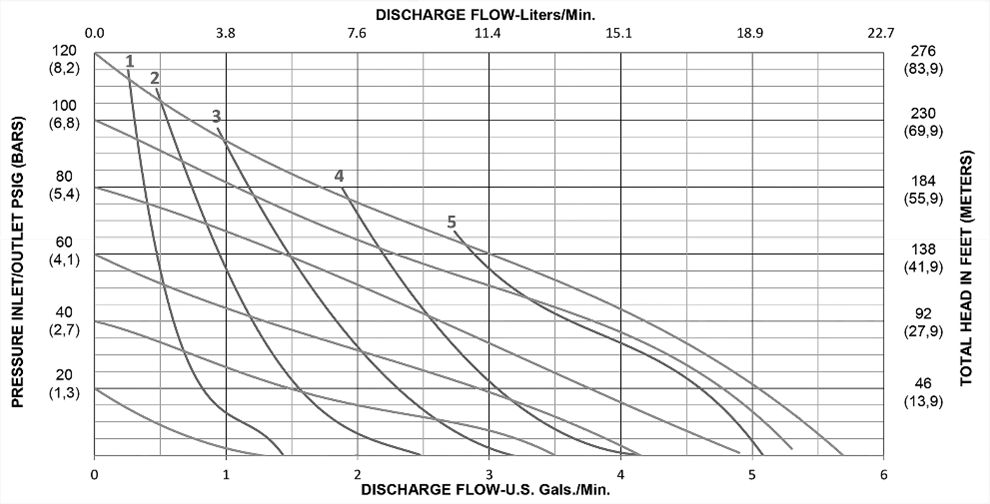

Use the trace for this diaphragm configuration. Click to view the full-size image.
Quote 00-10181 and PS25/PPPPP/TWS/TF/PTF, together with quantity, fluid, operating temperature, required flow and discharge pressure. For individual replacement parts, include the component number and a clear pump nameplate photo.
