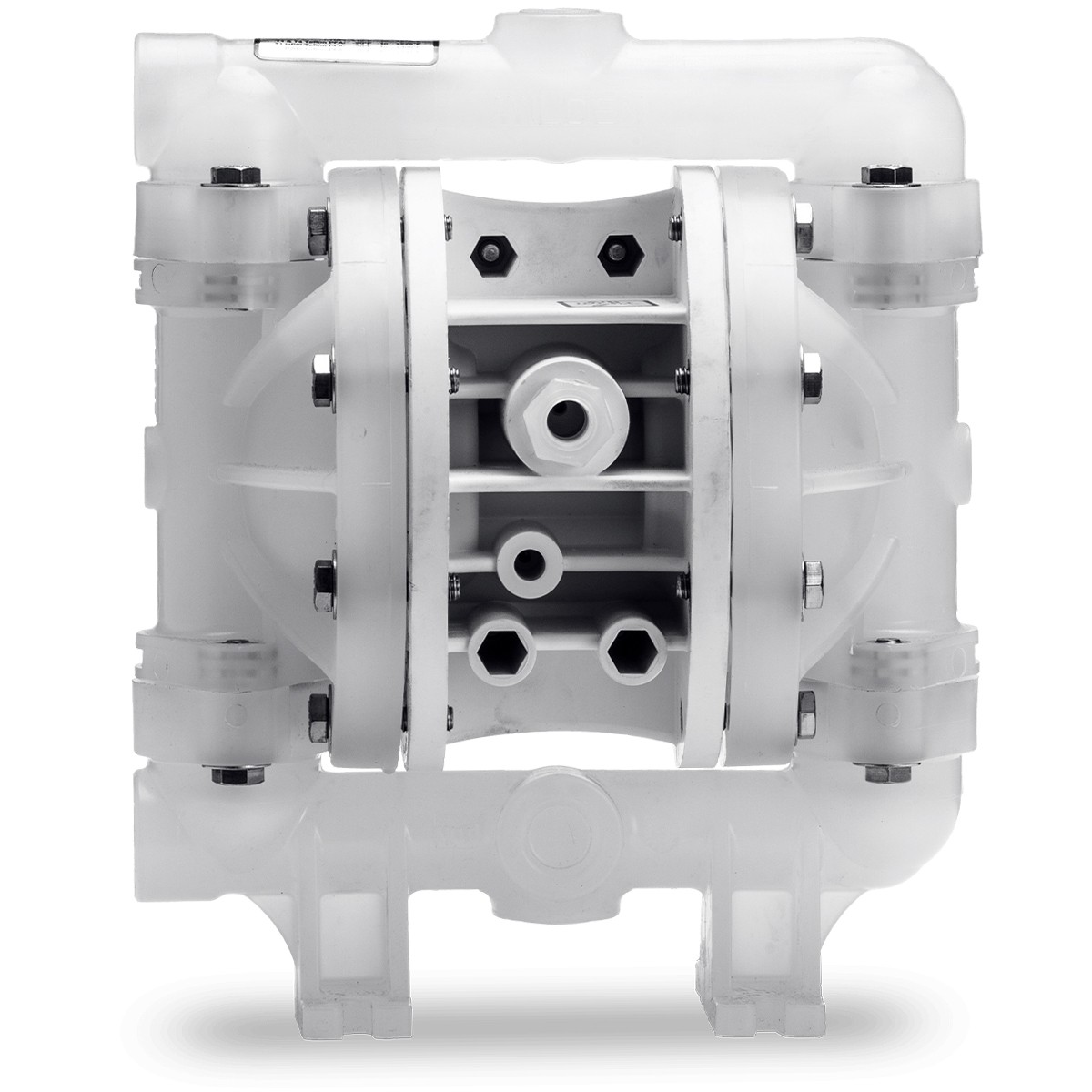

Item: 01-10363 Model: A100P/PPPPP/TNU/TF/PTV/0150 Series: Accu-Flo Wetted material: Polypropylene Diaphragm material: PTFE Nominal fluid port size: 1/2-inch Construction: Bolted Connection standard: NPT
WILDEN / ACCU-FLO SERIES
This 1/2-inch Accu-Flo air-operated double-diaphragm pump uses polypropylene wetted housing and PTFE diaphragms. Its bolted construction is identified by the complete ordering code below. Fluid connections use the NPT standard.
Complete model
A100P/PPPPP/TNU/TF/PTV/0150
FLUID PORT SIZE
1/2-inch NPT
MAXIMUM FLOW
≈ 38.2 L/min
MAXIMUM PRESSURE
125 psig
| Brand / item number | WILDEN / 01-10363 |
|---|---|
| Pump series | Accu-Flo |
| Nominal fluid port size | 1/2 in |
| Construction | Bolted |
| Wetted housing | Polypropylene |
| Diaphragm material | PTFE |
| Diaphragm design | TRADITIONAL |
| Diaphragm stroke | Reduced-Stroke |
| Check ball material | PTFE |
| Valve seat material | Polypropylene |
| Connection standard | NPT |
| Inlet / discharge orientation | SIDE LEFT / SIDE LEFT |
| Maximum flow | 10.1 US gpm (approximately 38.2 L/min) |
|---|---|
| Maximum operating pressure | 125 psig (approximately 8.6 bar) |
| Maximum air supply pressure | 125 psig (approximately 8.6 bar) |
| Maximum solids diameter | 0.06 in (approximately 1.5 mm) |
| Listed dry suction lift | 18.7 ft (approximately 5.70 m) |
| Listed operating temperature | 40–175 °F (approximately 4.4–79.4 °C) |
| Self-priming | Yes |
| Listed shipping weight | 12.28 lb (approximately 5.57 kg) |
Maximum flow and maximum pressure are separate ratings. Check the duty point, fluid compatibility, temperature and suction conditions for the complete pump configuration.
| Air-side material | Polypropylene |
|---|---|
| Outer pistons | Polypropylene |
| Wetted O-rings / gaskets | PTFE-encapsulated FKM |
| Hardware material | Stainless steel |
| Muffler | Plastic |
| Air inlet connection | 1/4" FNPT |
| Special option code | 0150 |

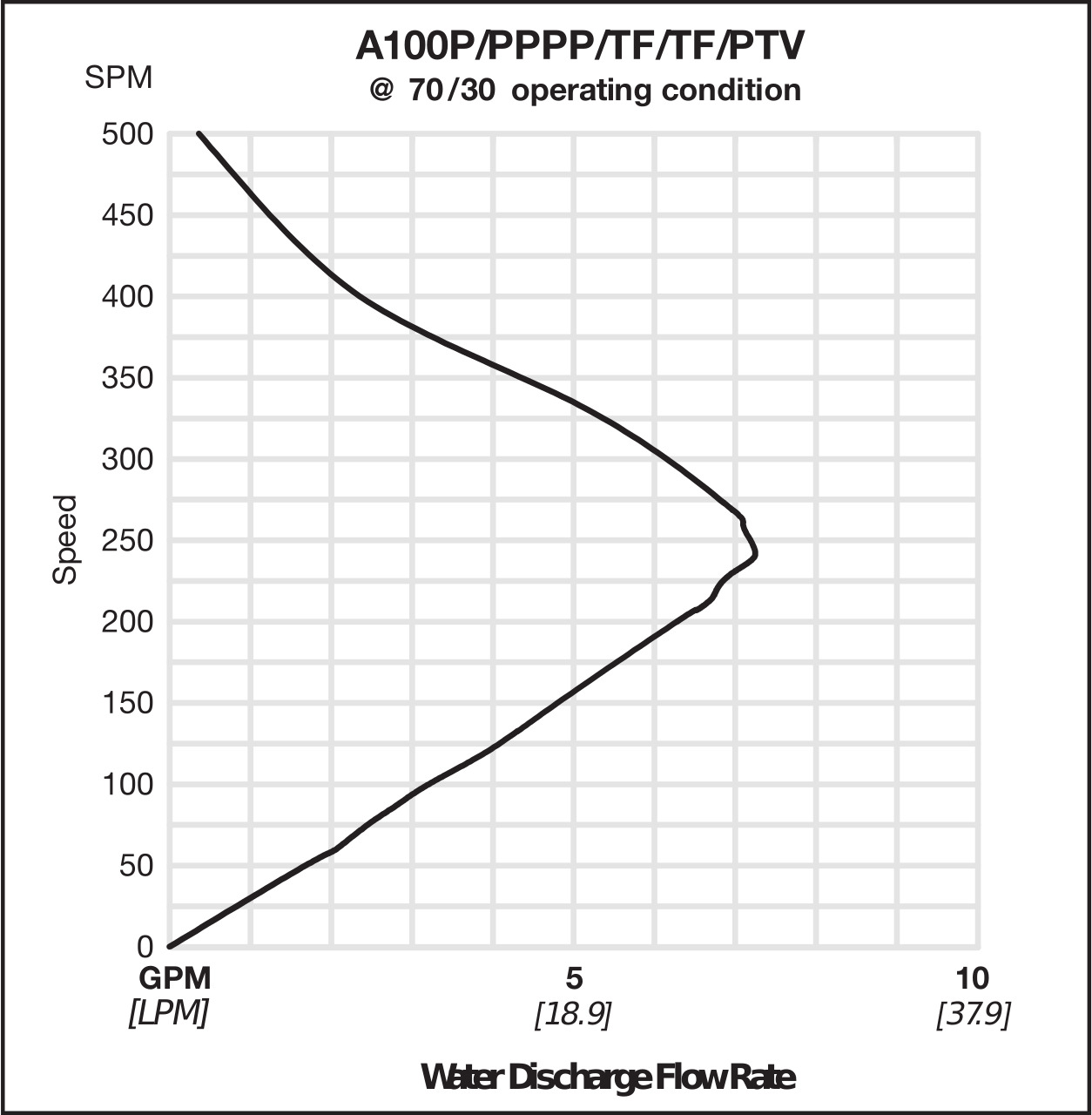

Use the trace for this diaphragm configuration. Click to view the full-size image.

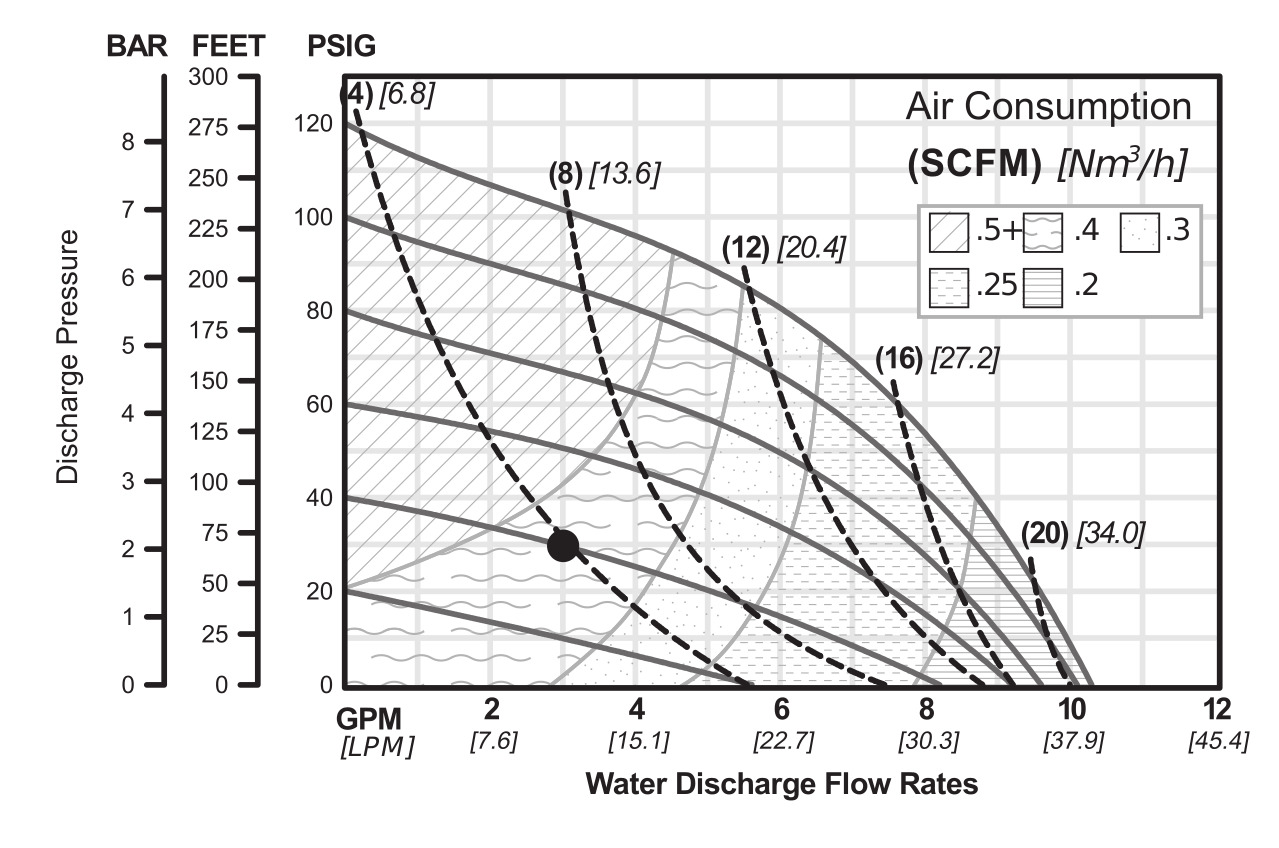

Use the trace for this diaphragm configuration. Click to view the full-size image.
WET-END REPAIR KIT
Wetted-end service kit matched to this 1/2-inch bolted pump with PTFE diaphragms. Match the installed elastomers and full ordering code.
Repair kits are ordered separately. Include the complete pump code and kit number in your enquiry.
Quote 01-10363 and A100P/PPPPP/TNU/TF/PTV/0150, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
