Item: 01-11226 Model: XPS1/AAAAA/WFS/WF/AWF/0014 Series: Pro-Flo Shift Wetted material: Aluminum Diaphragm material: Santoprene® Nominal fluid port size: 1/2-inch Construction: Clamped Connection standard: BSPT
WILDEN / PRO-FLO SHIFT SERIES

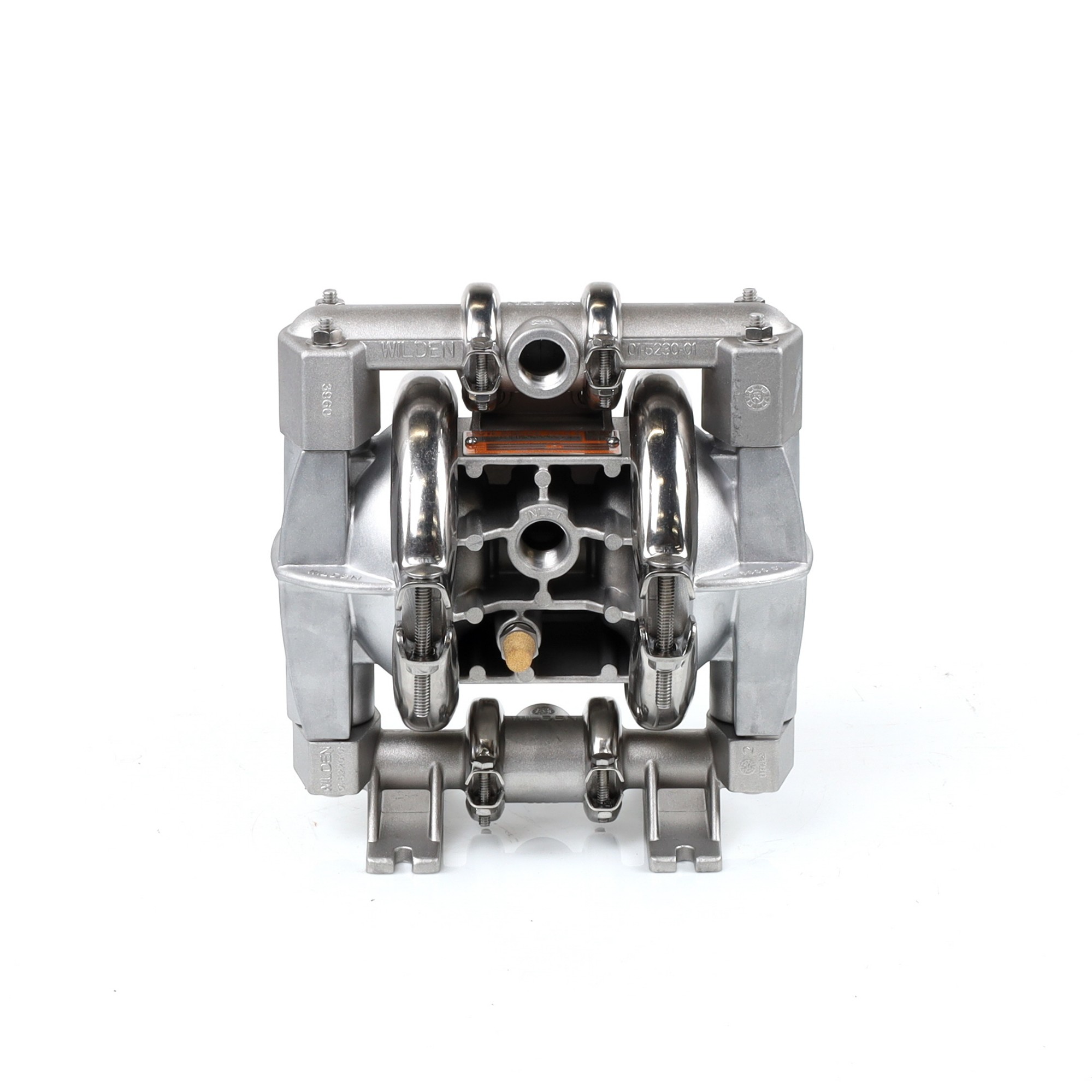

This 1/2-inch Pro-Flo Shift air-operated double-diaphragm pump uses aluminum wetted housing and Santoprene® diaphragms. Its clamped construction is identified by the complete ordering code below. Fluid connections use the BSPT standard.
Complete model
XPS1/AAAAA/WFS/WF/AWF/0014
FLUID PORT SIZE
1/2-inch BSPT
MAXIMUM FLOW
≈ 60.2 L/min
MAXIMUM PRESSURE
125 psig
| Brand / item number | WILDEN / 01-11226 |
|---|---|
| Pump series | Pro-Flo Shift |
| Nominal fluid port size | 1/2 in |
| Construction | Clamped |
| Wetted housing | Aluminum |
| Diaphragm material | Santoprene® |
| Diaphragm design | TRADITIONAL |
| Diaphragm stroke | Full-Stroke |
| Check ball material | Santoprene® |
| Valve seat material | Aluminum |
| Connection standard | BSPT |
| Inlet / discharge orientation | Center Swivel / Center Swivel |
| Maximum flow | 15.9 US gpm (approximately 60.2 L/min) |
|---|---|
| Maximum operating pressure | 125 psig (approximately 8.6 bar) |
| Maximum air supply pressure | 125 psig (approximately 8.6 bar) |
| Maximum solids diameter | 0.06 in (approximately 1.5 mm) |
| Listed dry suction lift | 18.7 ft (approximately 5.70 m) |
| Listed operating temperature | -40–225 °F (approximately -40.0–107.2 °C) |
| Self-priming | Yes |
Maximum flow and maximum pressure are separate ratings. Check the duty point, fluid compatibility, temperature and suction conditions for the complete pump configuration.
| Air-side material | Aluminum |
|---|---|
| Outer pistons | Aluminum |
| Wetted O-rings / gaskets | Santoprene® |
| Hardware material | Diaphragm Dependent |
| Muffler | Aluminum |
| Air inlet connection | 1/2" NPT |
| Special option code | 0014 |
Use the trace for this diaphragm configuration. Click to view the full-size image.
Use the trace for this diaphragm configuration. Click to view the full-size image.
AIR REPAIR KIT
Air distribution service kit matched to this 1/2-inch Pro-Flo Shift XPS1 configuration. Confirm the complete pump code when ordering.
WET-END REPAIR KIT
Wetted-end service kit matched to this 1/2-inch clamped pump with Santoprene® diaphragms. Match the installed elastomers and full ordering code.
Repair kits are ordered separately. Include the complete pump code and kit number in your enquiry.
Quote 01-11226 and XPS1/AAAAA/WFS/WF/AWF/0014, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
