Item: 01-11237 Model: XPS1/SSAAA/EPS/EP/SEP Series: Pro-Flo Shift Wetted material: Stainless steel Diaphragm material: EPDM Nominal fluid port size: 1/2-inch Construction: Clamped Connection standard: NPT
WILDEN / PRO-FLO SHIFT SERIES

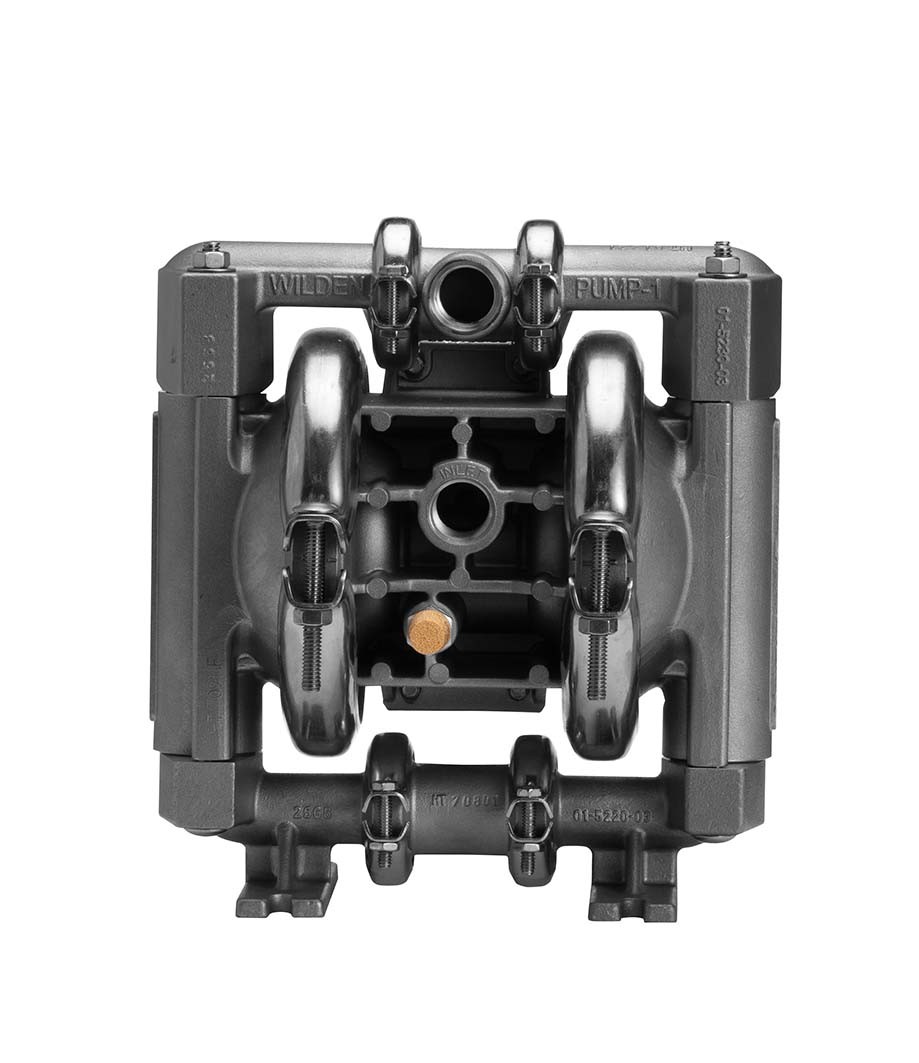

This 1/2-inch Pro-Flo Shift air-operated double-diaphragm pump uses stainless steel wetted housing and EPDM diaphragms. Its clamped construction is identified by the complete ordering code below. Fluid connections use the NPT standard.
Complete model
XPS1/SSAAA/EPS/EP/SEP
FLUID PORT SIZE
1/2-inch NPT
MAXIMUM FLOW
≈ 60.2 L/min
MAXIMUM PRESSURE
125 psig
| Brand / item number | WILDEN / 01-11237 |
|---|---|
| Pump series | Pro-Flo Shift |
| Nominal fluid port size | 1/2 in |
| Construction | Clamped |
| Wetted housing | Stainless steel |
| Diaphragm material | EPDM |
| Diaphragm design | TRADITIONAL |
| Diaphragm stroke | Full-Stroke |
| Check ball material | EPDM |
| Valve seat material | Stainless steel |
| Connection standard | NPT |
| Inlet / discharge orientation | CENTER SWIVEL / CENTER SWIVEL |
| Maximum flow | 15.9 US gpm (approximately 60.2 L/min) |
|---|---|
| Maximum operating pressure | 125 psig (approximately 8.6 bar) |
| Maximum air supply pressure | 125 psig (approximately 8.6 bar) |
| Maximum solids diameter | 0.06 in (approximately 1.5 mm) |
| Listed dry suction lift | 19.3 ft (approximately 5.88 m) |
| Listed operating temperature | -60–280 °F (approximately -51.1–137.8 °C) |
| Self-priming | Yes |
Maximum flow and maximum pressure are separate ratings. Check the duty point, fluid compatibility, temperature and suction conditions for the complete pump configuration.
| Air-side material | ALUMINUM |
|---|---|
| Outer pistons | Stainless steel |
| Wetted O-rings / gaskets | EPDM |
| Hardware material | Stainless steel |
| Muffler | Aluminum |
| Air inlet connection | 1/2" NPT |
Use the trace for this diaphragm configuration. Click to view the full-size image.
Use the trace for this diaphragm configuration. Click to view the full-size image.
AIR REPAIR KIT
Air distribution service kit matched to this 1/2-inch Pro-Flo Shift XPS1 configuration. Confirm the complete pump code when ordering.
WET-END REPAIR KIT
Wetted-end service kit matched to this 1/2-inch clamped pump with EPDM diaphragms. Match the installed elastomers and full ordering code.
Repair kits are ordered separately. Include the complete pump code and kit number in your enquiry.
Quote 01-11237 and XPS1/SSAAA/EPS/EP/SEP, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
