Item: 01-11459 Model: XP100/JPJJJ/BNS/BN/PBN Series: Pro-Flo Wetted material: Conductive polypropylene Diaphragm material: Buna-N Nominal fluid port size: 1/2-inch Construction: Bolted
WILDEN / PRO-FLO SERIES

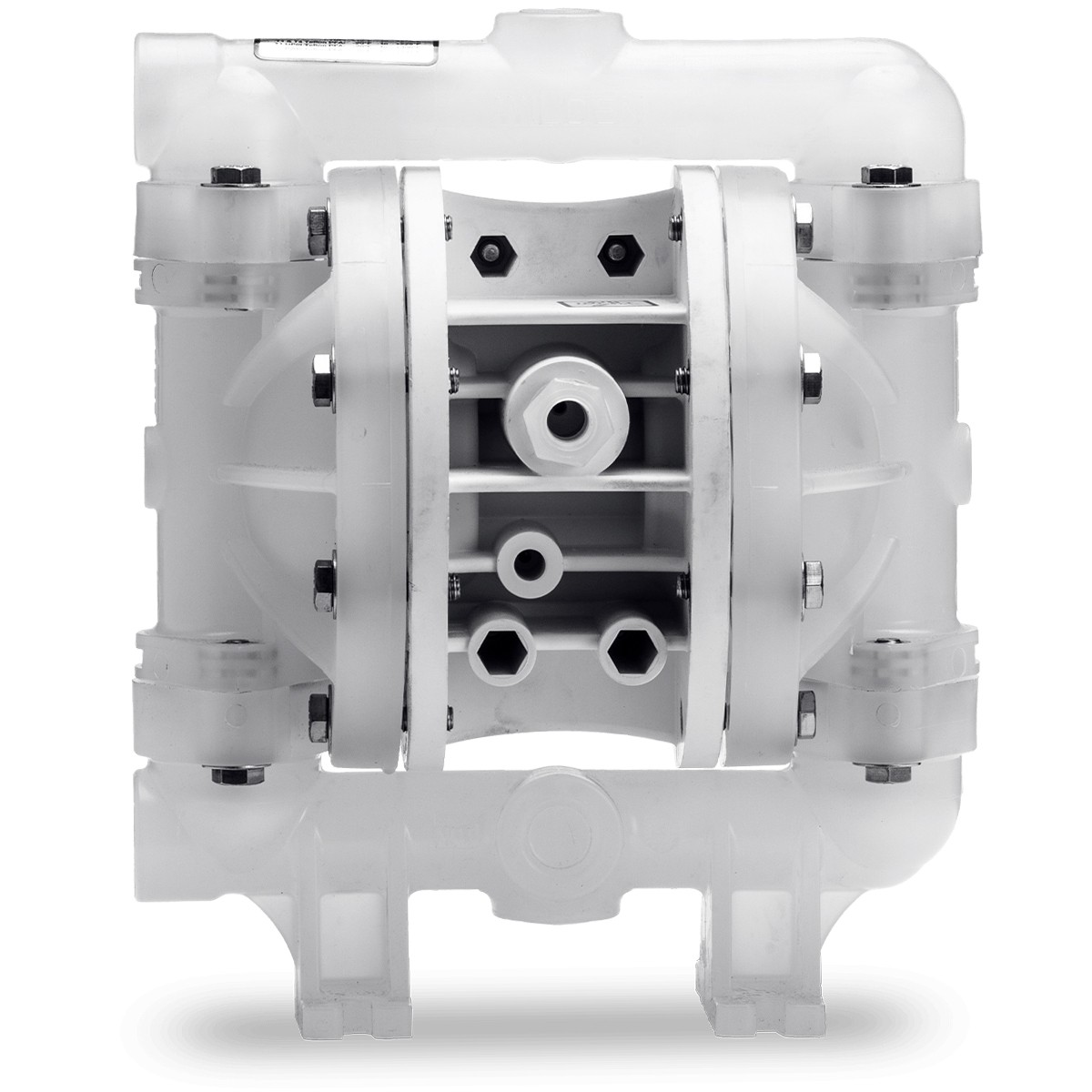

This 1/2-inch Pro-Flo air-operated double-diaphragm pump uses conductive polypropylene wetted housing and Buna-N diaphragms. Its bolted construction is identified by the complete ordering code below.
Complete model
XP100/JPJJJ/BNS/BN/PBN
FLUID PORT SIZE
1/2-inch
| Brand / item number | WILDEN / 01-11459 |
|---|---|
| Pump series | Pro-Flo |
| Nominal fluid port size | 1/2 in |
| Construction | Bolted |
| Wetted housing | Conductive polypropylene |
| Diaphragm material | Buna-N |
| Check ball material | Buna-N |
| Valve seat material | Polypropylene |
| Outer pistons | Polypropylene |
|---|---|
| Wetted O-rings / gaskets | Buna-N |
WET-END REPAIR KIT
Wetted-end service kit matched to this 1/2-inch bolted pump with Buna-N diaphragms. Match the installed elastomers and full ordering code.
Repair kits are ordered separately. Include the complete pump code and kit number in your enquiry.
Quote 01-11459 and XP100/JPJJJ/BNS/BN/PBN, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
