Item: 02-11284 Model: XP220/AAJJJ/TEU/TF/ATF/0698 Series: Pro-Flo Wetted material: Aluminum Diaphragm material: PTFE / EPDM Nominal fluid port size: 1-inch Construction: Bolted Connection standard: BSPT
WILDEN / PRO-FLO SERIES

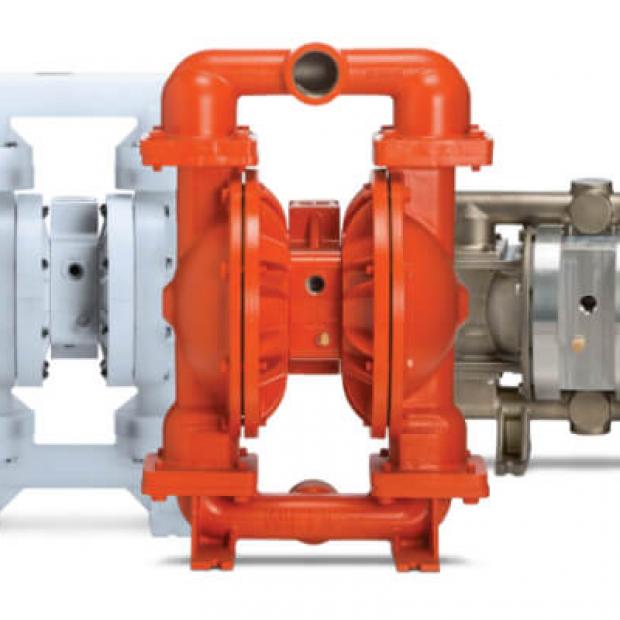

This 1-inch Pro-Flo air-operated double-diaphragm pump uses aluminum wetted housing and PTFE / EPDM diaphragms. Its bolted construction is identified by the complete ordering code below. Fluid connections use the BSPT standard.
Complete model
XP220/AAJJJ/TEU/TF/ATF/0698
FLUID PORT SIZE
1-inch BSPT
MAXIMUM FLOW
≈ 166.6 L/min
MAXIMUM PRESSURE
120 psig
| Brand / item number | WILDEN / 02-11284 |
|---|---|
| Pump series | Pro-Flo |
| Nominal fluid port size | 1 in |
| Construction | Bolted |
| Wetted housing | Aluminum |
| Diaphragm material | PTFE / EPDM |
| Diaphragm design | TRADITIONAL |
| Diaphragm stroke | Reduced-Stroke |
| Check ball material | PTFE |
| Valve seat material | Aluminum |
| Connection standard | BSPT |
| Power source | Compressed Air |
| Inlet / discharge orientation | Center Horizontal Back / Center Horizontal Front |
| Maximum flow | 44 US gpm (approximately 166.6 L/min) |
|---|---|
| Maximum operating pressure | 120 psig (approximately 8.3 bar) |
| Maximum air supply pressure | 120 psig (approximately 8.3 bar) |
| Maximum solids diameter | 0.25 in (approximately 6.3 mm) |
| Listed dry suction lift | 11.4 ft (approximately 3.47 m) |
| Listed operating temperature | 40–175 °F (approximately 4.4–79.4 °C) |
| Self-priming | Yes |
| Listed shipping weight | 30 lb (approximately 13.61 kg) |
Maximum flow and maximum pressure are separate ratings. Check the duty point, fluid compatibility, temperature and suction conditions for the complete pump configuration.
| Air-side material | Polypropylene / Conductive |
|---|---|
| Outer pistons | Aluminum |
| Wetted O-rings / gaskets | PTFE |
| Hardware material | Diaphragm Dependent |
| Muffler | Aluminum |
| Special option code | 0698 |
Use the trace for this diaphragm configuration. Click to view the full-size image.
Use the trace for this diaphragm configuration. Click to view the full-size image.
AIR REPAIR KIT
Air distribution service kit matched to this 1-inch Pro-Flo XP220 configuration. Confirm the complete pump code when ordering.
WET-END REPAIR KIT
Wetted-end service kit matched to this 1-inch bolted pump with PTFE / EPDM diaphragms. Match the installed elastomers and full ordering code.
Repair kits are ordered separately. Include the complete pump code and kit number in your enquiry.
Quote 02-11284 and XP220/AAJJJ/TEU/TF/ATF/0698, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
