Item: 02-11435 Model: PX220/AAAAA/NES/NE/ANE Series: Pro-Flo X Wetted material: Aluminum Diaphragm material: neoprene Nominal fluid port size: 1-inch Construction: Bolted
WILDEN / PRO-FLO X SERIES

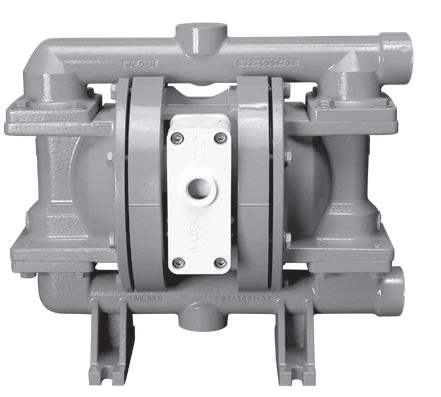

This 1-inch Pro-Flo X air-operated double-diaphragm pump uses aluminum wetted housing and neoprene diaphragms. Its bolted construction is identified by the complete ordering code below.
Complete model
PX220/AAAAA/NES/NE/ANE
FLUID PORT SIZE
1-inch
| Brand / item number | WILDEN / 02-11435 |
|---|---|
| Pump series | Pro-Flo X |
| Nominal fluid port size | 1 in |
| Construction | Bolted |
| Wetted housing | Aluminum |
| Diaphragm material | neoprene |
| Check ball material | neoprene |
| Valve seat material | Aluminum |
| Outer pistons | Aluminum |
|---|---|
| Wetted O-rings / gaskets | Neoprene |
AIR REPAIR KIT
Air distribution service kit matched to this 1-inch Pro-Flo X PX220 configuration. Confirm the complete pump code when ordering.
WET-END REPAIR KIT
Wetted-end service kit matched to this 1-inch bolted pump with neoprene diaphragms. Match the installed elastomers and full ordering code.
Repair kits are ordered separately. Include the complete pump code and kit number in your enquiry.
Quote 02-11435 and PX220/AAAAA/NES/NE/ANE, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
