Item: 02-11706 Model: H220/WWWAA/FWS/WF/MWF/0014 Series: High Pressure Wetted material: Iron Diaphragm material: Santoprene® Nominal fluid port size: 1-inch Construction: Bolted Connection standard: BSPT
WILDEN / HIGH PRESSURE RANGE

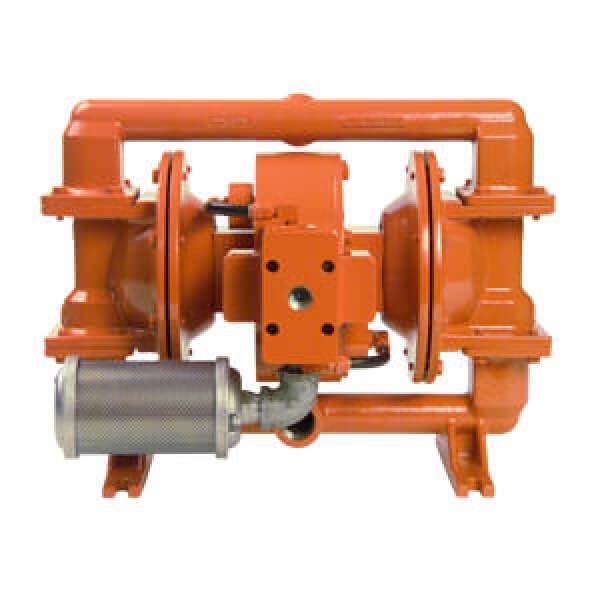

This 1-inch High Pressure air-operated double-diaphragm pump uses iron wetted housing and Santoprene® diaphragms. Its bolted construction is identified by the complete ordering code below. Fluid connections use the BSPT standard.
Complete model
H220/WWWAA/FWS/WF/MWF/0014
FLUID PORT SIZE
1-inch BSPT
| Brand / item number | WILDEN / 02-11706 |
|---|---|
| Product family | High Pressure |
| Nominal fluid port size | 1 in |
| Construction | Bolted |
| Wetted housing | Iron |
| Diaphragm material | Santoprene® |
| Diaphragm design | SANITARY |
| Diaphragm stroke | Full-Stroke |
| Check ball material | Santoprene® |
| Valve seat material | Mild Steel |
| Connection standard | BSPT |
| Power source | Compressed Air |
| Inlet / discharge orientation | Center Horizontal Back / Center Horizontal Back |
| Listed operating temperature | -40–225 °F (approximately -40.0–107.2 °C) |
|---|---|
| Self-priming | Yes |
| Listed shipping weight | 85 lb (approximately 38.56 kg) |
Maximum flow and maximum pressure are separate ratings. Check the duty point, fluid compatibility, temperature and suction conditions for the complete pump configuration.
| Air-side material | Aluminum |
|---|---|
| Outer pistons | Iron |
| Wetted O-rings / gaskets | Santoprene® |
| Hardware material | Diaphragm Dependent |
| Muffler | Aluminum |
| Special option code | 0014 |
AIR REPAIR KIT
Air distribution service kit matched to this 1-inch High Pressure H220 configuration. Confirm the complete pump code when ordering.
Repair kits are ordered separately. Include the complete pump code and kit number in your enquiry.
Quote 02-11706 and H220/WWWAA/FWS/WF/MWF/0014, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
