Item: 02-11997 Model: XPX230/SSAAA/FSS/FS/SFS Series: Pro-Flo X Wetted material: Stainless steel Diaphragm material: Hytrel® Nominal fluid port size: 1-inch Construction: Bolted
WILDEN / PRO-FLO X SERIES

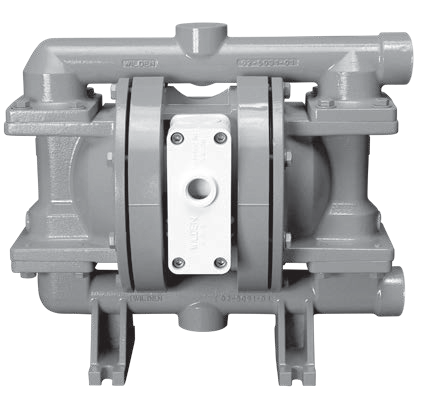

This 1-inch Pro-Flo X air-operated double-diaphragm pump uses stainless steel wetted housing and Hytrel® diaphragms. Its bolted construction is identified by the complete ordering code below.
Complete model
XPX230/SSAAA/FSS/FS/SFS
FLUID PORT SIZE
1-inch
| Brand / item number | WILDEN / 02-11997 |
|---|---|
| Pump series | Pro-Flo X |
| Nominal fluid port size | 1 in |
| Construction | Bolted |
| Wetted housing | Stainless steel |
| Diaphragm material | Hytrel® |
| Check ball material | Hytrel® |
| Valve seat material | Stainless steel |
| Outer pistons | Stainless steel |
|---|---|
| Wetted O-rings / gaskets | HYTREL |
AIR REPAIR KIT
Air distribution service kit matched to this 1-inch Pro-Flo X XPX230 configuration. Confirm the complete pump code when ordering.
WET-END REPAIR KIT
Wetted-end service kit matched to this 1-inch bolted pump with Hytrel® diaphragms. Match the installed elastomers and full ordering code.
Repair kits are ordered separately. Include the complete pump code and kit number in your enquiry.
Quote 02-11997 and XPX230/SSAAA/FSS/FS/SFS, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
