Item: 02-12764 Model: XPX2/SSNNN/TEU/TF/TF/0771 Series: Saniflo HS Wetted material: Stainless steel Diaphragm material: PTFE Nominal fluid port size: 1-inch Construction: Clamped
WILDEN / SANIFLO HS RANGE

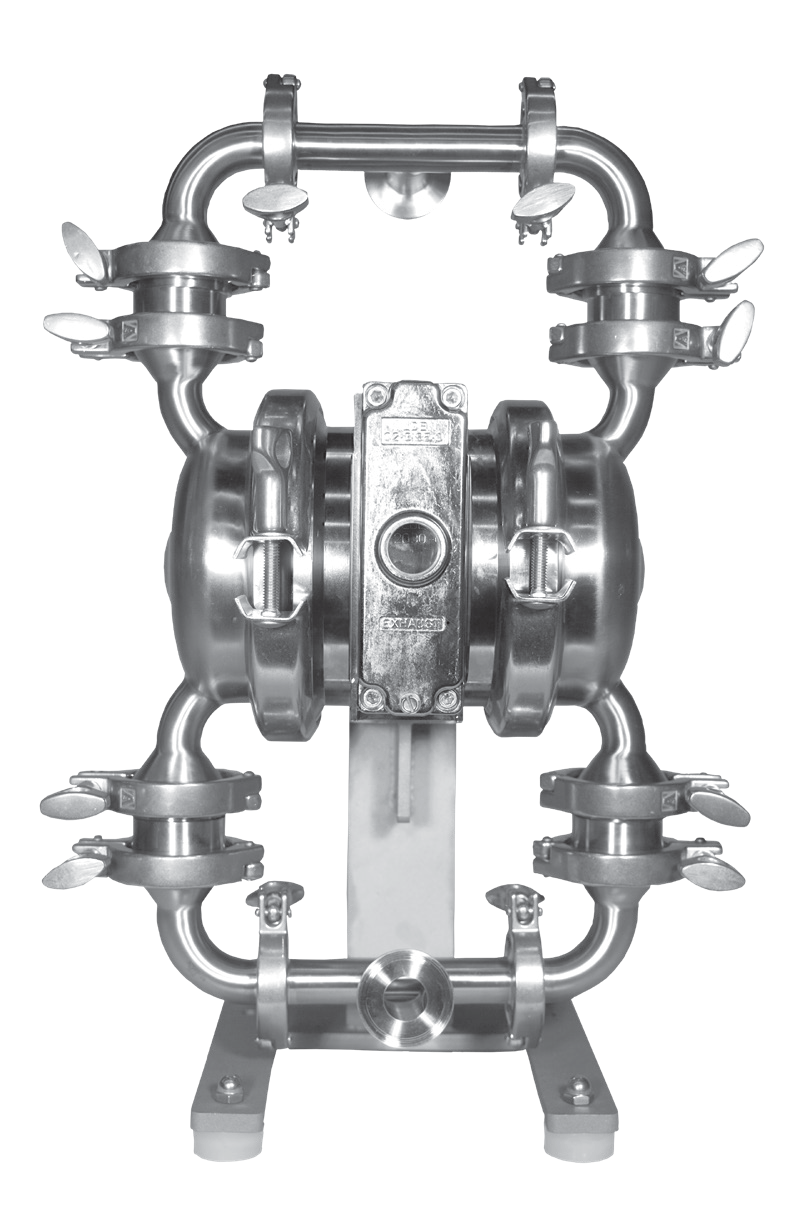

This 1-inch Saniflo HS air-operated double-diaphragm pump uses stainless steel wetted housing and PTFE diaphragms. Its clamped construction is identified by the complete ordering code below.
Complete model
XPX2/SSNNN/TEU/TF/TF/0771
FLUID PORT SIZE
1-inch
| Brand / item number | WILDEN / 02-12764 |
|---|---|
| Product family | Saniflo HS |
| Nominal fluid port size | 1 in |
| Construction | Clamped |
| Wetted housing | Stainless steel |
| Diaphragm material | PTFE |
| Check ball material | PTFE |
| Valve seat material | PTFE |
| Outer pistons | Stainless steel |
|---|---|
| Wetted O-rings / gaskets | PTFE |
| Special option code | 0771 |
AIR REPAIR KIT
Air distribution service kit matched to this 1-inch Saniflo HS XPX2 configuration. Confirm the complete pump code when ordering.
Repair kits are ordered separately. Include the complete pump code and kit number in your enquiry.
Quote 02-12764 and XPX2/SSNNN/TEU/TF/TF/0771, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
