Item: 02-12882 Model: XPX2/SZNNN/FSL/FE/FE/0770 Series: Saniflo HS Wetted material: Stainless steel Diaphragm material: Hytrel® Nominal fluid port size: 1-inch Construction: Clamped
WILDEN / SANIFLO HS RANGE

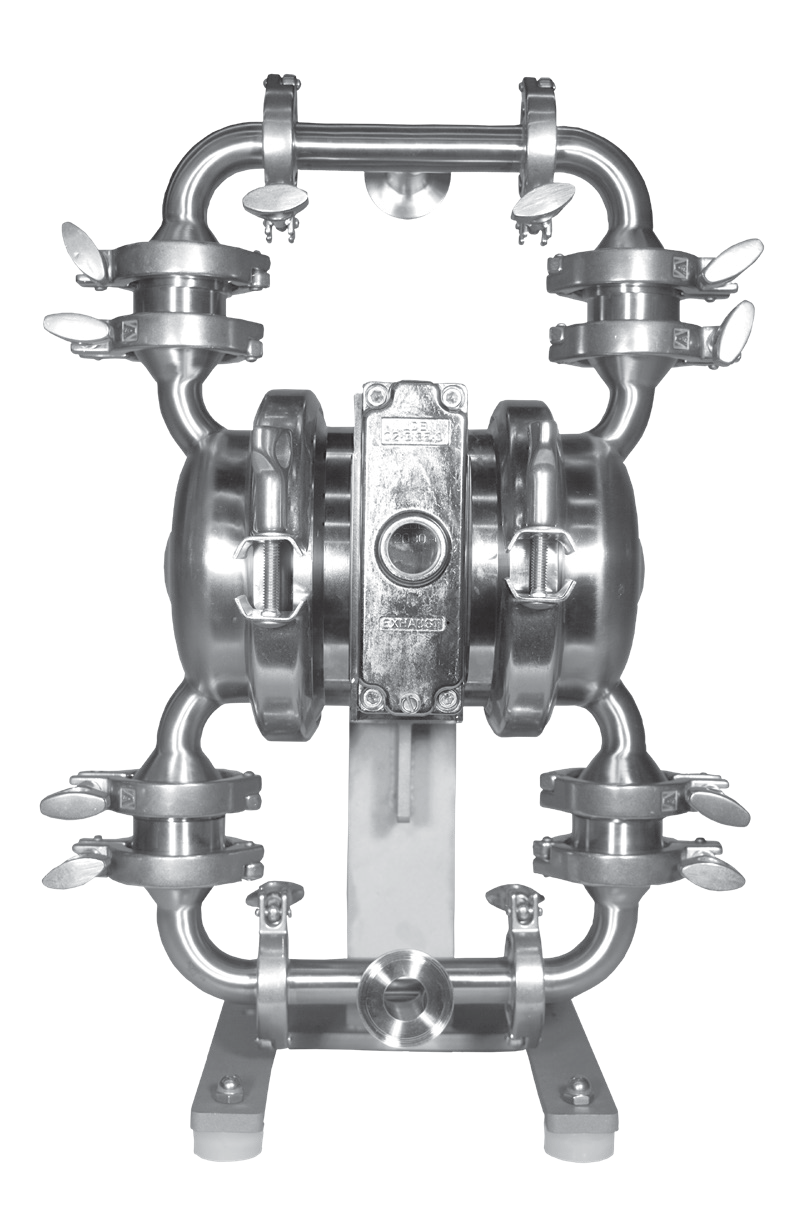

This 1-inch Saniflo HS air-operated double-diaphragm pump uses stainless steel wetted housing and Hytrel® diaphragms. Its clamped construction is identified by the complete ordering code below.
Complete model
XPX2/SZNNN/FSL/FE/FE/0770
FLUID PORT SIZE
1-inch
| Brand / item number | WILDEN / 02-12882 |
|---|---|
| Product family | Saniflo HS |
| Nominal fluid port size | 1 in |
| Construction | Clamped |
| Wetted housing | Stainless steel |
| Diaphragm material | Hytrel® |
| Check ball material | SANITARY EPDM |
| Valve seat material | SANITARY EPDM |
| Outer pistons | No outer piston |
|---|---|
| Wetted O-rings / gaskets | SANITARY EPDM |
| Special option code | 0770 |
Quote 02-12882 and XPX2/SZNNN/FSL/FE/FE/0770, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
