Item: 02-12957 Model: XPS230/SSAAA/BNS/BN/SBN Series: Pro-Flo Shift Wetted material: Stainless steel Diaphragm material: Buna-N Nominal fluid port size: 1-inch Construction: Bolted Connection standard: ANSI
WILDEN / PRO-FLO SHIFT SERIES

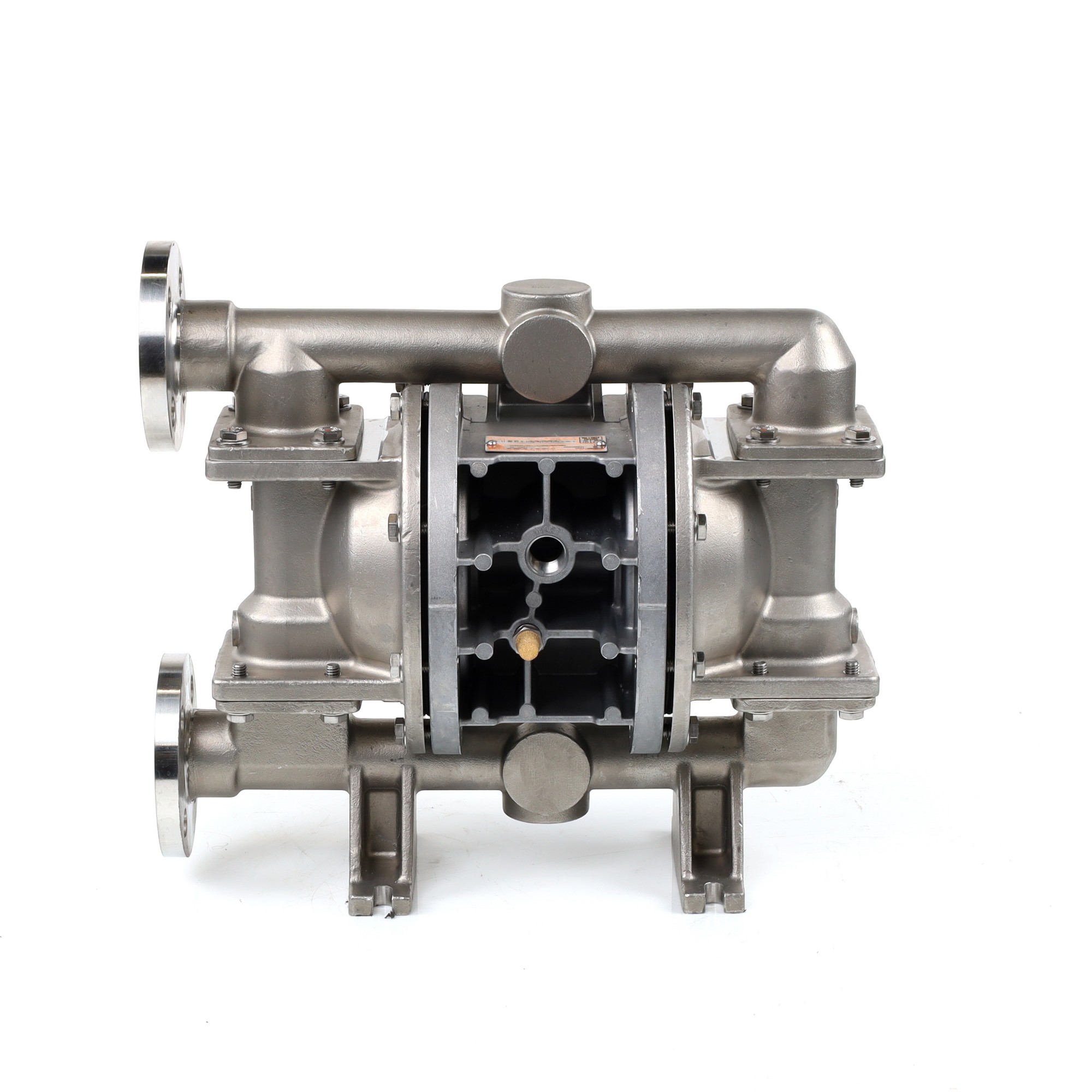

This 1-inch Pro-Flo Shift air-operated double-diaphragm pump uses stainless steel wetted housing and Buna-N diaphragms. Its bolted construction is identified by the complete ordering code below. Fluid connections use the ANSI standard.
Complete model
XPS230/SSAAA/BNS/BN/SBN
FLUID PORT SIZE
1-inch ANSI
MAXIMUM FLOW
≈ 204.4 L/min
MAXIMUM PRESSURE
120 psig
| Brand / item number | WILDEN / 02-12957 |
|---|---|
| Pump series | Pro-Flo Shift |
| Nominal fluid port size | 1 in |
| Construction | Bolted |
| Wetted housing | Stainless steel |
| Diaphragm material | Buna-N |
| Diaphragm design | TRADITIONAL |
| Diaphragm stroke | Full-Stroke |
| Check ball material | Buna-N |
| Valve seat material | Stainless steel |
| Connection standard | ANSI |
| Power source | COMPRESSED AIR |
| Inlet / discharge orientation | SIDE LEFT / SIDE LEFT |
| Maximum flow | 54 US gpm (approximately 204.4 L/min) |
|---|---|
| Maximum operating pressure | 120 psig (approximately 8.3 bar) |
| Maximum air supply pressure | 120 psig (approximately 8.3 bar) |
| Maximum solids diameter | 0.25 in (approximately 6.3 mm) |
| Listed dry suction lift | 22.7 ft (approximately 6.92 m) |
| Listed operating temperature | 10–180 °F (approximately -12.2–82.2 °C) |
| Self-priming | Yes |
Maximum flow and maximum pressure are separate ratings. Check the duty point, fluid compatibility, temperature and suction conditions for the complete pump configuration.
| Air-side material | Aluminum |
|---|---|
| Outer pistons | Stainless steel |
| Wetted O-rings / gaskets | Buna-N |
| Hardware material | Stainless steel |
| Muffler | Aluminum |
| Air inlet connection | .5" FNPT |
Use the trace for this diaphragm configuration. Click to view the full-size image.
Use the trace for this diaphragm configuration. Click to view the full-size image.
Quote 02-12957 and XPS230/SSAAA/BNS/BN/SBN, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
