Item: 02-12989 Model: XPS220/WWAAA/VTS/VT/MVT/0677 Series: Pro-Flo Shift Wetted material: IRON Diaphragm material: FKM Nominal fluid port size: 1-inch Construction: Bolted Connection standard: NPT
WILDEN / PRO-FLO SHIFT SERIES

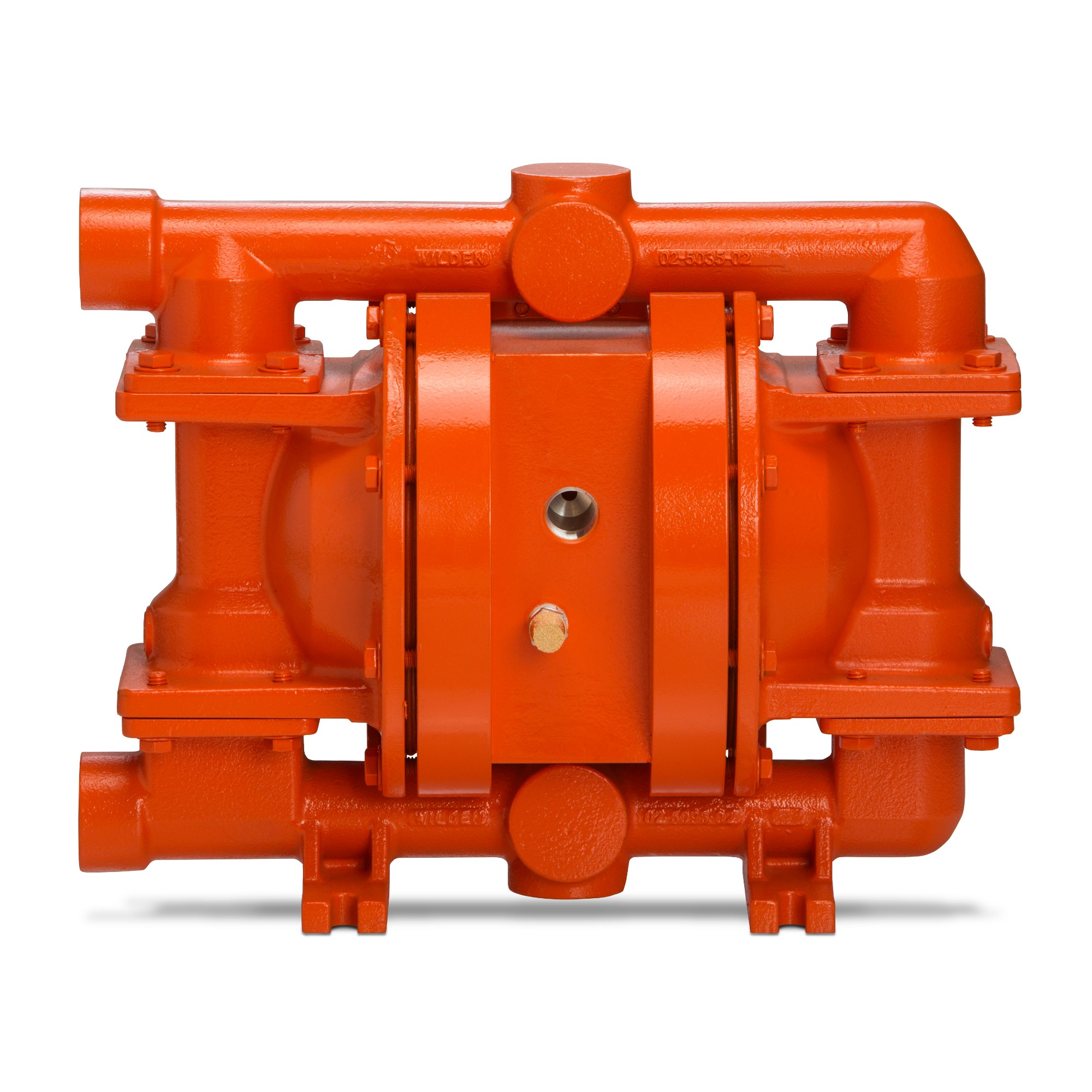

This 1-inch Pro-Flo Shift air-operated double-diaphragm pump uses iron wetted housing and FKM diaphragms. Its bolted construction is identified by the complete ordering code below. Fluid connections use the NPT standard.
Complete model
XPS220/WWAAA/VTS/VT/MVT/0677
FLUID PORT SIZE
1-inch NPT
MAXIMUM FLOW
≈ 204.4 L/min
MAXIMUM PRESSURE
120 psig
| Brand / item number | WILDEN / 02-12989 |
|---|---|
| Pump series | Pro-Flo Shift |
| Nominal fluid port size | 1 in |
| Construction | Bolted |
| Wetted housing | IRON |
| Diaphragm material | FKM |
| Diaphragm design | TRADITIONAL |
| Diaphragm stroke | Full-Stroke |
| Check ball material | FKM |
| Valve seat material | MILD STEEL |
| Connection standard | NPT |
| Inlet / discharge orientation | CENTER HORIZONTAL BACK / CENTER HORIZONTAL FRONT |
| Maximum flow | 54 US gpm (approximately 204.4 L/min) |
|---|---|
| Maximum operating pressure | 120 psig (approximately 8.3 bar) |
| Maximum air supply pressure | 120 psig (approximately 8.3 bar) |
| Maximum solids diameter | 0.25 in (approximately 6.3 mm) |
| Listed dry suction lift | 22.7 ft (approximately 6.92 m) |
| Listed operating temperature | -40–350 °F (approximately -40.0–176.7 °C) |
| Self-priming | Yes |
Maximum flow and maximum pressure are separate ratings. Check the duty point, fluid compatibility, temperature and suction conditions for the complete pump configuration.
| Air-side material | Aluminum |
|---|---|
| Outer pistons | IRON |
| Wetted O-rings / gaskets | FKM |
| Hardware material | DIAPHRAGM DEPENDENT |
| Muffler | Aluminum |
| Special option code | 0677 |
Quote 02-12989 and XPS220/WWAAA/VTS/VT/MVT/0677, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
