Item: 02-13031 Model: XPS2/SZNNN/FSL/FS/FE/0770 Series: Pro-Flo Shift Wetted material: Stainless steel Diaphragm material: Hytrel® Nominal fluid port size: 1-inch Construction: Clamped Connection standard: TRI-CLAMP
WILDEN / PRO-FLO SHIFT SERIES

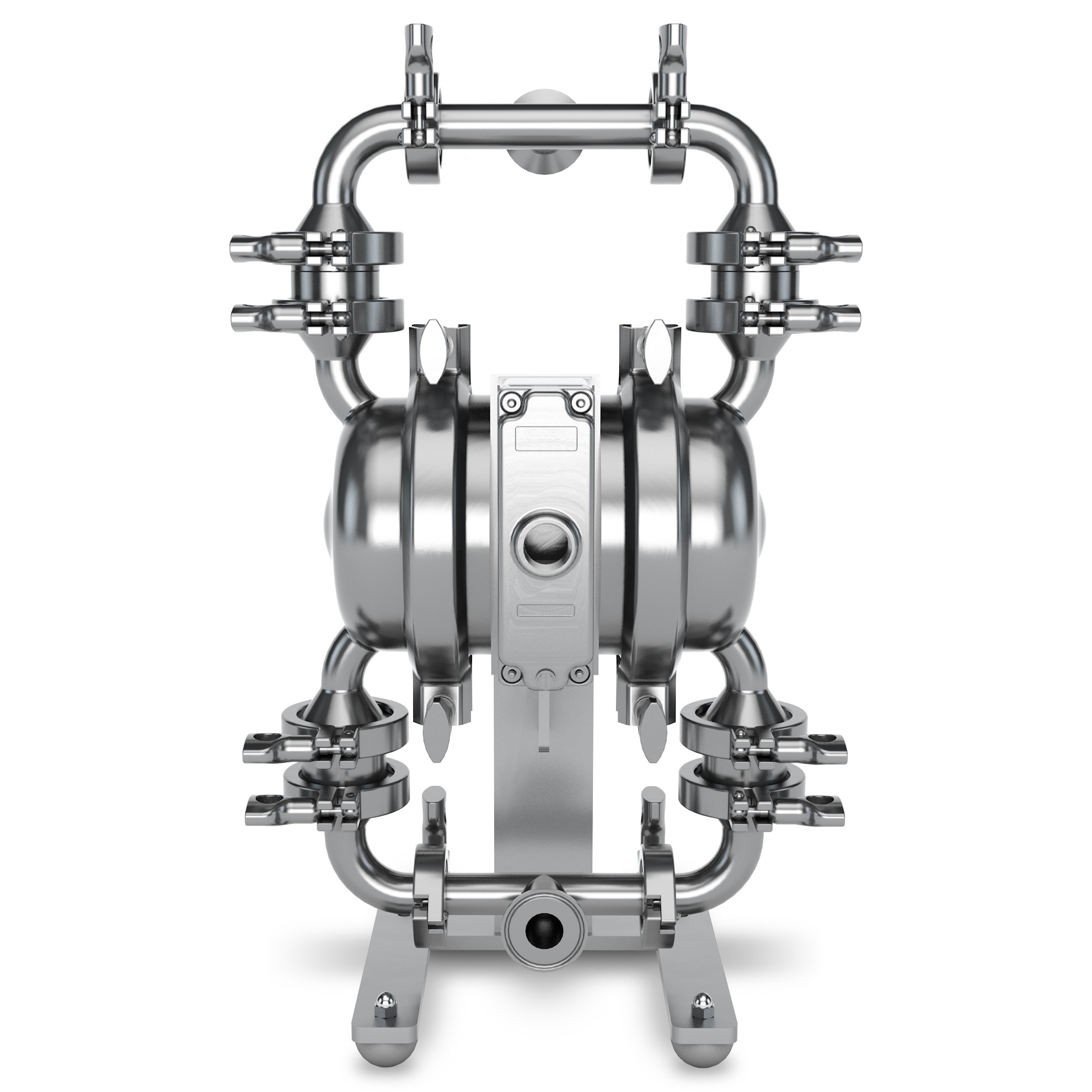

This 1-inch Pro-Flo Shift air-operated double-diaphragm pump uses stainless steel wetted housing and Hytrel® diaphragms. Its clamped construction is identified by the complete ordering code below. Fluid connections use the TRI-CLAMP standard.
Complete model
XPS2/SZNNN/FSL/FS/FE/0770
FLUID PORT SIZE
1-inch TRI-CLAMP
MAXIMUM FLOW
≈ 117.3 L/min
MAXIMUM PRESSURE
120 psig
| Brand / item number | WILDEN / 02-13031 |
|---|---|
| Pump series | Pro-Flo Shift |
| Nominal fluid port size | 1 in |
| Construction | Clamped |
| Wetted housing | Stainless steel |
| Diaphragm material | Hytrel® |
| Diaphragm design | IPD SANITARY |
| Diaphragm stroke | Full-Stroke |
| Check ball material | Hytrel® |
| Valve seat material | SANITARY EPDM |
| Connection standard | TRI-CLAMP |
| Product family | HYGENIC/FDA |
| Power source | COMPRESSED AIR |
| Inlet / discharge orientation | CENTER HORIZONTAL BACK / CENTER HORIZONTAL FRONT |
| Maximum flow | 31 US gpm (approximately 117.3 L/min) |
|---|---|
| Maximum operating pressure | 120 psig (approximately 8.3 bar) |
| Maximum air supply pressure | 120 psig (approximately 8.3 bar) |
| Maximum solids diameter | 0.13 in (approximately 3.3 mm) |
| Listed dry suction lift | 8 ft (approximately 2.44 m) |
| Listed operating temperature | -20–220 °F (approximately -28.9–104.4 °C) |
| Self-priming | Yes |
Maximum flow and maximum pressure are separate ratings. Check the duty point, fluid compatibility, temperature and suction conditions for the complete pump configuration.
| Air-side material | ALUMINUM / NICKEL PLATED |
|---|---|
| Outer pistons | No outer piston |
| Wetted O-rings / gaskets | SANITARY EPDM |
| Hardware material | Stainless steel |
| Muffler | Aluminum |
| Special option code | 0770 |
Use the trace for this diaphragm configuration. Click to view the full-size image.
AIR REPAIR KIT
Air distribution service kit matched to this 1-inch Pro-Flo Shift XPS2 configuration. Confirm the complete pump code when ordering.
Repair kits are ordered separately. Include the complete pump code and kit number in your enquiry.
Quote 02-13031 and XPS2/SZNNN/FSL/FS/FE/0770, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
